How Do Neodymium Magnets Perform in Harsh Environments?

Understanding Environmental Challenges

Some of the harsh environments where neodymium magnets are used include:

High Humidity or Submersion: Applications near water or in high-humidity regions increase the risk of corrosion, especially if the magnet’s surface is not well protected.
Salt Spray or Marine Conditions: Coastal or marine applications expose magnets to salt, which is highly corrosive.
High Temperatures: Elevated temperatures can cause standard neodymium magnets to lose magnetism permanently.
Chemically Active Environments: Exposure to acids, alkalis, or industrial solvents can degrade the magnet’s coating and core material.

Choosing the Right Magnet Grade

Standard neodymium magnets like N35 or N42 may not be suitable for harsh environments. Instead, consider high-temperature grades such as:

N42SH, N48SH, N35UH, N38EH: These magnets are designed to maintain stable magnetic performance at elevated temperatures ranging from 150°C to over 200°C, depending on the grade.

Choosing the right grade ensures that the magnet performs reliably over time without losing magnetic force due to thermal stress.

Neodymium	Br		Hcb		Hcj		(Bh)max		Tw
Grade	mT	kGs	kA/m	kOe	kA/m	kOe	kJ/m3	MGOe	℃
N35	1170-1220	11.7-12.2	＞868	＞10.9	＞955	＞12	263-287	33-36	＜80
N38	1220-1250	12.2-12.5	＞899	＞11.3	＞955	＞12	287-310	38-39	＜80
N40	1250-1280	12.5-12.8	＞907	＞11.4	＞955	＞12	302-326	38-41	＜80
N42	1280-1320	12.8-13.2	＞915	＞11.5	＞955	＞12	318-342	40-43	＜80
N45	1320-1370	13.2-13.7	＞915	＞11.5	＞955	＞12	342-367	41-44	＜80
N48	1380-1420	13.8-14.2	＞923	＞11.6	＞955	＞12	366-390	46-49	＜80
N50	1400-1450	14.0-14.5	＞796	＞10	＞876	＞11	382-406	48-49	＜80
N52	1430-1480	14.3-14.8	＞796	＞10	＞876	＞11	398-422	50-53	＜80
35M	1170-1220	11.7-12.2	＞868	＞10.9	＞1114	＞14	263-297	33-36	＜100
38M	1220-1250	12.2-12.5	＞899	＞11.3	＞1114	＞14	297-310	36-39	＜100
40M	1250-1280	12.5-12.8	＞923	＞11.6	＞1114	＞14	302-326	38-41	＜100
42M	1280-1320	12.8-13.2	＞955	＞12	＞1114	＞14	318-342	40-43	＜100
48M	1360-1430	13.6-14.3	＞1027	＞12.9	＞1114	＞14	366-390	46-49	＜100
50M	1400-1450	14.0-14.5	＞1033	＞13	＞1114	＞14	382-406	48-51	＜100
33H	1130-1170	11.3-11.7	＞836	＞10.5	＞1353	＞17	247-271	31-34	＜120
35H	1170-1220	11.7-12.2	＞868	＞10.9	＞1353	＞17	263-287	33-36	＜120
38H	1220-1250	12.2-12.5	＞899	＞11.3	＞1353	＞17	287-310	36-39	＜120
40H	1250-1280	12.5-12.8	＞923	＞11.6	＞1353	＞17	302-326	38-41	＜120
42H	1280-1320	12.8-13.2	＞955	＞12	＞1353	＞17	318-342	40-43	＜120
45H	1300-1360	13-13.6	＞963	＞12.1	＞1353	＞17	326-358	43-46	＜120
48H	1370-1430	13.7-14.3	＞995	＞12	＞1353	＞17	366-390	46-49	＜120
30SH	1080-1130	10.8-11.3	＞804	＞10.1	＞1592	＞20	223-247	28-31	＜150
33SH	1130-1170	10.3-11.7	＞844	＞10.6	＞1592	＞20	247-271	31-34	＜150
35SH	1170-1220	11.7-12.2	＞876	＞11	＞1592	＞20	263-287	33-36	＜150
38SH	1220-1250	12.2-12.5	＞907	＞11.4	＞1592	＞20	287-310	36-39	＜150
40SH	1240-1280	12.5-12.8	＞939	＞11.8	＞1592	＞20	302-326	36-41	＜150
42SH	1280-1320	12.8-13.2	＞987	＞12.4	＞1592	＞20	318-342	40-43	＜150
45SH	1320-1380	13.2-13.8	＞1003	＞12.6	＞1592	＞20	342-366	43-46	＜150
28UH	1020-1080	10.2-10.8	＞764	＞9.6	＞1990	＞25	207-231	26-29	＜180
30UH	1080-1130	10.8-11.3	＞812	＞10.2	＞1990	＞25	223-247	28-31	＜180
33UH	1130-1170	11.3-11.7	＞852	＞10.7	＞1990	＞25	247-271	31-36	＜180
35UH	1170-1220	11.8-12.2	＞860	＞10.8	＞1990	＞25	263-287	33-36	＜180
38UH	1220-1250	12.2-12.5	＞876	＞11	＞1990	＞25	287-310	36-39	＜180
40UH	1250-1280	12.5-12.8	＞899	＞11.3	＞1990	＞25	302-326	31-41	＜180
28EH	1040-1090	10.4-10.9	＞780	＞9.8	＞2388	＞30	207-231	26-29	＜200
30EH	1080-1130	10.8-11.3	＞812	＞10.2	＞2388	＞30	223-247	28-31	＜200
33EH	1130-1170	11.3-11.7	＞836	＞10.5	＞2388	＞30	247-271	31-36	＜200
35EH	1170-1220	11.7-12.2	＞876	＞11	＞2388	＞30	263-287	33-36	＜200
38EH	1220-1250	12.2-12.5	＞899	＞11.3	＞2388	＞30	287-310	36-39	＜200
28AH	1040-1090	10.4-10.9	＞787	＞9.9	＞2642	＞33	207-231	26-29	＜230
30AH	1080-1130	10.8-11.3	＞819	＞10.3	＞2642	＞33	223-247	28-31	＜230
38AH	1130-1170	11.3-11.7	＞843	＞10.6	＞2642	＞33	247-271	31-34	＜230

Protective Coatings That Make a Difference

Coating is the first line of defense for neodymium magnets. For demanding environments, opt for:

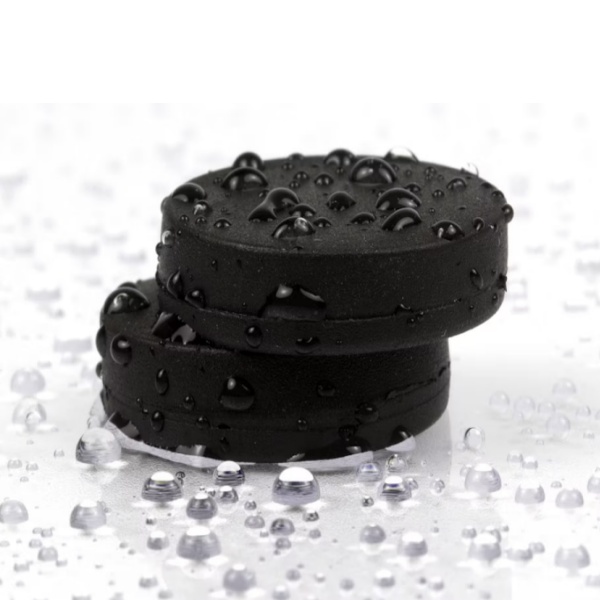

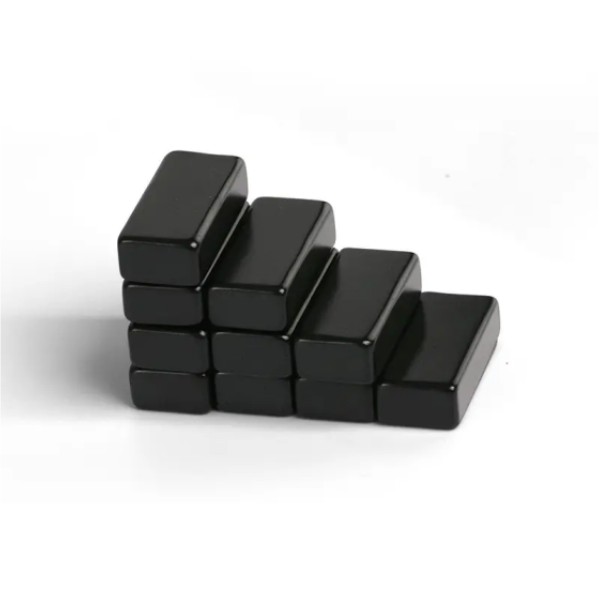

Epoxy Coating: Ideal for humid or moderately corrosive environments. Offers better moisture resistance than standard nickel.
PTFE (Teflon) Coating: Highly chemical-resistant and non-stick, ideal for medical or food-related uses.

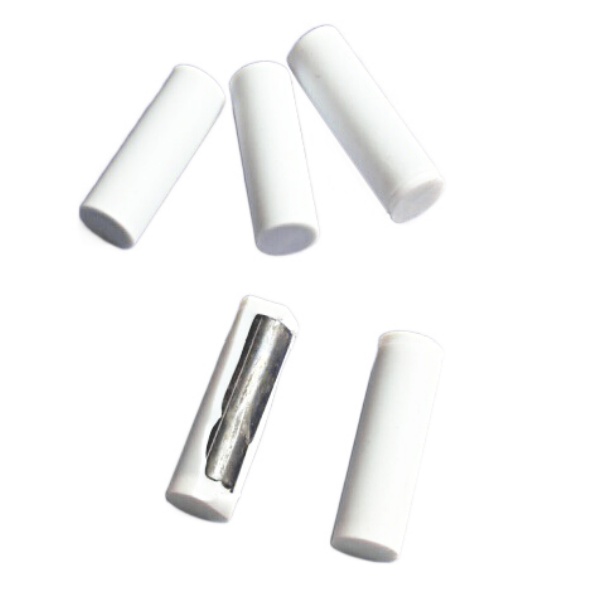

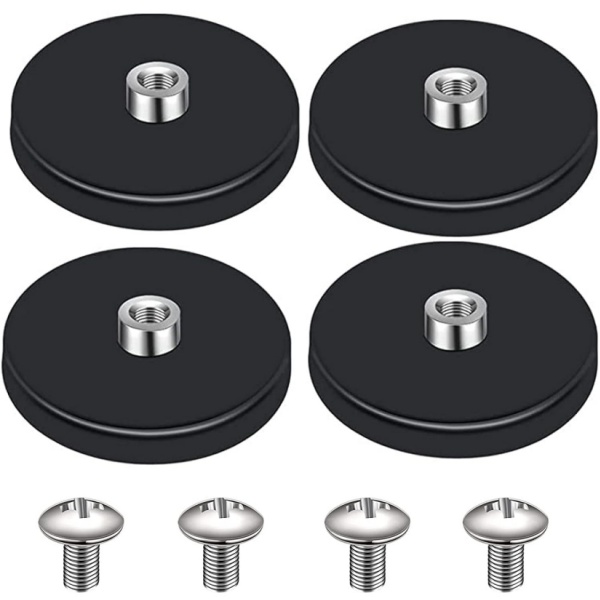

Plastic or Rubber Encapsulation: Adds a waterproof barrier and physical cushioning for shock resistance.

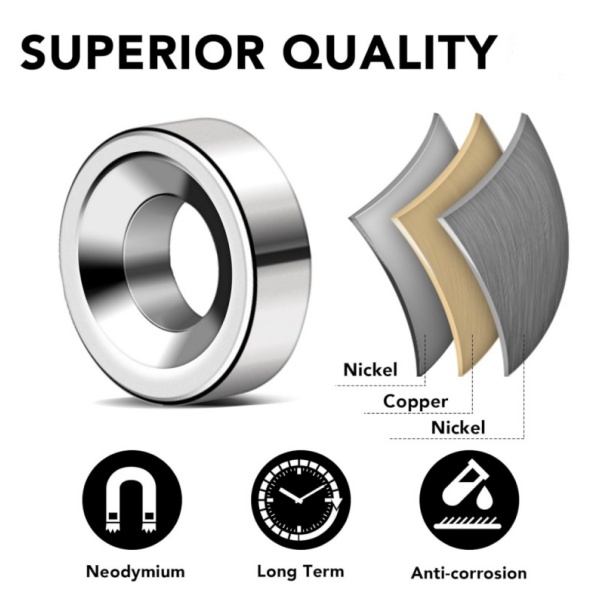

Multi-layer Coating (Ni-Cu-Ni): Offers combined durability, corrosion resistance, and aesthetics.

Custom Solutions for Extreme Conditions

As a professional magnets manufacturer, we offer tailored neodymium magnet solutions based on your working conditions. Whether you need arc magnets for motors exposed to oil and dust, or tiny magnets for outdoor sensors enduring rain and snow, we can recommend the right material grade, coating, and packaging method.

We also provide custom magnet assemblies and testing support to verify performance before mass production.

Conclusion

The success of your magnetic application depends not only on the strength of the magnet but also on its ability to endure environmental stress. By choosing the right magnet grade and protective coating, you can extend product life, reduce maintenance, and ensure safety and efficiency.

Need help selecting the right neodymium magnet for your harsh environment? Contact us today for expert advice and customization support.
