Powerful, cost-effective Grade 8 ceramic magnets offering secure hold with superior resistance to corrosion and demagnetization.
Size :

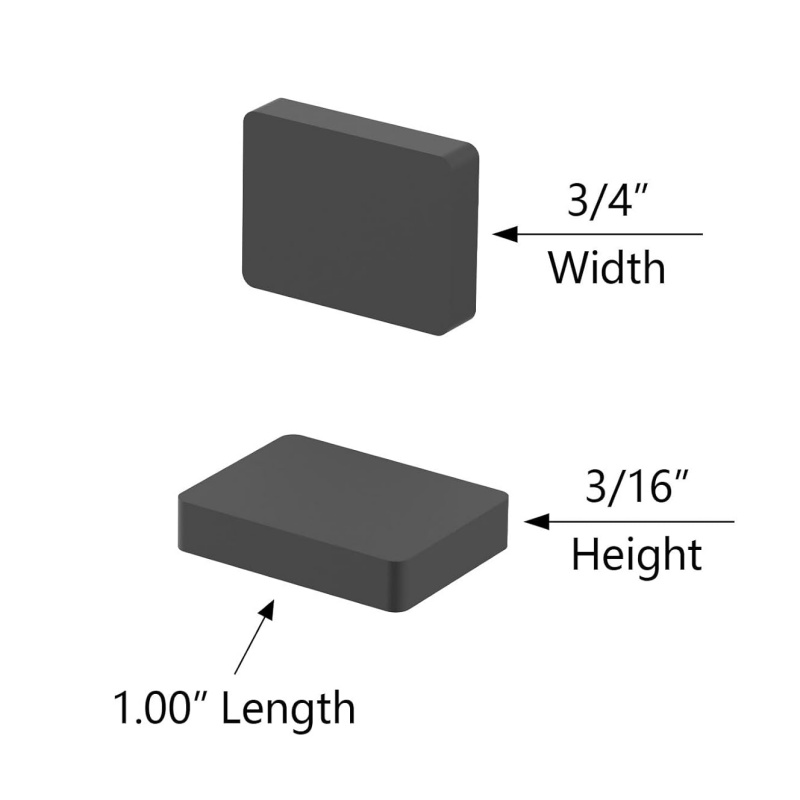

25.4x19x4.8mmColor :
BlackOrder(MOQ) :
100pcsLead Time :
10-15daysPayment :
Paypal/TT/Credit CardChina Supplier Wholesale Powerful Ferrite Block Magnets
Product Description
| Material | Br | Hcb | Hcj | (Bh)max | ||||
| Mt | Kg | kA/m | kOe | kA/m | kOe | kJ/m3 | MGOe | |
| Y10T | 200-235 | 2.0-2.35 | 125-160 | 1.57-2.01 | 210-280 | 2.64-3.52 | 6.5-9.5 | 0.8-1.2 |
| Y20 | 320-380 | 3.2-3.8 | 135-190 | 1.7-2.38 | 140-195 | 1.76-2.45 | 18-22 | 2.3-2.8 |
| Y22H | 310-360 | 3.2-3.8 | 220-250 | 2.77-3.14 | 280-320 | 3.52-4.02 | 20.0-24 | 2.5-3.0 |
| Y23 | 320-370 | 3.2-3.8 | 170-190 | 2.14-2.38 | 190-230 | 2.39-2.89 | 20.0-25.5 | 2.5-3.2 |
| Y25 | 360-400 | 3.6-4.0 | 135-170 | 1.7-2.14 | 140-200 | 1.76-2.51 | 22.5-28.0 | 2.8-3.5 |
| Y26H | 360-390 | 3.6-3.9 | 220-250 | 2.77-3.14 | 225-255 | 2.83-3.21 | 23.0-28.0 | 2.9-3.5 |
| Y27H | 370-400 | 3.7-4 | 205-250 | 2.58-3.14 | 210-255 | 2.64-3.21 | 25.0-29.0 | 3.1-3.7 |
| Y30 | 370-400 | 3.7-4 | 175-210 | 2.2-2.64 | 180-220 | 2.26-2.77 | 26.0-30.0 | 3.3-3.8 |
| Y30BH | 380-390 | 3.8-3.9 | 223-235 | 2.8-2.95 | 231-245 | 2.90-3.08 | 27.0-30.0 | 3.4-3.7 |
| Y30-1 | 380-400 | 3.8-4.0 | 230-275 | 2.89-3.46 | 235-290 | 2.95-3.65 | 27.0-32.0 | 3.4-4.0 |
| Y30-2 | 395-415 | 3.95-4.15 | 275-300 | 3.46-3.77 | 310-335 | 3.90-4.21 | 28.5-32.5 | 3.5-4.0 |
| Y32 | 400-420 | 4.0-4.2 | 160-190 | 2.01-2.38 | 165-195 | 2.07-2.45 | 30.0-33.5 | 3.8-4.2 |
| Y33 | 410-430 | 4.2-4.3 | 220-250 | 2.77-3.14 | 225-255 | 2.83-3.21 | 31.5-35.0 | 4.0-4.4 |
| Y35 | 100-410 | 4.0-4.1 | 175-195 | 2.2-2.45 | 180-200 | 2.26-2.51 | 30.0-32.0 | 3.8-4.0 |

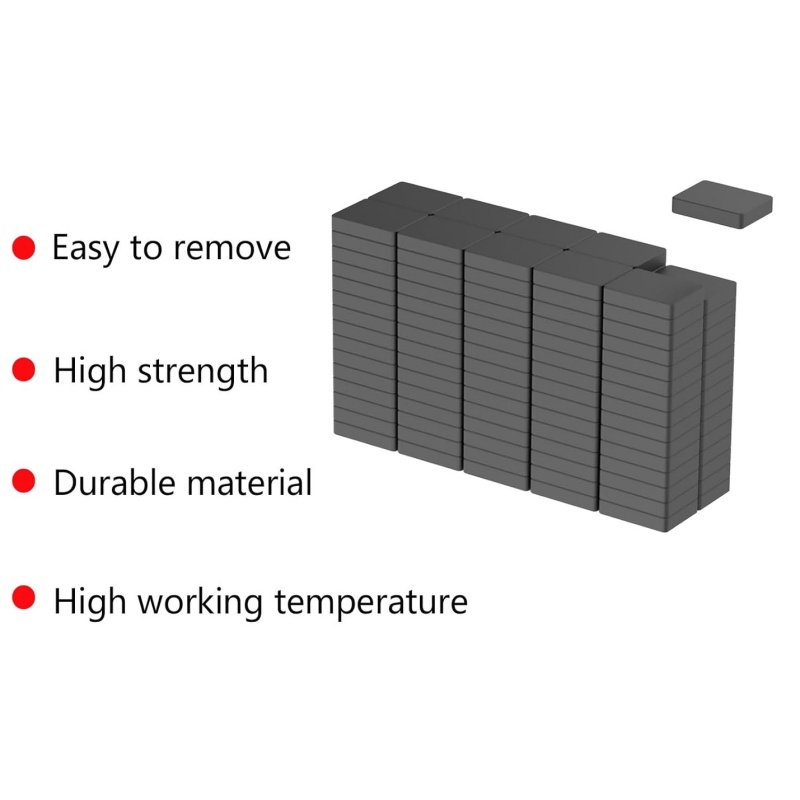

Engineered for superior performance, our robust ceramic magnets (also known as ferrite magnets) deliver a strong Grade 8 magnetic pull with exceptional internal strength, securely holding objects in place. Ceramic block magnets offer the same powerful performance as other magnet materials but at a more cost-effective price, giving you greater value without compromise.
Built to last, block ferrite magnets feature high resistance to demagnetization, corrosion, and oxidation, making them suitable for use in both fresh water and salt water environments.
Versatile for Endless Applications:
Ideal for a wide range of uses—from industrial and manufacturing to craft and hobby projects. Perfect for heavy-duty applications like motor construction and security systems, as well as everyday convenience. Commonly used to attach items like photo frames, calendars, and schedules to any ferrous metal surface, including:
Refrigerator Doors
Tools & Appliances
Lockers & Whiteboards
Cars & Cans
Discover the reliable and economical solution for all your magnetic needs.
