Wholesale Diameter Magnetized Small Ring sintered NdFeB Magnets

Small ring neodymium magnet with diameter magnetization designed for applications requiring compact size, strong magnetic force, and precise magnetic orientation.

  • Size :

    OD8 - ID3x2mm

  • Color :

    Silver

  • Order(MOQ) :

    100pcs

  • Sample :

    Free

  • Lead Time :

    10-15days

  • Payment :

    Paypal/TT/Credit Card
Inquire Now

Wholesale Diameter Magnetized Small Ring Sintered NdFeB Magnets

Product Description

Wholesale Diameter Magnetized Small Ring Sintered NdFeB Magnets

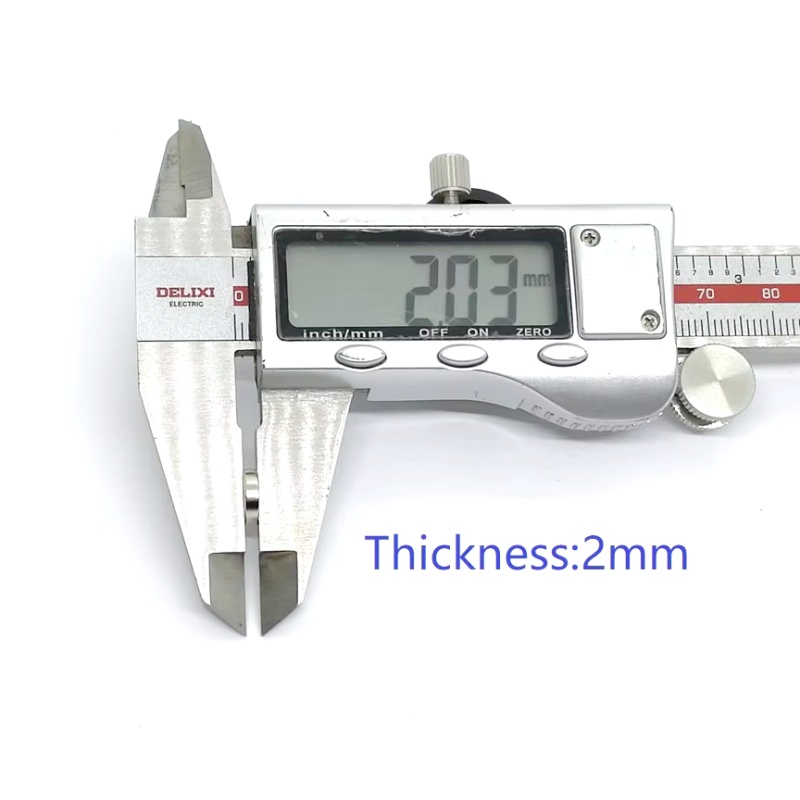

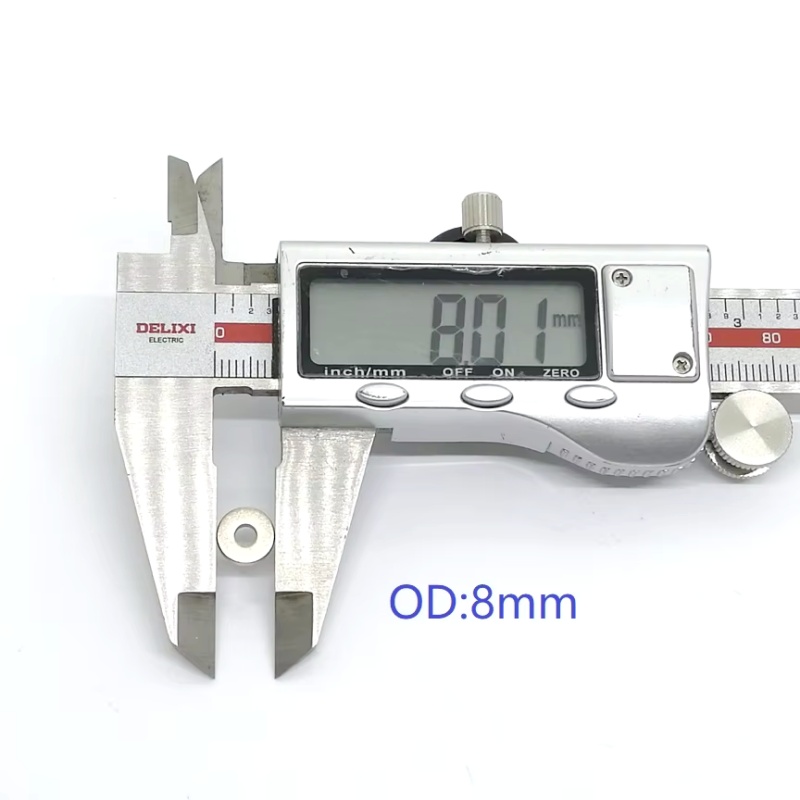

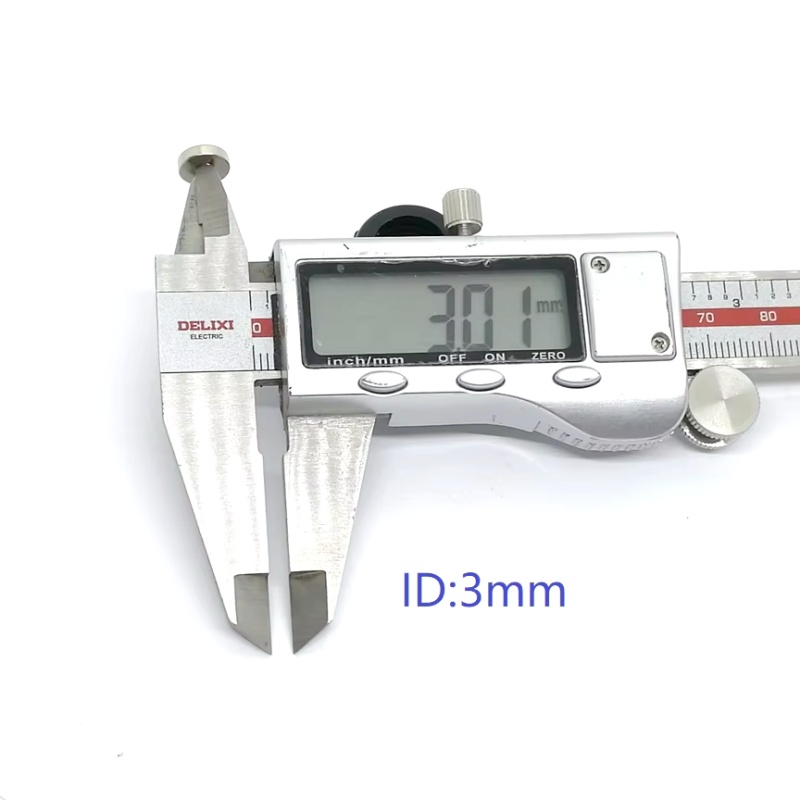

Dimensions: OD8 - ID3x2mm

Shape: Ring

Tolerances: ±0.05mm

Plating/Coating: Ni-Cu-Ni (Nickel)

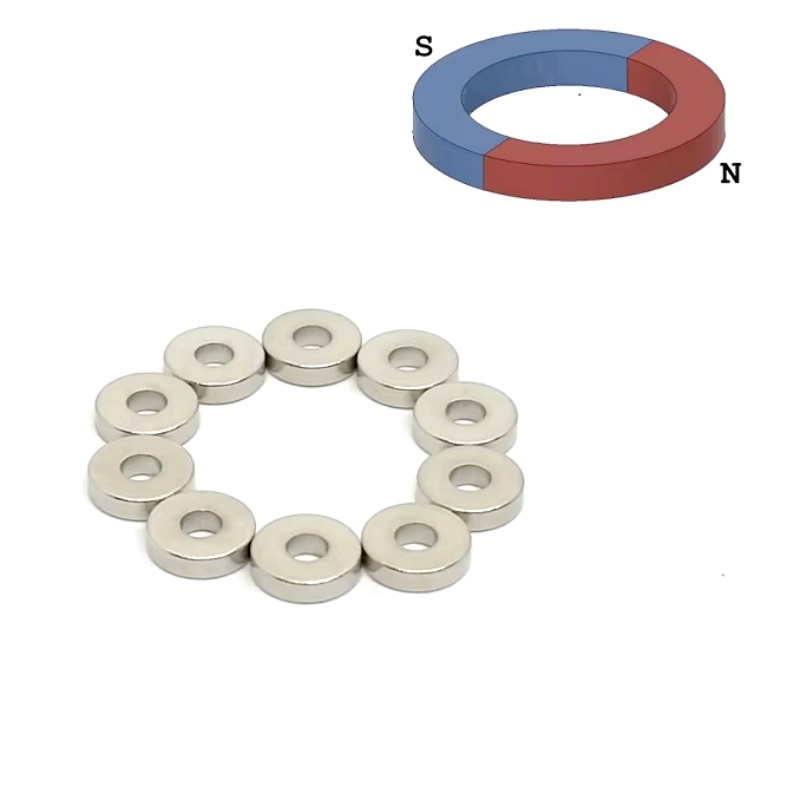

Magnetization Direction: Diameter



Warning:

Keep away from pacemakers.

Always practice safe handling and keep away from children at all times.

1. Featuring an 8mm outer diameter, 3mm inner hole, and 2mm thickness, this neodymium ring magnet offers a compact structure ideal for precision devices, sensors, models, DIY projects, and electronic applications where space is limited.

2. Made from high quality sintered neodymium iron boron magnetic material, this ring magnet provides excellent magnetic strength, high energy density, and reliable performance for industrial and commercial applications.

3. The smooth nickel coating provides excellent corrosion resistance and wear protection, helping the ring strong neodymium magnet maintain a clean appearance and stable magnetic performance during long-term use.

4. Designed with radial magnetization through the diameter direction, this donut shaped neodymium magnet delivers a clear north and south pole arrangement, making it easy to install in mechanical assemblies, magnetic couplings, and automation equipment.

custom ring shape permanent magnets



Customization

We have over 20 years experience of supplying Neodymium Magnets, supply a wide range of customized neodymium magnets according to requests.



* Custom shapes, sizes, coatings, and more.
* Free samples.
* High quality, fast delivery.
*Professional project team service.
customizable permanent radial ring magnets
Neodymium Br Hcb Hcj (Bh)max Tw
Grade mT kGs kA/m kOe kA/m kOe kJ/m3 MGOe ℃
N35 1170-1220 11.7-12.2 ＞868 ＞10.9 ＞955 ＞12 263-287 33-36 ＜80
N38 1220-1250 12.2-12.5 ＞899 ＞11.3 ＞955 ＞12 287-310 38-39 ＜80
N40 1250-1280 12.5-12.8 ＞907 ＞11.4 ＞955 ＞12 302-326 38-41 ＜80
N42 1280-1320 12.8-13.2 ＞915 ＞11.5 ＞955 ＞12 318-342 40-43 ＜80
N45 1330-1370 13.3-13.7 ＞915 ＞11.5 ＞955 ＞12 342-367 41-44 ＜80
N48 1380-1420 13.8-14.2 ＞923 ＞11.6 ＞955 ＞12 366-390 46-49 ＜80
N50 1400-1450 14.0-14.5 ＞796 ＞10 ＞876 ＞11 382-406 48-49 ＜80
N52 1430-1480 14.3-14.8 ＞796 ＞10 ＞876 ＞11 398-422 50-53 ＜80
35M 1170-1220 11.7-12.2 ＞868 ＞10.9 ＞1114 ＞14 263-297 33-36 ＜100
38M 1220-1250 12.2-12.5 ＞899 ＞11.3 ＞1114 ＞14 297-310 36-39 ＜100
40M 1250-1280 12.5-12.8 ＞923 ＞11.6 ＞1114 ＞14 302-326 38-41 ＜100
42M 1280-1320 12.8-13.2 ＞955 ＞12 ＞1114 ＞14 318-342 40-43 ＜100
48M 1360-1430 13.6-14.3 ＞1027 ＞12.9 ＞1114 ＞14 366-390 46-49 ＜100
50M 1400-1450 14.0-14.5 ＞1033 ＞13 ＞1114 ＞14 382-406 48-51 ＜100
33H 1130-1170 11.3-11.7 ＞836 ＞10.5 ＞1353 ＞17 247-271 31-34 ＜120
35H 1170-1220 11.7-12.2 ＞868 ＞10.9 ＞1353 ＞17 263-287 33-36 ＜120
38H 1220-1250 12.2-12.5 ＞899 ＞11.3 ＞1353 ＞17 287-310 36-39 ＜120
40H 1250-1280 12.5-12.8 ＞923 ＞11.6 ＞1353 ＞17 302-326 38-41 ＜120
42H 1280-1320 12.8-13.2 ＞955 ＞12 ＞1353 ＞17 318-342 40-43 ＜120
45H 1300-1360 13-13.6 ＞963 ＞12.1 ＞1353 ＞17 326-358 43-46 ＜120
48H 1370-1430 13.7-14.3 ＞995 ＞12 ＞1353 ＞17 366-390 46-49 ＜120
30SH 1080-1130 10.8-11.3 ＞804 ＞10.1 ＞1592 ＞20 223-247 28-31 ＜150
33SH 1130-1170 10.3-11.7 ＞844 ＞10.6 ＞1592 ＞20 247-271 31-34 ＜150
35SH 1170-1220 11.7-12.2 ＞876 ＞11 ＞1592 ＞20 263-287 33-36 ＜150
38SH 1220-1250 12.2-12.5 ＞907 ＞11.4 ＞1592 ＞20 287-310 36-39 ＜150
40SH 1240-1280 12.5-12.8 ＞939 ＞11.8 ＞1592 ＞20 302-326 36-41 ＜150
42SH 1280-1320 12.8-13.2 ＞987 ＞12.4 ＞1592 ＞20 318-342 40-43 ＜150
45SH 1320-1380 13.2-13.8 ＞1003 ＞12.6 ＞1592 ＞20 342-366 43-46 ＜150
28UH 1020-1080 10.2-10.8 ＞764 ＞9.6 ＞1990 ＞25 207-231 26-29 ＜180
30UH 1080-1130 10.8-11.3 ＞812 ＞10.2 ＞1990 ＞25 223-247 28-31 ＜180
33UH 1130-1170 11.3-11.7 ＞852 ＞10.7 ＞1990 ＞25 247-271 31-36 ＜180
35UH 1170-1220 11.8-12.2 ＞860 ＞10.8 ＞1990 ＞25 263-287 33-36 ＜180
38UH 1220-1250 12.2-12.5 ＞876 ＞11 ＞1990 ＞25 287-310 36-39 ＜180
40UH 1250-1280 12.5-12.8 ＞899 ＞11.3 ＞1990 ＞25 302-326 31-41 ＜180
28EH 1040-1090 10.4-10.9 ＞780 ＞9.8 ＞2388 ＞30 207-231 26-29 ＜200
30EH 1080-1130 10.8-11.3 ＞812 ＞10.2 ＞2388 ＞30 223-247 28-31 ＜200
33EH 1130-1170 11.3-11.7 ＞836 ＞10.5 ＞2388 ＞30 247-271 31-36 ＜200
35EH 1170-1220 11.7-12.2 ＞876 ＞11 ＞2388 ＞30 263-287 33-36 ＜200
38EH 1220-1250 12.2-12.5 ＞899 ＞11.3 ＞2388 ＞30 287-310 36-39 ＜200
28AH 1040-1090 10.4-10.9 ＞787 ＞9.9 ＞2642 ＞33 207-231 26-29 ＜230
30AH 1080-1130 10.8-11.3 ＞819 ＞10.3 ＞2642 ＞33 223-247 28-31 ＜230
38AH 1130-1170 11.3-11.7 ＞843 ＞10.6 ＞2642 ＞33 247-271 31-34 ＜230

Packing&Shipping

small ring neodymium magnets

nickel coated neodymium ring magnet

Hot Tags : Industrial Diametrically Magnetized Ring Magnet Nickel Coated Permanent Ring Magnets Precision Small Neodymium Ring Magnet NiCuNi Ring Strong Neodymium Magnets Round Magnet With Hole In Center China NdFeB Ring Magnets Wholesale
