Ring Neodymium Magnets

N52 Neodymium Ring Magnet For Electric Motor

N52 Neodymium Ring Magnet For Electric Motor

Neodymium ring magnets useful for science experiments, classroom magnets, school projects, home improvement, diy projects, speakers, arts and crafts and much more

  • Size :

    custom
  • Color :

    Silver
  • Order(MOQ) :

    100pcs
  • Coating :

    NiCuNi
  • Lead Time :

    3-15days
  • Payment :

    Paypal/TT/Credit Card

N52 Neodymium Ring Magnet For Electric Motor

Product Description

Dimensions: custom

Tolerances: ±0.004" x ±0.004"

Plating/Coating: Ni-Cu-Ni (Nickel)

Magnetization Direction: Axial (Poles on Flat Ends)

Max Operating Temp: 176ºF (80ºC)



Specification

Neodymium Br Hcb Hcj (Bh)max Tw
Grade mT kGs kA/m kOe kA/m kOe kJ/m3 MGOe
N35 1170-1220 11.7-12.2 868 10.9 955 12 263-287 33-36 80
N38 1220-1250 12.2-12.5 899 11.3 955 12 287-310 38-39 80
N40 1250-1280 12.5-12.8 907 11.4 955 12 302-326 38-41 80
N42 1280-1320 12.8-13.2 915 11.5 955 12 318-342 40-43 80
N48 1380-1420 13.8-14.2 923 11.6 955 12 366-390 46-49 80
N50 1400-1450 14.0-14.5 796 10 876 11 382-406 48-49 80
N52 1430-1480 14.3-14.8 796 10 876 11 398-422 50-53 80

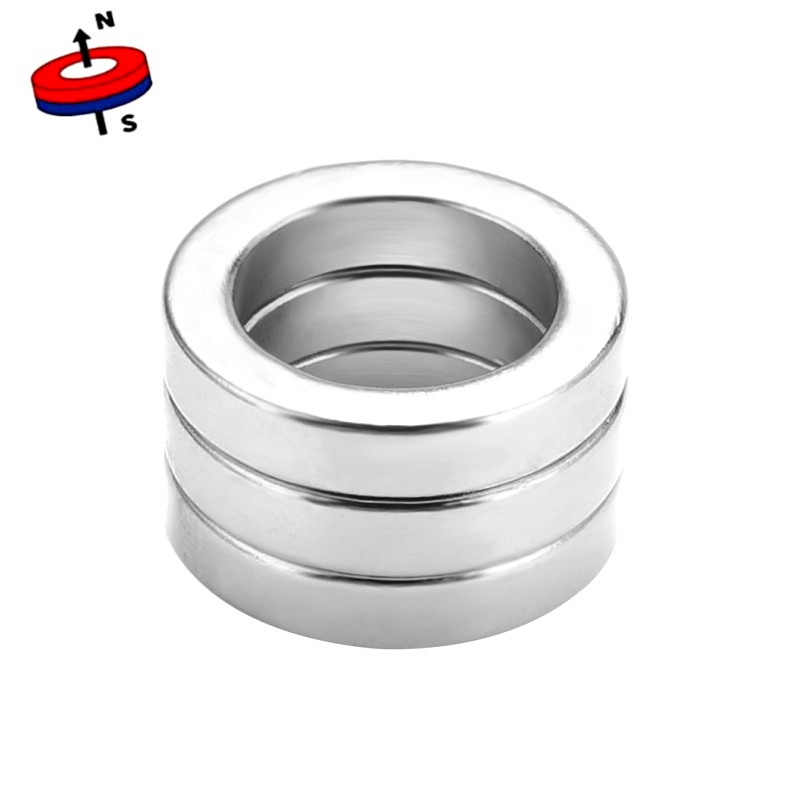

Magnetization Direction
custom ring magnet
N52 Neodymium Ring Magnet For Electric Motor

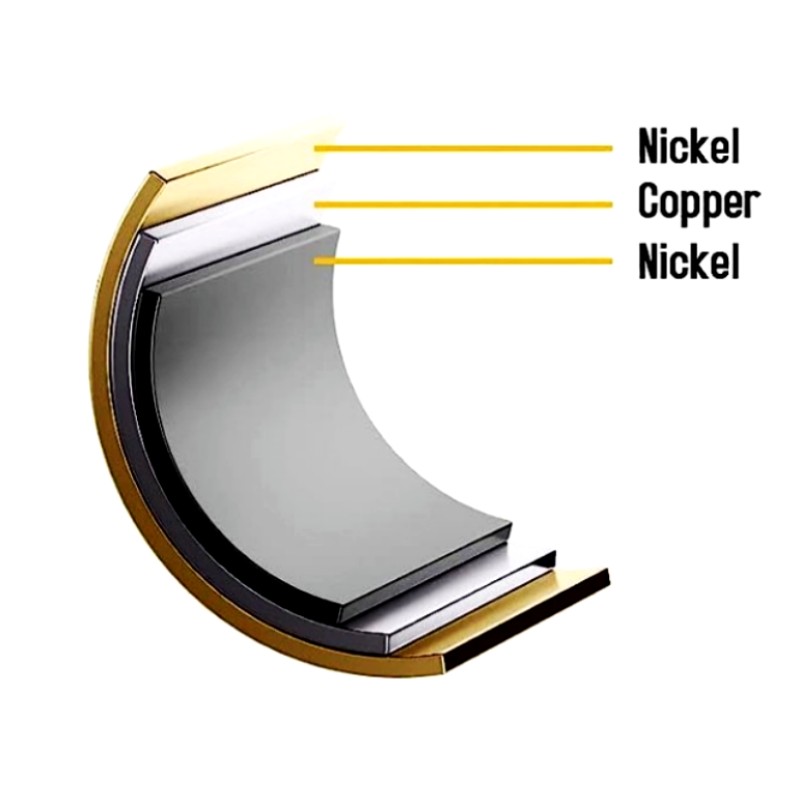

The sintered NdFeB ring magnets made of rare earth, Ni Cu Ni Triple Layer Coated for maximum durability and protection against corrosion.





neodymium magnet n52 ring

N52 ring neodymium magnets great for all home, office, craft, hobby, science projects and product manufacturing applications.



Packing&Shipping

diametrically magnetized ring magnets

industrial neodymium magnet ring

leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
