Size :
3x0.5 InchColor :
BlackOrder(MOQ) :
100pcsSample :
AvailableLead Time :
3-15daysPayment :

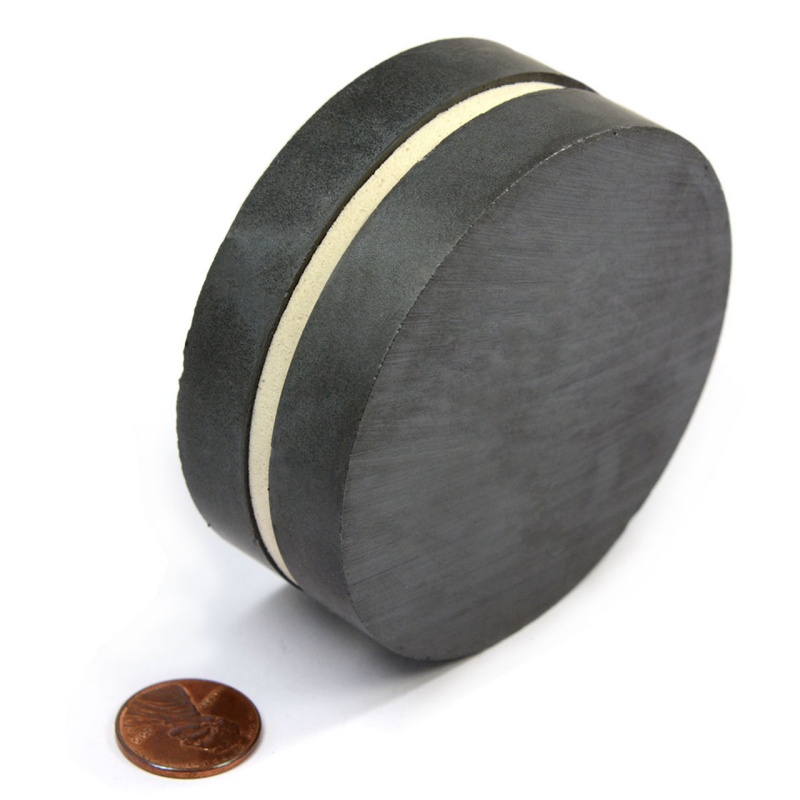

Paypal/TT/Credit Card11.4 LB Pulling Force 3inch Large Round Ferrite Magnet Wholesale
Product Description
Crafted from high-grade 8 hard ferrite material, our premium ceramic disc magnets deliver exceptional durability and powerful 11.4 lbs pull force—perfect for demanding applications. Manufactured with state-of-the-art technology under strict ISO 9002 quality standards, these magnets ensure consistent performance and long-lasting reliability.
Customization
Ferrite Magnets have excellent machining properties which allows them to be cut into different shapes and sizes and a relative low cost. such as disc, ring and rectangular.
In addition, they are corrosion-resistant and easy to magnetize, making them the popular choice for a wide range of consumer, commercial, industrial and technical applications.
| Material | Br | HcB | HcJ | (BH)max | ||||
| mT | KG | KA/m | KOe | KA/m | KOe | Kj/m³ | MGOe | |
| Y10T | 200~235 | 2.0~2.35 | 125~160 | 1.57~2.01 | 210~280 | 2.64~3.52 | 6.5~9.5 | 0.8~1.2 |
| Y20 | 320~380 | 3.2~3.8 | 135~190 | 1.70~2.38 | 140~195 | 1.76~2.45 | 18.0~22.0 | 2.3~2.8 |
| Y22H | 310~360 | 3.1~3.6 | 220~250 | 2.77~3.14 | 280~320 | 3.52~4.02 | 20.0~24.0 | 2.5~3.0 |
| Y23 | 320~370 | 3.2~3.7 | 170~190 | 2.14~2.38 | 190~230 | 2.39~2.89 | 20.0~25.5 | 2.5~3.2 |
| Y25 | 360~400 | 3.6~4.0 | 135~170 | 1.70~2.14 | 140~200 | 1.76~2.51 | 22.5~28.0 | 2.8~3.5 |
| Y26H | 360~390 | 3.6~3.9 | 220~250 | 2.77~3.14 | 225~255 | 2.83~3.21 | 23.0~28.0 | 2.9~3.5 |
| Y27H | 370~400 | 3.7~4.0 | 205~250 | 2.58~3.14 | 210~255 | 2.64~3.21 | 25.0~29.0 | 3.1~3.7 |
| Y30 | 370~400 | 3.7~4.0 | 175~210 | 2.20~2.64 | 180~220 | 2.26~2.77 | 26.0~30.0 | 3.3~3.8 |
| Y30BH | 380~390 | 3.8~3.90 | 223~235 | 2.80~2.95 | 231~245 | 2.90~3.08 | 27.0~30.0 | 3.4~3.7 |
| Y30- 1 | 380~400 | 3.8~4.0 | 230~275 | 2.89~3.46 | 235~290 | 2.95~3.65 | 27.0~32.0 | 3.4~4.0 |
| Y20-2 | 395~415 | 3.95~4.15 | 275~300 | 3.46~3.77 | 310~335 | 3.90~4.21 | 28.5~32.5 | 3.5~4.0 |
| Y32 | 400~420 | 4.0~4.2 | 160~190 | 2.01~2.38 | 165~195 | 2.07~2.45 | 30.0~33.5 | 3.8~4.2 |
| Y33 | 410~430 | 4.1~4.3 | 220~250 | 2.77~3.14 | 225~255 | 2.83~3.21 | 31.5~35.0 | 4.0~4.4 |
| Y35 | 400~410 | 4.00~4.10 | 175~195 | 2.20~2.45 | 180~200 | 2.26~2.51 | 30.0~32.0 | 3.8~4.0 |
People widely use disc ferrite magnets as kitchen magnets, office magnets, classroom magnets, fridge magnets, photo magnets, whiteboard magnets, etc.
Read More

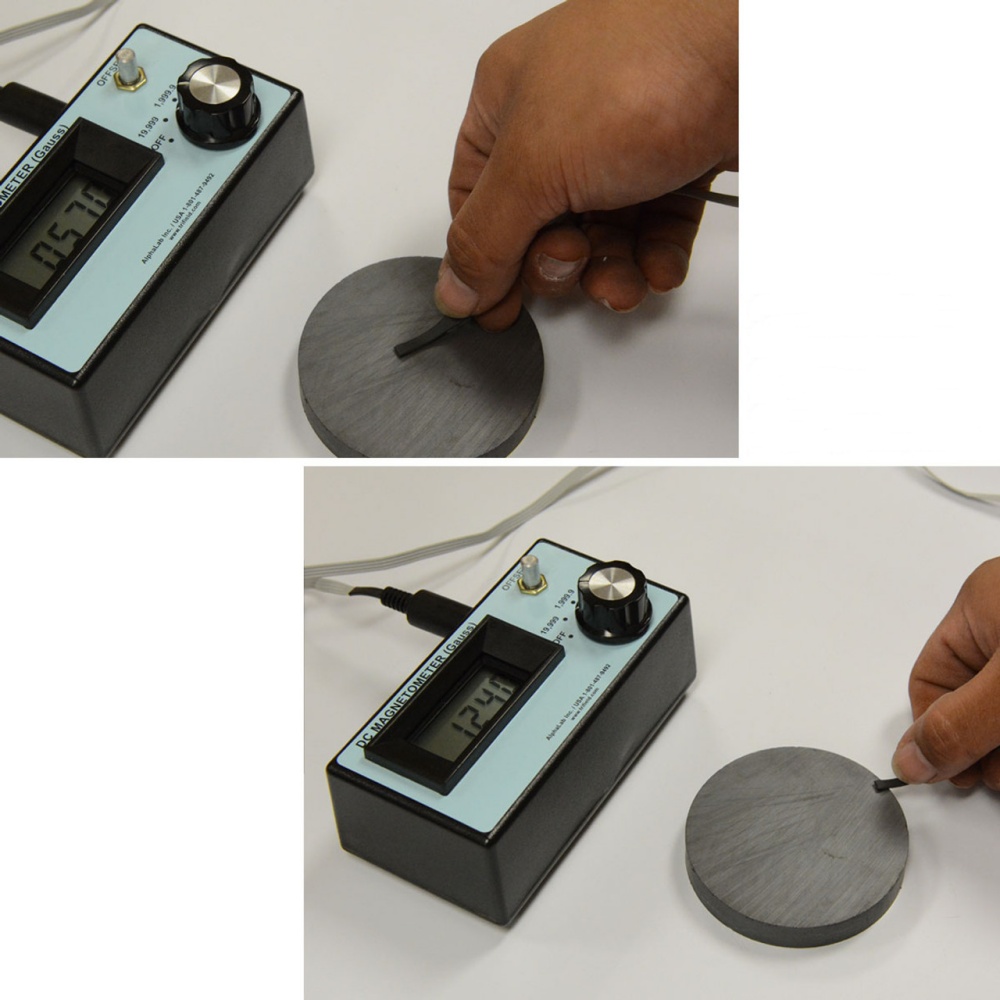

Grade 8 ceramic magnet material with 3,850 gaussian internal.
Read More
These ferrite bar magnets designed for cost-effective yet powerful performance, making them an essential component for a variety of professional applications.
Read More

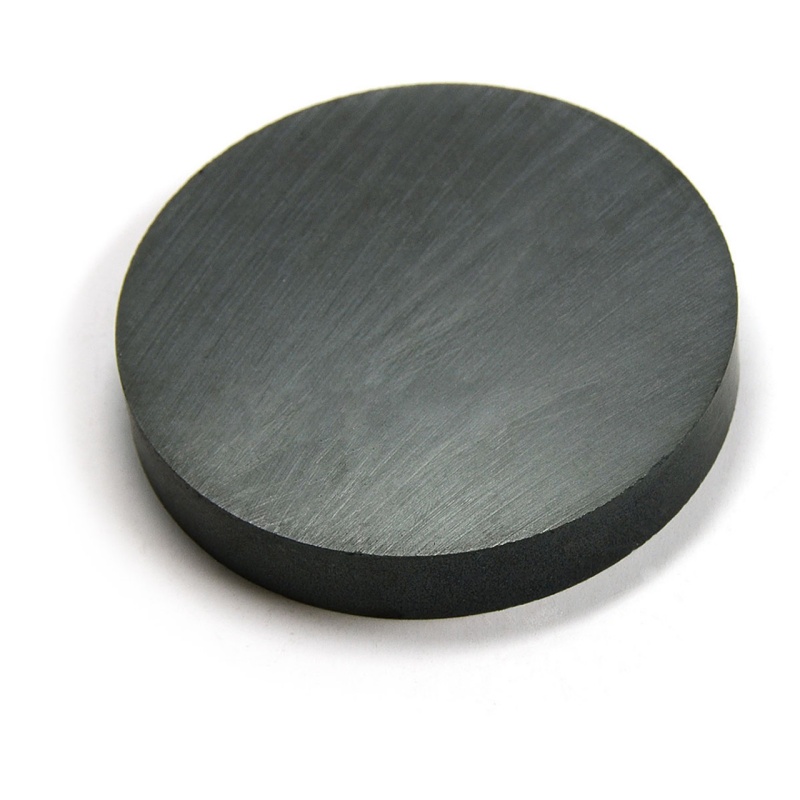

Ferrite disc magnets have diameter greater than thickness, magnetized from top-to-bottom through the thickness.
