Size :

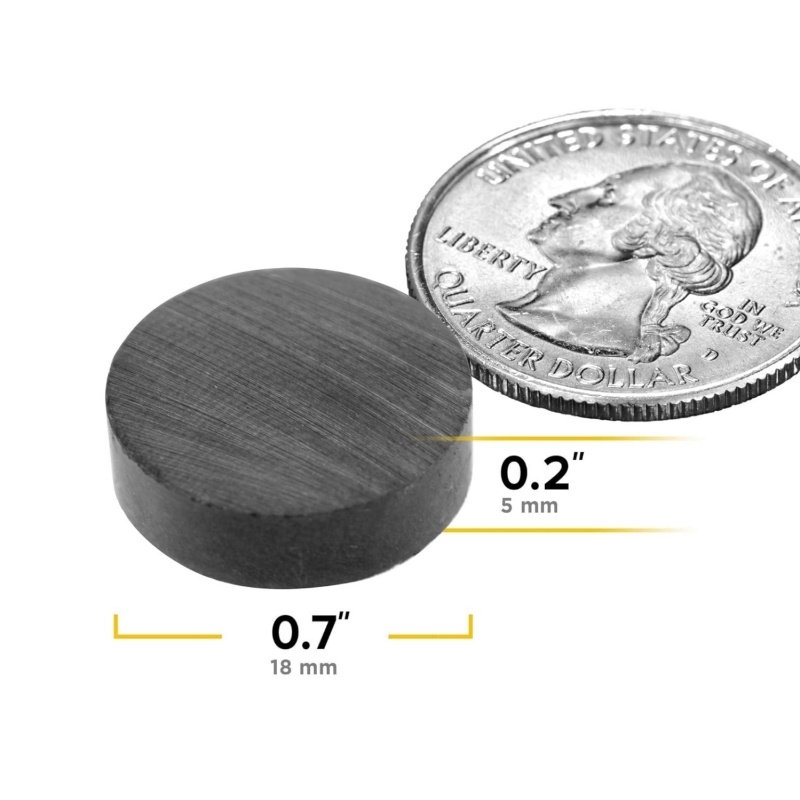

D18x5mmColor :
BlackOrder(MOQ) :
100pcsSample :
FreeLead Time :
3-15daysPayment :

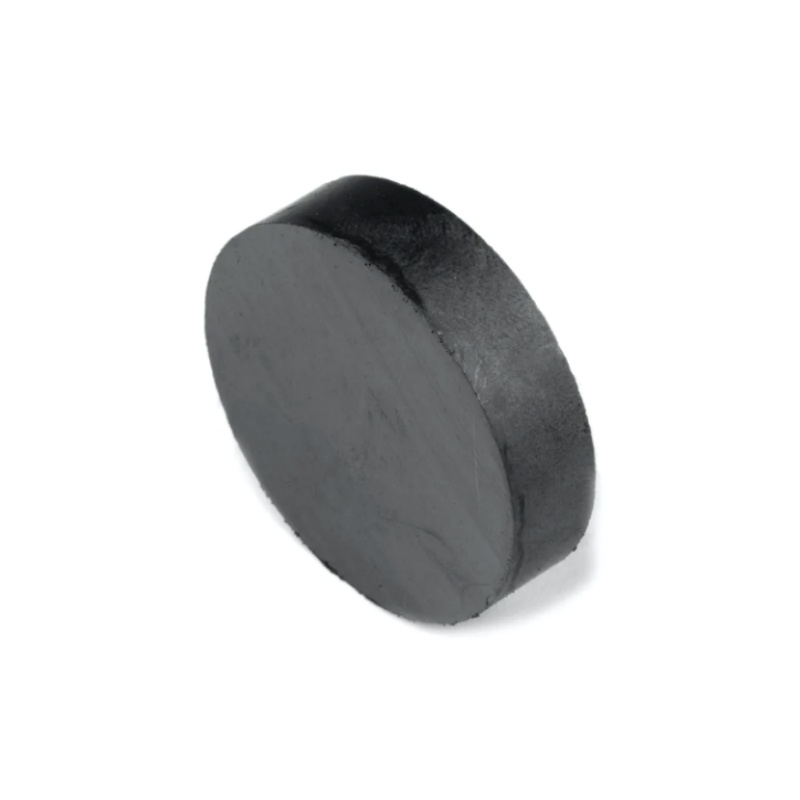

Paypal/TT/Credit CardChina Wholesale High Quality Y30 Ferrite Disc Magnet
Product Description
Feature

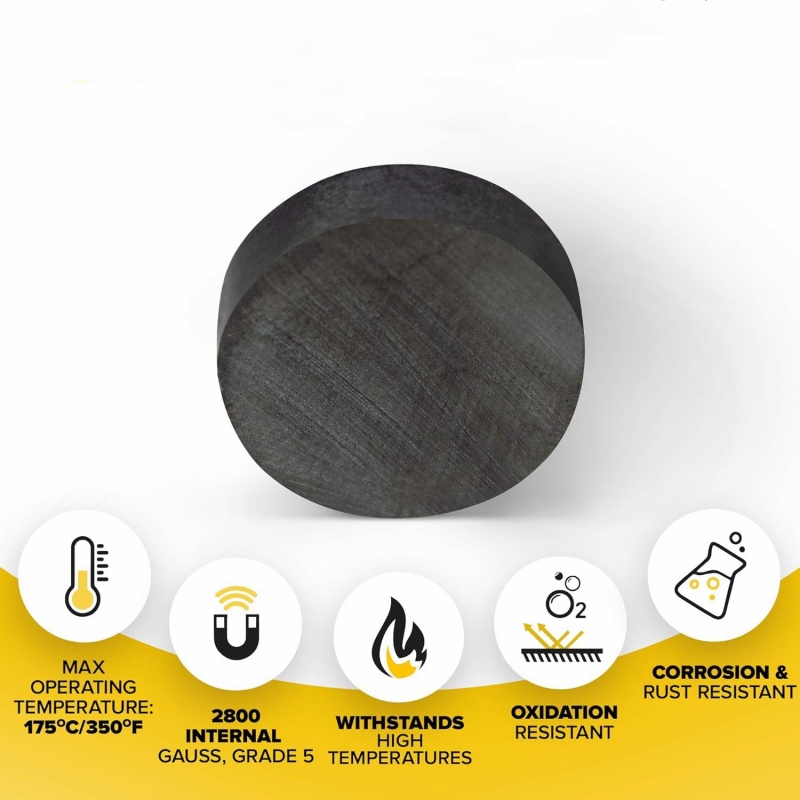

The premium quality ferrite magnets are made by ceramic process. They are hard and brittle material, have good temperature resistance, anti-corrosion and rust prevention, cheapness and moderate performance.
Durable grade 8 ceramic magnet material, black ferrite round magnet has a magnetic flux reading of 1940 gauss and a pull force of 500 grams.
Easy to install craft magnets, ceramic round magnets stick great on any metal surfaces.
Customization
Ferrite Magnets have excellent machining properties which allows them to be cut into different shapes and sizes and a relative low cost. such as disc, ring and rectangular.
In addition, they are corrosion-resistant and easy to magnetize, making them the popular choice for a wide range of consumer, commercial, industrial and technical applications.
| Material | Br | HcB | HcJ | (BH)max | ||||
| mT | KG | KA/m | KOe | KA/m | KOe | Kj/m³ | MGOe | |
| Y10T | 200~235 | 2.0~2.35 | 125~160 | 1.57~2.01 | 210~280 | 2.64~3.52 | 6.5~9.5 | 0.8~1.2 |
| Y20 | 320~380 | 3.2~3.8 | 135~190 | 1.70~2.38 | 140~195 | 1.76~2.45 | 18.0~22.0 | 2.3~2.8 |
| Y22H | 310~360 | 3.1~3.6 | 220~250 | 2.77~3.14 | 280~320 | 3.52~4.02 | 20.0~24.0 | 2.5~3.0 |
| Y23 | 320~370 | 3.2~3.7 | 170~190 | 2.14~2.38 | 190~230 | 2.39~2.89 | 20.0~25.5 | 2.5~3.2 |
| Y25 | 360~400 | 3.6~4.0 | 135~170 | 1.70~2.14 | 140~200 | 1.76~2.51 | 22.5~28.0 | 2.8~3.5 |
| Y26H | 360~390 | 3.6~3.9 | 220~250 | 2.77~3.14 | 225~255 | 2.83~3.21 | 23.0~28.0 | 2.9~3.5 |
| Y27H | 370~400 | 3.7~4.0 | 205~250 | 2.58~3.14 | 210~255 | 2.64~3.21 | 25.0~29.0 | 3.1~3.7 |
| Y30 | 370~400 | 3.7~4.0 | 175~210 | 2.20~2.64 | 180~220 | 2.26~2.77 | 26.0~30.0 | 3.3~3.8 |
| Y30BH | 380~390 | 3.8~3.90 | 223~235 | 2.80~2.95 | 231~245 | 2.90~3.08 | 27.0~30.0 | 3.4~3.7 |
| Y30- 1 | 380~400 | 3.8~4.0 | 230~275 | 2.89~3.46 | 235~290 | 2.95~3.65 | 27.0~32.0 | 3.4~4.0 |
| Y20-2 | 395~415 | 3.95~4.15 | 275~300 | 3.46~3.77 | 310~335 | 3.90~4.21 | 28.5~32.5 | 3.5~4.0 |
| Y32 | 400~420 | 4.0~4.2 | 160~190 | 2.01~2.38 | 165~195 | 2.07~2.45 | 30.0~33.5 | 3.8~4.2 |
| Y33 | 410~430 | 4.1~4.3 | 220~250 | 2.77~3.14 | 225~255 | 2.83~3.21 | 31.5~35.0 | 4.0~4.4 |
| Y35 | 400~410 | 4.00~4.10 | 175~195 | 2.20~2.45 | 180~200 | 2.26~2.51 | 30.0~32.0 | 3.8~4.0 |
People widely use disc ferrite magnets as kitchen magnets, office magnets, classroom magnets, fridge magnets, photo magnets, whiteboard magnets, etc.
