Ferrite ring magnets have wide range of applications, including scientific experiments, educational projects.
Size :

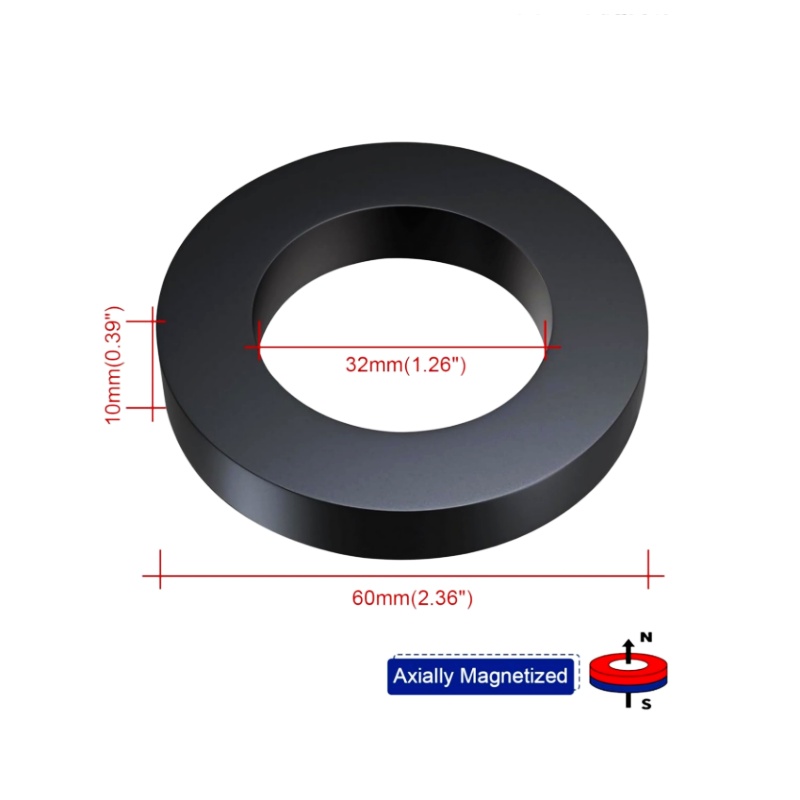

OD60 x ID32 x 10mmColor :
BlackOrder(MOQ) :
500pcsSample :
FreeLead Time :
3-15daysPayment :
Paypal/TT/Credit CardScience Projects Ceramic Big Circle Magnets With Hole
Product Description
Maximum Operating Temperature: 80°C / 176°F
Specification
| Material | Br | HcB | HcJ | (BH)max | ||||
| mT | KG | KA/m | KOe | KA/m | KOe | Kj/m³ | MGOe | |
| Y10T | 200~235 | 2.0~2.35 | 125~160 | 1.57~2.01 | 210~280 | 2.64~3.52 | 6.5~9.5 | 0.8~1.2 |
| Y20 | 320~380 | 3.2~3.8 | 135~190 | 1.70~2.38 | 140~195 | 1.76~2.45 | 18.0~22.0 | 2.3~2.8 |
| Y22H | 310~360 | 3.1~3.6 | 220~250 | 2.77~3.14 | 280~320 | 3.52~4.02 | 20.0~24.0 | 2.5~3.0 |
| Y23 | 320~370 | 3.2~3.7 | 170~190 | 2.14~2.38 | 190~230 | 2.39~2.89 | 20.0~25.5 | 2.5~3.2 |
| Y25 | 360~400 | 3.6~4.0 | 135~170 | 1.70~2.14 | 140~200 | 1.76~2.51 | 22.5~28.0 | 2.8~3.5 |
| Y26H | 360~390 | 3.6~3.9 | 220~250 | 2.77~3.14 | 225~255 | 2.83~3.21 | 23.0~28.0 | 2.9~3.5 |
| Y27H | 370~400 | 3.7~4.0 | 205~250 | 2.58~3.14 | 210~255 | 2.64~3.21 | 25.0~29.0 | 3.1~3.7 |
| Y30 | 370~400 | 3.7~4.0 | 175~210 | 2.20~2.64 | 180~220 | 2.26~2.77 | 26.0~30.0 | 3.3~3.8 |
| Y30BH | 380~390 | 3.8~3.90 | 223~235 | 2.80~2.95 | 231~245 | 2.90~3.08 | 27.0~30.0 | 3.4~3.7 |
| Y30- 1 | 380~400 | 3.8~4.0 | 230~275 | 2.89~3.46 | 235~290 | 2.95~3.65 | 27.0~32.0 | 3.4~4.0 |
| Y20-2 | 395~415 | 3.95~4.15 | 275~300 | 3.46~3.77 | 310~335 | 3.90~4.21 | 28.5~32.5 | 3.5~4.0 |
| Y32 | 400~420 | 4.0~4.2 | 160~190 | 2.01~2.38 | 165~195 | 2.07~2.45 | 30.0~33.5 | 3.8~4.2 |
| Y33 | 410~430 | 4.1~4.3 | 220~250 | 2.77~3.14 | 225~255 | 2.83~3.21 | 31.5~35.0 | 4.0~4.4 |
| Y35 | 400~410 | 4.00~4.10 | 175~195 | 2.20~2.45 | 180~200 | 2.26~2.51 | 30.0~32.0 | 3.8~4.0 |
Features
1. Made from high-quality ferrite material, these round ceramic ring magnets deliver strong, reliable magnetic force. The precision molding process ensures smooth, rounded edges for safer and easier handling.
2. Highly resistant to demagnetization, corrosion, oxidation, and high temperatures. Heavy duty ferrite ring magnets are suitable for long-term indoor and outdoor use, including freshwater and saltwater environments.
3. Ideal for organizing and holding metal tools, kitchenware, equipment, and more. Perfect for homes, offices, workshops, garages, laboratories, cabinets, refrigerators, and various industrial or educational settings.
4. Features a center hole for easy attachment. Ferrite magnets with holes are used in DIY projects, crafts, electric motors, generators, sensors, electronic devices, medical equipment, industrial machinery, and magnetic decorations.
How To Separate Magnets
Be careful when using black ceramic ring magnets.
Strong magnetic force will make round magnets with hole attract each other.
Ferrite magnets are very fragile, and the magnetic attraction of mutual impact will smash the magnets.
