Nickel Coating Double Countersunk Neodymium Magnets Factory

Nickel Coating Double Countersunk Neodymium Magnets Factory

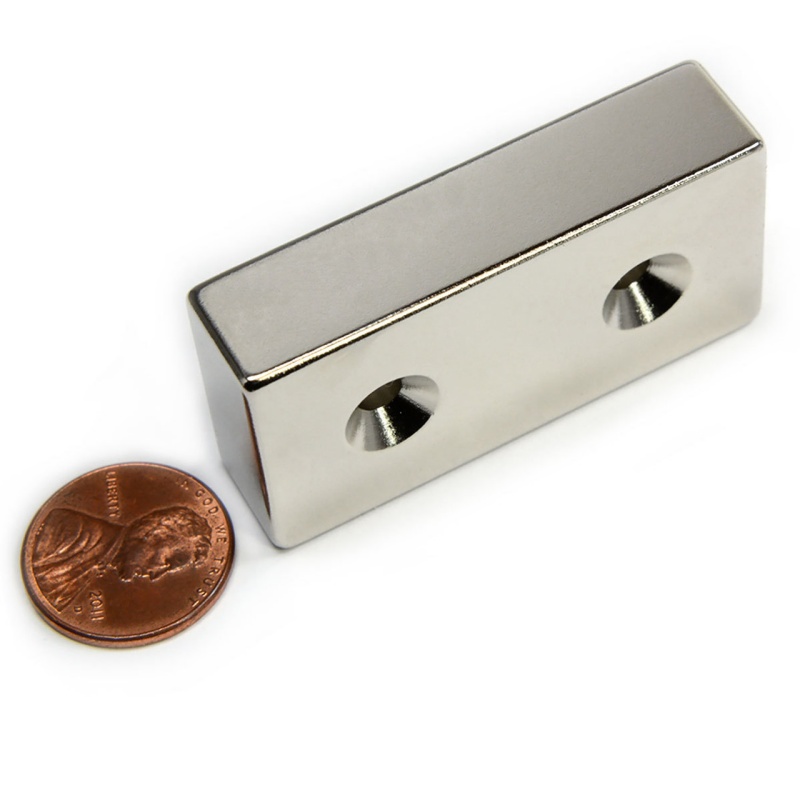

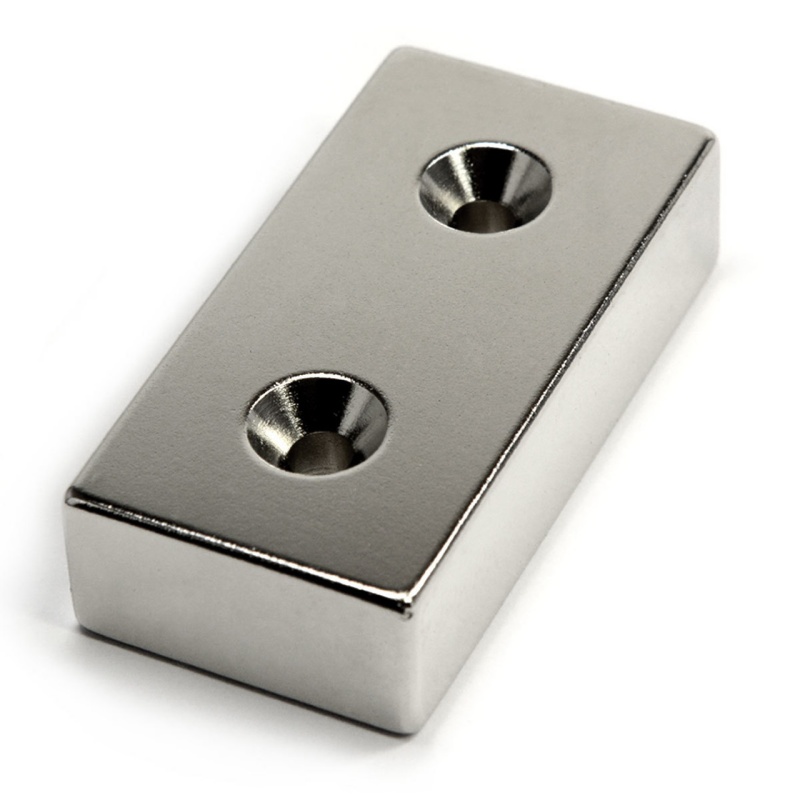

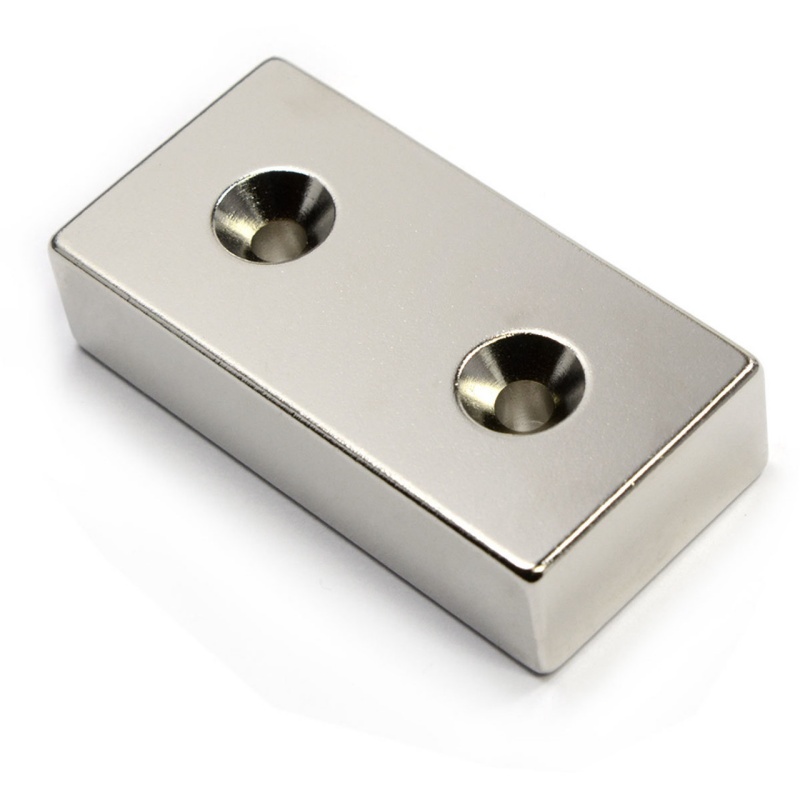

Product Description

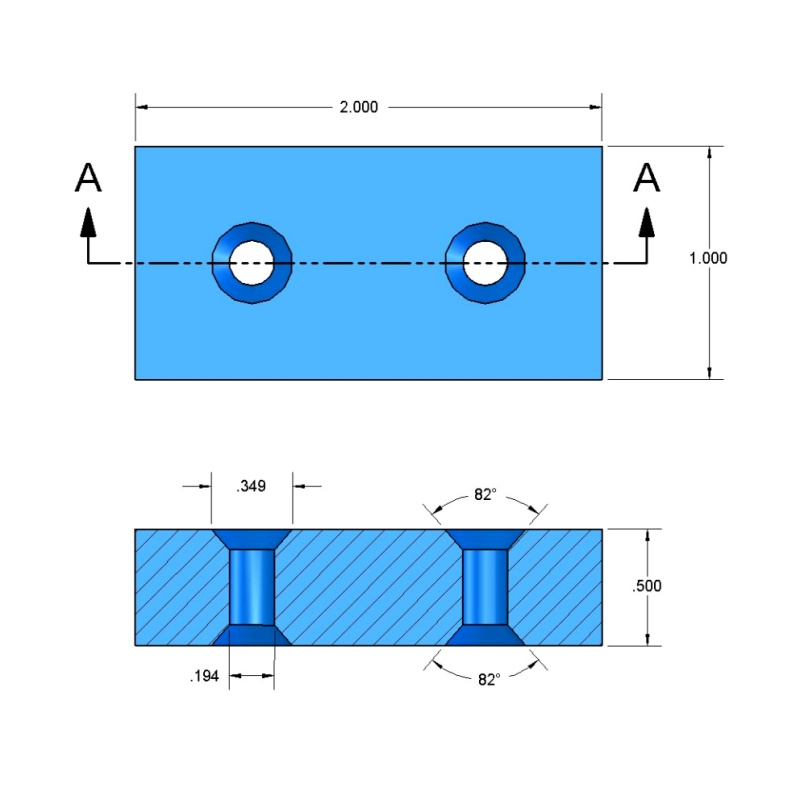

Length: 2inch (50.8mm)

Width: 1inch (25.4mm)

Thickness: 1/2inch (12.7mm)

Screw Size : #5

Material: Neodymium

Magnetic Grade: N50

Tolerance: +/-0.05mm

Plating/Coating: Ni-Cu-Ni (Nickel)

Magnetization Direction: Axial (Poles on Flat Ends)





Warning:

These magnets are very powerful which should be handled with great care to avoid pinched fingers or chipped magnets. Do not allow children to play with magnets.

Product Feature

♦Durable Materials and Protective Coatings♦ These countersunk holes NdFeB magnet is made from an alloy of neodymium, iron, and boron, which provides their exceptional magnetic properties. And is plated in a nickel-copper-nickel triple layer coating for a shiny corrosion resistant finish, corrosion-resistant surface that can withstand harsh environments.

♦Double Countersunk Design♦ The double countersunk holes, meticulously crafted on both sides of the block magnet, are designed to accommodate screws, bolts, or other fasteners with precision. This innovative design ensures a stable and secure installation, minimizing the risk of the heavy duty neodymium countersink magnet shifting or coming loose during use. The tapered countersunk holes allow the fastener heads to sit flush with the magnet’s surface, creating a sleek and professional finish.

♦Long-Term Value and Efficiency♦ While neodymium magnets may have a higher upfront cost compared to other magnet types, their exceptional magnetic strength allows for the use of smaller magnets to achieve the same results as larger, less powerful alternatives, saving space and material costs. Additionally, their resistance to demagnetization and long service life reduce the need for frequent replacements and maintenance, offering significant savings over time.

♦Wide-Ranging Industrial and Commercial Uses♦ Double countersunk block neodymium magnets are incredibly versatile, finding applications across numerous industries. They are a staple in electric motors, where their powerful magnetic fields enhance efficiency and performance. In automation and robotics, they are indispensable for tasks like holding, lifting, and precise positioning. High-fidelity audio equipment, including speakers and headphones, benefits from their strong magnetic fields, delivering superior sound quality. They are also utilized in medical devices, renewable energy systems, and even in everyday items like magnetic closures and creative DIY projects.

Why Choose Us

Hefei Super Electronics Co., Ltd. specialize in magnetic products and materials, with over 20 years of industry experience and a strong reputation. Our team of 100+ professionals and boasts a highly experienced R&D team, enabling us to swiftly address and resolve any technical challenges.
