These strong countersunk magnets can be used for a wide range of applications including door closures and tool hangers.
Size :
1/2" x 1/8" M4Color :
SilverOrder(MOQ) :
100pcsCoating :
NiCuNiLead Time :
3-15daysPayment :

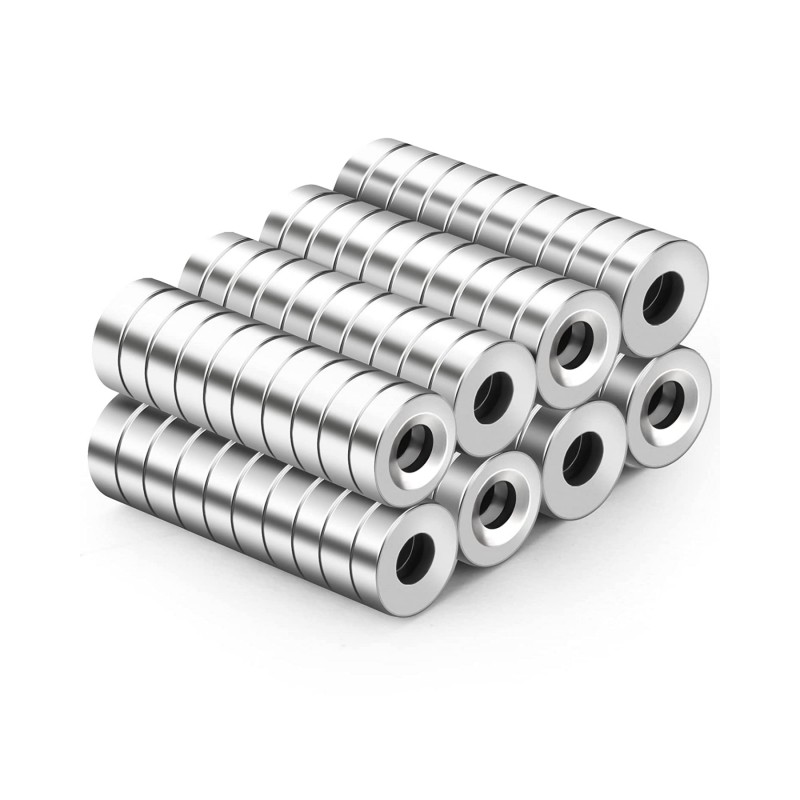

Paypal/TT/Credit CardStrong Nickel Coating Countersunk Hole Neodymium Magnet
Product Description

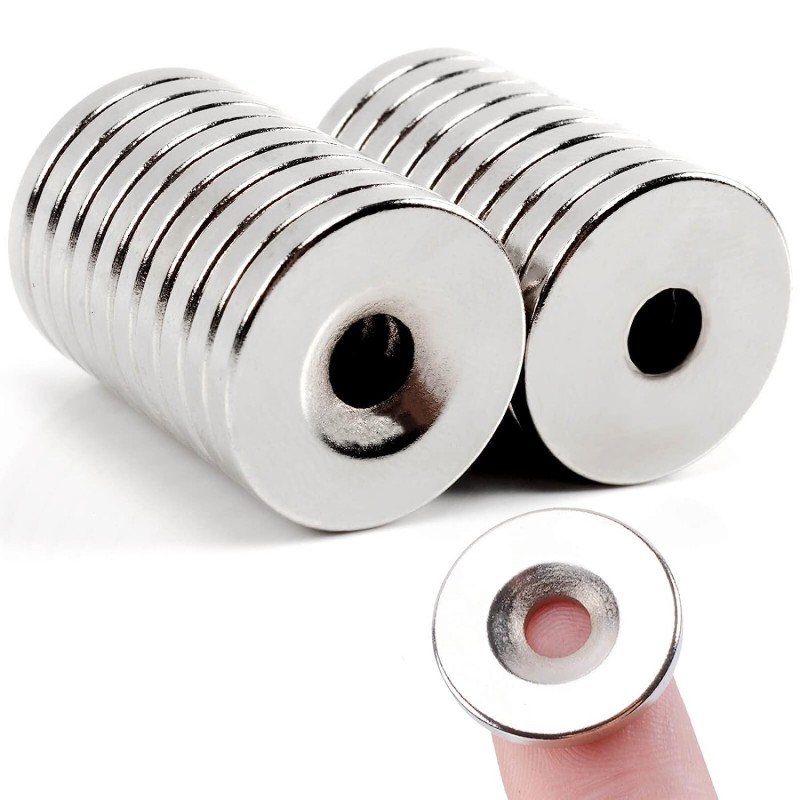

Dimensions: 1/2" od x 1/8" thick with countersunk hole for #4 screw
Tolerances: ±0.004" x ±0.004"
Material: NdFeB
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.0985 oz. (2.79 g)
Max Operating Temp: 176ºF (80ºC)
Specification
| Neodymium | Br | Hcb | Hcj | (Bh)max | Tw | ||||
| Grade | mT | kGs | kA/m | kOe | kA/m | kOe | kJ/m3 | MGOe | ℃ |
| N35 | 1170-1220 | 11.7-12.2 | ＞868 | ＞10.9 | ＞955 | ＞12 | 263-287 | 33-36 | ＜80 |
| N38 | 1220-1250 | 12.2-12.5 | ＞899 | ＞11.3 | ＞955 | ＞12 | 287-310 | 38-39 | ＜80 |
| N40 | 1250-1280 | 12.5-12.8 | ＞907 | ＞11.4 | ＞955 | ＞12 | 302-326 | 38-41 | ＜80 |
| N42 | 1280-1320 | 12.8-13.2 | ＞915 | ＞11.5 | ＞955 | ＞12 | 318-342 | 40-43 | ＜80 |
| N48 | 1380-1420 | 13.8-14.2 | ＞923 | ＞11.6 | ＞955 | ＞12 | 366-390 | 46-49 | ＜80 |
| N50 | 1400-1450 | 14.0-14.5 | ＞796 | ＞10 | ＞876 | ＞11 | 382-406 | 48-49 | ＜80 |
| N52 | 1430-1480 | 14.3-14.8 | ＞796 | ＞10 | ＞876 | ＞11 | 398-422 | 50-53 | ＜80 |

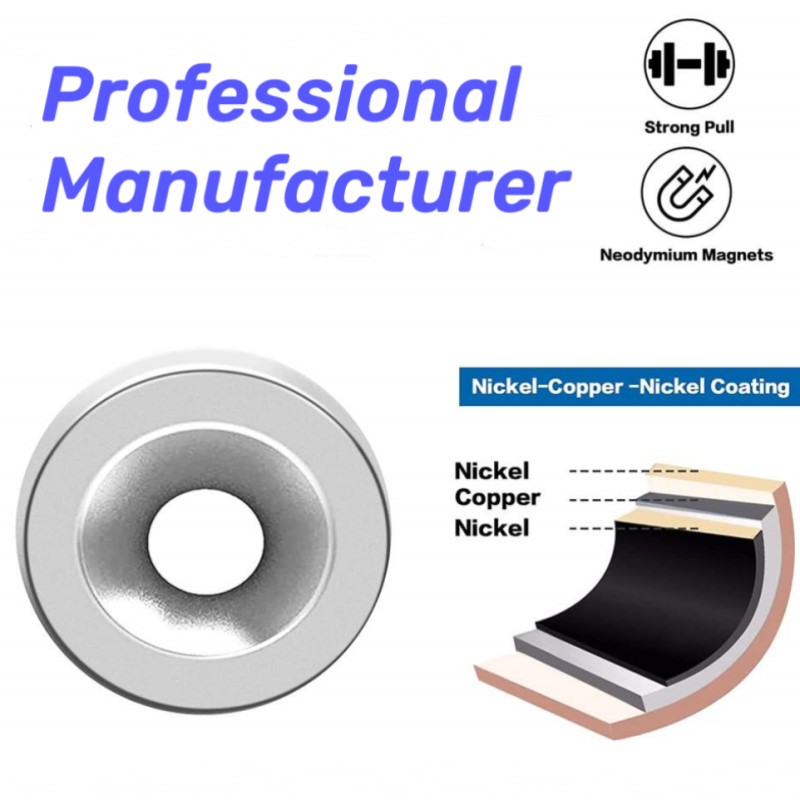

Very Durable - Round countersunk magnets are coated with three layers of nickel, copper and nickel to reduce corrosion and provide a smooth finish which greatly increase the longevity of countersunk magnets.
Easy To Use - Neodymium disc countersunk hole magnets can directly absorbed on magnetic material and can be fixed on non-magnetic material with screws. Neodymium magnets with holes are sturdy and reliable. When you separate the countersunk hole magnets, be careful and slide gently.
Multipurpose Magnets
Strong neodymium magnets with countersunk are used to hang and fix various metal tools, organize various metal objects, and save more living space. Neodymium disc magnets are great for workshop woodworking, garages, tool rooms, cruise ships, garages, kitchens, DIY, and more
Packing&Shipping
20 x 3mm with 5mm Hole neodymium magnets are large use: key, iron products, etc. adsorption and tool storage, manual DIY, refrigerator stick DIY, wardrobe door suction, locker suction, white board magnet
Read More
Countersunk hole magnets can be used for home, office, garage, studio, educational projects. Adsorption and storage of keys, iron products, etc., handmade diy, refrigerator sticker diy, closet door suction, locker suction, whiteboard magnet, etc.
Read More
Neodymium Countersunk Magnet is a popular type of neodymium disc/block magnet that has a countersunk hole to fit a screw perfectly.
Read More
Neodymium countersunk magnets will provide more convenience for home and work, simplifying your life. such as daily hanging, lifting and fastening objects.
Read More
Countersunk hole neodymium magnet suitable for bedroom, bathroom, living room, desktop and travel storage use, practical accessory.
Read More
Neodymium bar magnet with countersunk can be used as a cabine magnet, countersunk hole for fixing
Read More
Disc magnets with countersunk hole perfect for card making, crafting solutions and model making. Organize your kitchen, tools, jewelry, cosmetics, office, school, classroom.
Read More
These strong countersunk magnets can be used for a wide range of applications including door closures and tool hangers.
