Neodymium countersunk magnets will provide more convenience for home and work, simplifying your life. such as daily hanging, lifting and fastening objects.
Size :
1.18inch x 0.2inchColor :
SilverOrder(MOQ) :
100pcsCoating :
NiCuNiLead Time :
3-15daysPayment :
Paypal/TT/Credit CardSmall Countersunk Hole Neodymium Magnets For Crafts DIY
Product Description

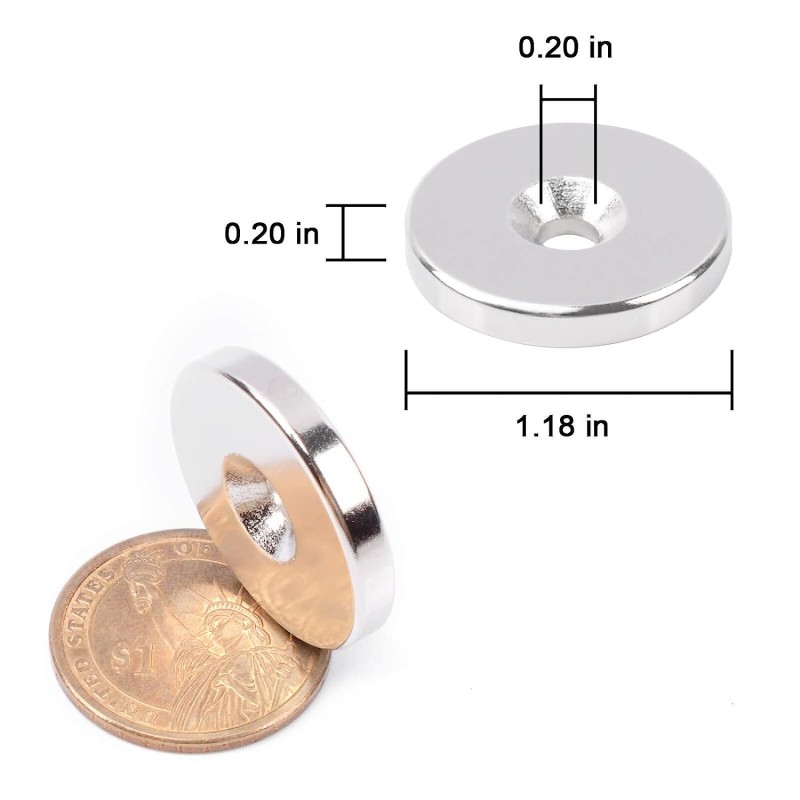

Dimensions: 1.18inch x 0.2inch with 0.2inch countersunk hole
Tolerances: ±0.004" x ±0.004"
Material: NdFeB
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Max Operating Temp: 176ºF (80ºC)
Specification
| Neodymium | Br | Hcb | Hcj | (Bh)max | Tw | ||||
| Grade | mT | kGs | kA/m | kOe | kA/m | kOe | kJ/m3 | MGOe | ℃ |
| N35 | 1170-1220 | 11.7-12.2 | ＞868 | ＞10.9 | ＞955 | ＞12 | 263-287 | 33-36 | ＜80 |
| N38 | 1220-1250 | 12.2-12.5 | ＞899 | ＞11.3 | ＞955 | ＞12 | 287-310 | 38-39 | ＜80 |
| N40 | 1250-1280 | 12.5-12.8 | ＞907 | ＞11.4 | ＞955 | ＞12 | 302-326 | 38-41 | ＜80 |
| N42 | 1280-1320 | 12.8-13.2 | ＞915 | ＞11.5 | ＞955 | ＞12 | 318-342 | 40-43 | ＜80 |
| N48 | 1380-1420 | 13.8-14.2 | ＞923 | ＞11.6 | ＞955 | ＞12 | 366-390 | 46-49 | ＜80 |
| N50 | 1400-1450 | 14.0-14.5 | ＞796 | ＞10 | ＞876 | ＞11 | 382-406 | 48-49 | ＜80 |
| N52 | 1430-1480 | 14.3-14.8 | ＞796 | ＞10 | ＞876 | ＞11 | 398-422 | 50-53 | ＜80 |
Electroplating process - Each of our super strong countersunk hole magnet is plated with the best coating. The NI+CU+NI coating makes the magnet have a smooth surface and a gorgeous appearance. You don't need to worry about scratching your metal paint.

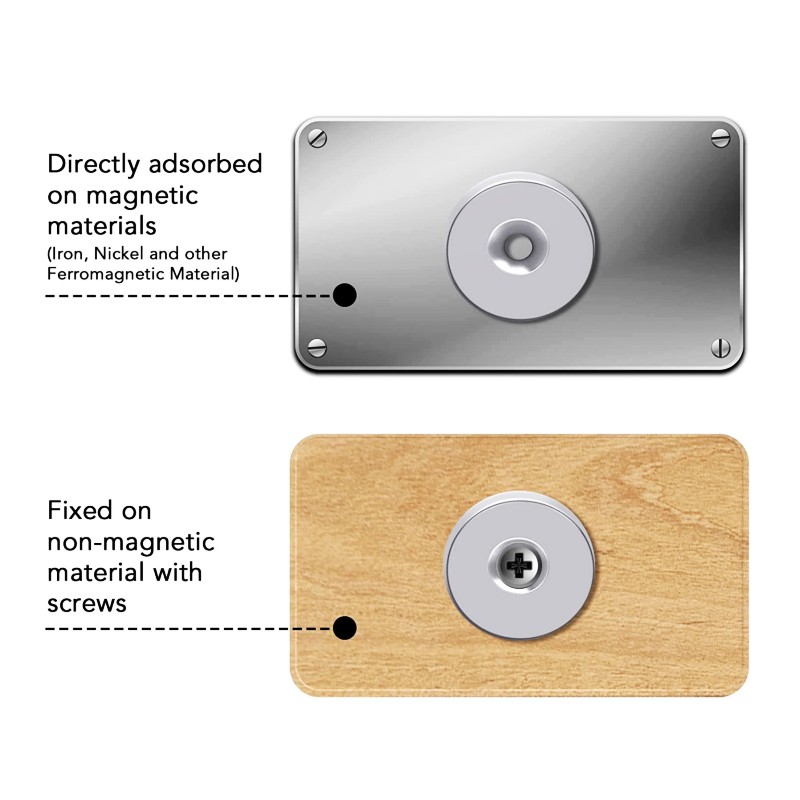

Easy To Use - Round neodymium magnets with countersunk hole can directly absorbed on magnetic material and can be fixed on non-magnetic material with screws. Neodymium magnets with holes are sturdy and reliable. When you separate the countersunk hole magnets, be careful and slide gently.
Multipurpose Magnets
N52 neodymium countersunk magnets are usually used for science education, storage of objects, and fixed objects. You can use the refrigerator craft magnet as an auxiliary tool when displaying photos, greeting cards, work conference documents, which is very useful for families and schools.
How To Seperate Magnets
Packing&Shipping
20 x 3mm with 5mm Hole neodymium magnets are large use: key, iron products, etc. adsorption and tool storage, manual DIY, refrigerator stick DIY, wardrobe door suction, locker suction, white board magnet
Read More
Countersunk hole magnets can be used for home, office, garage, studio, educational projects. Adsorption and storage of keys, iron products, etc., handmade diy, refrigerator sticker diy, closet door suction, locker suction, whiteboard magnet, etc.
Read More
Neodymium Countersunk Magnet is a popular type of neodymium disc/block magnet that has a countersunk hole to fit a screw perfectly.
Read More
Neodymium countersunk magnets will provide more convenience for home and work, simplifying your life. such as daily hanging, lifting and fastening objects.
Read More
Countersunk hole neodymium magnet suitable for bedroom, bathroom, living room, desktop and travel storage use, practical accessory.
Read More
Neodymium bar magnet with countersunk can be used as a cabine magnet, countersunk hole for fixing
Read More
Disc magnets with countersunk hole perfect for card making, crafting solutions and model making. Organize your kitchen, tools, jewelry, cosmetics, office, school, classroom.
Read More
These strong countersunk magnets can be used for a wide range of applications including door closures and tool hangers.
