Square adhesive magnet is a practical tool that combines powerful neodymium magnets with 3M glue. An ideal tool for applications such as mounting posters, displaying office documents and DIY installation.
Color :
SilverySize :
29.5 x 29.5 x 2mmOrder(MOQ) :
100PCSSample :
FreeDensity :
7.5g/cm³Lead Time :
3-15daysPayment :
Paypal/ TT/Credit CardHigh Strength Permanent Neodymium Square Adhesive Magnet

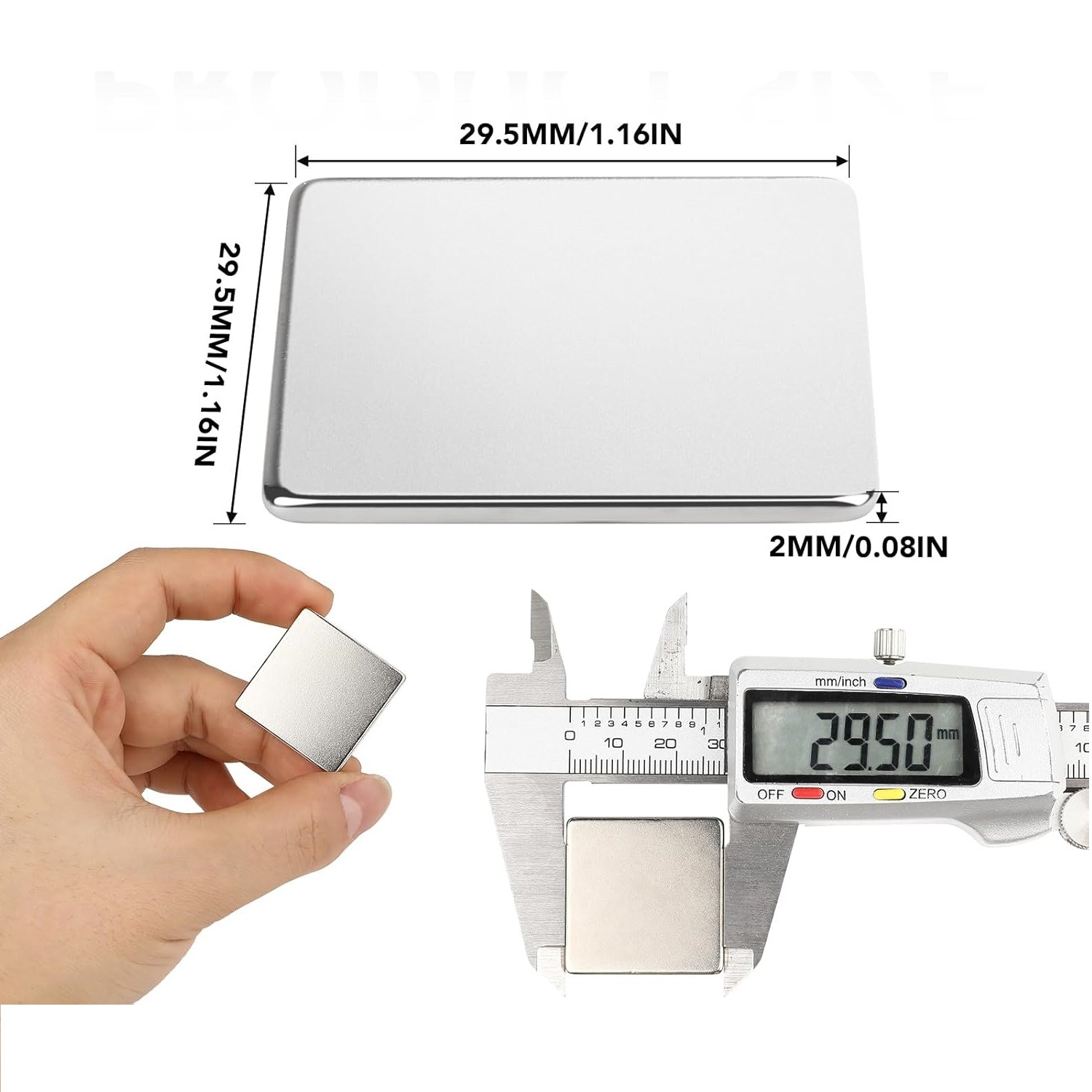

Product Specification
Length: 1.16 inch (29.5mm)
Width: 1.16 inch (29.5mm)
Thickness: 0.08 inch (2mm)
Material: NdFeB (Neodymium Iron Boron) Magnet
Coating: Nickel
Tolerance: ±0.05mm
Multi Purpose: School, Office or Home
Warning: Neodymium magnets are brittle. Avoid collisions with metal objects (including other magnets). Exercise caution when separating to prevent breakage.
Neodymium | Br | Hcb | Hcj | (Bh)max | Tw | ||||
Grade | mT | kGs | kA/m | kOe | kA/m | kOe | kJ/m3 | MGOe | ℃ |
N35 | 1170-1220 | 11.7-12.2 | >868 | >10.9 | >955 | >12 | 263-287 | 33-36 | <80 |
N38 | 1220-1250 | 12.2-12.5 | >899 | >11.3 | >955 | >12 | 287-310 | 38-39 | <80 |
N40 | 1250-1280 | 12.5-12.8 | >907 | >11.4 | >955 | >12 | 302-326 | 38-41 | <80 |
N42 | 1280-1320 | 12.8-13.2 | >915 | >11.5 | >955 | >12 | 318-342 | 40-43 | <80 |
N45 | 1330-1370 | 13.3-13.7 | >915 | >11.5 | >955 | >12 | 342-367 | 41-44 | <80 |
N48 | 1380-1420 | 13.8-14.2 | >923 | >11.6 | >955 | >12 | 366-390 | 46-49 | <80 |
N50 | 1400-1450 | 14.0-14.5 | >796 | >10 | >876 | >11 | 382-406 | 48-49 | <80 |
N52 | 1430-1480 | 14.3-14.8 | >796 | >10 | >876 | >11 | 398-422 | 50-53 | <80 |
Features
The nickel-plated square neodymium magnet with 3M adhesive backing complies with ROHS, REACH, and other international certifications. Characterized by stable performance, user-friendly design, and eco-friendly materials, it is an ideal solution for both industrial production and daily applications.
Excellent Magnetic Properties:
Using high performance NdFeB magnetic materials, the magnetic strength is significantly better than that of ordinary magnets,and N35-N52 multi-level magnetic properties are available to meet the needs of different application scenarios.
Excellent Coating:
Features a multi-layer electroplating process (Ni-Cu-Ni composite coating), delivering a bright, clean surface with waterproof and corrosion-resistant properties for easy cleaning and maintenance.
Reliable Bonding Performance:

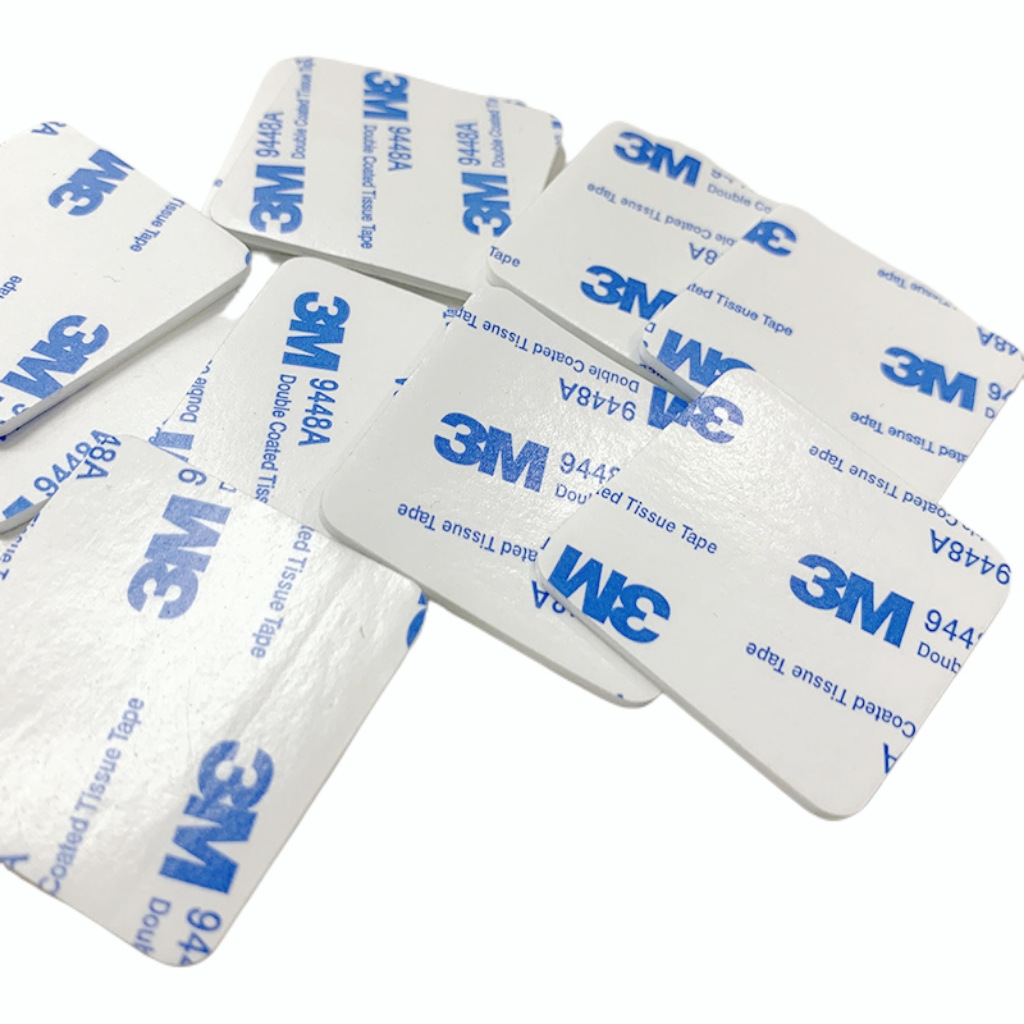

Nickel coated adhesive magnet use premium 3M adhesive tape, it can operates effectively across a broad temperature range (-40°C to 150°C), demonstrates excellent adhesion to multiple surface (metal, glass, plastic, etc.), leaves no residue upon removal, and allows for repeated use.
Wide Range Of Applications:

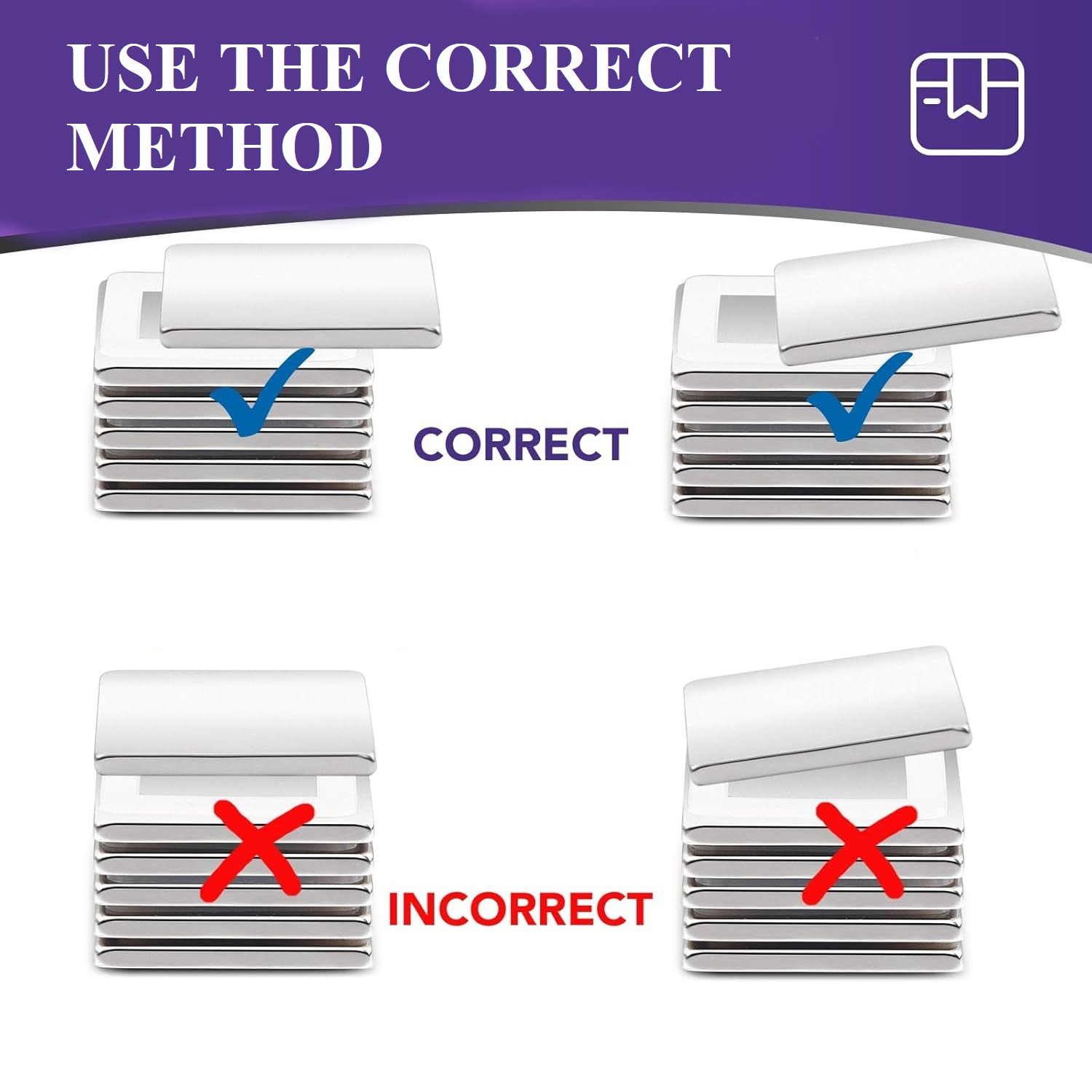

How To Safety Separate Magnets

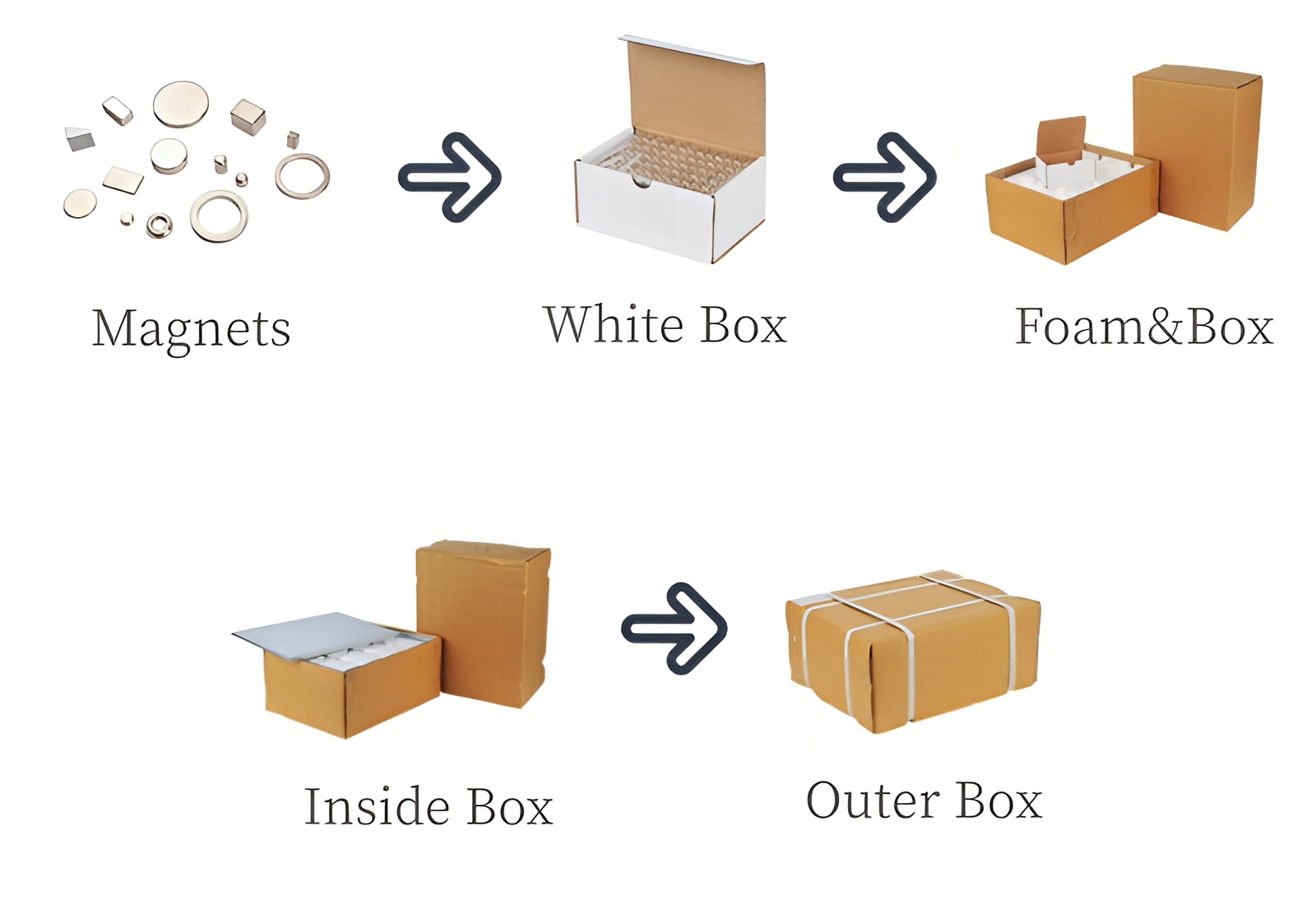

Packing&Shipping
