Hefei Super Electronics Co., Ltd.
What Are You Looking For?

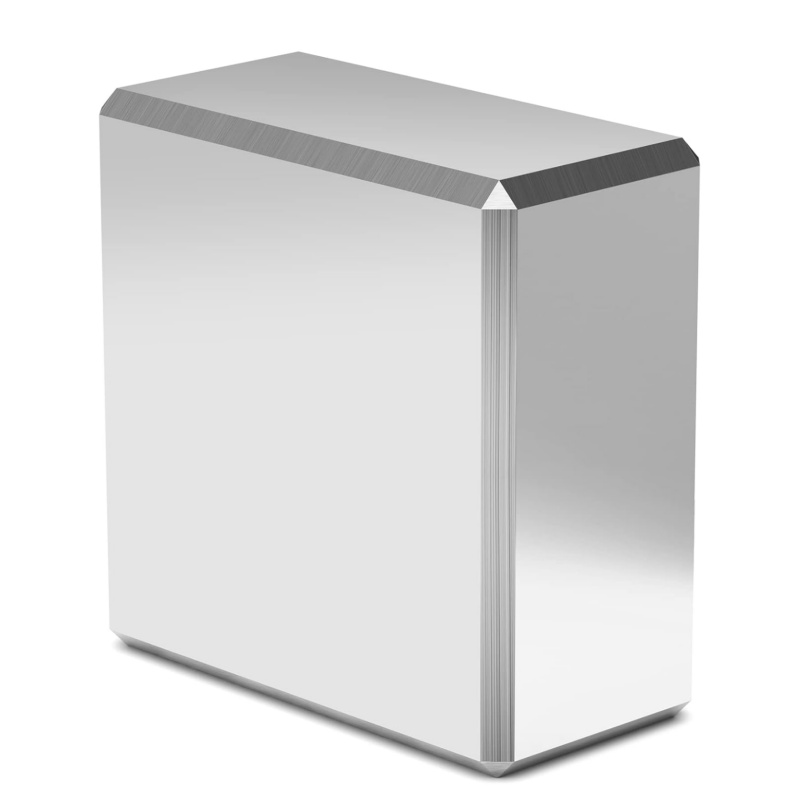

Large square rare earth magnet magnetized through thickness, poles on the flat surfaces.
Size :
40x40x20mmColor :
SilveryOrder(MOQ) :
100pcsSample :
FreeLead Time :
3-15daysPayment :
Paypal/ TT/Credit CardChina Square Block Large Neodymium Magnets Wholesale
Product Description

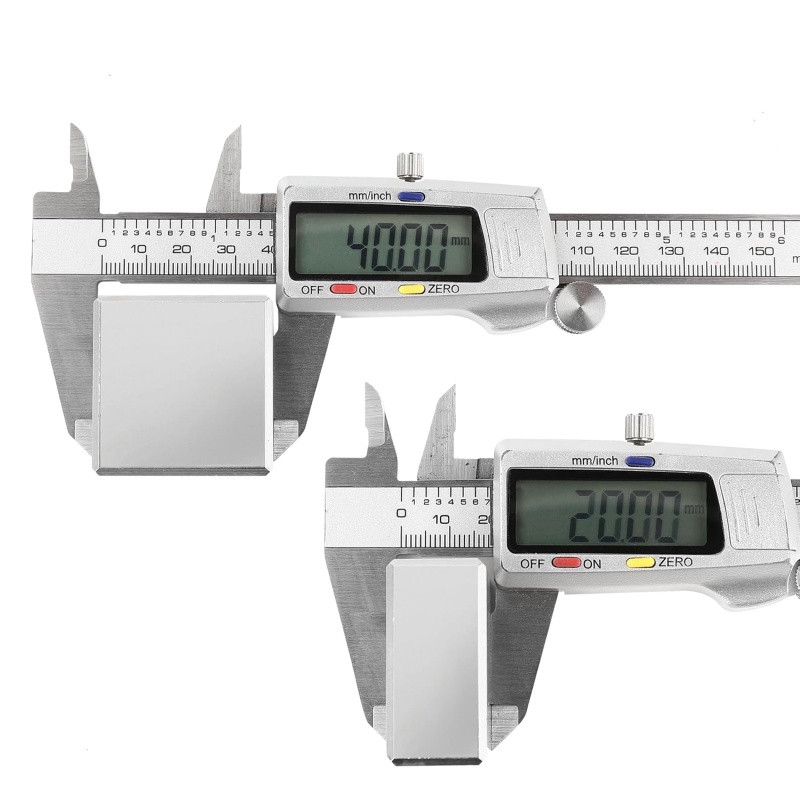

Dimensions: 40x40x20mm
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB

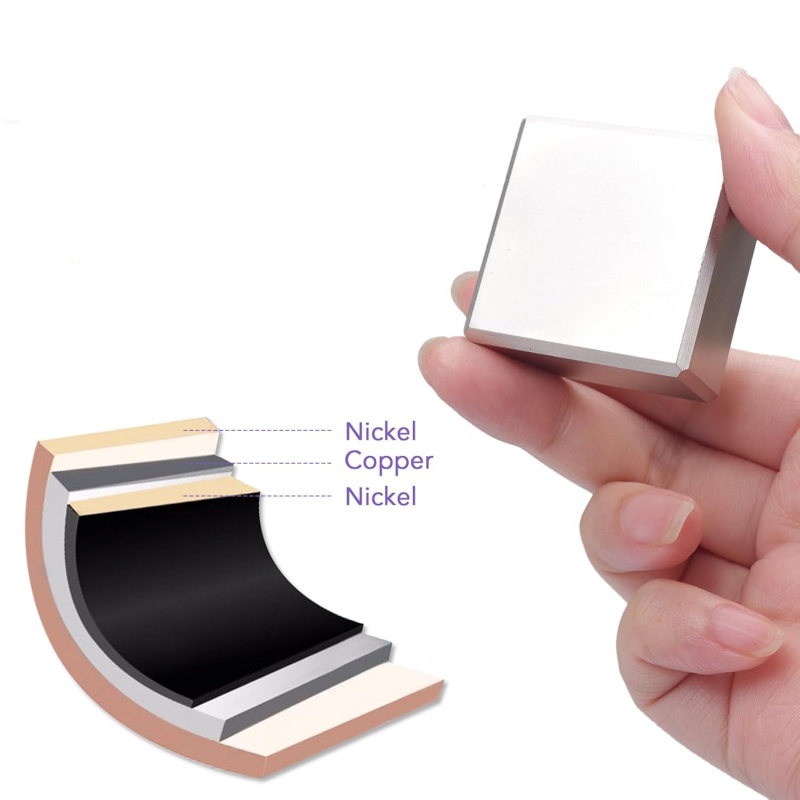

Plating/coating: NiCuNi
Magnetization direction: Thru thickness
Max operating temp: 176ºf (80ºc)
Warning:
1. Keep away from pacemakers.
2. Not for children, parental supervision required.
3. All magnets may chip and shatter, but if used correctly can last a lifetime.
4. If damaged please dispose of completely. Shards are still magnetized and if swallowed can inflict serious damage.
Ni+Cu+Ni coated block strong magnets resist demagnetization, corrosion, and oxidation, featuring durable brushed nickel silver for a long-lasting, scratch-resistant surface.

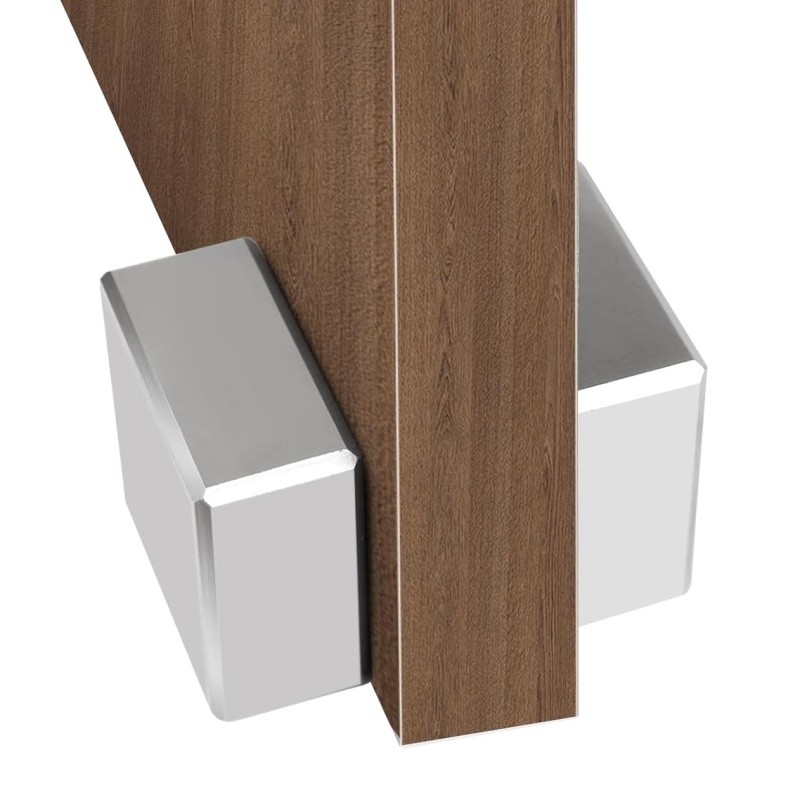

Premium heavy duty square magnet is perfect for DIY, science experiments, kitchens, offices, and classrooms. Use it for stud finding, fastening, lifting, and more.

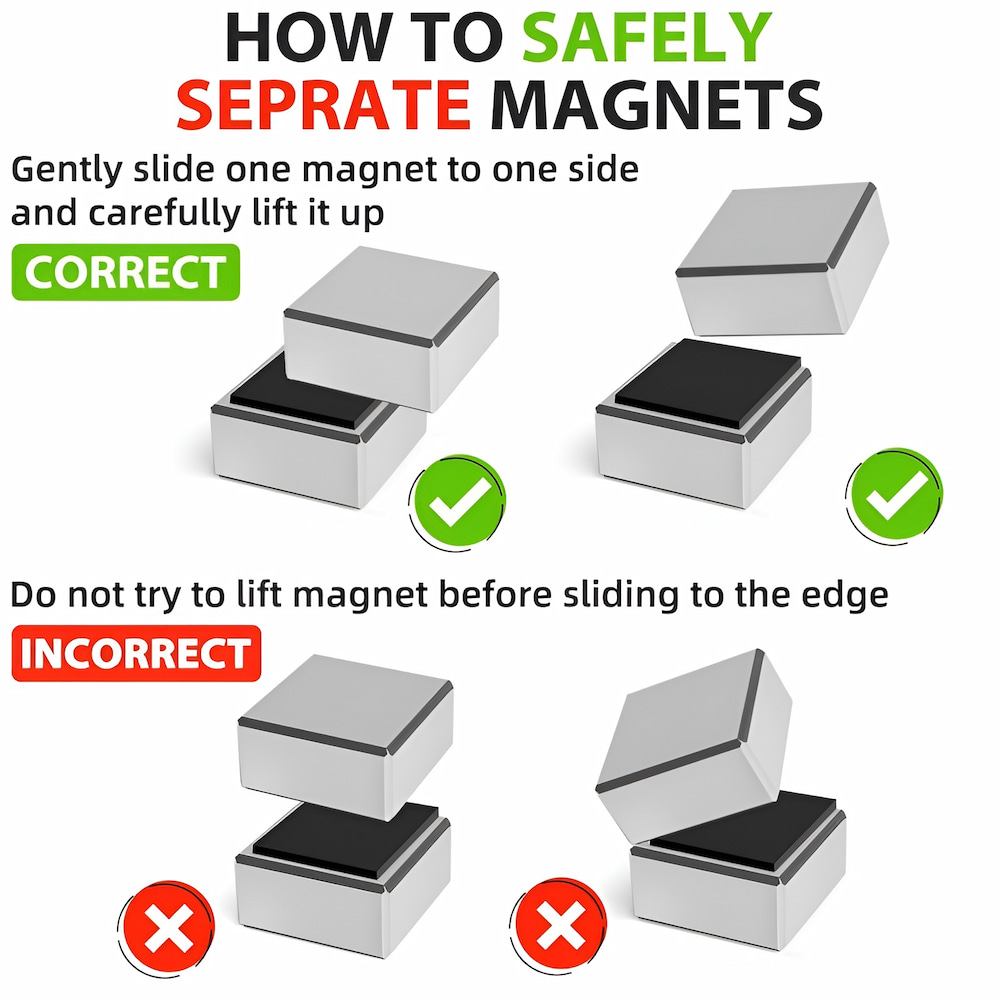

Tips:
Strong neodymium block magnets are brittle; they can be broken or can splinter in a collision.
One should wear gloves and protective glasses when handling these big size square magnets, because splinters could disengage and fly from the magnets.
You should avoid having constant contact with magnets of any size and keep a distance of at least 3 feet to large magnets
Customization
Our company has been involved in R&D, manufacturing, and sales of permanent magnets, providing customers with high-quality rare earth neodymium magnets.
1.Size: Various
2.Plating: Zn/Ni/Epoxy
3.Grade: N35-N52

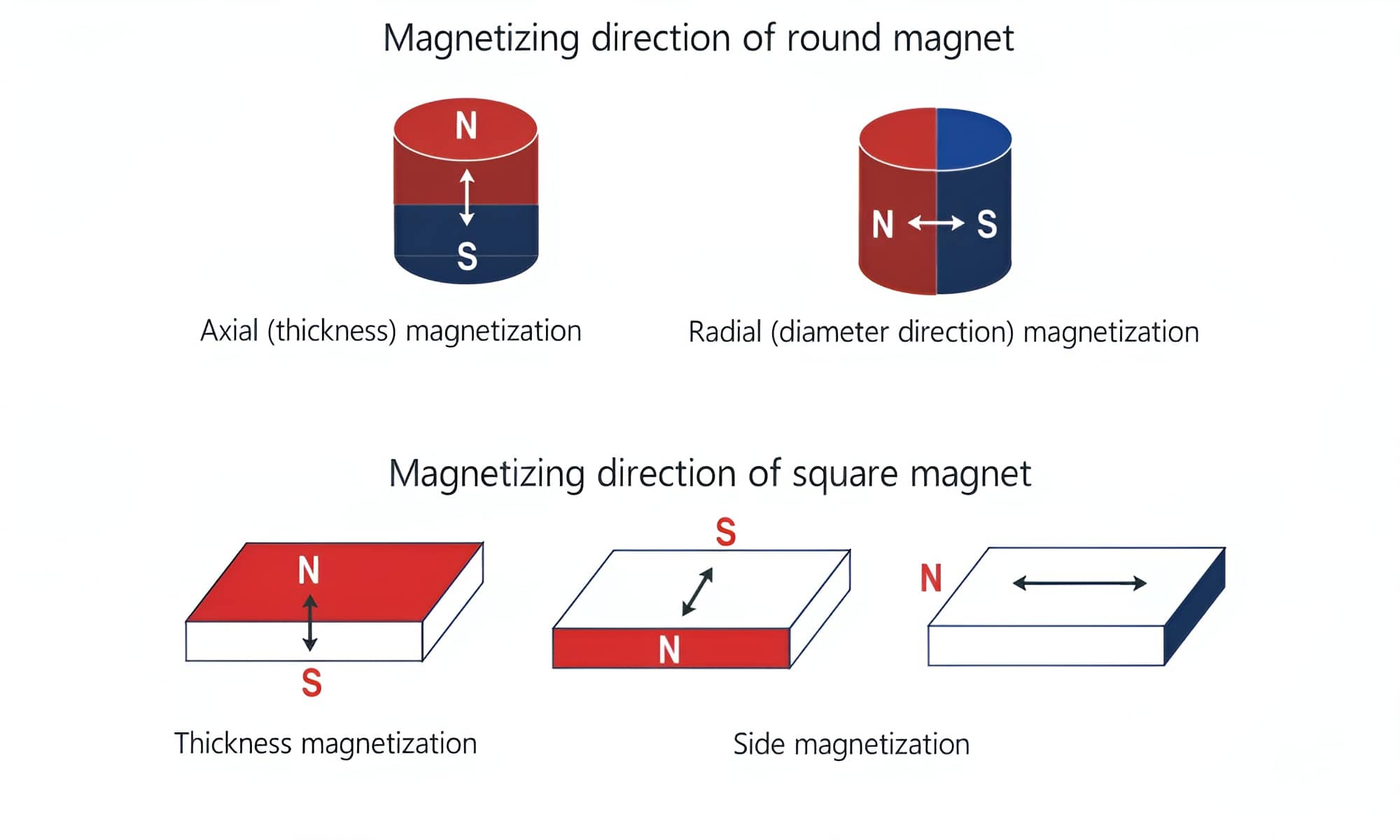

4.Magnetization direction: Thickness/Side
| Neodymium | Br | Hcb | Hcj | (Bh)max | Tw | ||||
| Grade | mT | kGs | kA/m | kOe | kA/m | kOe | kJ/m3 | MGOe | ℃ |
| N35 | 1170-1220 | 11.7-12.2 | ＞868 | ＞10.9 | ＞955 | ＞12 | 263-287 | 33-36 | ＜80 |
| N38 | 1220-1250 | 12.2-12.5 | ＞899 | ＞11.3 | ＞955 | ＞12 | 287-310 | 38-39 | ＜80 |
| N40 | 1250-1280 | 12.5-12.8 | ＞907 | ＞11.4 | ＞955 | ＞12 | 302-326 | 38-41 | ＜80 |
| N42 | 1280-1320 | 12.8-13.2 | ＞915 | ＞11.5 | ＞955 | ＞12 | 318-342 | 40-43 | ＜80 |
| N45 | 1330-1370 | 13.3-13.7 | ＞915 | ＞11.5 | ＞955 | ＞12 | 342-367 | 41-44 | ＜80 |
| N48 | 1380-1420 | 13.8-14.2 | ＞923 | ＞11.6 | ＞955 | ＞12 | 366-390 | 46-49 | ＜80 |
| N50 | 1400-1450 | 14.0-14.5 | ＞796 | ＞10 | ＞876 | ＞11 | 382-406 | 48-49 | ＜80 |
| N52 | 1430-1480 | 14.3-14.8 | ＞796 | ＞10 | ＞876 | ＞11 | 398-422 | 50-53 | ＜80 |
