Customized Powerful Neodymium Rectangular Block Magnet For Generators Motor

Customized Powerful Neodymium Rectangular Block Magnet For Generators Motor

Custom Neodymium rectangular magnets are very popular for a range of applications that include wind generation, electric motor

  • Size :

    custom
  • Order(MOQ) :

    100pcs
  • Grade :

    N35-N52
  • Lead Time :

    3-15days
  • Payment :

    Paypal/TT/Credit Card

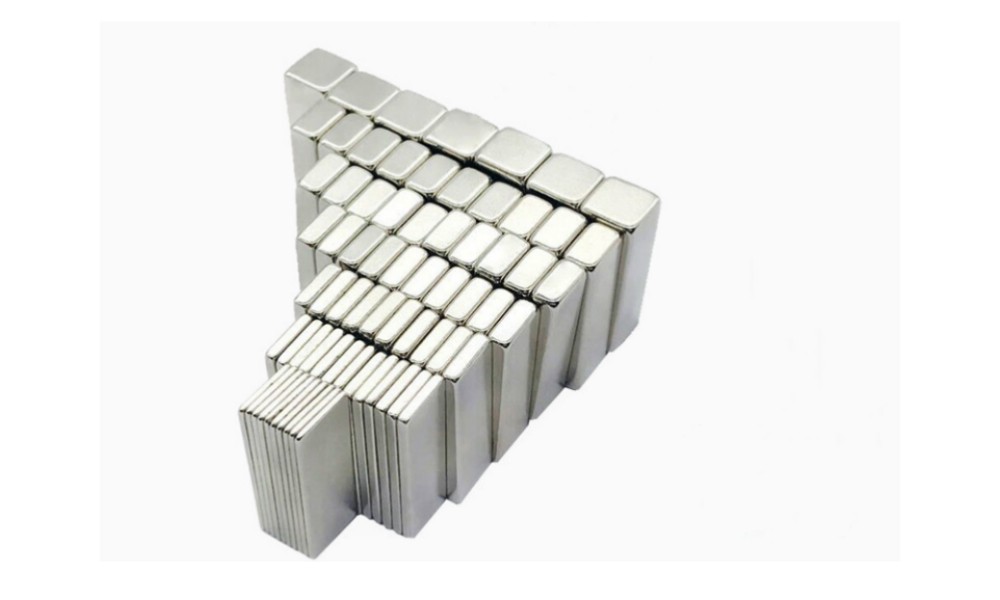

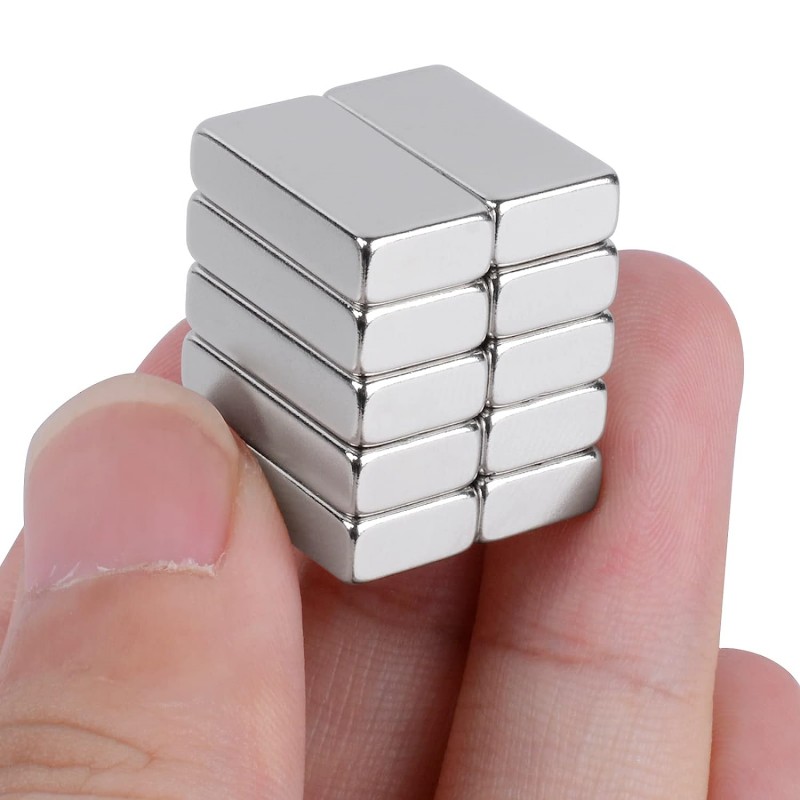

Customized Powerful Neodymium Rectangular Block Magnet For Generators Motor

Product Features

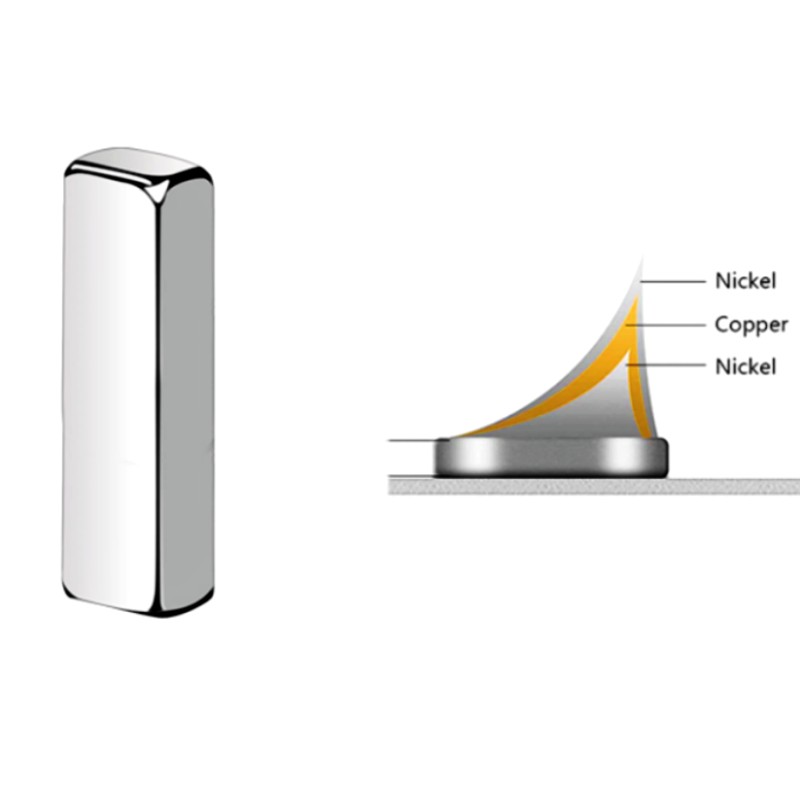

NiCuNi coating neodymium magnet

Neodymium rectangular magnets is attached with three-layer electroplating process, the surface of the strip magnets is smooth and shiny.

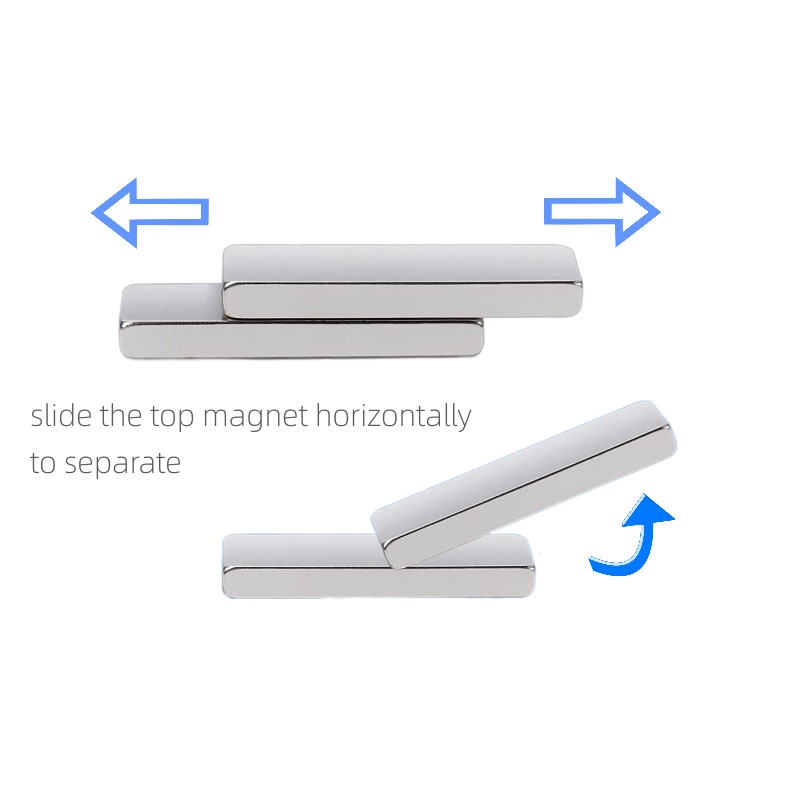

multiple use small magnets

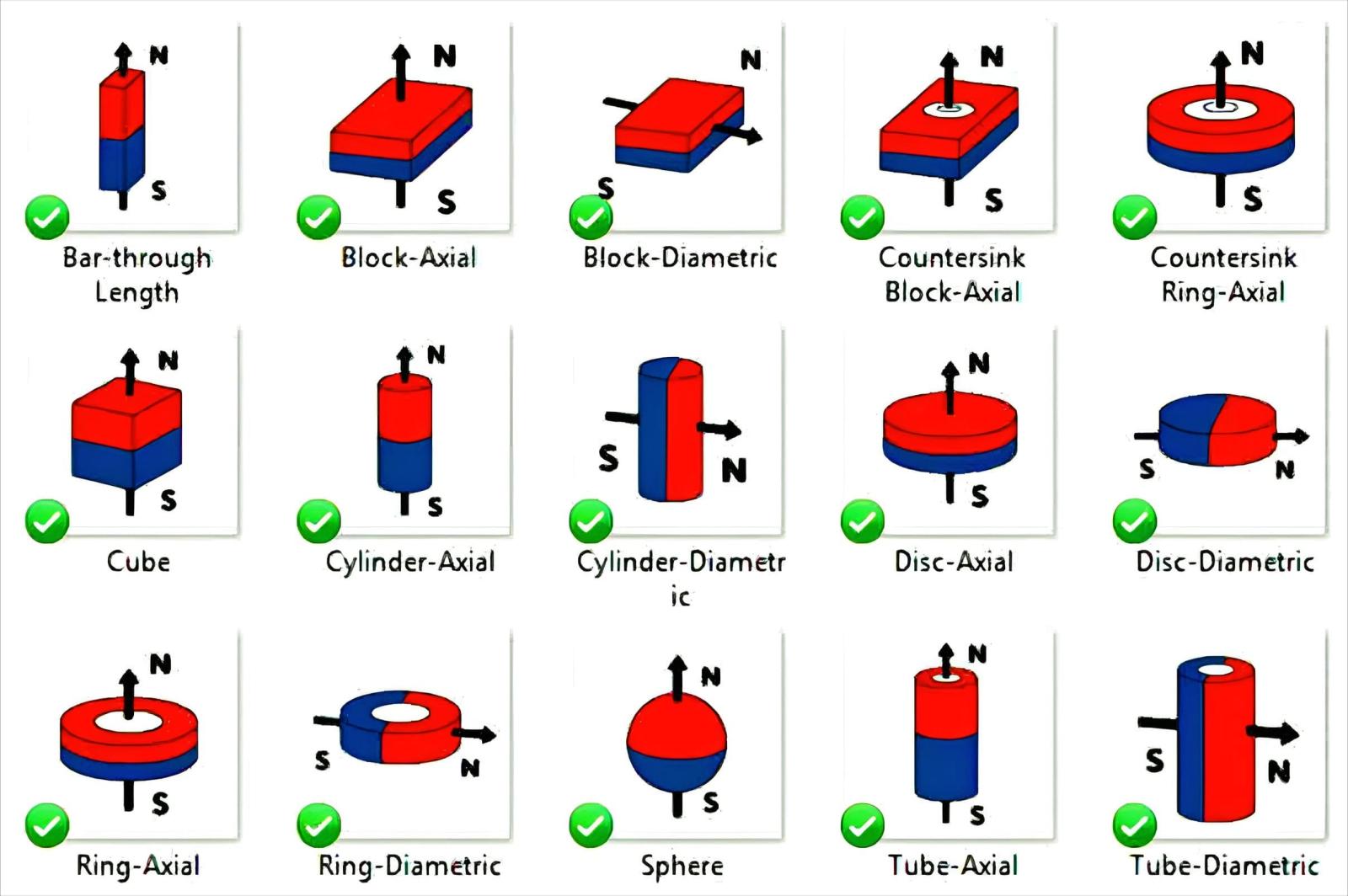

Custom neodymium magnet has a north seeking and a south seeking face on opposite ends. The north face of one magnet will always be attracted towards the south face of another magnet.

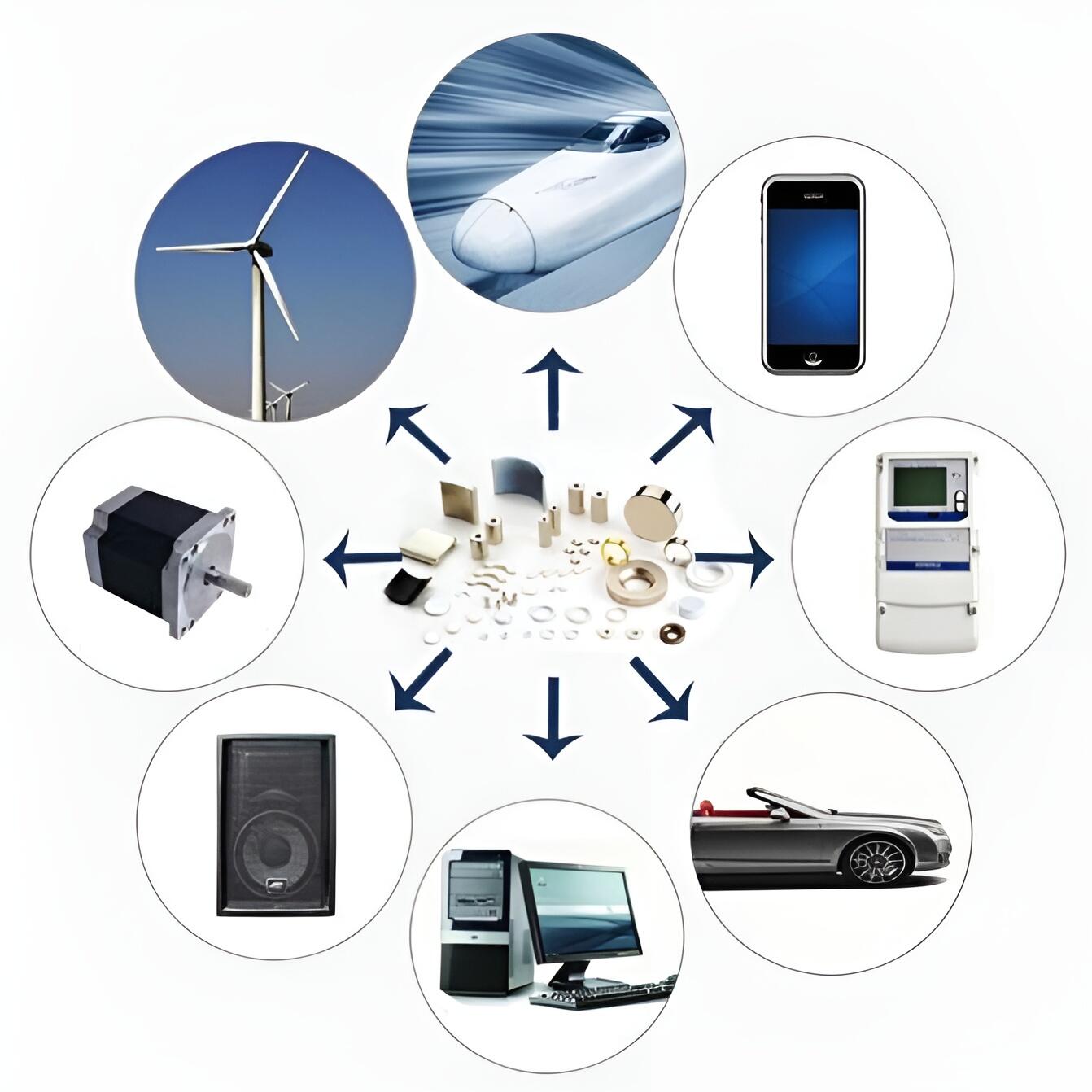

Widely used block NdFeB magnet

Square neodymium magnets are renowned for their compact size and excellent magnetic strength, making them versatile tools used in various industries and daily applications.

Educational tools: widely used to demonstrate magnetic principles such as attraction, repulsion, and magnetic fields.

Creative and entertainment purposes: Cube magnets are a favorite in DIY projects, magnetic toys, and puzzles.

Industrial applications: Their strong magnetic force makes them an ideal choice for fixtures, fixtures, and magnetic components.

Office and home organization: These magnets are perfect for organizing workspaces. They can be used to store tools, keys, and even as magnetic closures for cabinets and doors.

Magnetic Grade

Powerful Neodymium magnets are all graded by the material they are made of. As a very general rule, the higher the grade (the number following the 'N'), the stronger the magnet. The highest grade of neodymium magnet currently available is N52. Any letter following the grade refers to the temperature rating of the magnet. If there are no letters following the grade, then the magnet is standard temperature neodymium. The temperature ratings are standard (no designation) - M - H - SH - UH - EH.

Neodymium  Br Hcb Hcj (Bh)max Tw
Grade mT kGs kA/m kOe kA/m kOe kJ/m3 MGOe
N35 1170-1220 11.7-12.2 >868 >10.9 >955 >12 263-287 33-36 <80
N38 1220-1250 12.2-12.5 >899 >11.3 >955 >12 287-310 38-39 <80
N40 1250-1280 12.5-12.8 >907 >11.4 >955 >12 302-326 38-41 <80
N42 1280-1320 12.8-13.2 >915 >11.5 >955 >12 318-342 40-43 <80
N45 1320-1370 13.2-13.7 >915 >11.5 >955 >12 342-367 41-44 <80
N48 1380-1420 13.8-14.2 >923 >11.6 >955 >12 366-390 46-49 <80
N50 1400-1450 14.0-14.5 >796 >10 >876 >11 382-406 48-49 <80
N52 1430-1480 14.3-14.8 >796 >10 >876 >11 398-422 50-53 <80
35M 1170-1220 11.7-12.2 >868 >10.9 >1114 >14 263-297 33-36 <100
38M 1220-1250 12.2-12.5 >899 >11.3 >1114 >14 297-310 36-39 <100
40M 1250-1280 12.5-12.8 >923 >11.6 >1114 >14 302-326 38-41 <100
42M 1280-1320 12.8-13.2 >955 >12 >1114 >14 318-342 40-43 <100
48M 1360-1430 13.6-14.3 >1027 >12.9 >1114 >14 366-390 46-49 <100
50M 1400-1450 14.0-14.5 >1033 >13 >1114 >14 382-406 48-51 <100
33H 1130-1170 11.3-11.7 >836 >10.5 >1353 >17 247-271 31-34 <120
35H 1170-1220 11.7-12.2 >868 >10.9 >1353 >17 263-287 33-36 <120
38H 1220-1250 12.2-12.5 >899 >11.3 >1353 >17 287-310 36-39 <120
40H 1250-1280 12.5-12.8 >923 >11.6 >1353 >17 302-326 38-41 <120
42H 1280-1320 12.8-13.2 >955 >12 >1353 >17 318-342 40-43 <120
45H 1300-1360 13-13.6 >963 >12.1 >1353 >17 326-358 43-46 <120
48H 1370-1430 13.7-14.3 >995 >12 >1353 >17 366-390 46-49 <120
30SH 1080-1130 10.8-11.3 >804 >10.1 >1592 >20 223-247 28-31 <150
33SH 1130-1170 10.3-11.7 >844 >10.6 >1592 >20 247-271 31-34 <150
35SH 1170-1220 11.7-12.2 >876 >11 >1592 >20 263-287 33-36 <150
38SH 1220-1250 12.2-12.5 >907 >11.4 >1592 >20 287-310 36-39 <150
40SH 1240-1280 12.5-12.8 >939 >11.8 >1592 >20 302-326 36-41 <150
42SH 1280-1320 12.8-13.2 >987 >12.4 >1592 >20 318-342 40-43 <150
45SH 1320-1380 13.2-13.8 >1003 >12.6 >1592 >20 342-366 43-46 <150
28UH 1020-1080 10.2-10.8 >764 >9.6 >1990 >25 207-231 26-29 <180
30UH 1080-1130 10.8-11.3 >812 >10.2 >1990 >25 223-247 28-31 <180
33UH 1130-1170 11.3-11.7 >852 >10.7 >1990 >25 247-271 31-36 <180
35UH 1170-1220 11.8-12.2 >860 >10.8 >1990 >25 263-287 33-36 <180
38UH 1220-1250 12.2-12.5 >876 >11 >1990 >25 287-310 36-39 <180
40UH 1250-1280 12.5-12.8 >899 >11.3 >1990 >25 302-326 31-41 <180
28EH 1040-1090 10.4-10.9 >780 >9.8 >2388 >30 207-231 26-29 <200
30EH 1080-1130 10.8-11.3 >812 >10.2 >2388 >30 223-247 28-31 <200
33EH 1130-1170 11.3-11.7 >836 >10.5 >2388 >30 247-271 31-36 <200
35EH 1170-1220 11.7-12.2 >876 >11 >2388 >30 263-287 33-36 <200
38EH 1220-1250 12.2-12.5 >899 >11.3 >2388 >30 287-310 36-39 <200
28AH 1040-1090 10.4-10.9 >787 >9.9 >2642 >33 207-231 26-29 <230
30AH 1080-1130 10.8-11.3 >819 >10.3 >2642 >33 223-247 28-31 <230
38AH 1130-1170 11.3-11.7 >843 >10.6 >2642 >33 247-271 31-34 <230

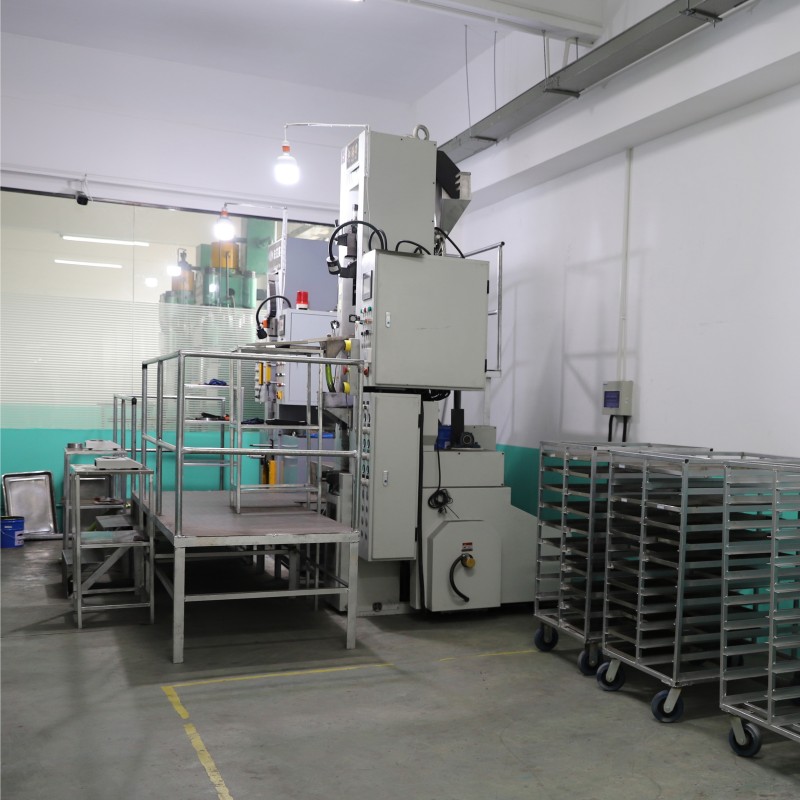

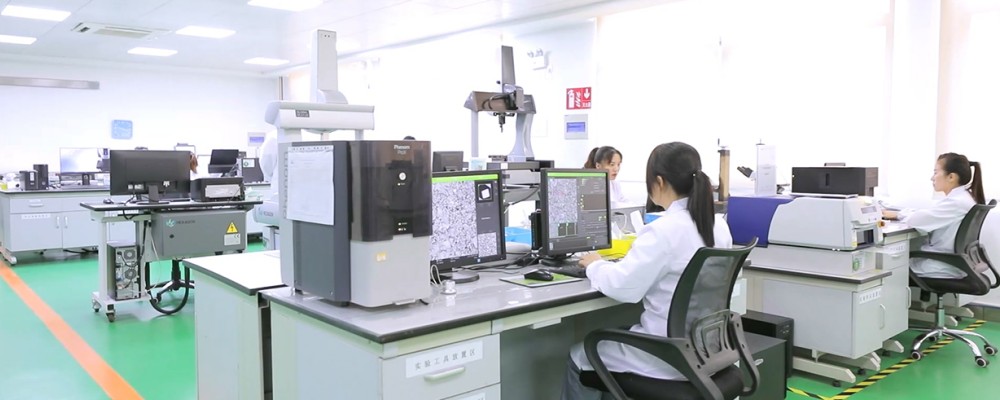

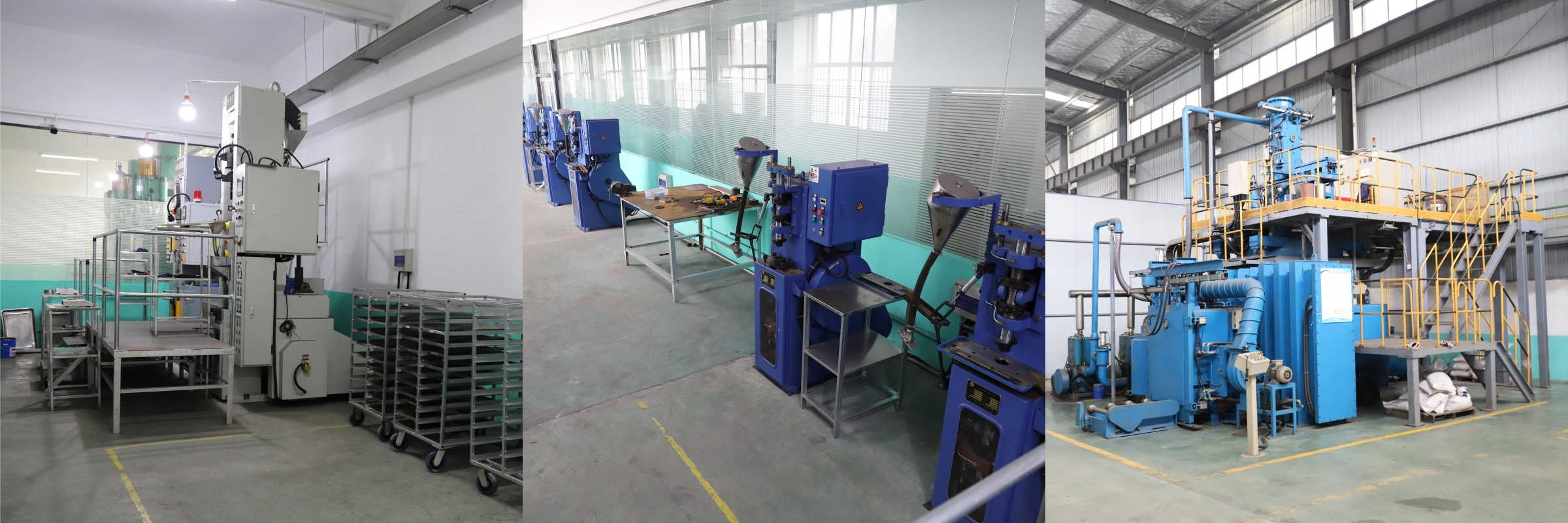

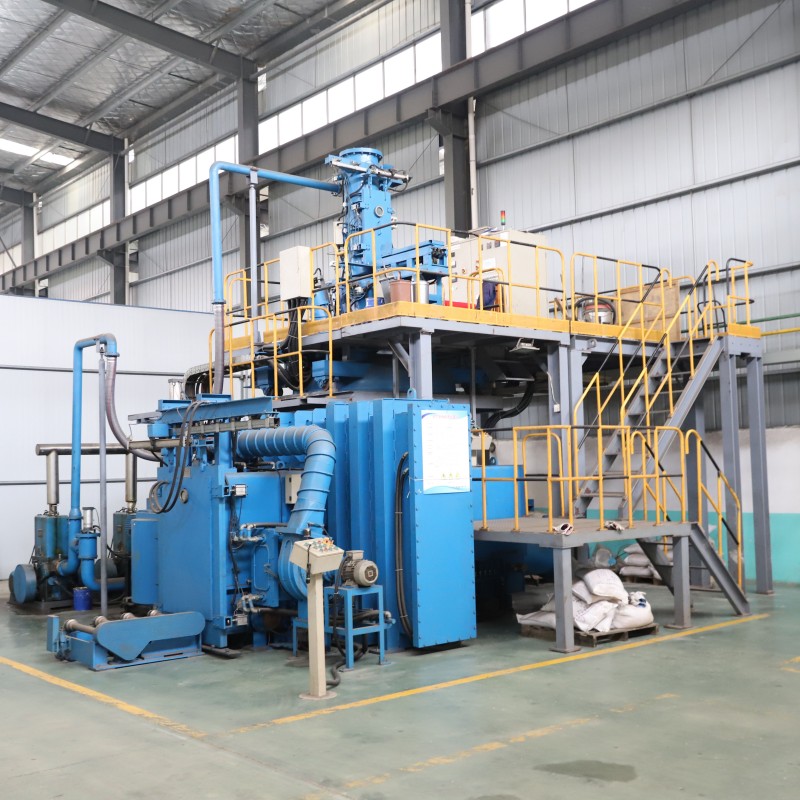

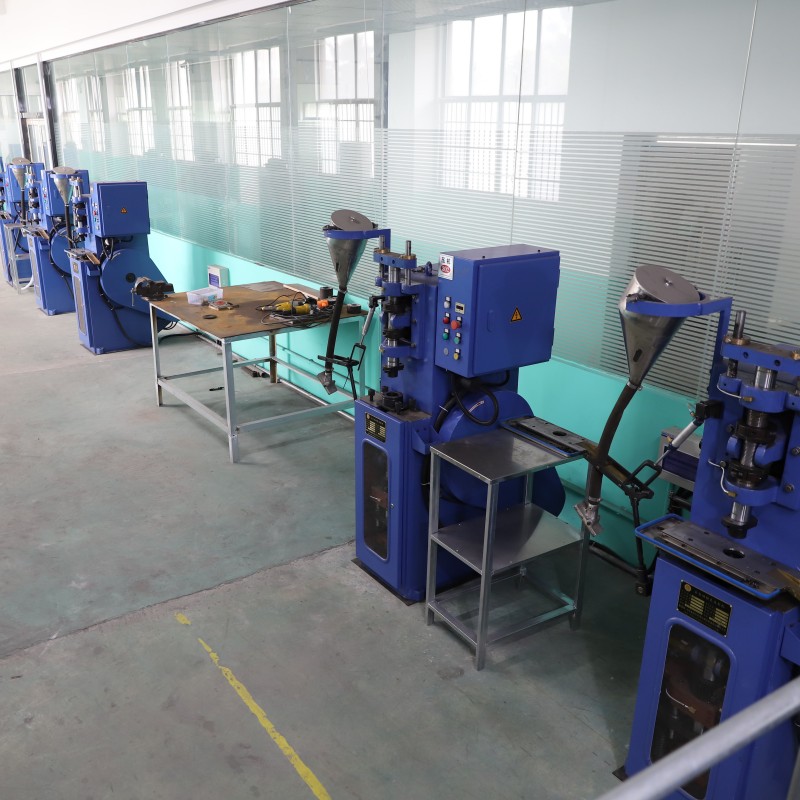

Our Factory

We have 20 years of experience in magnetic materials and have a good reputation in this field. Our products have won praises from customers worldwide.Besides, all of our products have been strictly inspected before shipment.

sensor robots block magnets

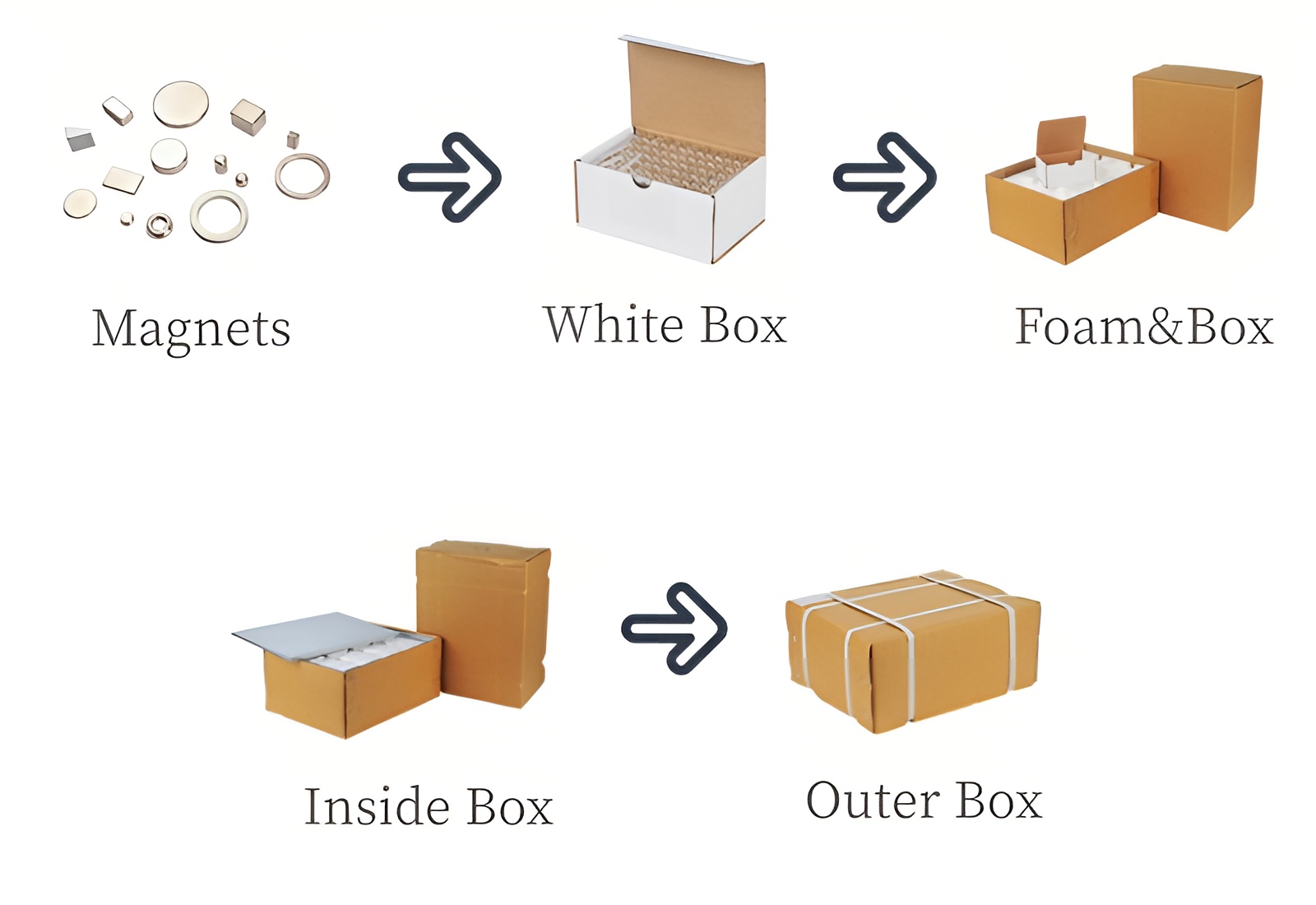

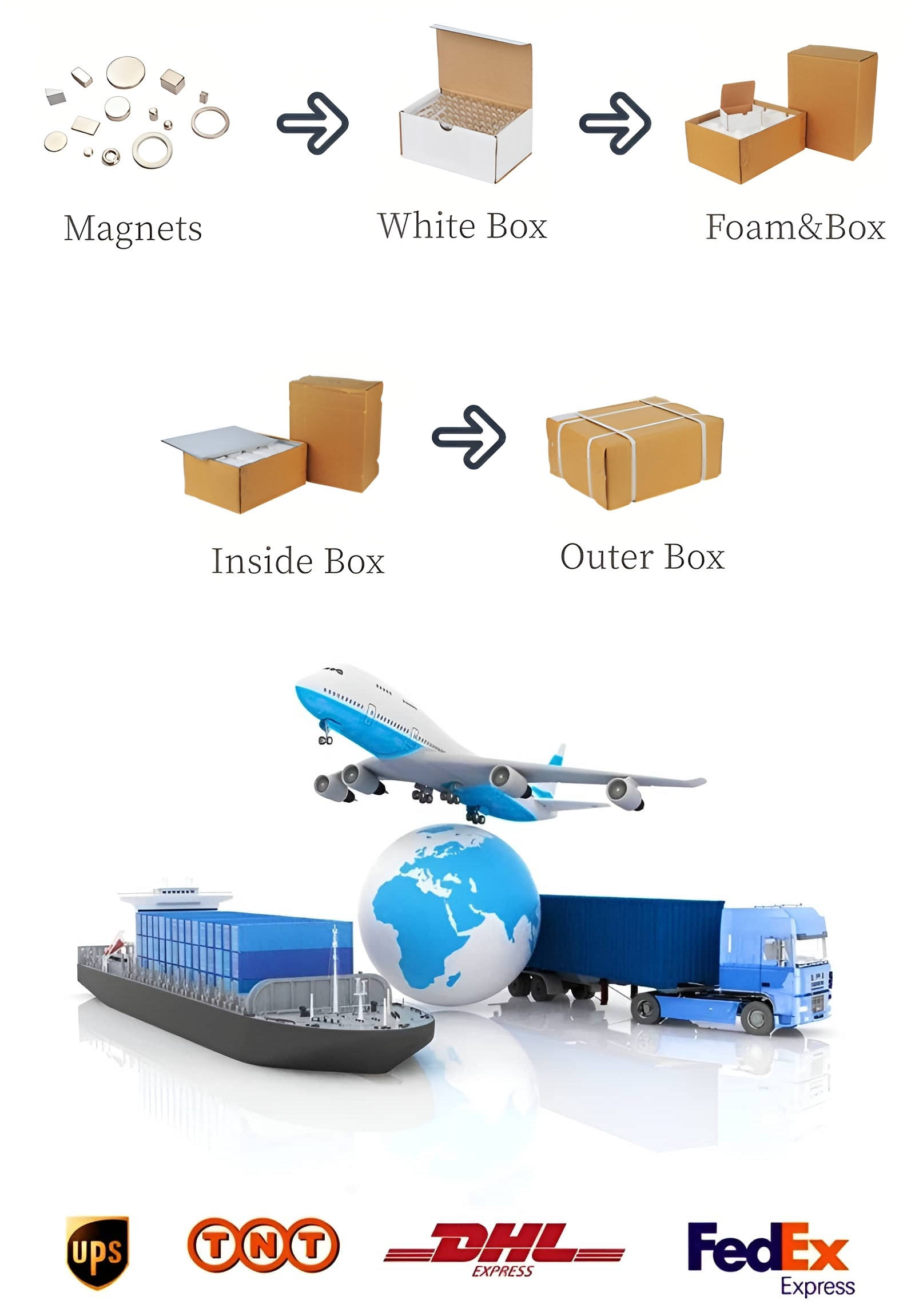

Packing&Shipping

block n35 neodymium magnet
