N42H Arc Segment Neodymium Magnets For Generators Motor

N42H Arc Segment Neodymium Magnets For Generators Motor

N42H neodymium arc magnets are high temperature NdFeB rare earth magnetic materials and the max working temperature is 120 degree centigrade.

  • Size :

    custom
  • Order(MOQ) :

    100pcs
  • Grade :

    N42H
  • Lead Time :

    3-15days
  • Payment :

    Paypal/TT/Credit Card

N42H Arc Segment Neodymium Magnets For Generators Motor

Product Description

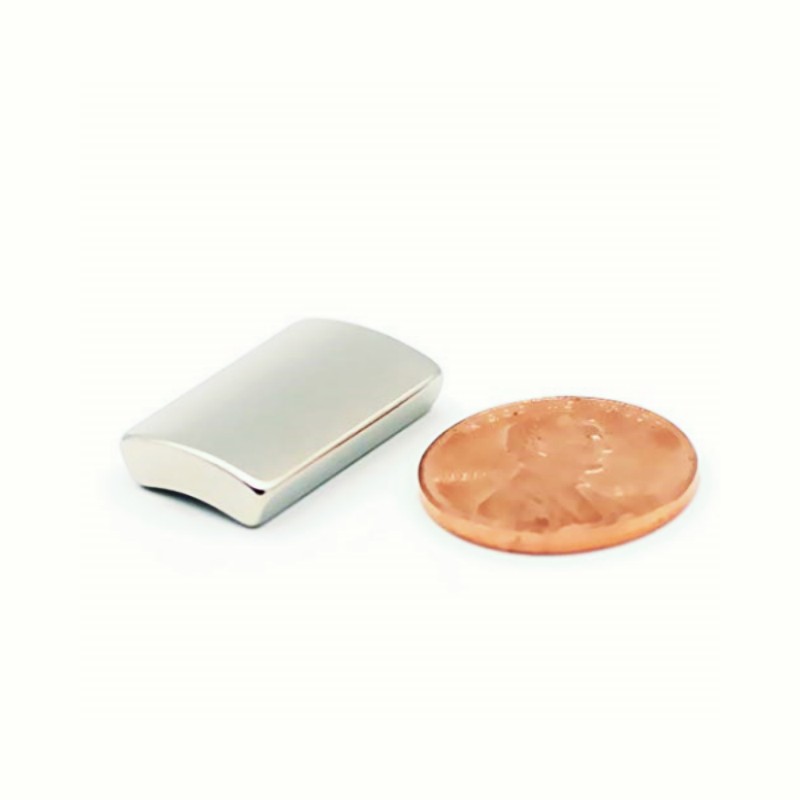

Ni+Cu+Ni arc neodymium magnets

High temperature resistance arc magnets is mainly composed with rare earth, if the magnet is not electroplated,it will rusted and corroded easily when the magnet is under moist air environment.

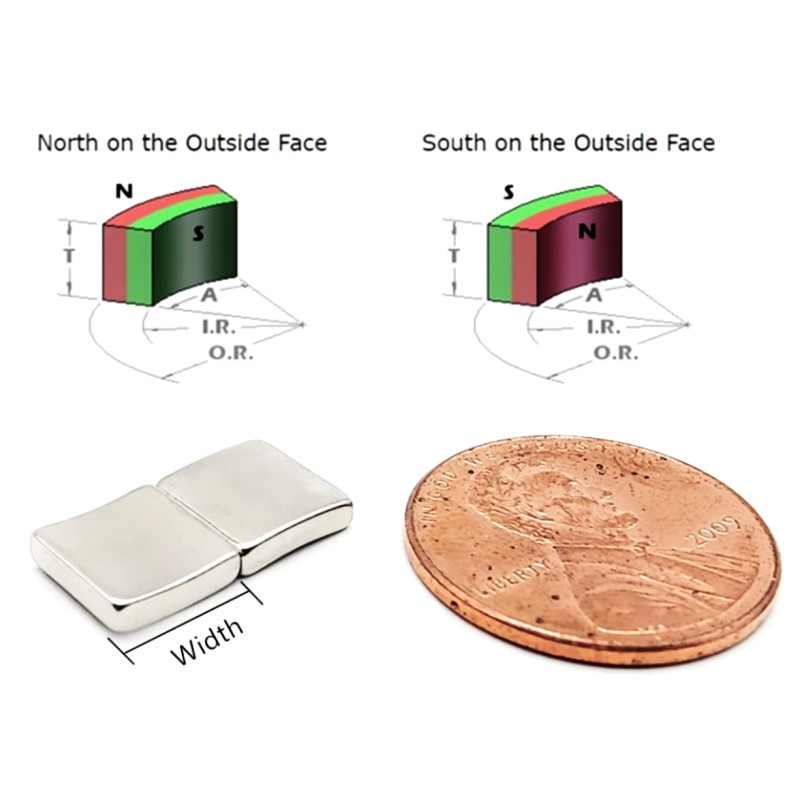

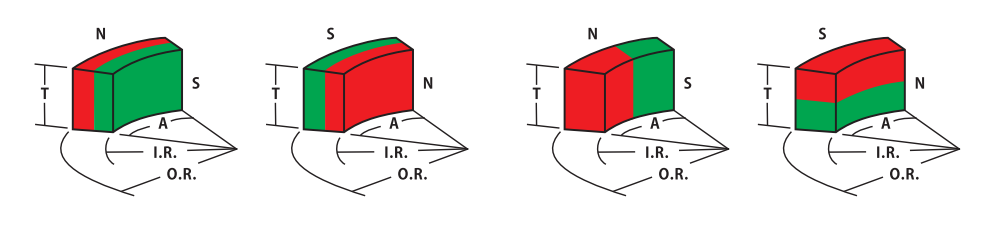

Every custom motor neodymium magnet has a north seeking and a south seeking face on opposite ends. The north face of one magnet will always be attracted towards the south face of another magnet.

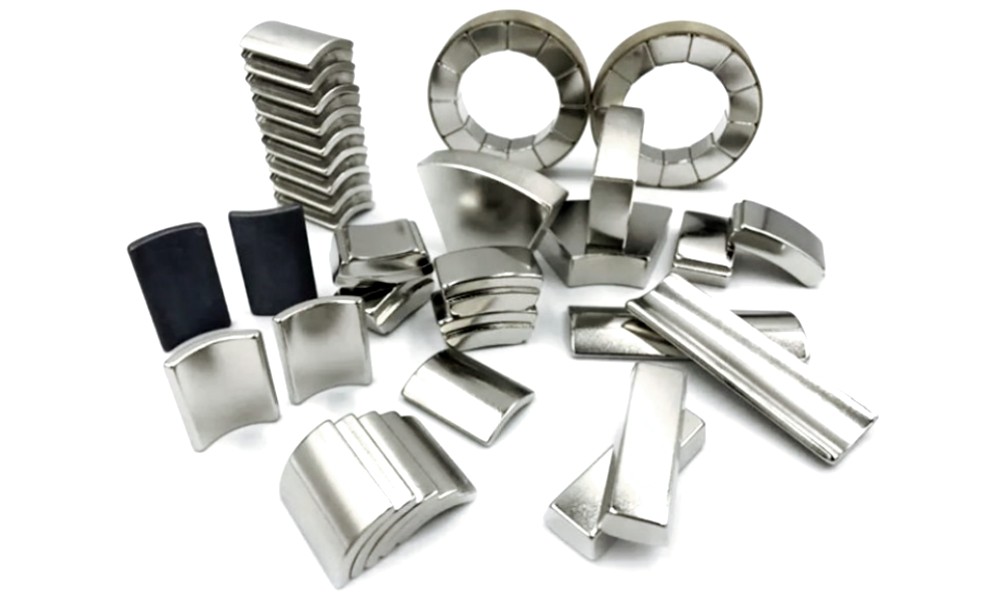

custom size curved neodymium magnet

Powerful neodymium magnets are all graded by the material they are made of. As a very general rule, the higher the grade (the number following the 'N'), the stronger the magnet. The highest grade of neodymium magnet currently available is N52. Any letter following the grade refers to the temperature rating of the magnet. If there are no letters following the grade, then the magnet is standard temperature neodymium.

Neodymium  Br Hcb Hcj (Bh)max Tw
Grade mT kGs kA/m kOe kA/m kOe kJ/m3 MGOe
N35 1170-1220 11.7-12.2 >868 >10.9 >955 >12 263-287 33-36 <80
N38 1220-1250 12.2-12.5 >899 >11.3 >955 >12 287-310 38-39 <80
N40 1250-1280 12.5-12.8 >907 >11.4 >955 >12 302-326 38-41 <80
N42 1280-1320 12.8-13.2 >915 >11.5 >955 >12 318-342 40-43 <80
N45 1320-1370 13.2-13.7 >915 >11.5 >955 >12 342-367 41-44 <80
N48 1380-1420 13.8-14.2 >923 >11.6 >955 >12 366-390 46-49 <80
N50 1400-1450 14.0-14.5 >796 >10 >876 >11 382-406 48-49 <80
N52 1430-1480 14.3-14.8 >796 >10 >876 >11 398-422 50-53 <80
35M 1170-1220 11.7-12.2 >868 >10.9 >1114 >14 263-297 33-36 <100
38M 1220-1250 12.2-12.5 >899 >11.3 >1114 >14 297-310 36-39 <100
40M 1250-1280 12.5-12.8 >923 >11.6 >1114 >14 302-326 38-41 <100
42M 1280-1320 12.8-13.2 >955 >12 >1114 >14 318-342 40-43 <100
48M 1360-1430 13.6-14.3 >1027 >12.9 >1114 >14 366-390 46-49 <100
50M 1400-1450 14.0-14.5 >1033 >13 >1114 >14 382-406 48-51 <100
33H 1130-1170 11.3-11.7 >836 >10.5 >1353 >17 247-271 31-34 <120
35H 1170-1220 11.7-12.2 >868 >10.9 >1353 >17 263-287 33-36 <120
38H 1220-1250 12.2-12.5 >899 >11.3 >1353 >17 287-310 36-39 <120
40H 1250-1280 12.5-12.8 >923 >11.6 >1353 >17 302-326 38-41 <120
42H 1280-1320 12.8-13.2 >955 >12 >1353 >17 318-342 40-43 <120
45H 1300-1360 13-13.6 >963 >12.1 >1353 >17 326-358 43-46 <120
48H 1370-1430 13.7-14.3 >995 >12 >1353 >17 366-390 46-49 <120



Shape Custom

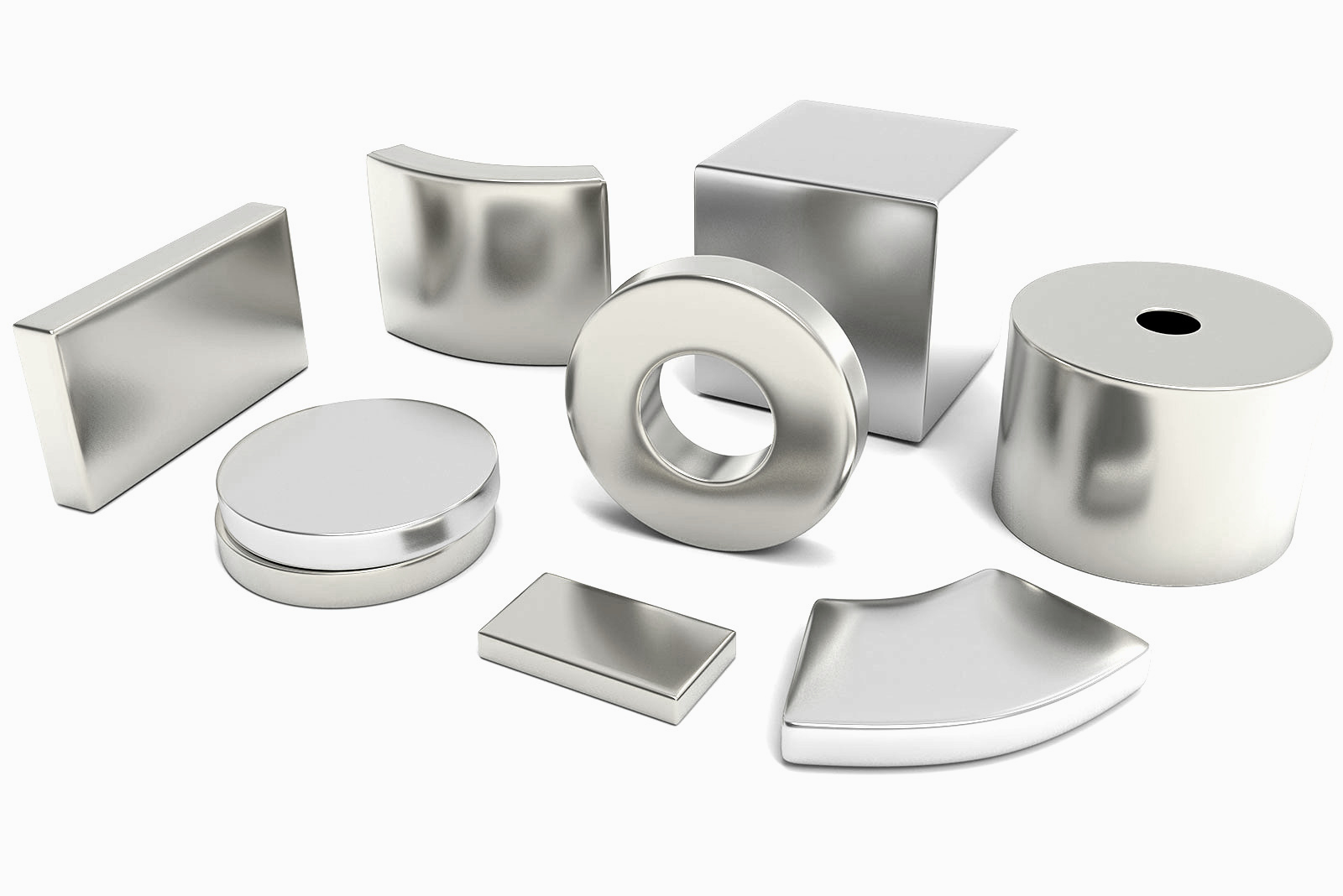

Our factory specializes in producing high-quality neodymium magnets in various shapes, including discs, blocks, rings, and cylinders, as well as custom designs. With advanced manufacturing and precision machining, we ensure top performance and durability for applications in technology, industry, energy, and electronics. We offer both standard and custom solutions to meet your specific needs.

customized industrial neodymium magnets

Packing&Shipping

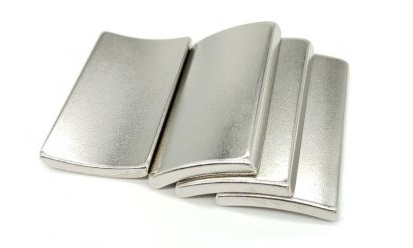

customized industrial arc magnets

leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
