 N52 Rare Earth Neodymium Ring Motor Generator Magnet
N52 Rare Earth Neodymium Ring Motor Generator Magnet
N52 Rare Earth Neodymium Ring Motor Generator Magnet
N52 Rare Earth Neodymium Ring Motor Generator Magnet
N52 Rare Earth Neodymium Ring Motor Generator Magnet

N52 Rare Earth Neodymium Ring Motor Generator Magnet

The ring magnet is made of high-quality rare earth materials with nickel + copper + nickel triple thickness electroplating process.

  • Size :

    OD25 X ID18 X 5mm

  • Color :

    Silver

  • Order(MOQ) :

    100pcs

  • Sample :

    Free

  • Lead Time :

    10-15days

  • Payment :

    Paypal/TT/Credit Card
Inquire Now

N52 Rare Earth Neodymium Ring Motor Generator Magnet

Product Description

N52 Rare Earth Neodymium Ring Motor Generator Magnet

Dimensions: OD25 X  ID18 X 5mm

Shape: Ring

Tolerances: ±0.05mm

Plating/Coating: Ni-Cu-Ni (Nickel)

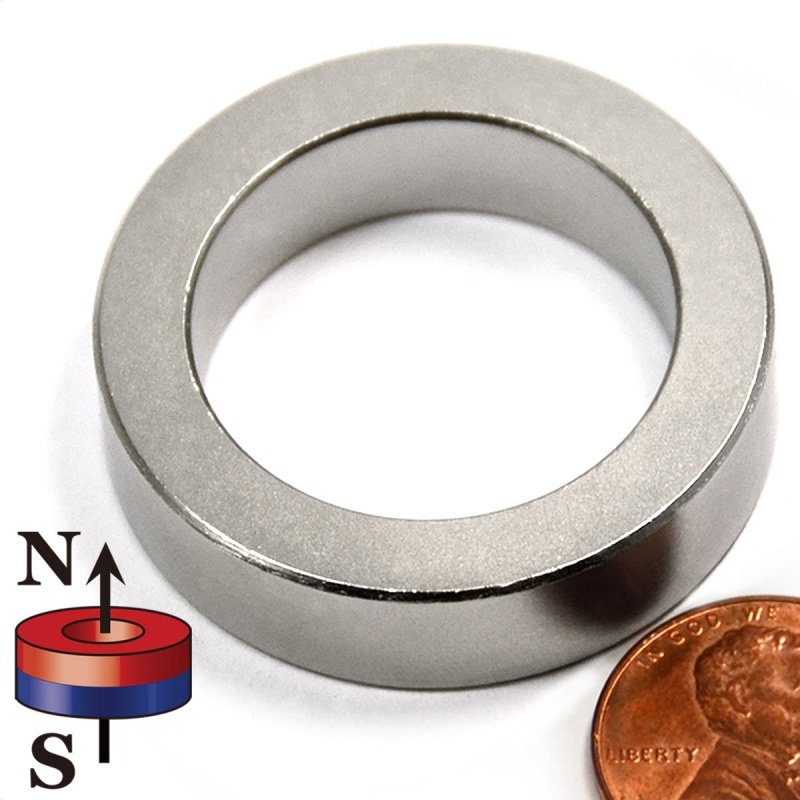

Magnetization Direction: Axial

Grade: N52



Warning:

1. All magnets are fragile and may chip or shatter, but if used properly under normal circumstances, they can serve you for lifetime.

2. As with all magnets, keep away from pacemakers and sensitive electronics. Keep away from children.

Feature

Shape Characteristics

♦ Optimized magnetic circuit: The ring shape naturally supports a closed magnetic loop, increasing magnetic flux density and efficiency. Commonly used in motors, sensors, and speakers.

♦ Central hole design: Ring NdFeB magnet allows for easy installation, alignment on shafts, or fastening in assemblies.

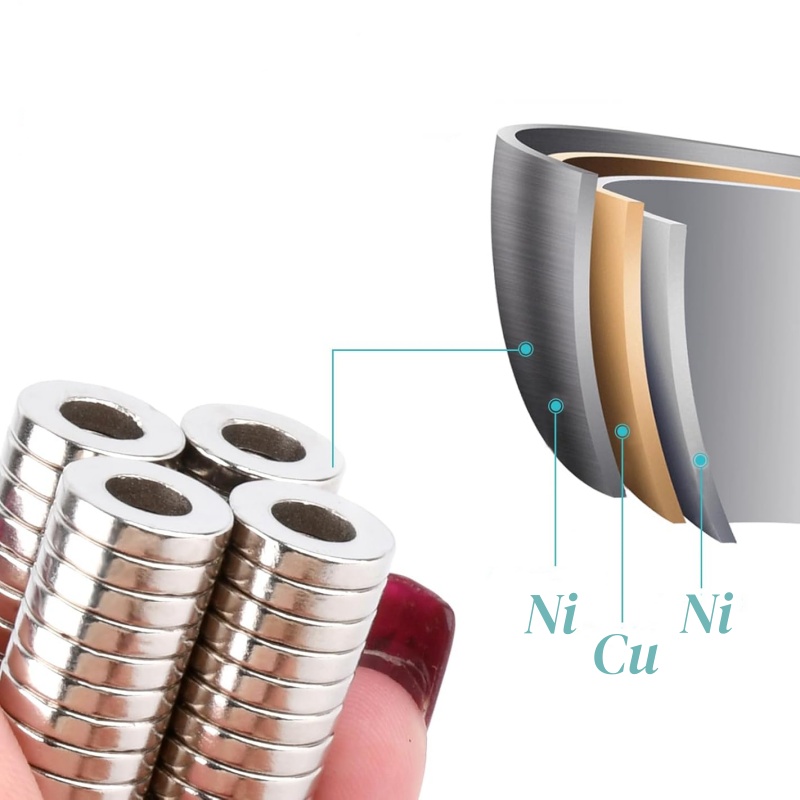

Nickel Coating Features

♦ Corrosion resistance: NdFeB is prone to oxidation; nickel plating significantly enhances resistance to humidity, salt spray, and chemical exposure of disc magnets with hole.

♦ Aesthetic and smooth surface: Provides a shiny silver finish, ideal for visible or high-end components.

Typical Applications

Motors (servo motors, brushless dc motors)

Rotary encoders and position sensors

Medical and automation equipment

Magnetic couplings and sealing systems

strong ndfeb magnets with hole



Customization

We have over 20 years experience of supplying Neodymium Magnets, supply a wide range of customized neodymium magnets according to requests.



* Custom shapes, sizes, coatings, and more.
* Free samples.
* High quality, fast delivery.
* Professional project team service.
neodymium magnetic ring magnets
Neodymium Br Hcb Hcj (Bh)max Tw
Grade mT kGs kA/m kOe kA/m kOe kJ/m3 MGOe ℃
N35 1170-1220 11.7-12.2 ＞868 ＞10.9 ＞955 ＞12 263-287 33-36 ＜80
N38 1220-1250 12.2-12.5 ＞899 ＞11.3 ＞955 ＞12 287-310 38-39 ＜80
N40 1250-1280 12.5-12.8 ＞907 ＞11.4 ＞955 ＞12 302-326 38-41 ＜80
N42 1280-1320 12.8-13.2 ＞915 ＞11.5 ＞955 ＞12 318-342 40-43 ＜80
N45 1330-1370 13.3-13.7 ＞915 ＞11.5 ＞955 ＞12 342-367 41-44 ＜80
N48 1380-1420 13.8-14.2 ＞923 ＞11.6 ＞955 ＞12 366-390 46-49 ＜80
N50 1400-1450 14.0-14.5 ＞796 ＞10 ＞876 ＞11 382-406 48-49 ＜80
N52 1430-1480 14.3-14.8 ＞796 ＞10 ＞876 ＞11 398-422 50-53 ＜80
35M 1170-1220 11.7-12.2 ＞868 ＞10.9 ＞1114 ＞14 263-297 33-36 ＜100
38M 1220-1250 12.2-12.5 ＞899 ＞11.3 ＞1114 ＞14 297-310 36-39 ＜100
40M 1250-1280 12.5-12.8 ＞923 ＞11.6 ＞1114 ＞14 302-326 38-41 ＜100
42M 1280-1320 12.8-13.2 ＞955 ＞12 ＞1114 ＞14 318-342 40-43 ＜100
48M 1360-1430 13.6-14.3 ＞1027 ＞12.9 ＞1114 ＞14 366-390 46-49 ＜100
50M 1400-1450 14.0-14.5 ＞1033 ＞13 ＞1114 ＞14 382-406 48-51 ＜100
33H 1130-1170 11.3-11.7 ＞836 ＞10.5 ＞1353 ＞17 247-271 31-34 ＜120
35H 1170-1220 11.7-12.2 ＞868 ＞10.9 ＞1353 ＞17 263-287 33-36 ＜120
38H 1220-1250 12.2-12.5 ＞899 ＞11.3 ＞1353 ＞17 287-310 36-39 ＜120
40H 1250-1280 12.5-12.8 ＞923 ＞11.6 ＞1353 ＞17 302-326 38-41 ＜120
42H 1280-1320 12.8-13.2 ＞955 ＞12 ＞1353 ＞17 318-342 40-43 ＜120
45H 1300-1360 13-13.6 ＞963 ＞12.1 ＞1353 ＞17 326-358 43-46 ＜120
48H 1370-1430 13.7-14.3 ＞995 ＞12 ＞1353 ＞17 366-390 46-49 ＜120
30SH 1080-1130 10.8-11.3 ＞804 ＞10.1 ＞1592 ＞20 223-247 28-31 ＜150
33SH 1130-1170 10.3-11.7 ＞844 ＞10.6 ＞1592 ＞20 247-271 31-34 ＜150
35SH 1170-1220 11.7-12.2 ＞876 ＞11 ＞1592 ＞20 263-287 33-36 ＜150
38SH 1220-1250 12.2-12.5 ＞907 ＞11.4 ＞1592 ＞20 287-310 36-39 ＜150
40SH 1240-1280 12.5-12.8 ＞939 ＞11.8 ＞1592 ＞20 302-326 36-41 ＜150
42SH 1280-1320 12.8-13.2 ＞987 ＞12.4 ＞1592 ＞20 318-342 40-43 ＜150
45SH 1320-1380 13.2-13.8 ＞1003 ＞12.6 ＞1592 ＞20 342-366 43-46 ＜150
28UH 1020-1080 10.2-10.8 ＞764 ＞9.6 ＞1990 ＞25 207-231 26-29 ＜180
30UH 1080-1130 10.8-11.3 ＞812 ＞10.2 ＞1990 ＞25 223-247 28-31 ＜180
33UH 1130-1170 11.3-11.7 ＞852 ＞10.7 ＞1990 ＞25 247-271 31-36 ＜180
35UH 1170-1220 11.8-12.2 ＞860 ＞10.8 ＞1990 ＞25 263-287 33-36 ＜180
38UH 1220-1250 12.2-12.5 ＞876 ＞11 ＞1990 ＞25 287-310 36-39 ＜180
40UH 1250-1280 12.5-12.8 ＞899 ＞11.3 ＞1990 ＞25 302-326 31-41 ＜180
28EH 1040-1090 10.4-10.9 ＞780 ＞9.8 ＞2388 ＞30 207-231 26-29 ＜200
30EH 1080-1130 10.8-11.3 ＞812 ＞10.2 ＞2388 ＞30 223-247 28-31 ＜200
33EH 1130-1170 11.3-11.7 ＞836 ＞10.5 ＞2388 ＞30 247-271 31-36 ＜200
35EH 1170-1220 11.7-12.2 ＞876 ＞11 ＞2388 ＞30 263-287 33-36 ＜200
38EH 1220-1250 12.2-12.5 ＞899 ＞11.3 ＞2388 ＞30 287-310 36-39 ＜200
28AH 1040-1090 10.4-10.9 ＞787 ＞9.9 ＞2642 ＞33 207-231 26-29 ＜230
30AH 1080-1130 10.8-11.3 ＞819 ＞10.3 ＞2642 ＞33 223-247 28-31 ＜230
38AH 1130-1170 11.3-11.7 ＞843 ＞10.6 ＞2642 ＞33 247-271 31-34 ＜230
