Rare earth neodymium pot magnets, also known as cabinet magnets, are highly versatile and ideal for use in cabinets or applications requiring attachment to non-magnetic surfaces such as wood, plastic, or non-magnetic metals.
Color :
SilveryOrder(MOQ) :
100PCSCoating :
NickelSample :
AvaliableTolerance :
±0.05mmLead Time :
3-15daysPayment :
Paypal/TT/Credit Card70LBS Neodymium Rectangular Pot Magnets For Mounting
Product Specifications
Product Features
Rectangular magnetic pot magnets, also known as channel magnets or magnetic channels, are constructed by assembling permanent magnets inside channel steel. Most rectangular magnetic bases use neodymium rare earth magnets, known for their excellent strength and durability. In addition, the channel steel protects the magnet from direct impact, ensuring a longer service life.
--Outstanding Design And High Performance--

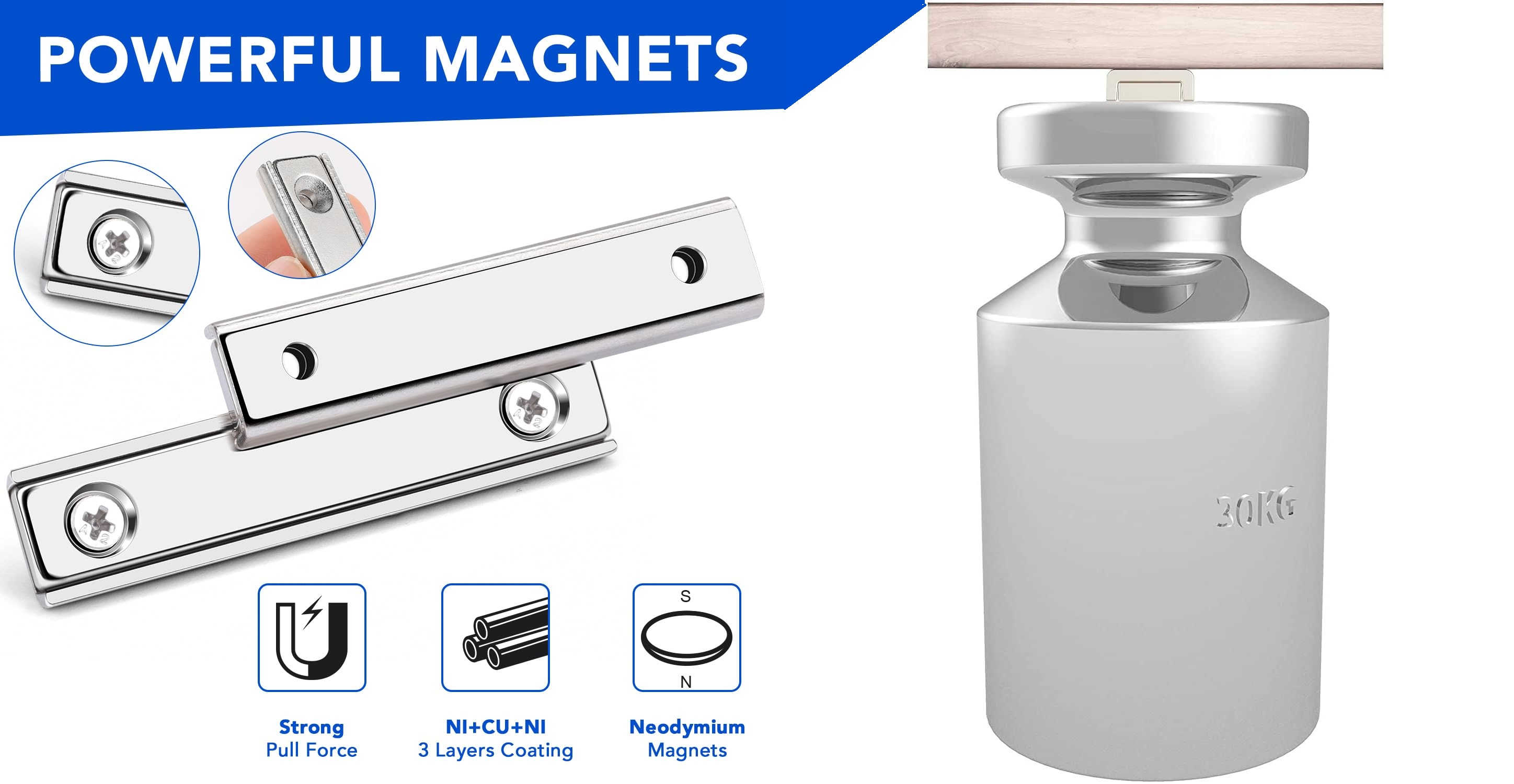

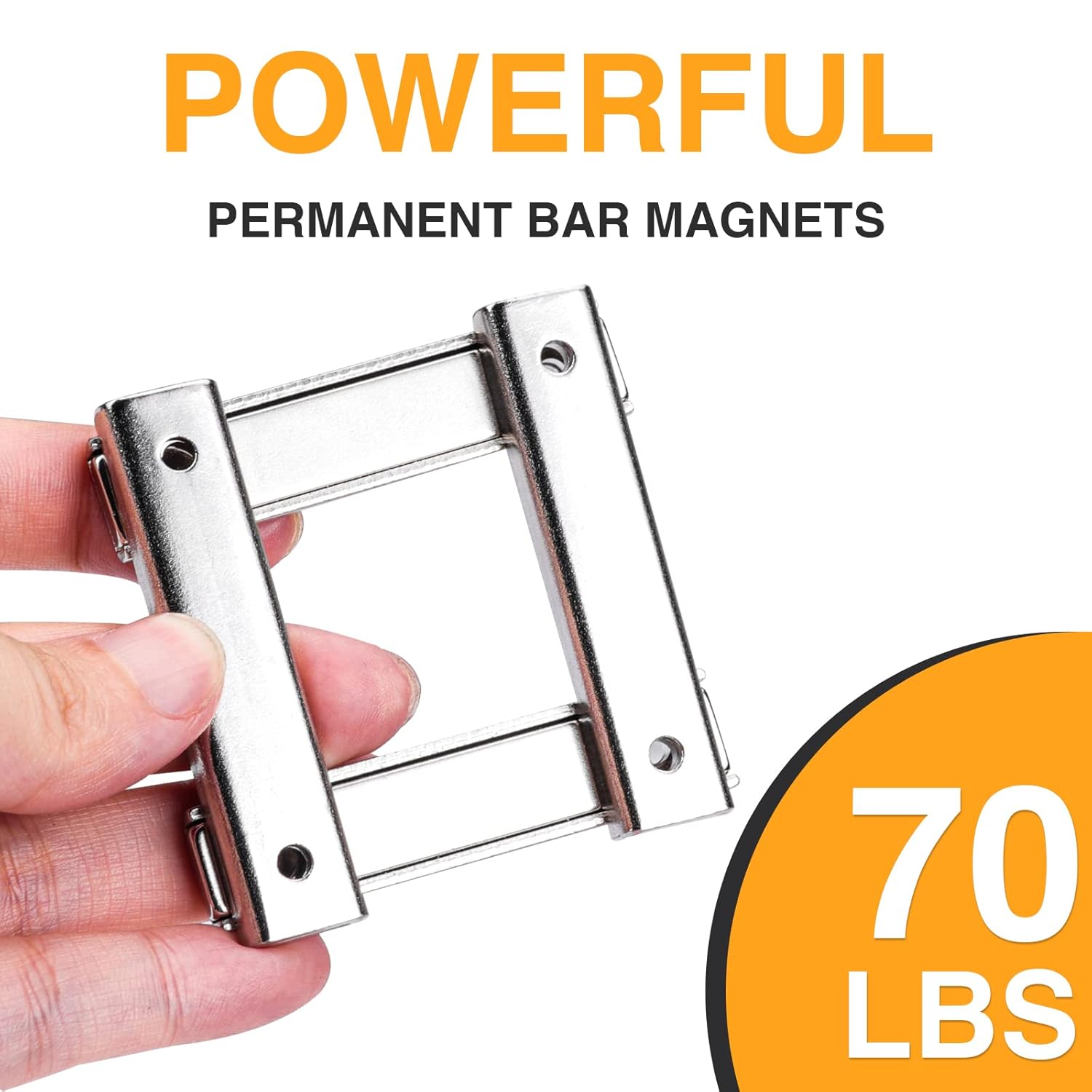

The rectangular shape countersunk pot magnet is made of strong neodymium magnet and coated with high quality 304 stainless steel plated with nickel, providing good magnetic conductivity. It can withstand a tensile force of up to 70 pounds (30 kilograms). Our bar magnets are coated with 3 layers of nickel, copper, and nickel, which have corrosion resistance and ensure durability. The high quality coating makes our perforated rectangular magnets stand out, ensuring their durability.

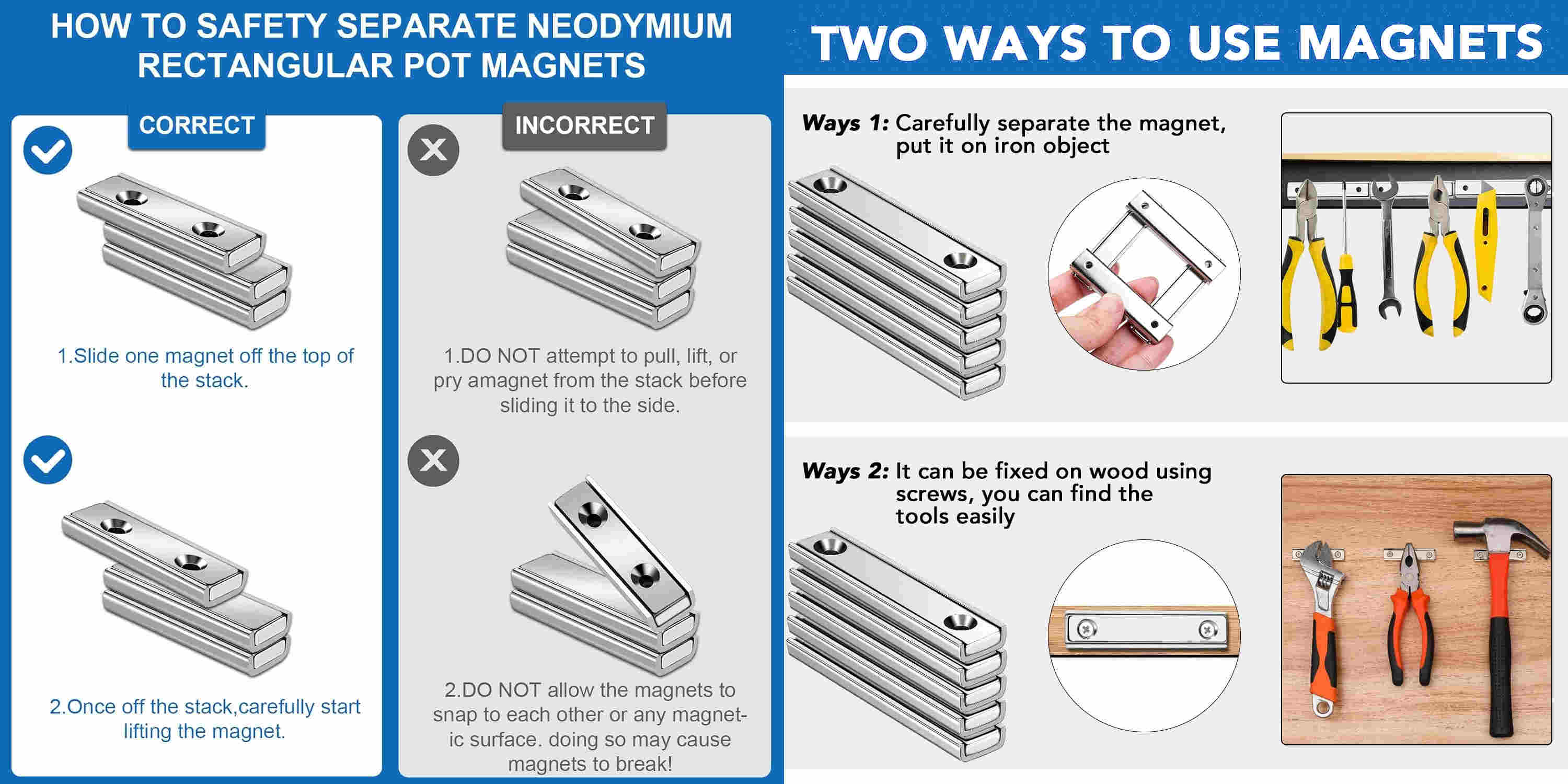

--Two Usage Methods--

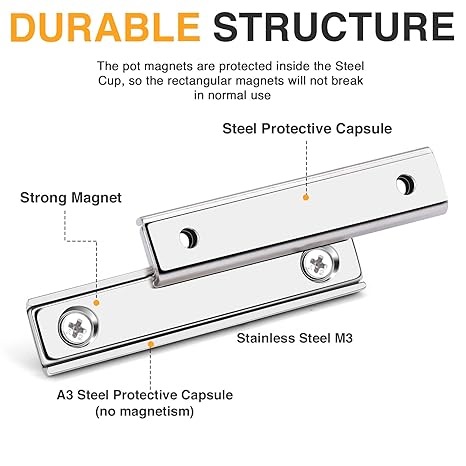

The sturdy embedded magnet design ensures the safety of rare earth magnets and prevents damage. Use the correct method to easily separate magnets. Magnets with countersunk holes can be installed on any surface using screws, or they can be fixed to the surface of metal objects using the suction force of the magnet.
--Multiple Applications--
Magnetic pot magnet have multiple uses. Whether or not you need them to secure cabinets or shower doors, install objects, etc. These strong magnets with screws can meet your needs. They provide reliable magnetic performance in variable applications.

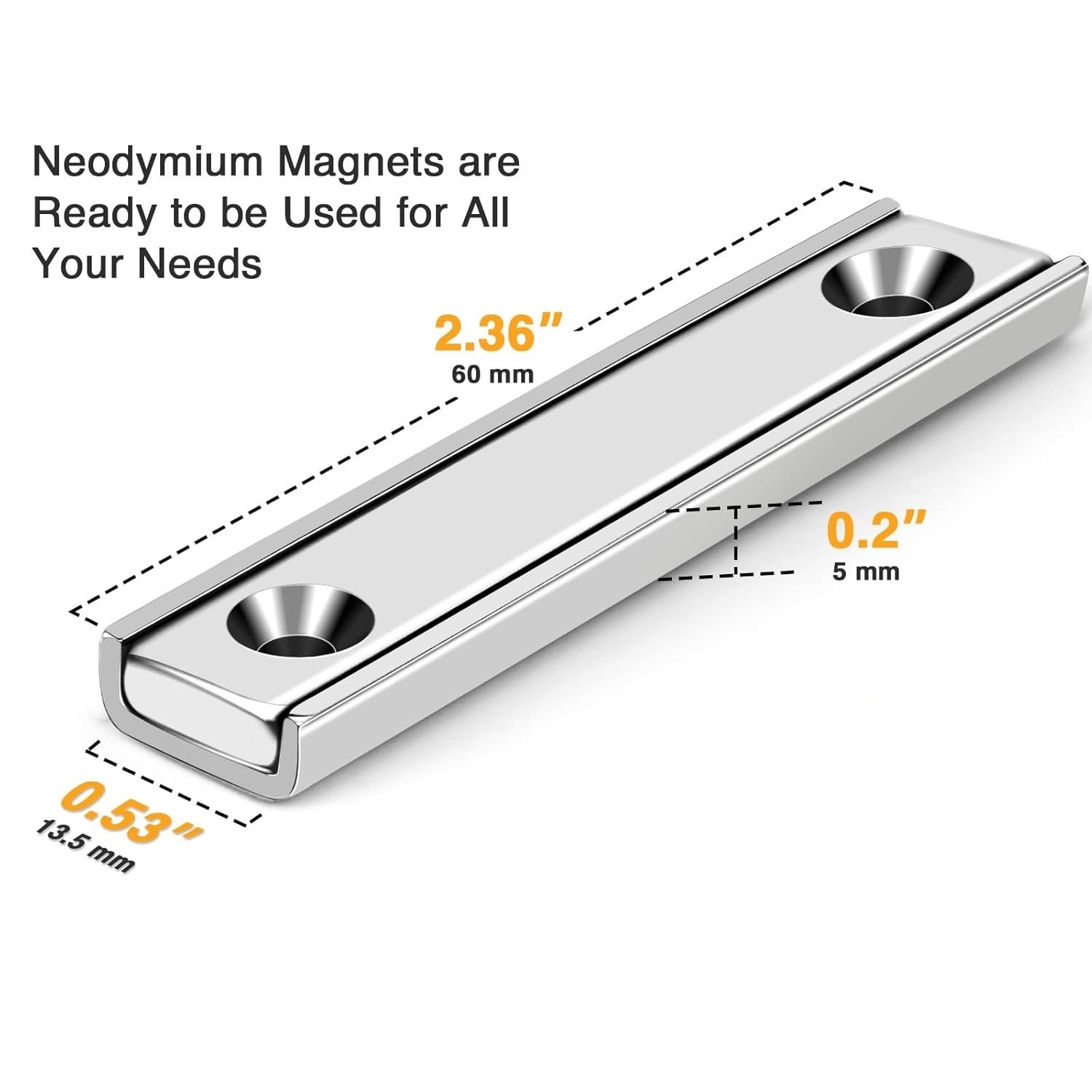

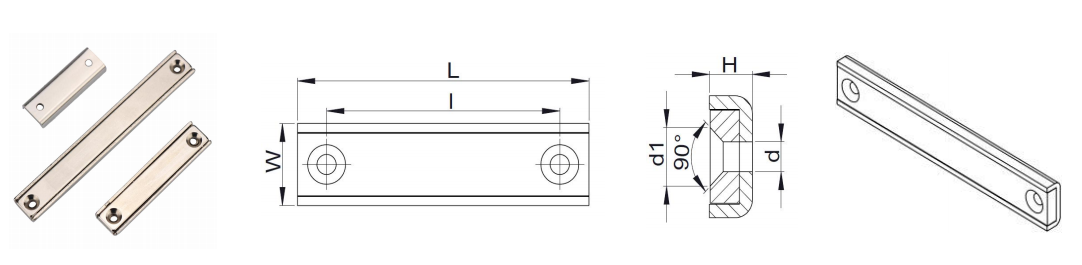

Size Chart
Model | L (mm) |
l (mm) |
W (mm) |
H (mm) |
d (mm) |
d1 (mm) |
Weight (g) |
SNI40 | 40 | 30 | 13.5 | 5 | 3.3 | 6.5 | 19 |
SNI50 | 50 | 40 | 13.5 | 5 | 3.3 | 6.5 | 24 |
SNI60 | 60 | 50 | 13.5 | 5 | 3.3 | 6.5 | 30 |
SNI80 | 80 | 70 | 13.5 | 5 | 3.3 | 6.5 | 38 |
SNI100 | 100 | 90 | 13.5 | 5 | 3.3 | 6.5 | 48 |
SNI120 | 120 | 110 | 13.5 | 5 | 3.3 | 6.5 | 58 |
