Samarium cobalt block magnets have exceptional strength and high-temperature resilience.
Size :
1/2x1/2x1/8 InchOrder(MOQ) :
1000pcsSample :
SupportLead Time :
3-15daysPayment :
Paypal/ TT/Credit Card4.1 Lb Pulling Force High Temp SmCo Block Magnets Wholesale
Product Description
Warning:
Keep away from pacemakers and children
If damaged please dispose of completely

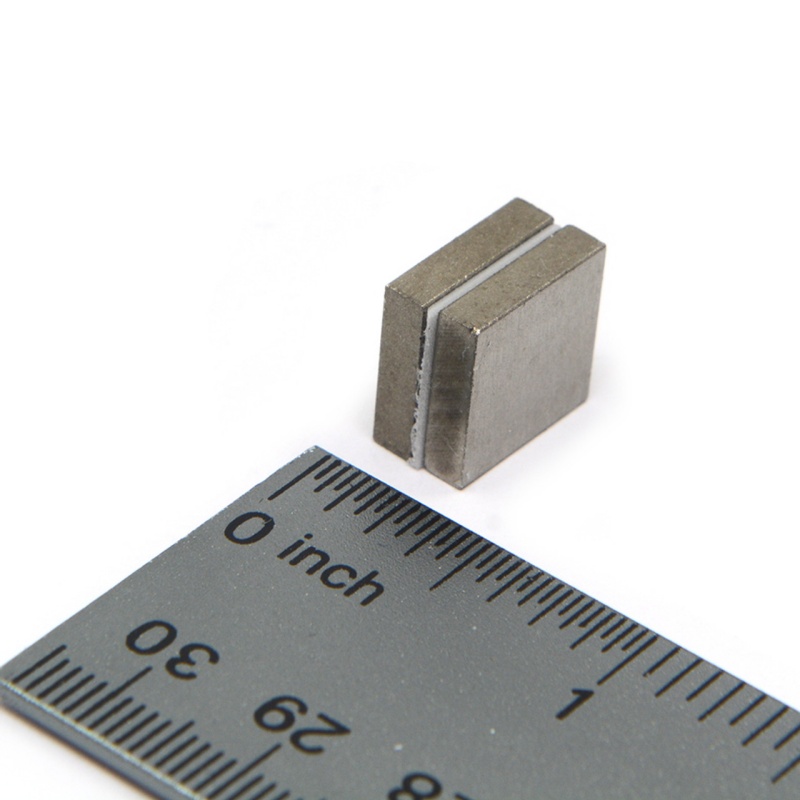

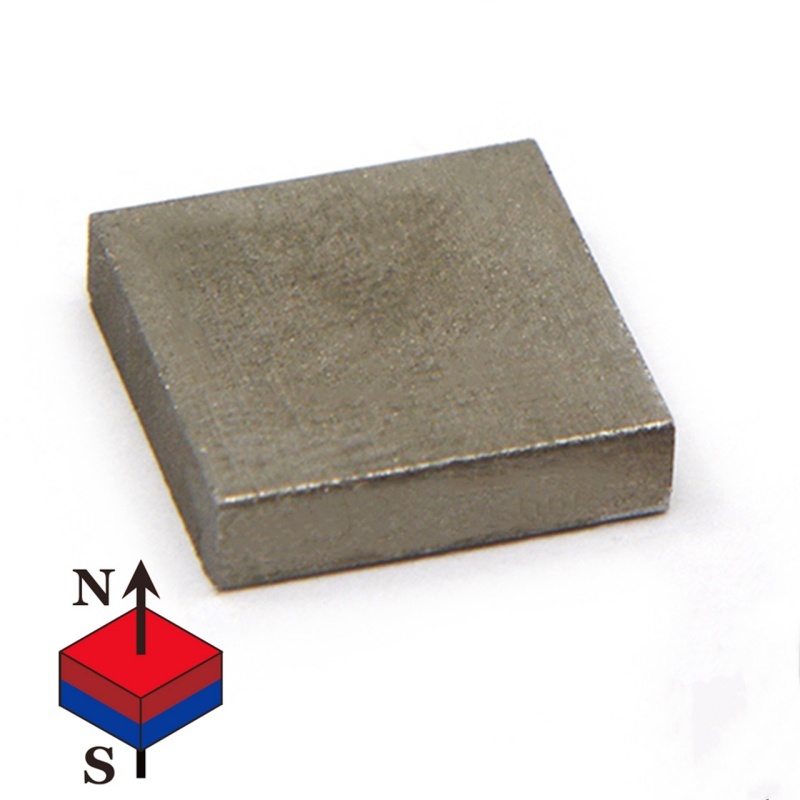

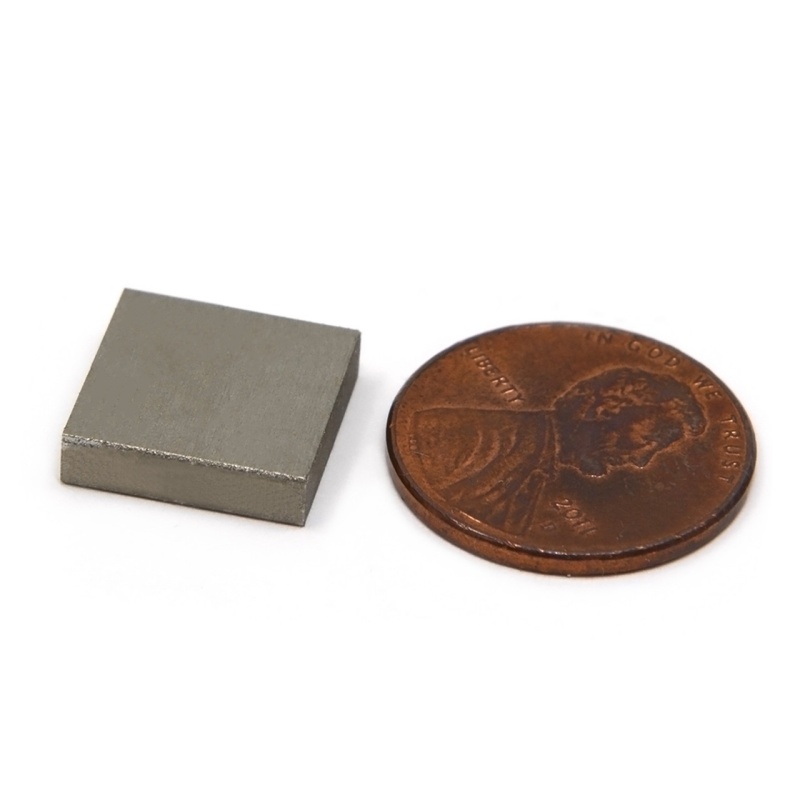

Crafted from high-performance Sm₂Co₁₇ material, these precision-made sintered SmCo magnets (1/2" x 1/2" x 1/8") deliver strong magnetic performance — with a holding force of 4.1 lbs per magnet — rivaling that of neodymium magnets.
What sets them apart is their exceptional thermal stability. Designed to perform reliably in temperatures up to 608°F (320°C), these block samarium cobalt magnets are ideal for demanding applications in tooling, oil and gas, aerospace, and other high-temperature industrial operations.
Whether used in motors, sensors, or holding systems, they offer consistent magnetic strength and durability where standard magnets would fail.
Specification
| Series | Grade | Br | Hcb | Hcj | （BH）max | Tc ℃ |
TW ℃ |
|||||
| T | kGs | kA/m | kOe | kA/m | kOe | kJ/m3 | MGOe | |||||
| ≥ | ||||||||||||
| SmCo 1:5 | 66800 | SG 127/119 | 0.8 | 8 | 557 | 7 | 1194 | 15 | 127-143 | 16-18 | 750 | 250 |
| 66801 | SG 143/119 | 0.85 | 8.5 | 621 | 7.8 | 1194 | 15 | 143-159 | 18-20 | |||
| 66802 | SG 143/160 | 0.85 | 8.5 | 621 | 7.8 | 1592 | 20 | 143-159 | 18-20 | |||
| 66803 | SG 160/119 | 0.9 | 9 | 637 | 8 | 1194 | 15 | 159-175 | 20-22 | |||
| 66804 | SG 160/160 | 0.9 | 9 | 637 | 8 | 1592 | 20 | 159-175 | 20-22 | |||
| 66805 | SG 175/119 | 0.95 | 9.5 | 676 | 8.5 | 1194 | 15 | 175-191 | 22-24 | |||
| SmCo 2:17 | 60811 | SG160/200 | 0.9 | 9 | 637 | 8 | 1990 | 25 | 159±16 | 20±2 | 800 | 350 |
| 60812 | SG 175/160 | 0.95 | 9.5 | 653 | 8.2 | 1592 | 20 | 175±16 | 22±2 | 300 | ||
| 60813 | SG 175/200 | 0.95 | 9.5 | 653 | 8.2 | 1990 | 25 | 175±16 | 22±2 | 350 | ||
| 60814 | SG 191/160 | 1 | 10 | 676 | 8.5 | 1592 | 20 | 191±16 | 24±2 | 300 | ||
| 60815 | SG 191/200 | 1 | 10 | 676 | 8.5 | 1990 | 25 | 191±16 | 24±2 | 350 | ||
| 60816 | SG 207/160 | 1.02 | 10.2 | 716 | 9 | 1592 | 20 | 207±16 | 26±2 | 300 | ||
| 60817 | SG 207/200 | 1.02 | 10.2 | 716 | 9 | 1990 | 25 | 207±16 | 26±2 | 350 | ||
| 60818 | SG 223/120 | 1.06 | 10.6 | 763 | 9.6 | 1194 | 15 | 223±16 | 28±2 | 300 | ||
| 60819 | SG 238/72 | 1.1 | 11 | 560 | 7 | 716 | 9 | 238±16 | 30±2 | 250 | ||
