This large size neodymium magnet offers strong magnetic force and excellent resistance to corrosion for a wide range of industrial and DIY applications.
Color :
SilveryOrder(MOQ) :
100pcsGrade :
N35-N52Coating :
Ni-Cu-NiSample :
FreeDensity :
7.5g/cm³Lead Time :
3-15daysPayment :
Paypal/TT/Credit CardWholesale Rectangular Rare Earth Neodymium Magnets Bar
Product Description

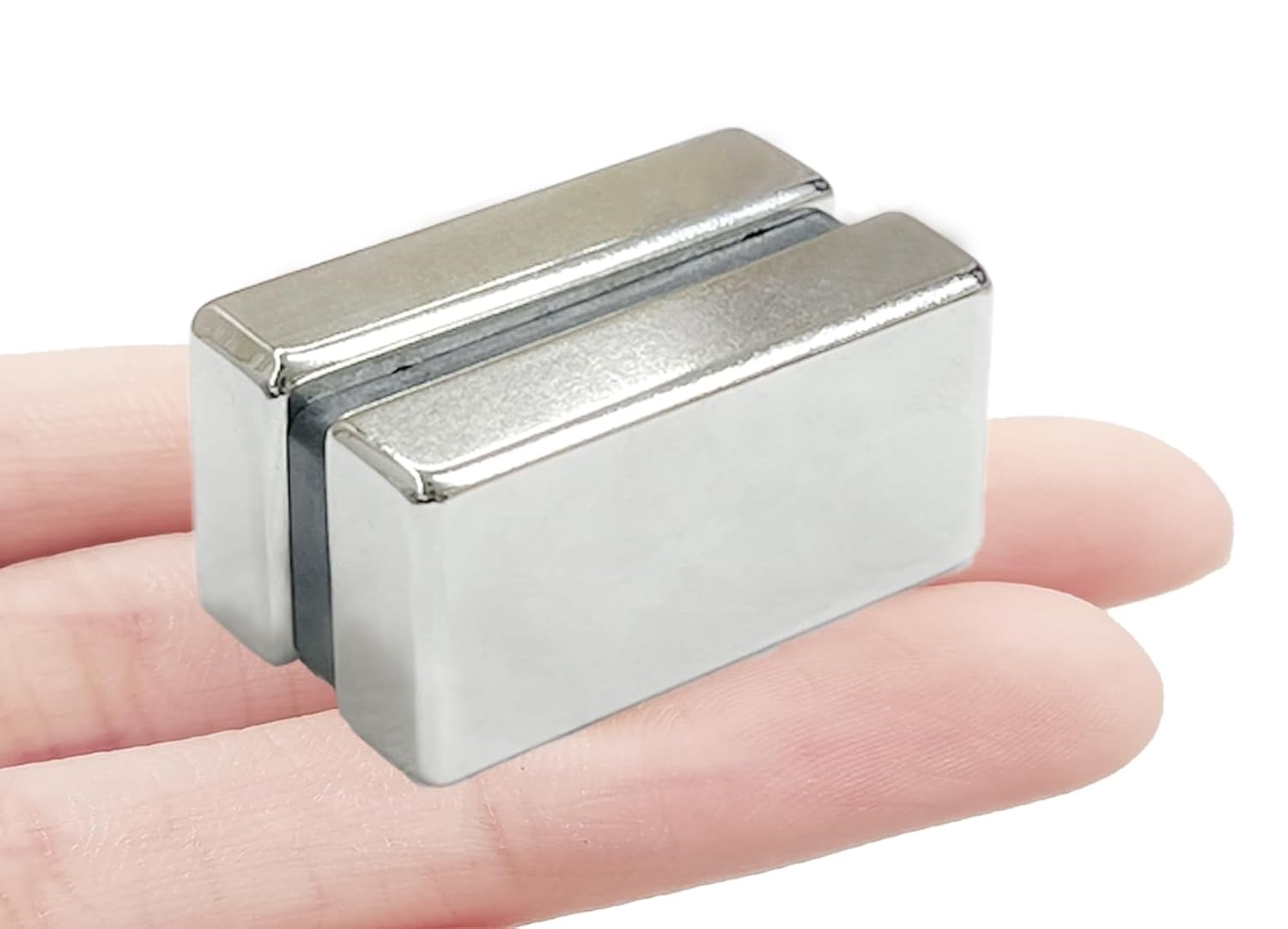

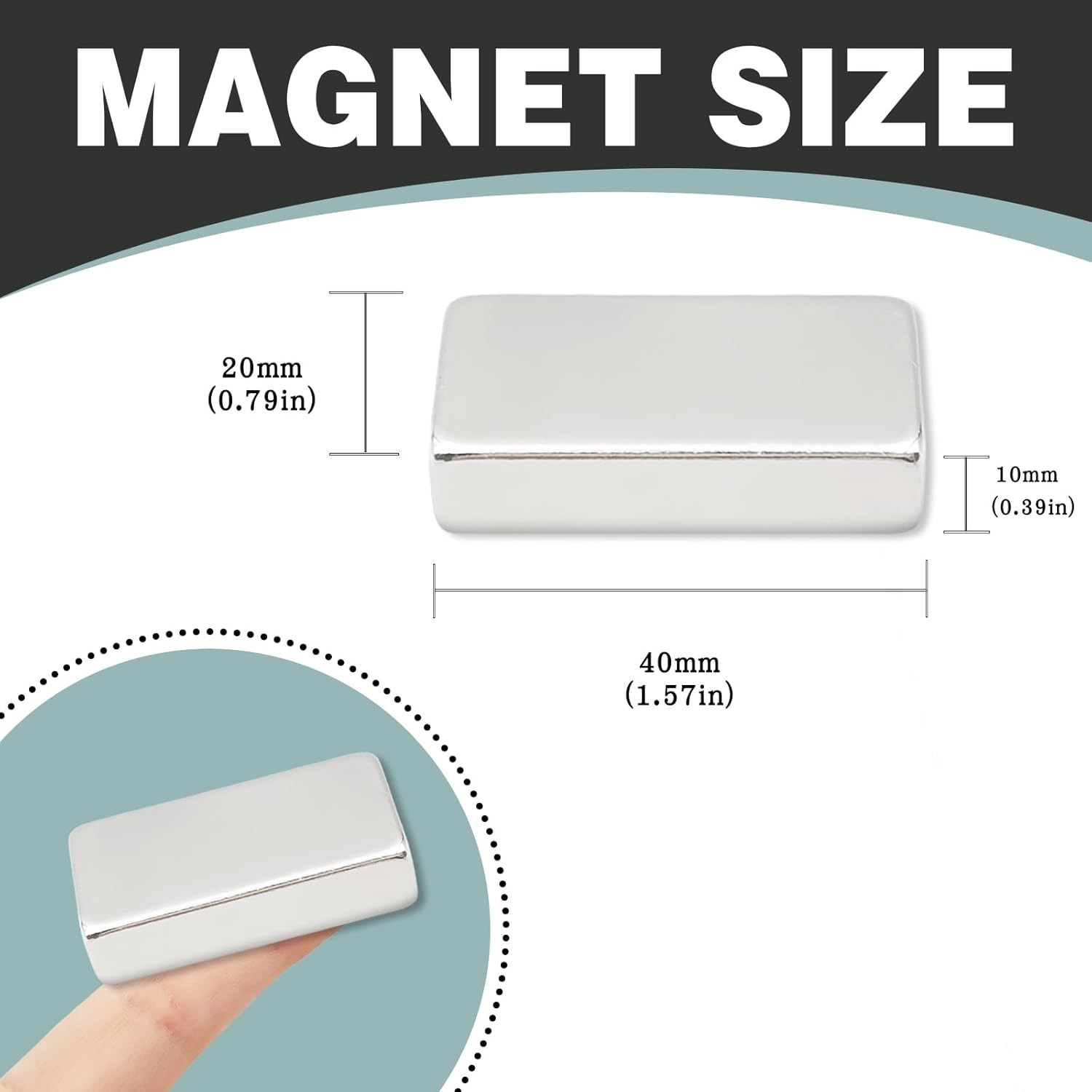

Dimensions: 40x20x10mm
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB
Magnetization direction: Thru thickness
Max operating temp: 176ºf (80ºc)
Warning:
1. Keep away from pacemakers.
2. Not for children, parental supervision required.
3. If damaged please dispose of completely. Shards are still magnetized and if swallowed can inflict serious damage.
Product Features
🧲 1. Superior Magnetic Strength
| Neodymium | Br | Hcb | Hcj | (Bh)max | Tw | ||||
| Grade | mT | kGs | kA/m | kOe | kA/m | kOe | kJ/m3 | MGOe | ℃ |
| N35 | 1170-1220 | 11.7-12.2 | ＞868 | ＞10.9 | ＞955 | ＞12 | 263-287 | 33-36 | ＜80 |
| N38 | 1220-1250 | 12.2-12.5 | ＞899 | ＞11.3 | ＞955 | ＞12 | 287-310 | 38-39 | ＜80 |
| N40 | 1250-1280 | 12.5-12.8 | ＞907 | ＞11.4 | ＞955 | ＞12 | 302-326 | 38-41 | ＜80 |
| N42 | 1280-1320 | 12.8-13.2 | ＞915 | ＞11.5 | ＞955 | ＞12 | 318-342 | 40-43 | ＜80 |
| N45 | 1330-1370 | 13.3-13.7 | ＞915 | ＞11.5 | ＞955 | ＞12 | 342-367 | 41-44 | ＜80 |
| N48 | 1380-1420 | 13.8-14.2 | ＞923 | ＞11.6 | ＞955 | ＞12 | 366-390 | 46-49 | ＜80 |
| N50 | 1400-1450 | 14.0-14.5 | ＞796 | ＞10 | ＞876 | ＞11 | 382-406 | 48-49 | ＜80 |
| N52 | 1430-1480 | 14.3-14.8 | ＞796 | ＞10 | ＞876 | ＞11 | 398-422 | 50-53 | ＜80 |

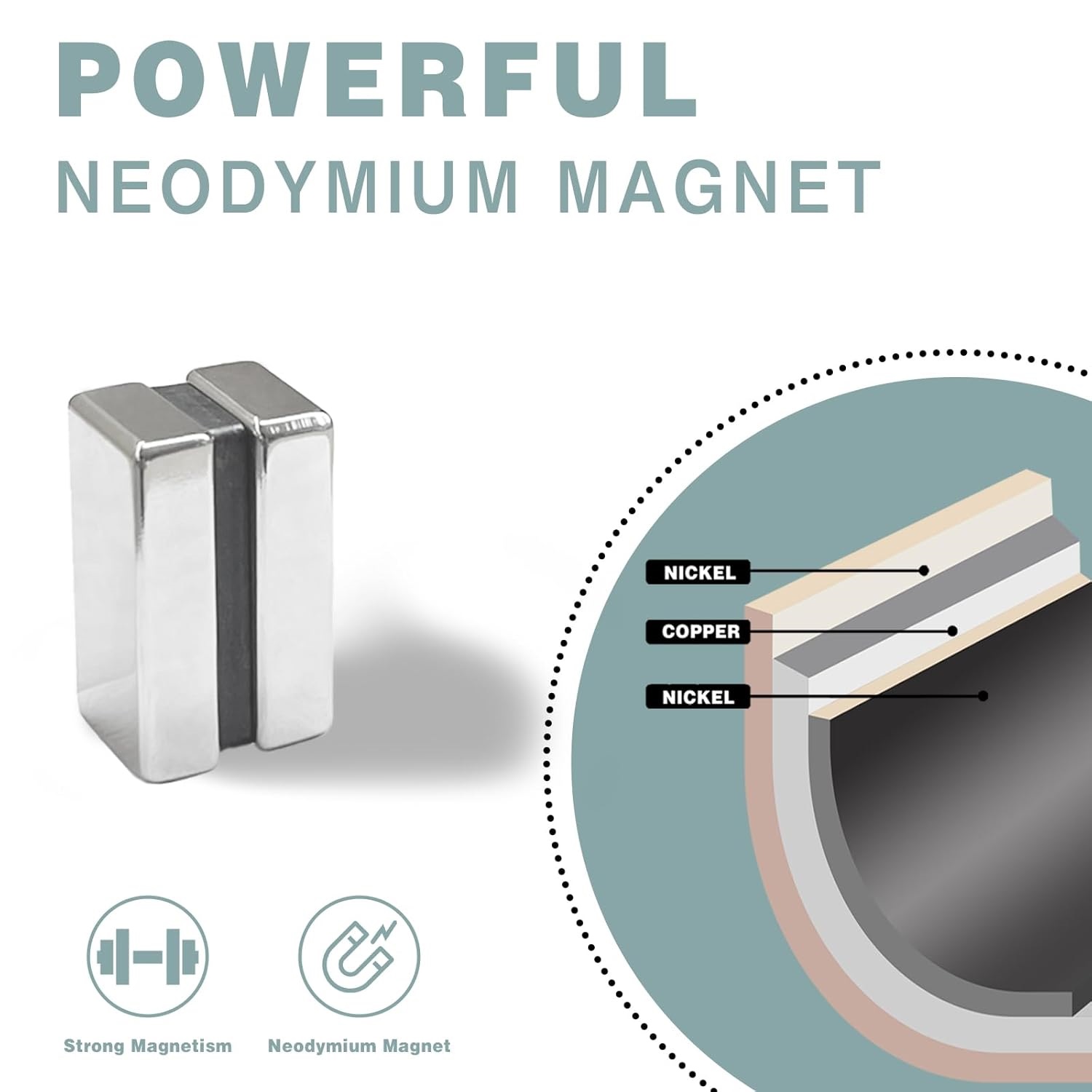

🛡️ 2. Premium Nickel Coating (Ni-Cu-Ni)
🔧 3. Widely Used In Various Industries

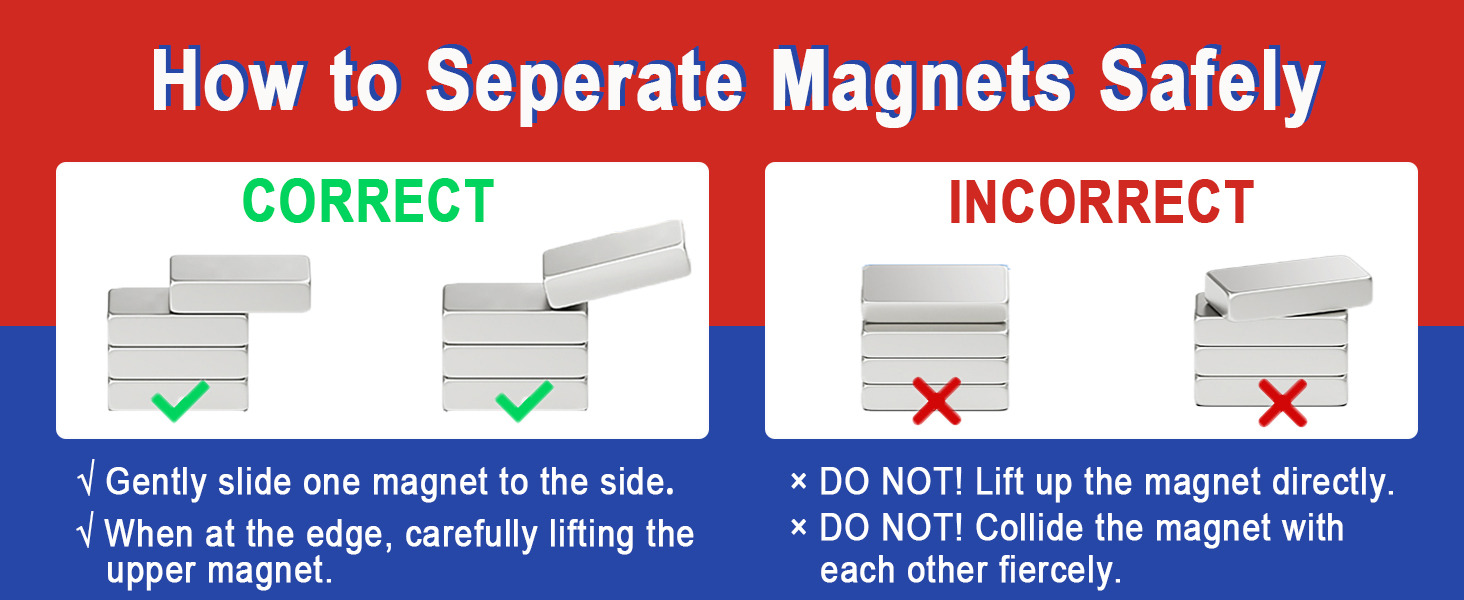

Separation Method
Customization
Our company is committed to the R&D, production, and supply of high-quality permanent magnets, offering reliable rare earth neodymium magnets for a wide range of industrial applications.
1.Grade: N35-N52
2.Plating: Zn/Ni/Epoxy

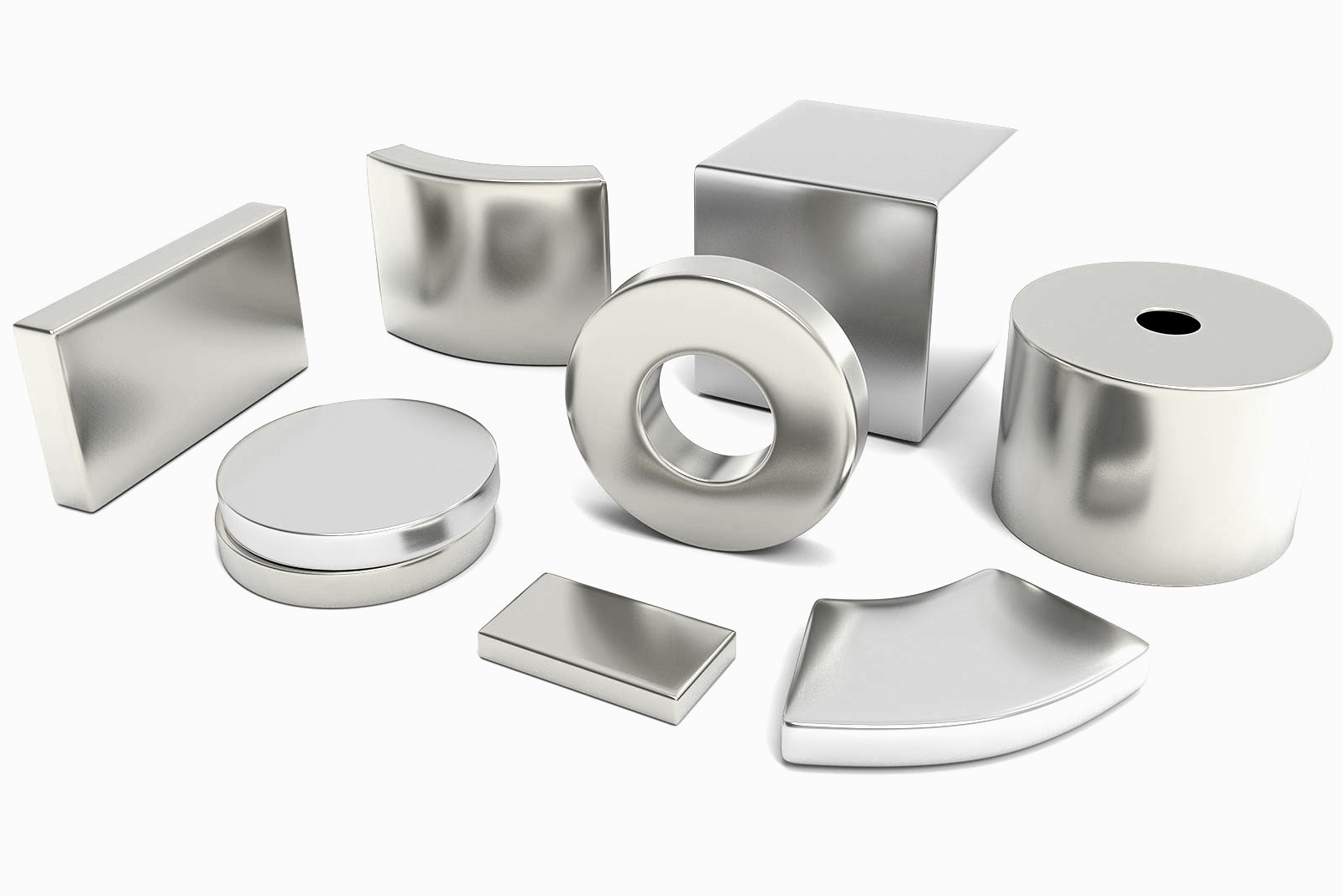

3.Shape & Size: Various

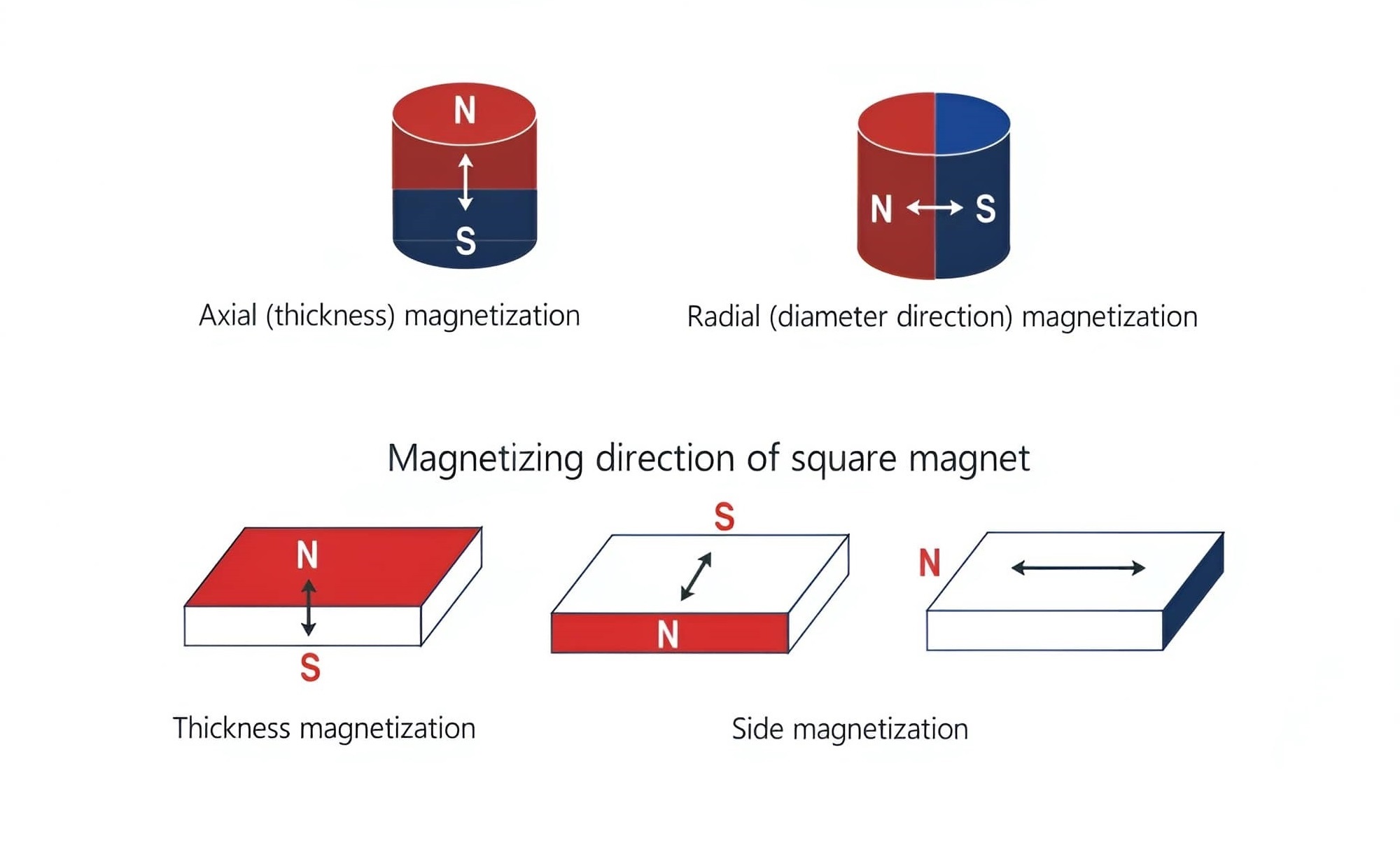

4.Magnetization Direction: Thickness/Side
Packing&Shipping
