Various knowledge about Halbach magnets

     Halbach magnet is a permanent magnet with a special structure. It was discovered by American scholar Kluas Halbach during electron acceleration experiments in 1979, so it was named "Halbach magnet".The Halbach Magnet Matrix consists of a series of custom permanent neodymium magnets arranged in an orderly manner to produce a very strong and uniform magnetic field on one side and virtually no magnetic field on the other.

Types of Halbach magnet:

     1.Halbach Linear Array: Arranged by a series of rectangular or circular magnets, the polarity of each magnet is flipped in a specific order. This arrangement causes the magnet's magnetic field to increase on one side and essentially cancel it out on the other side.

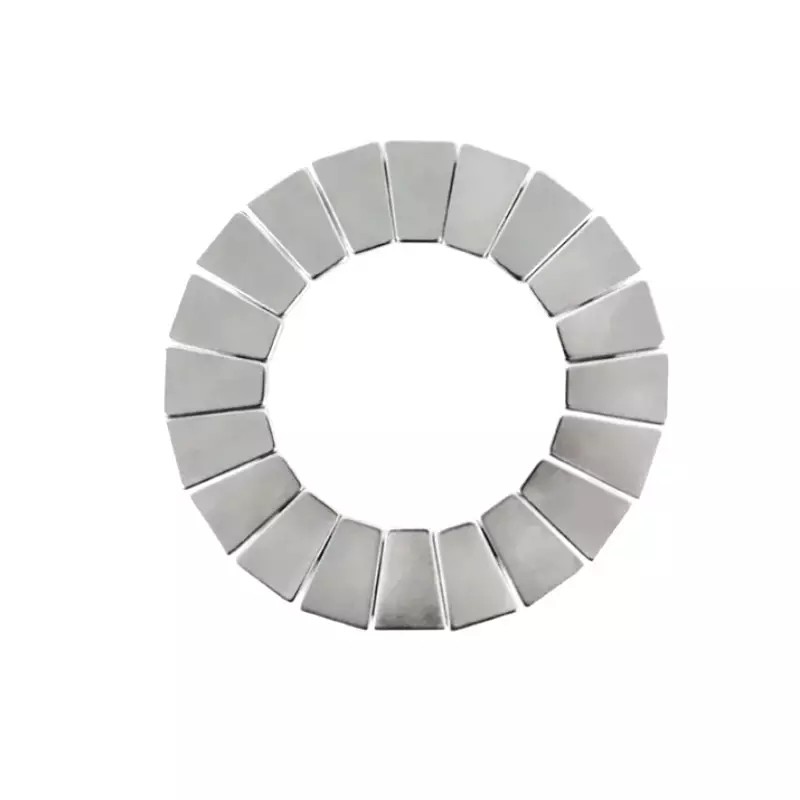

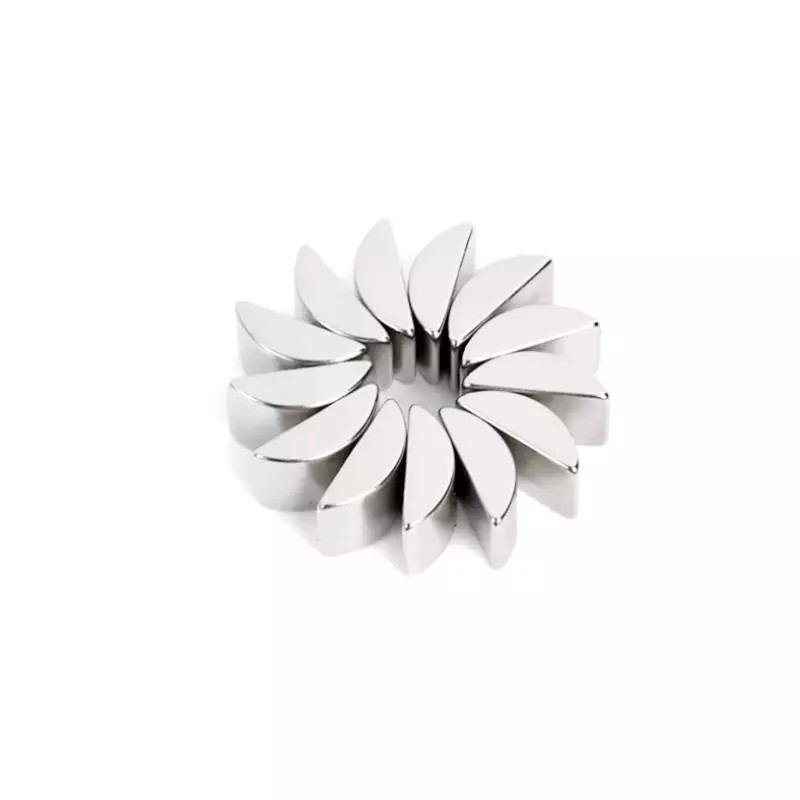

     2.Halbach Ring Array: It consists of ring magnets, and its magnetic field distribution pattern is similar to a linear array. The donut shape provides a more uniform magnetic field distribution and higher magnetic field strength.

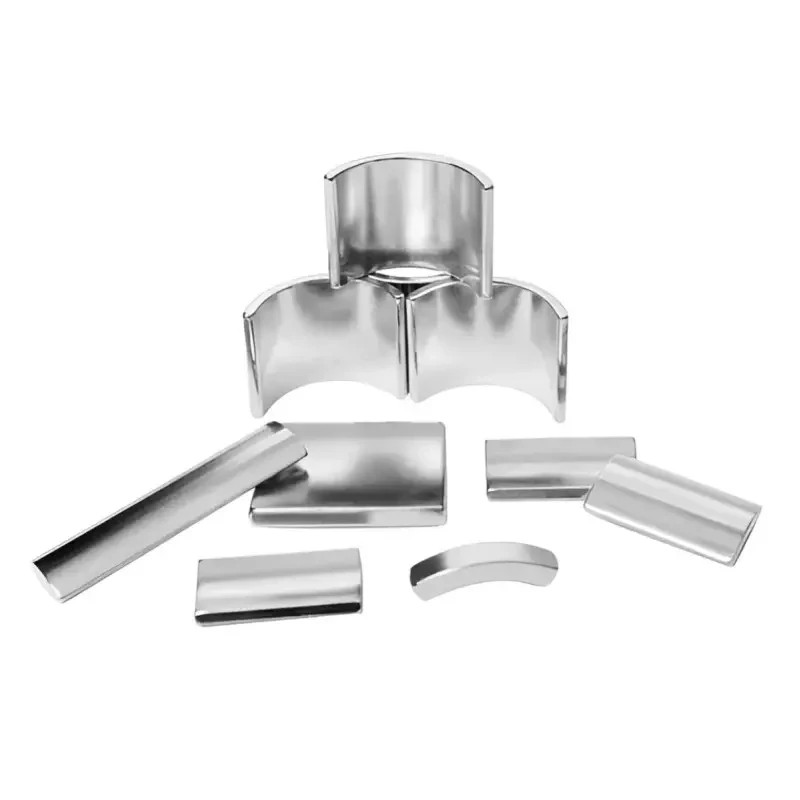

     3. Halbach Arc Array: It consists of magnets arranged in an arc or semicircle, which generates a strong magnetic field along the edge of the arc.

Usage of Halbach magnet:

     1. Dynamic applications: Halbach magnet is often used in permanent magnet motors and generators. By properly designing and arranging magnets, efficient conversion and transmission of mechanical or electrical energy can be achieved.

     2. Magnetic resonance imaging (MRI): The special magnetic field distribution of Halbach magnet can be used for magnetic resonance imaging in the medical field, providing a stronger magnetic field and higher image quality.

     3. Particle accelerator: Halbach magnet has important applications in particle accelerators. They generate powerful magnetic fields to guide and focus high-energy particle beams for use in physics research and particle physics experiments.

     4. Levitation applications: Due to the special magnetic field distribution of Halbach magnet, it can be used in fields such as magnetic levitation trains, magnetic levitation bearings and magnetic levitation conveyor belts to achieve non-contact levitation and motion control.

     5. Automation technology: Halbach magnet is used in precision actuators of robots, enabling smooth and precise control of motion.  And Halbach magnet is used to study spacecraft propulsion systems, and they enhance the performance of various magnetic sensors used in automation and control systems.

     In addition, Halbach magnet is used in wind turbines, wave energy converters, magnetic refrigeration environmental protection systems, satellite attitude control systems and other fields, providing a firm cornerstone for technological progress in various industries and gradually becoming indispensable for modern technology. missing part.

Advantages of Halbach magnet:

     1. High magnetic field strength: The Halbach magnet design is capable of producing very high magnetic field strengths, which is very useful for applications that require strong magnetic fields, such as motors, generators, and magnetic resonance imaging equipment.

     2. Magnetic field uniformity: Through a special magnet arrangement, Halbach magnet can produce a very uniform magnetic field on one side, which is very important for applications that require a uniform magnetic field, such as precision measuring instruments and magnetic transmission devices.

     3. Controllable magnetic field direction: The magnetic field of a Halbach magnet has a clear orientation on one side and an opposite magnetic field direction on the other side. This controllable magnetic field direction is very useful for some special applications, such as magnetic levitation, magnetic field shielding and magnetic guidance.

     4. Reduce magnet weight: Because Halbach magnet is capable of producing a strong magnetic field on one side and almost no magnetic field on the other side, less magnet material can be used to achieve the same magnetic field requirement, thus reducing the weight and volume of the magnet.

     Overall, Halbach magnet provides efficient and innovative solutions for a variety of engineering and scientific applications.
