These rectangular bowl shaped magnets can be customized for M3, M4, M5 or other models. They need to be fixed with external threads. NdFeB and stainless steel materials, even though they are small in size, still have strong force.
Size :
SNI60Order(MOQ) :
100PCSCoating :
EpoxySample :
AvaliableLead Time :
7-15daysPayment :
Paypal/TT/Credit CardStrong Neodymium Rectangular Steel Channel Pot Magnet
Product Description

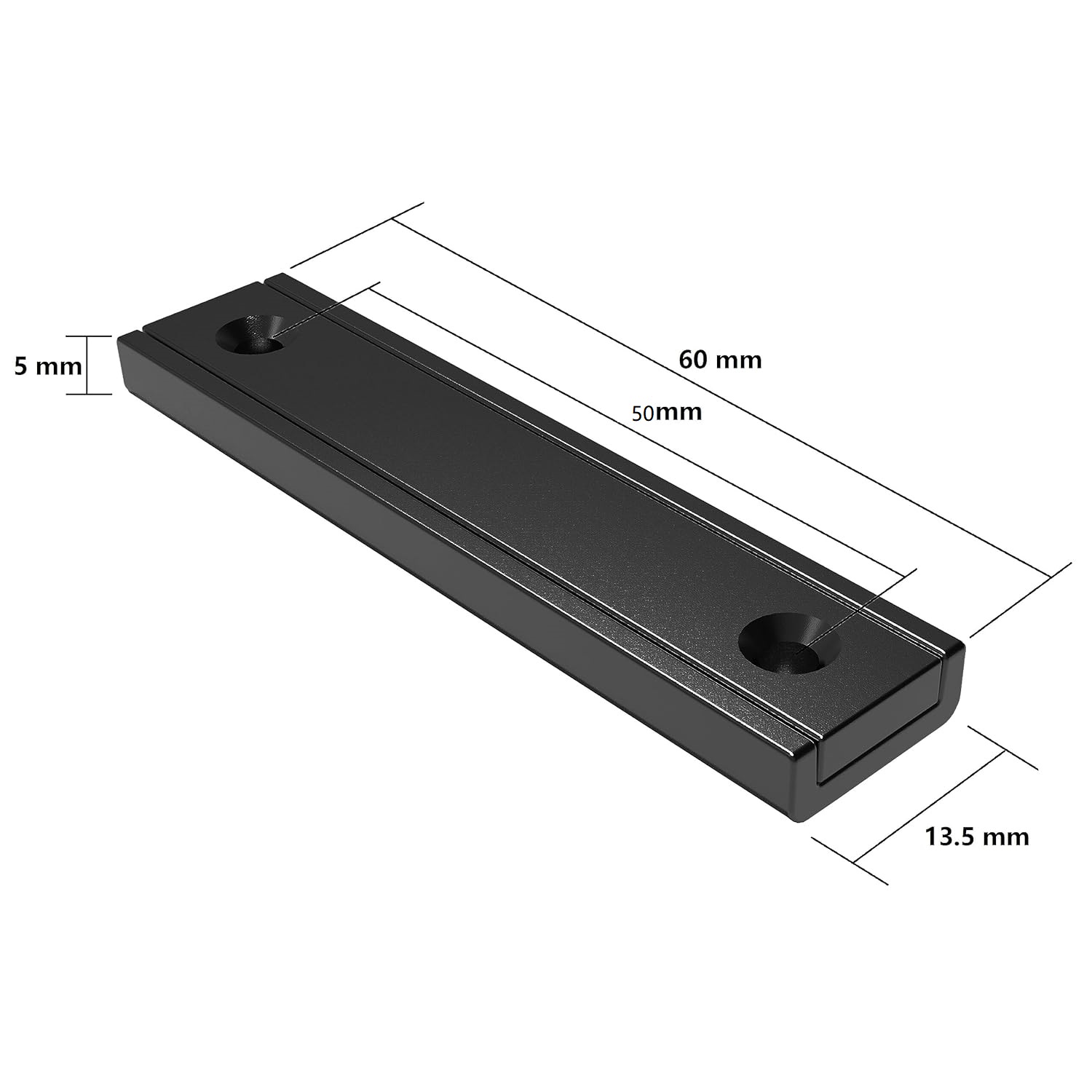

Size : 60mm(Length) x 13.5mm(Width) x 5mm(Thickness) M3.3mm
Color : Black
Size Tolerance : ±0.05mm
Shape : Rectangular

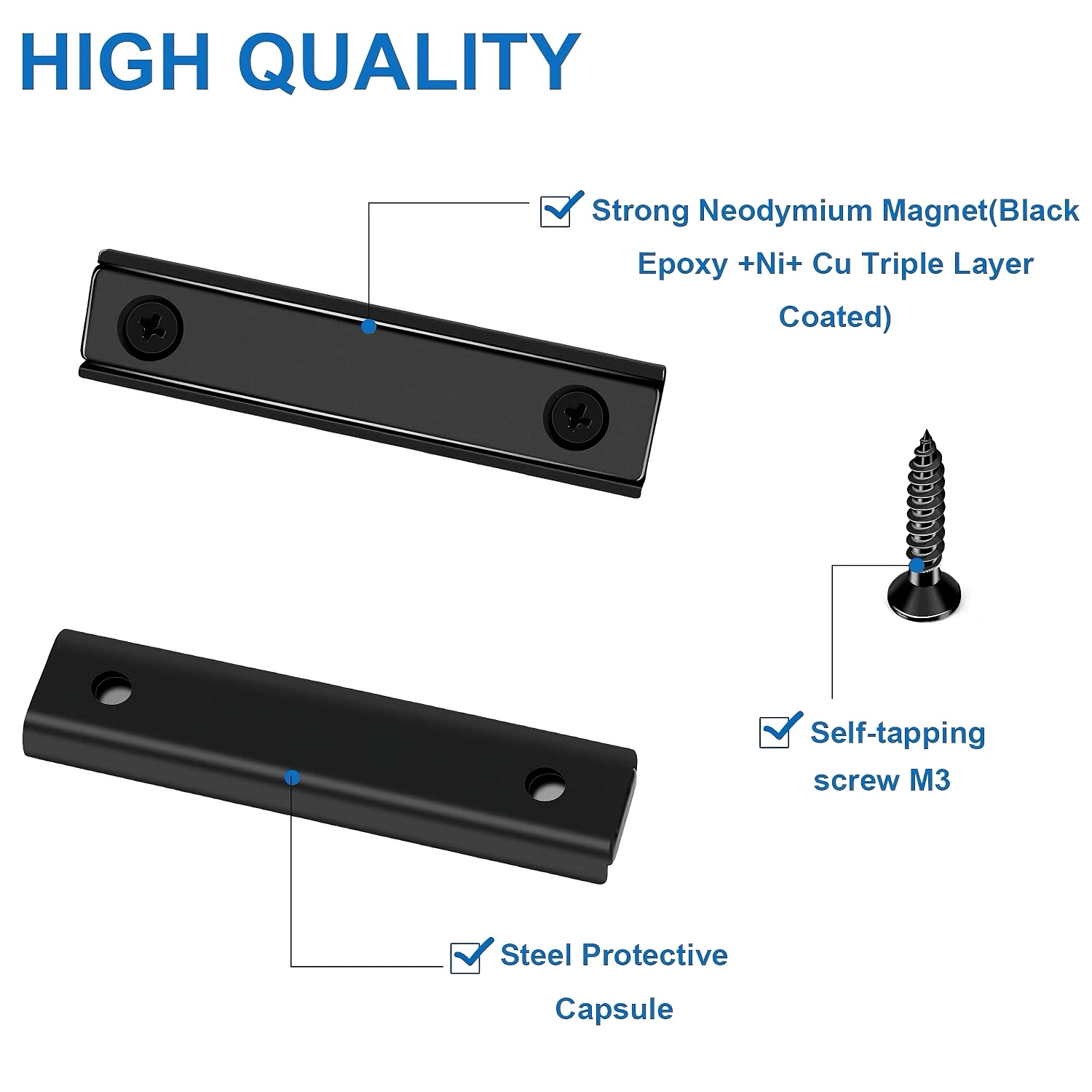

Material : NdFeB Magnet and 304 Stainless Steel
Notes : Manual measurement, please allow for slight dimensional errors.
The color may be slightly different.
Specification & Features

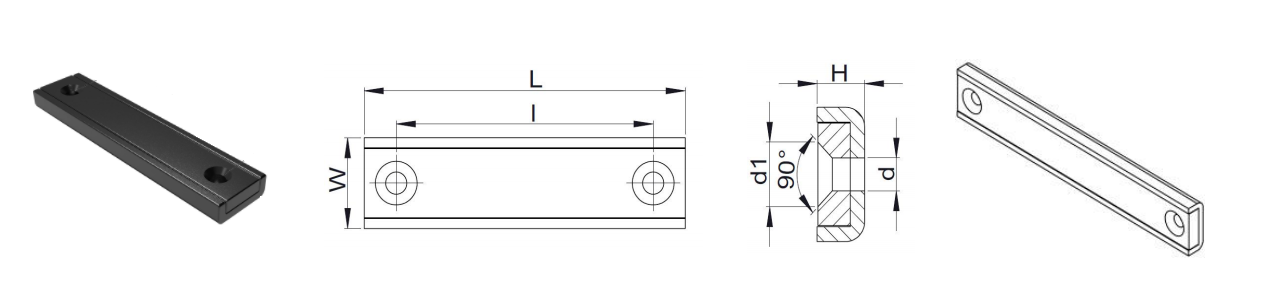

| Model | L(mm) | I(mm) | W(mm) | H(mm) | d(mm) | d1(mm) | Weight(g) | Vertical Breakaway（kg） |
| SNI40 | 40 | 30 | 13.5 | 5 | 3.3 | 6.5 | 19 | 17 |
| SNI50 | 50 | 40 | 13.5 | 5 | 3.3 | 6.5 | 24 | 27 |
| SNI60 | 60 | 50 | 13.5 | 5 | 3.3 | 6.5 | 30 | 30 |
| SNI80 | 80 | 70 | 13.5 | 5 | 3.3 | 6.5 | 38 | 33 |
| SNI100 | 100 | 90 | 13.5 | 5 | 3.3 | 6.5 | 48 | 36 |
| SNI120 | 120 | 110 | 13.5 | 5 | 3.3 | 6.5 | 58 | 40 |
Our square epoxy coated pot magnets can be customized in size for high-performance applications in various industries. These products use neodymium magnets and high-quality stainless steel, with a compact design that provides excellent magnetic force, ensuring efficiency and reliability for professional use.

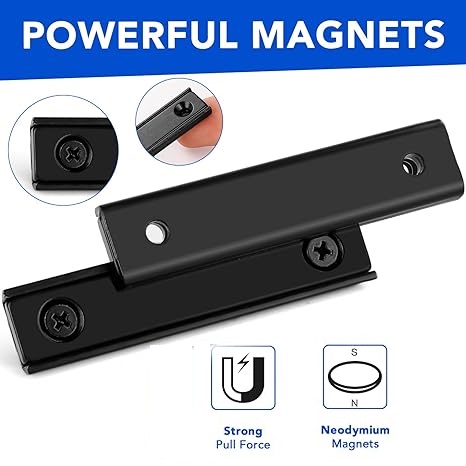

Exceptional Strength: Whether it is the strongest permanent NdFeB magnet on the market now or its high quality stainless steel channels, which provide excellent magnetic and magnetic conductivity. The channel steel not only increases the strength of the magnet, but also protects it from daily wear and tear. Our SNI60 model shows a vertical tensile force of 30kg on a clean and flat steel surface.

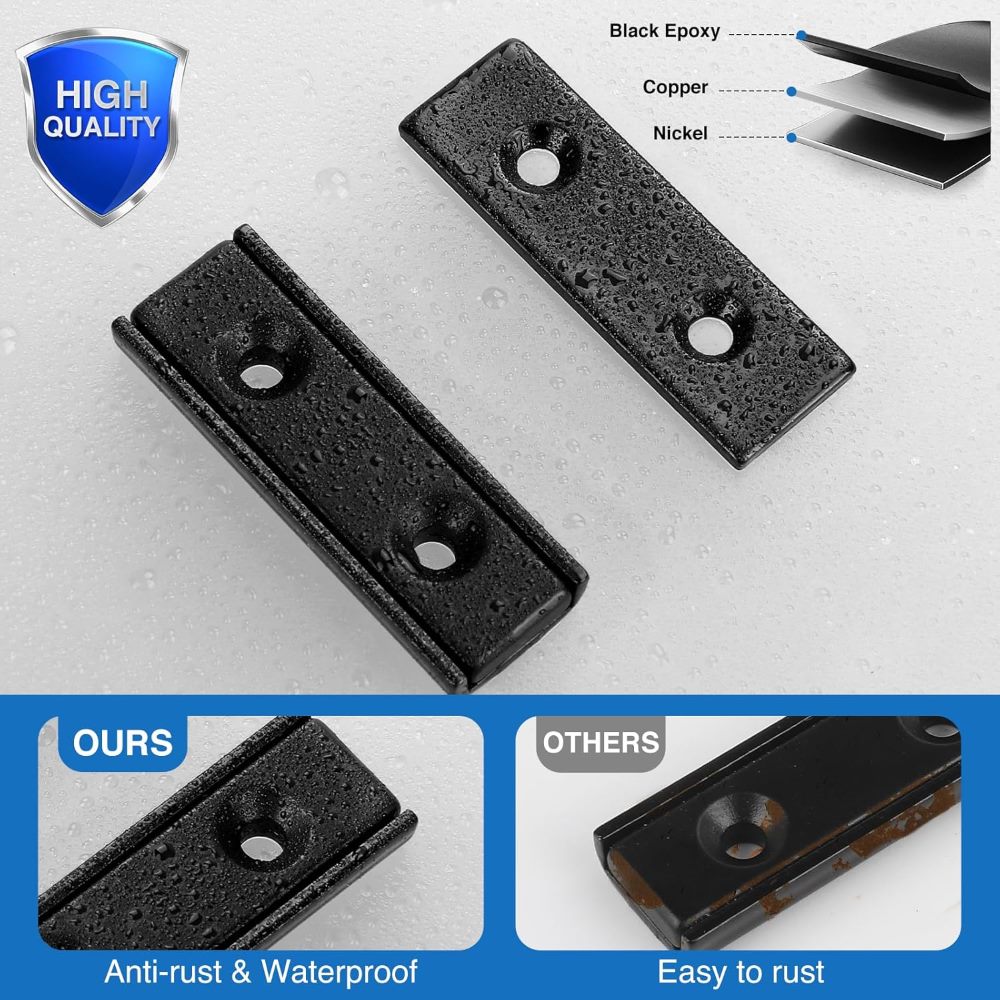

High Quality Coating: The rectangular pot magnet with epoxy coating that enhances the waterproof and corrosion resistance of the magnet. On the other hand, the coating is also an important factor in the high temperature resistance of the magnet. The epoxy coating not only makes the magnet less prone to scratches but also makes it more beautiful.

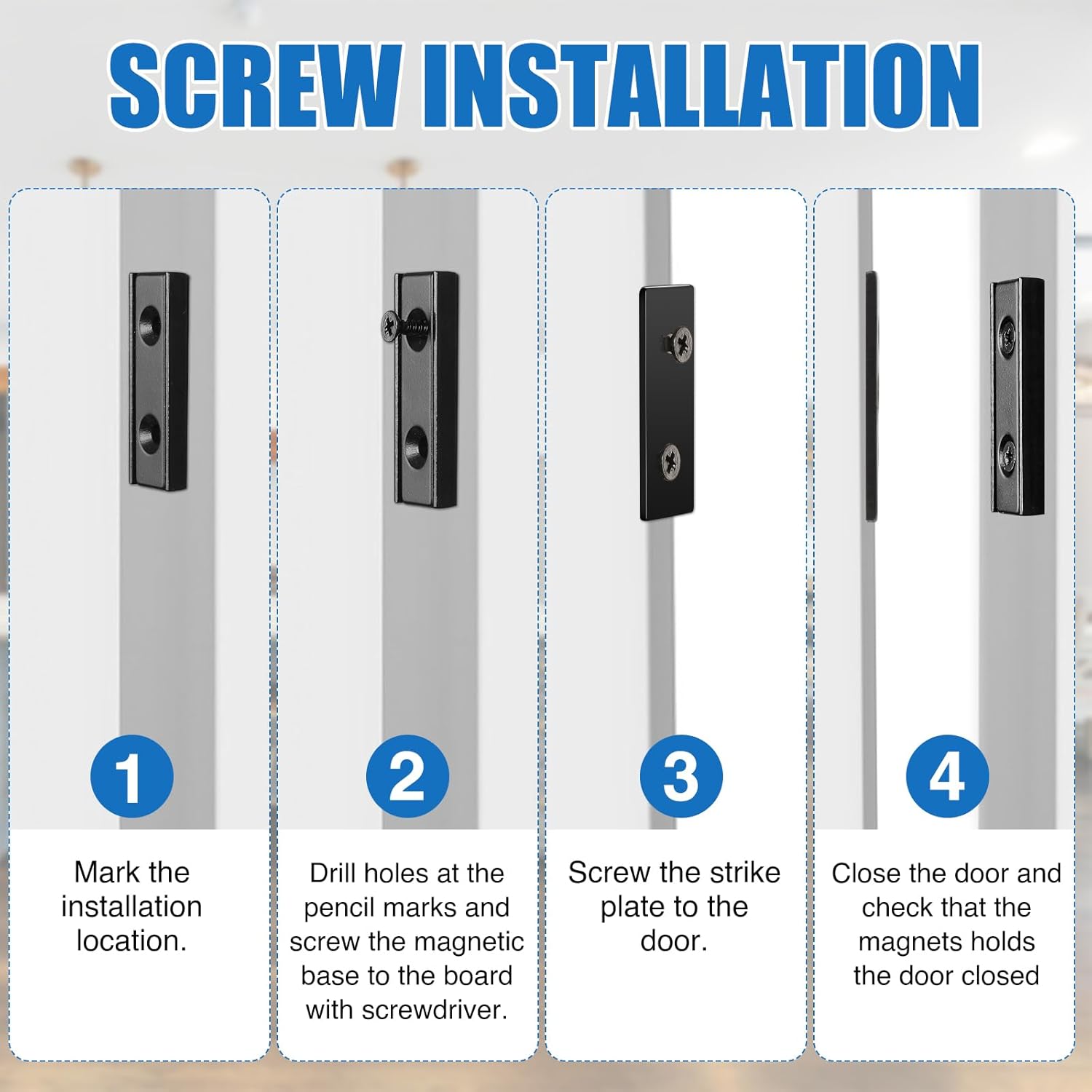

Easy To Install: Compact design with dimensions of 2.4 inches long x 0.6 inches wide x 0.2 inches high, equipped with two countersunk holes, with a small hole diameter of 0.13 inches and a large hole diameter of 0.16 inches, easy to install with flat head screws, firmly fixed in the desired position without movement due to shaking or collision,No need for glue or special bonding.
Applications: The corrosion resistant black block channel magnet has a very compact size design and powerful performance, making it very practical in various fields,such as:
Multi functional fasteners: very suitable for securely fixing signs, license plates, artworks, and metal decorations.

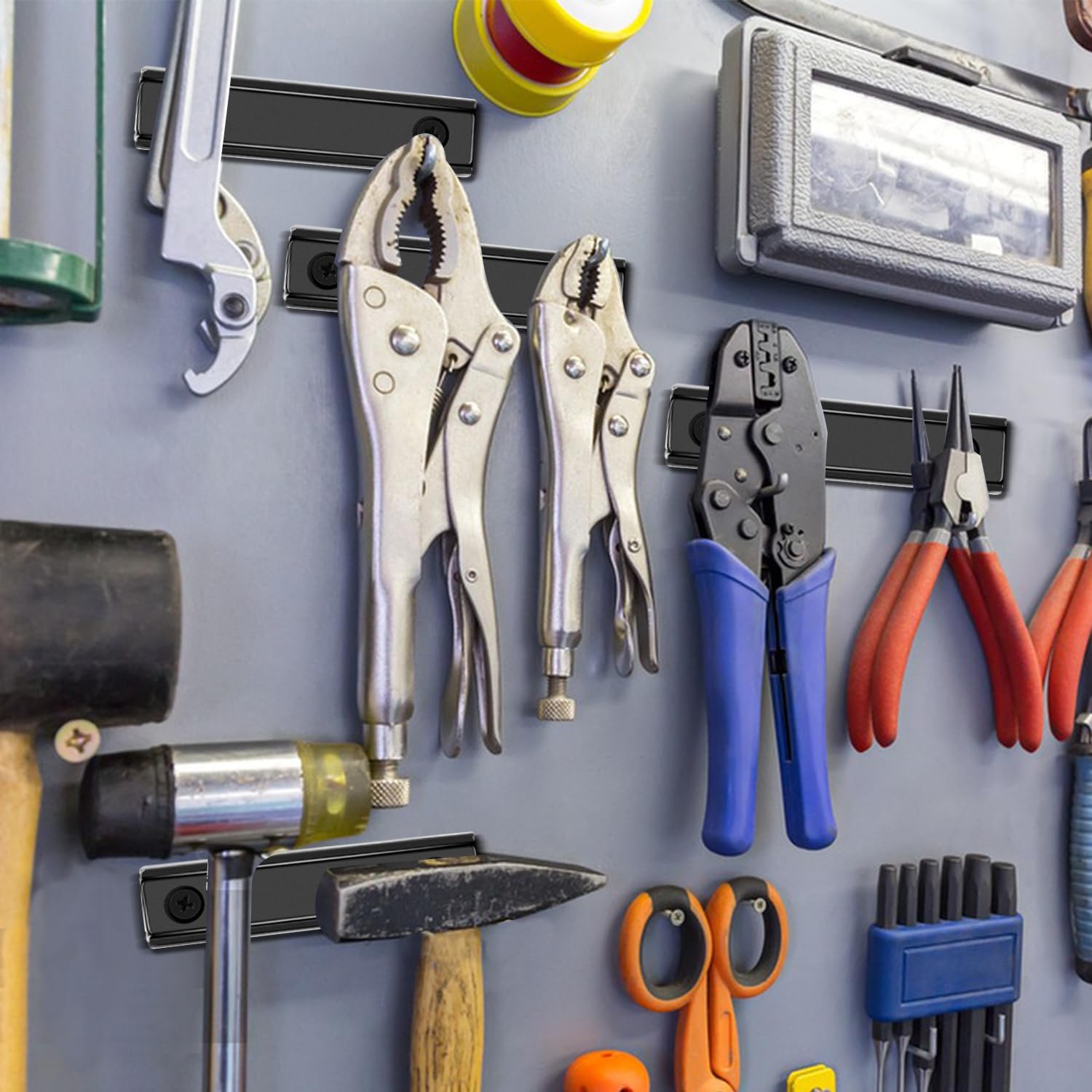

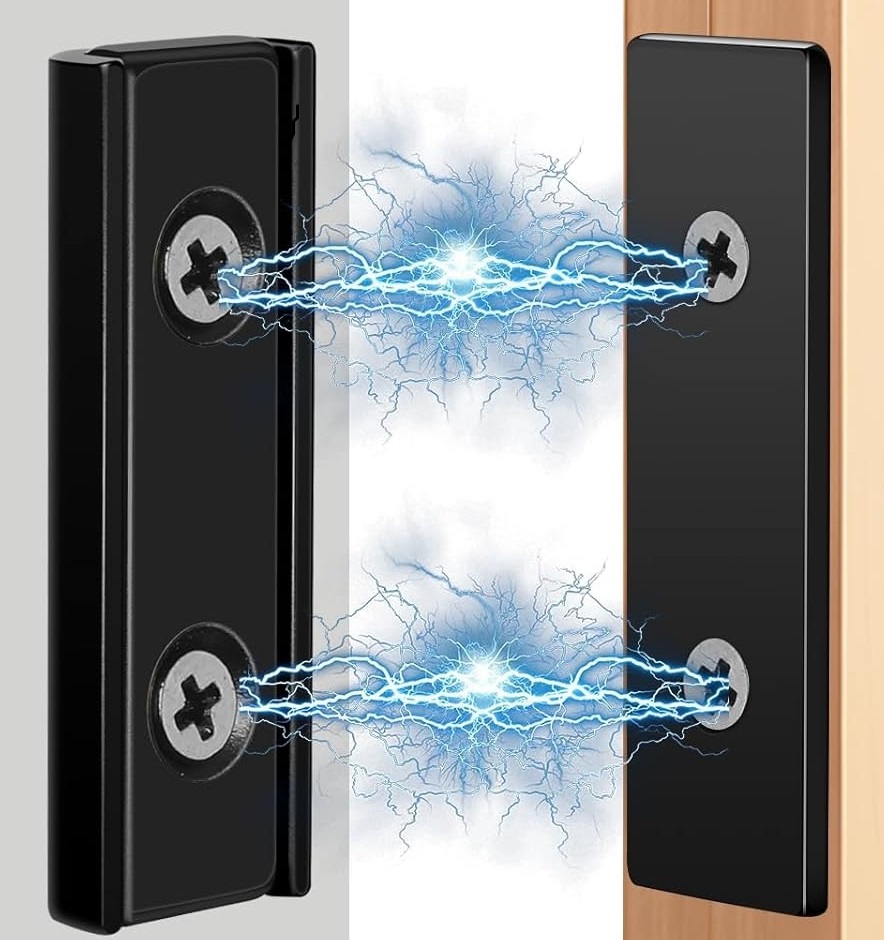

Magnetic lock: Very suitable for door locks or cabinet locks, as well as magnetic tool racks or organizers.
Industrial use: an important component in metal manufacturing and other industrial applications.
Packing&Shipping
