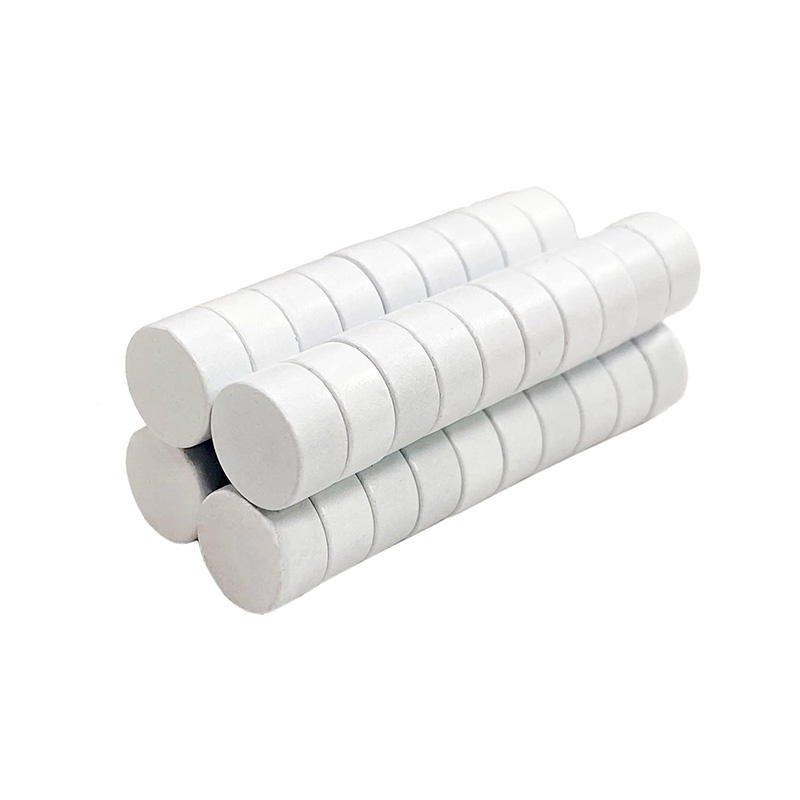

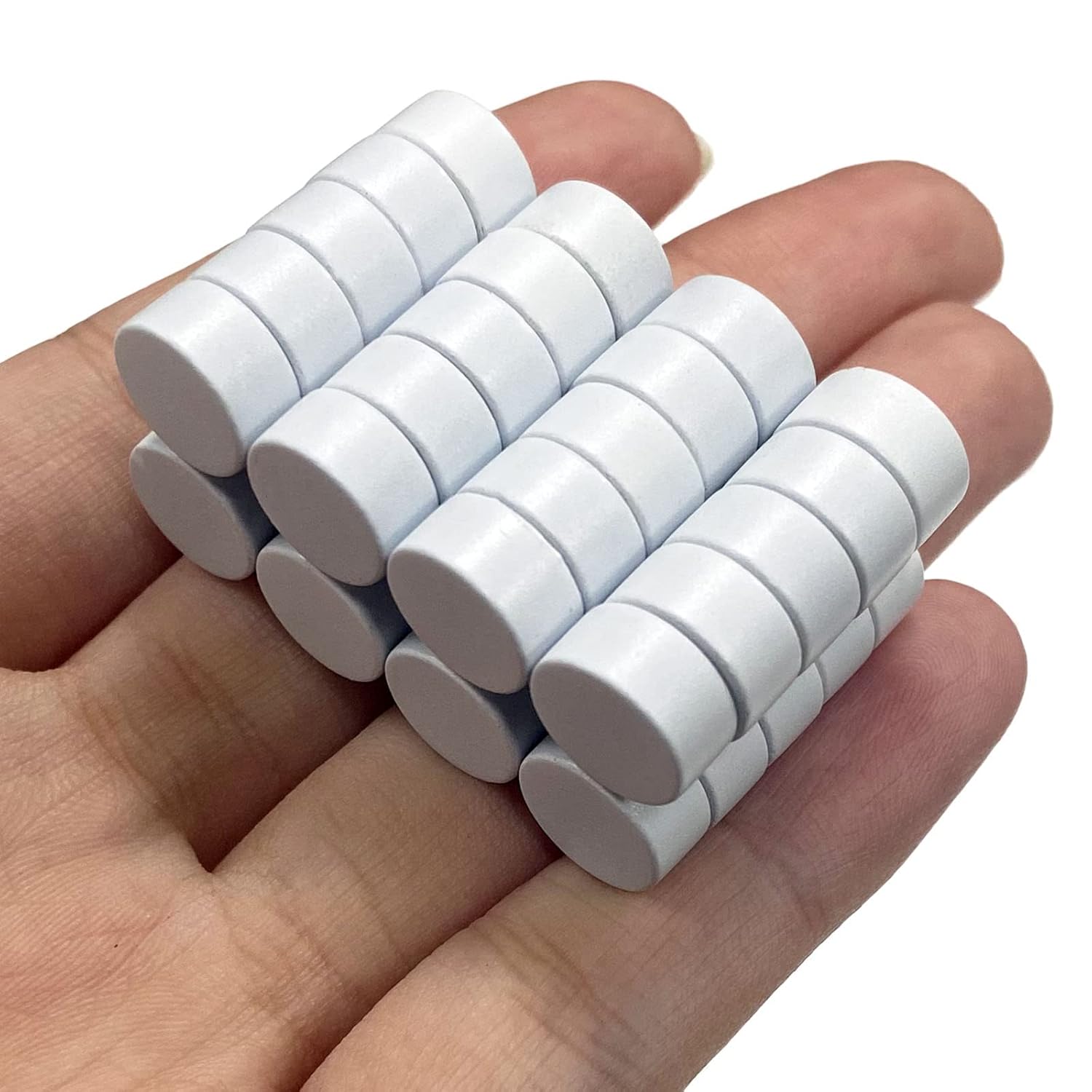

This product is a white epoxy coated magnet, cylindrical in shape. The white epoxy coating ensures a clean, polished look, suitable for visible applications.
Color :
WhiteOrder(MOQ) :
100PCSCoating :
EpoxySample :
FreeDensity :
7.5/cm³Lead Time :
3-15daysPayment :
Paypal/TT/Credit CardSpecial White Epoxy Plated Round Neodymium Magnet
Product Description
Dimensions: 10mm(diameter) x 5mm(thickness)
Material: Neodymium
Grade: N35-N52
Tolerance: ±0.05mm
Working Temperature: 80℃

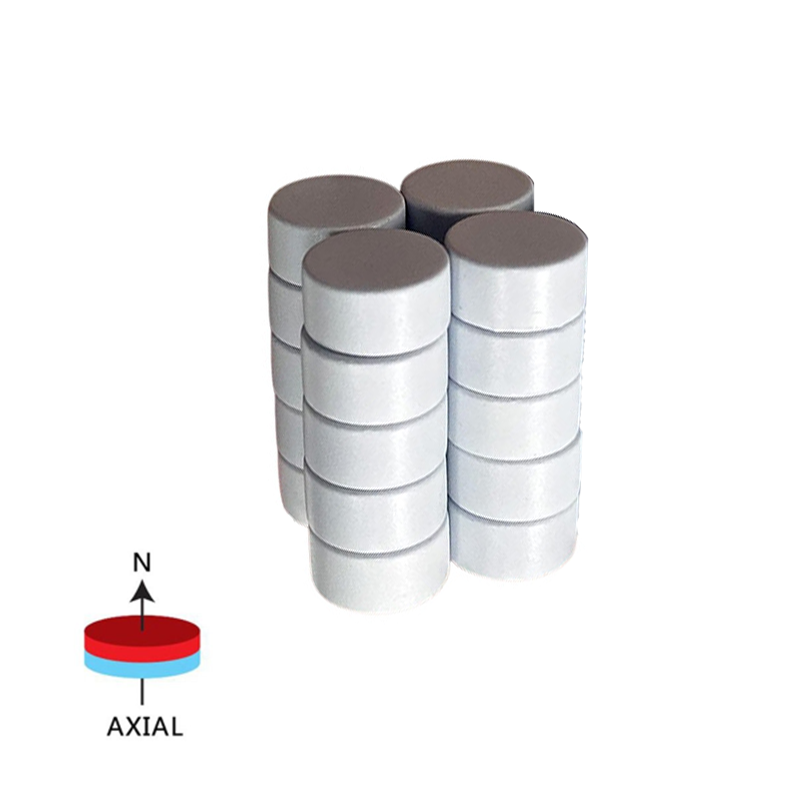

Magnetization Direction: Axial (Poles on Flat Ends)
Multipurpose: School, Office, Home, and Factory
Warning:
Manual measurement, please allow slight errors on size.
Keep away from children to prevent accidental ingestion and injury.
Key Features
The white epoxy coated circular neodymium magnet is a special type of rare earth magnet that combines high magnetic strength and durable protective coating. The white epoxy coating enhances the corrosion resistance and wear resistance of the magnet, making it suitable for various applications that require aesthetics and durability.
The main material is NdFeB, which is currently the strongest permanent magnet on the market. The disc magnet with epoxy coating enhances durability and improves resistance to moisture and mild chemicals.
2.Beautiful and Environmentally Friendly:
The white coating gives the magnet a clean and modern appearance, making it suitable for applications where visual appeal is important.
Compared to other coating options such as paint or certain plastics, permanent cylinder magnet with epoxy coating are typically non-toxic and more environmentally friendly when applied correctly, making them a safer choice for use in sensitive environments.
1.Housewear & Furnishings：The appearance of epoxy coating is relatively beautiful, which meets the decorative requirements of household products.
2.Small electronic devices：In speakers and headphones, white coated epoxy magnets can serve as key components of the driving unit.
3.Automotive device：Used in various sensors for automobiles. Ensure reliable operation of sensors in complex automotive operating conditions.
4.Industrial sector：In various motors and linear drives, epoxy coating can enhance the wear resistance of magnets, prevent the performance of magnets from deteriorating in industrial environments such as oil stains, dust, etc.
Customization
We can manufacture magnets of strengths,designs,and various sizes rare earth neodymium magnet. Samples are available, and bulk orders can include customized specifications.
1.Size: Customizable according to your needs.
2.Coating: Zinc/Nickel/Epoxy.
3.Magnetic Grade:
We can offer different levels of magnetic performance options, ensure that your product achieves optimal performance in terms of magnetic properties.
| Neodymium | Br | Hcb | Hcj | (Bh)max | Tw | ||||
| Grade | mT | kGs | kA/m | kOe | kA/m | kOe | kJ/m3 | MGOe | ℃ |
| N35 | 1170-1220 | 11.7-12.2 | ＞868 | ＞10.9 | ＞955 | ＞12 | 263-287 | 33-36 | ＜80 |
| N38 | 1220-1250 | 12.2-12.5 | ＞899 | ＞11.3 | ＞955 | ＞12 | 287-310 | 38-39 | ＜80 |
| N40 | 1250-1280 | 12.5-12.8 | ＞907 | ＞11.4 | ＞955 | ＞12 | 302-326 | 38-41 | ＜80 |
| N42 | 1280-1320 | 12.8-13.2 | ＞915 | ＞11.5 | ＞955 | ＞12 | 318-342 | 40-43 | ＜80 |
| N45 | 1330-1370 | 13.3-13.7 | ＞915 | ＞11.5 | ＞955 | ＞12 | 342-367 | 41-44 | ＜80 |
| N48 | 1380-1420 | 13.8-14.2 | ＞923 | ＞11.6 | ＞955 | ＞12 | 366-390 | 46-49 | ＜80 |
| N50 | 1400-1450 | 14.0-14.5 | ＞796 | ＞10 | ＞876 | ＞11 | 382-406 | 48-49 | ＜80 |
| N52 | 1430-1480 | 14.3-14.8 | ＞796 | ＞10 | ＞876 | ＞11 | 398-422 | 50-53 | ＜80 |

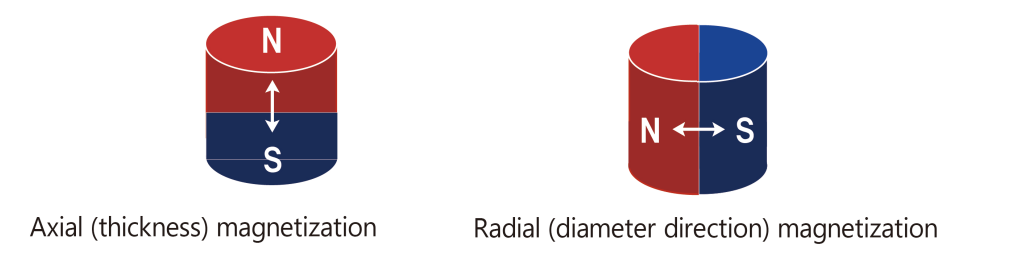

4.Magnetization Direction:
The magnetic grade of the waterproof strong suction magnet disc refers to the performance specifications of the material used to produce the magnet. It mainly represents the strength of magnetic materials and is an important factor determining the energy output and maximum operating temperature of magnets.
