Block Neodymium Magnets

Rectangular Epoxy Magnets with Single Sided Adhesive

Rectangular Epoxy Magnets with Single Sided Adhesive

These block shaped neodymium magnets coated with epoxy resin are widely used in industries such as electronics, automobiles, household appliances, and handicrafts due to their magnetic properties, protective properties, and ease of installation.

  • Color :

    Black
  • Order(MOQ) :

    100PCS
  • Coating :

    Epoxy
  • Sample :

    Free
  • Density :

    7.5g/cm³
  • Lead Time :

    3-15days
  • Payment :

    Paypal/TT/Credit Card

Rectangular Epoxy Magnets with Single Sided Adhesive

Product Description

Rectangular Epoxy Magnets with Single Sided Adhesive

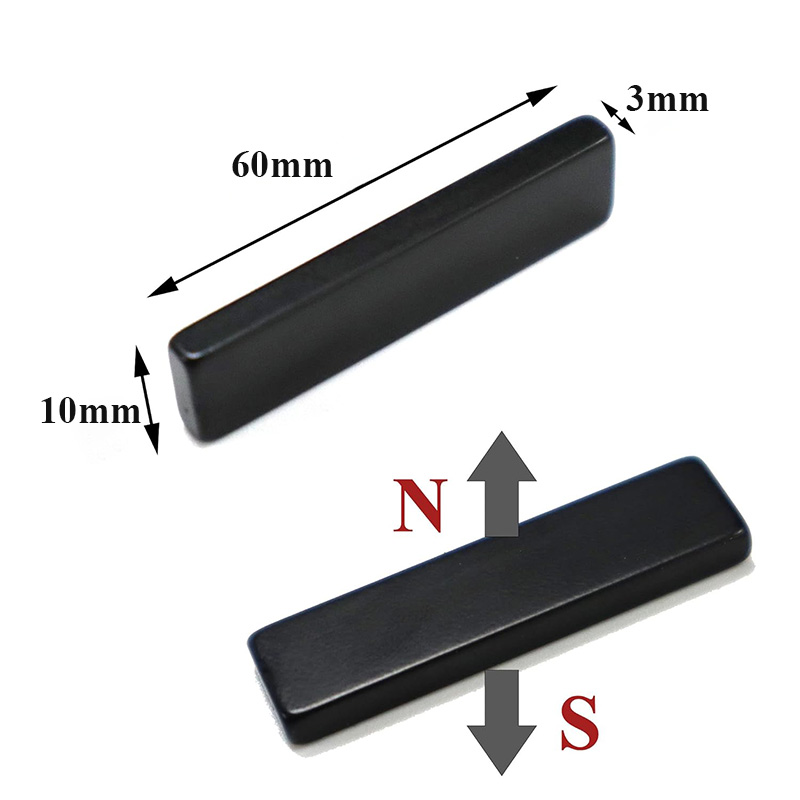

Size: 60mm(Length) x 10mm(Width) x 3mm(Thickness)

Grade: N35-N52

Material: NdFeB

Tolerance: ±0.05mm

Plating/Coating: Epoxy

Magnetization Direction: Axial (flat end magnetic pole)



Warning:

Bar magnets are very fragile and should not collide with other metal objects (including another magnet), so be careful when attempting to separate them!





Key Features

Black epoxy plated  square neodymium magnet

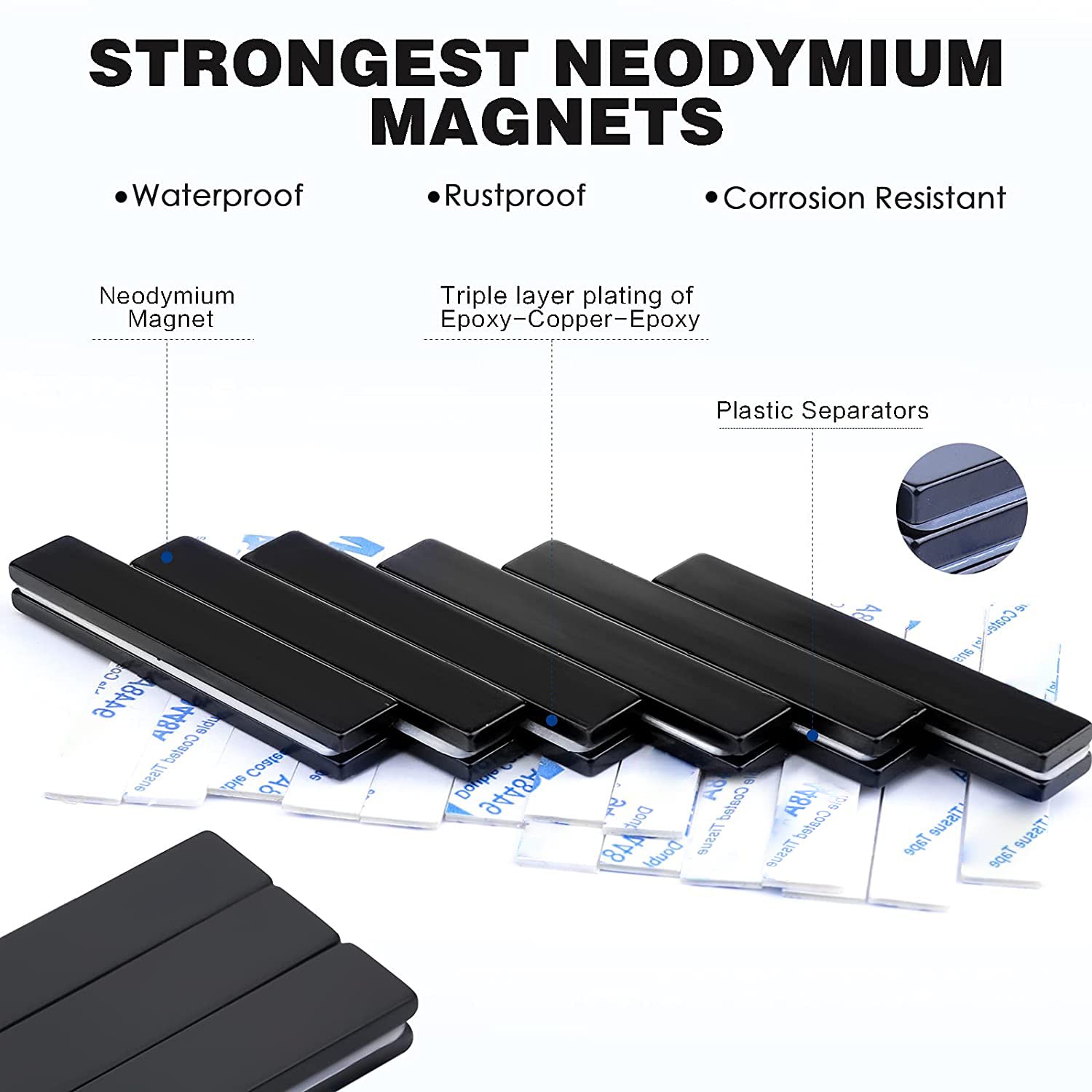

Premium Epoxy Coating:

The epoxy coating on the black coated rectangular neodymium magnet provides a protective layer. Neodymium magnets have strong reactivity to the environment, especially moisture and oxygen. Epoxy coating improves the oxidation resistance and corrosion resistance of magnets, so it is often used as a spare part for underwater work.

In addition, epoxy coating can make the surface of magnets smoother and more glossy, making it an ideal choice for commercial and industrial applications.

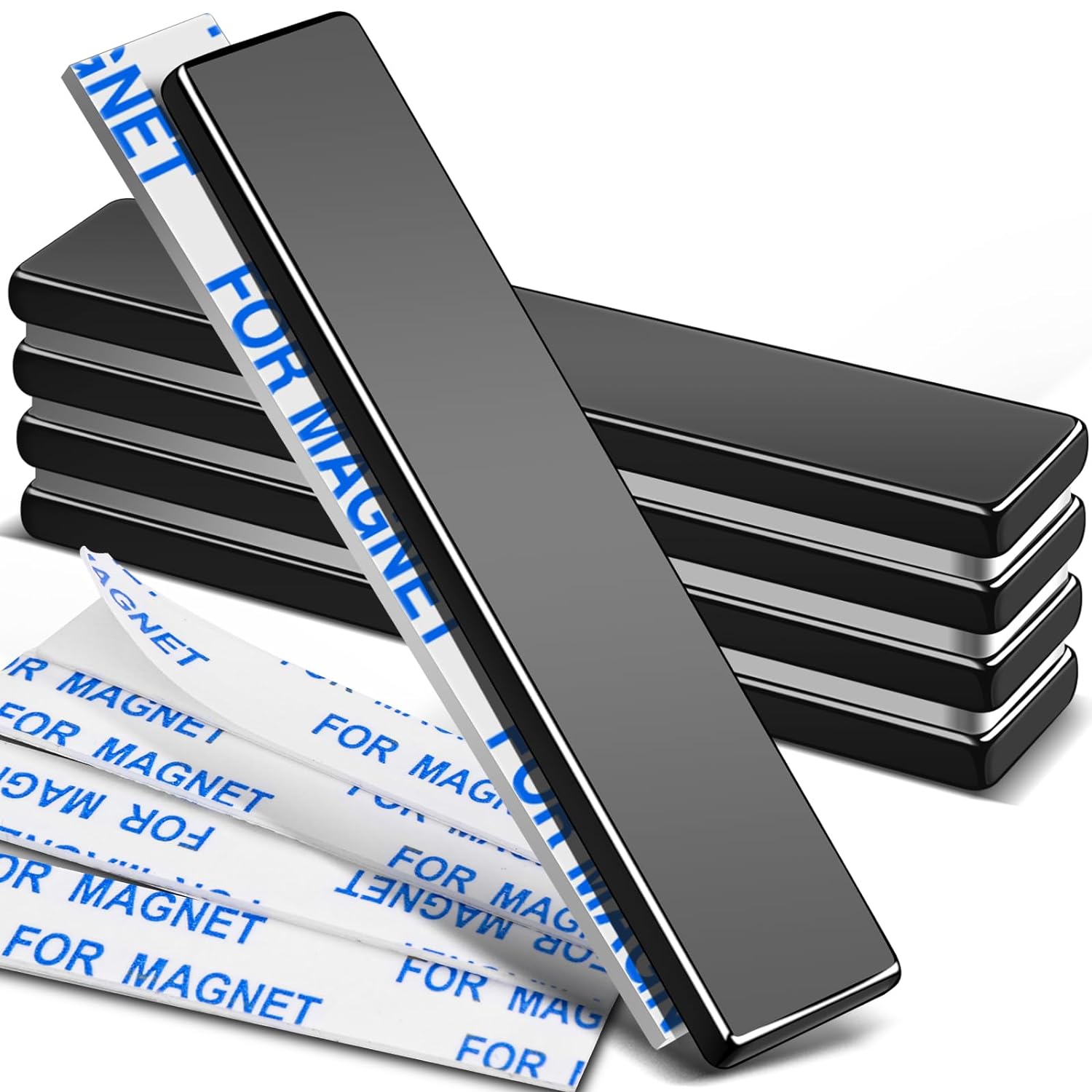

High performance block magent with 3M adhsive

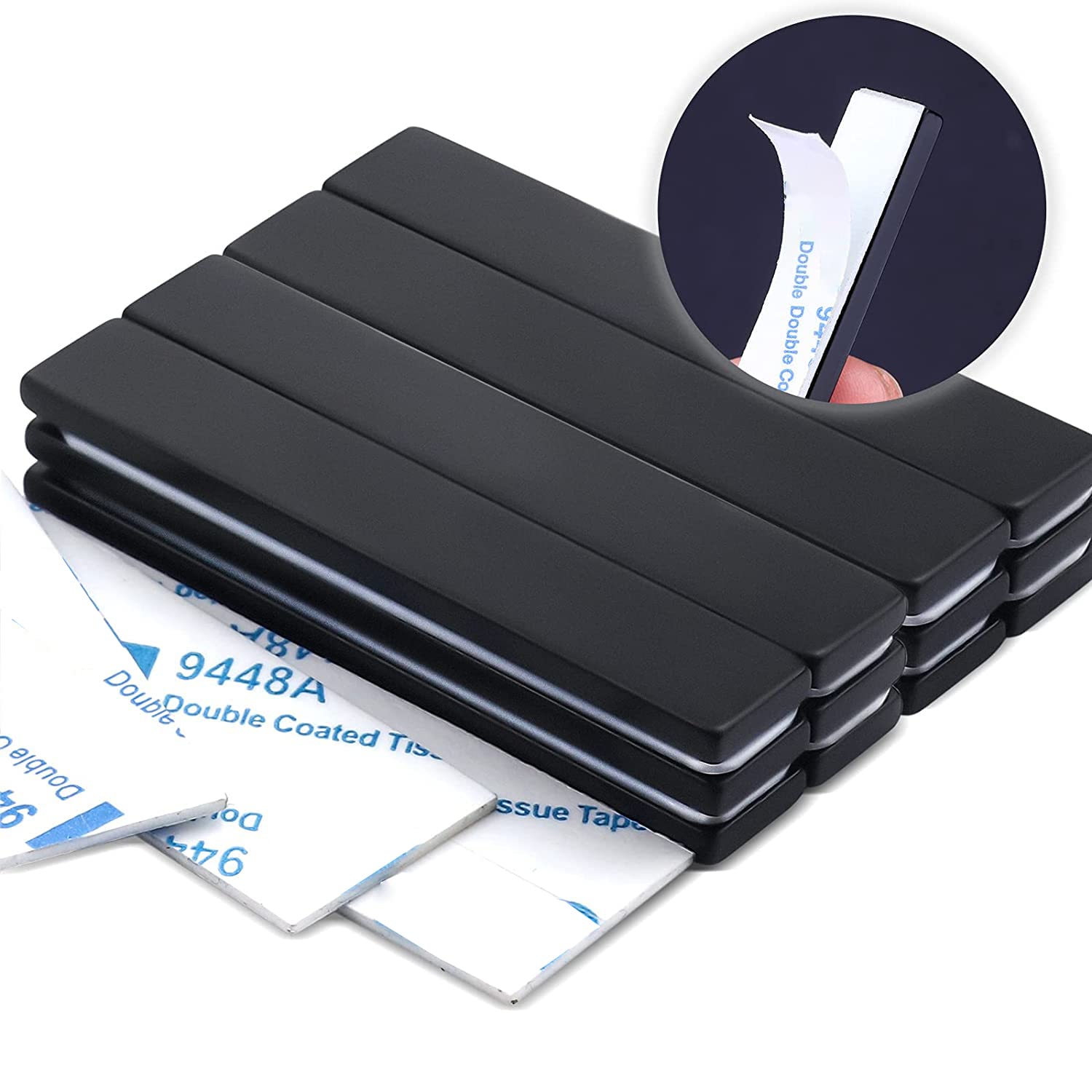

High Quality Adhesive:

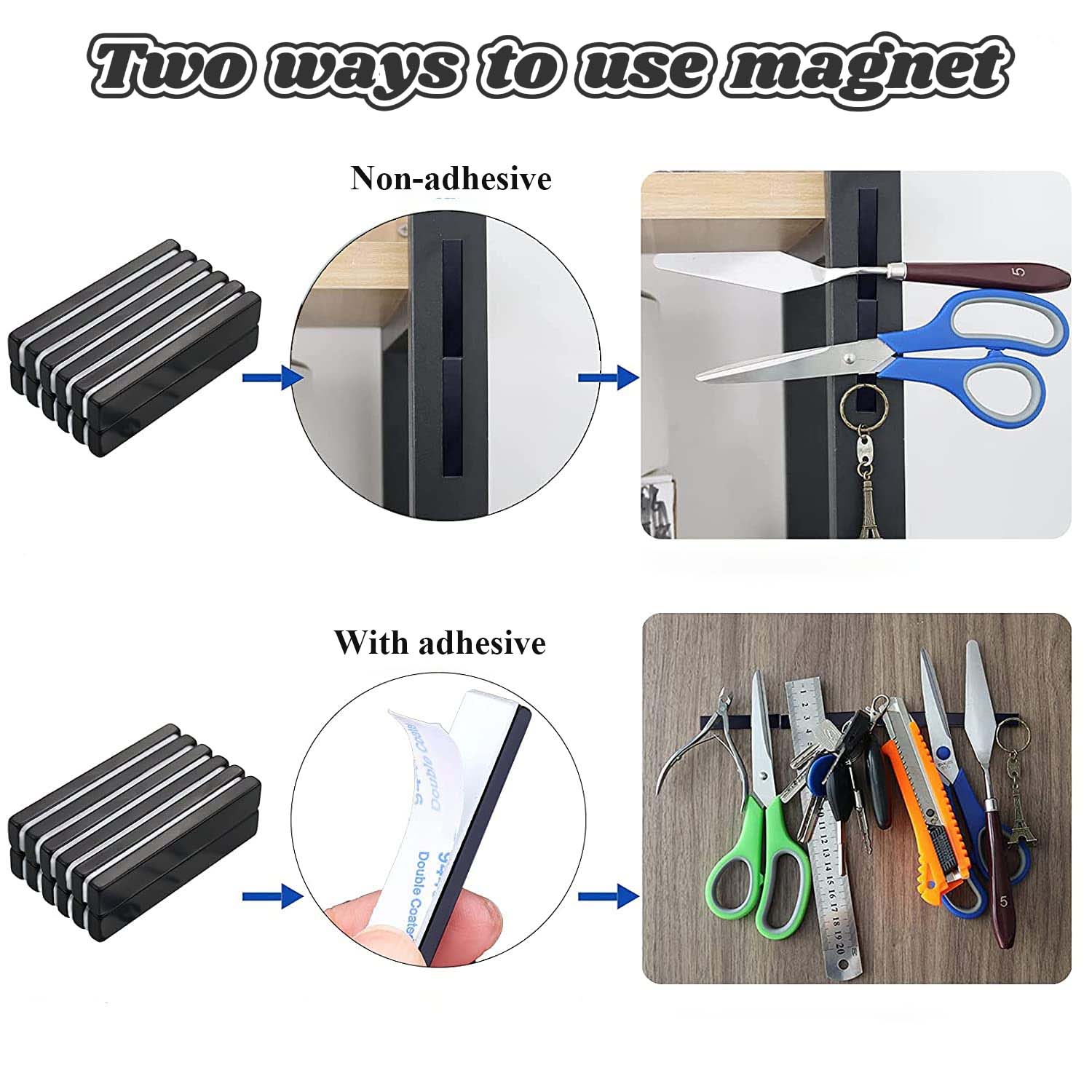

Adhesive magnets provide more options for the use of magnets. Generally, magnets without adhesive can only be attached to metal plates or objects, while block neodymium magnets with adhesive can be fixed wherever you want to use them, such as glass, ceramics, wood, and fabrics.

High quality adhesive can ensure that the magnet is firmly fixed during use and will not easily change position and direction.

Widely used NdFeB epoxy coated magent

Multi Functional Application:

Block shaped NdFeB magnets with single sided adhesive are a common form of neodymium magnets. They not only possess the strong magnetic properties of neodymium magnets, but also come with adhesive, making installation and use more convenient. Strong magnets with adhesive backing can complete DIY projects. Our rare earth magnetic strips can accommodate a variety of items, from kitchens to offices, garages, cabinets, scientific applications, arts, and schools.








Support Customization

Our company has been engaged in the research and development, manufacturing, and sales of permanent magnets, providing customers with high-quality strong rare earth neodymium magnets. Welcome to visit for more detailed information about customized services.



1.Size:  Customizable according to your needs.

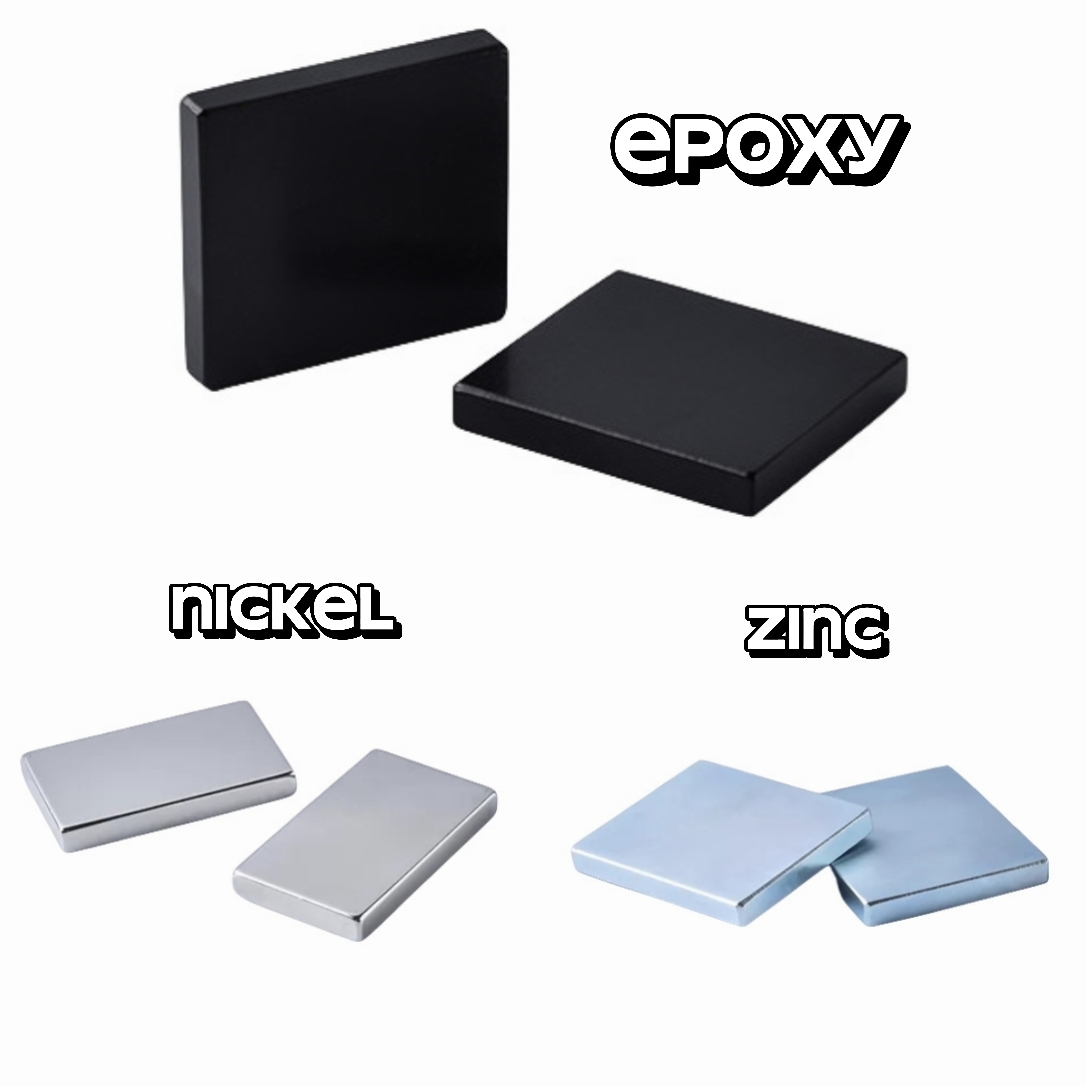

2.Coating: Zinc/Nickel/Epoxy.
3.Magnetic Grade:
We can offer different levels of magnetic performance options, ensure that your product achieves optimal performance in terms of magnetic properties.
Neodymium Br Hcb Hcj (Bh)max Tw
Grade mT kGs kA/m kOe kA/m kOe kJ/m3 MGOe
N35 1170-1220 11.7-12.2 >868 >10.9 >955 >12 263-287 33-36 <80
N38 1220-1250 12.2-12.5 >899 >11.3 >955 >12 287-310 38-39 <80
N40 1250-1280 12.5-12.8 >907 >11.4 >955 >12 302-326 38-41 <80
N42 1280-1320 12.8-13.2 >915 >11.5 >955 >12 318-342 40-43 <80
N45 1330-1370 13.3-13.7 >915 >11.5 >955 >12 342-367 41-44 <80
N48 1380-1420 13.8-14.2 >923 >11.6 >955 >12 366-390 46-49 <80
N50 1400-1450 14.0-14.5 >796 >10 >876 >11 382-406 48-49 <80
N52 1430-1480 14.3-14.8 >796 >10 >876 >11 398-422 50-53 <80

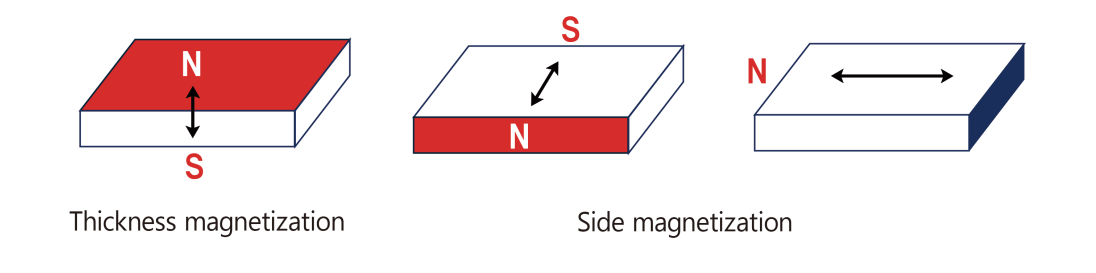

4.Magnetization Direction:

The magnetic grade of the waterproof strong suction block magnet with adhesive refers to the performance specifications of the material used to produce the magnet. It mainly represents the strength of magnetic materials and is an important factor determining the energy output and maximum operating temperature of magnets.

Axial magnetized square coated epoxy magnet

Packaging&Transportation

Factory custom epoxy magnet with adhsive
