Large disc neodymium magnets featuring a wide contact surface and exceptional magnetic strength, ideal for heavy-duty industrial and commercial applications.
Size :
D40x20mmColor :
SilveryOrder(MOQ) :
50pcsGrade :
N35Sample :
AvailableDensity :
7.5g/cm³Lead Time :
3-15daysPayment :
Paypal/TT/Credit CardLarge Size N35 Round Powerful Neodymium Magnets
Product Description

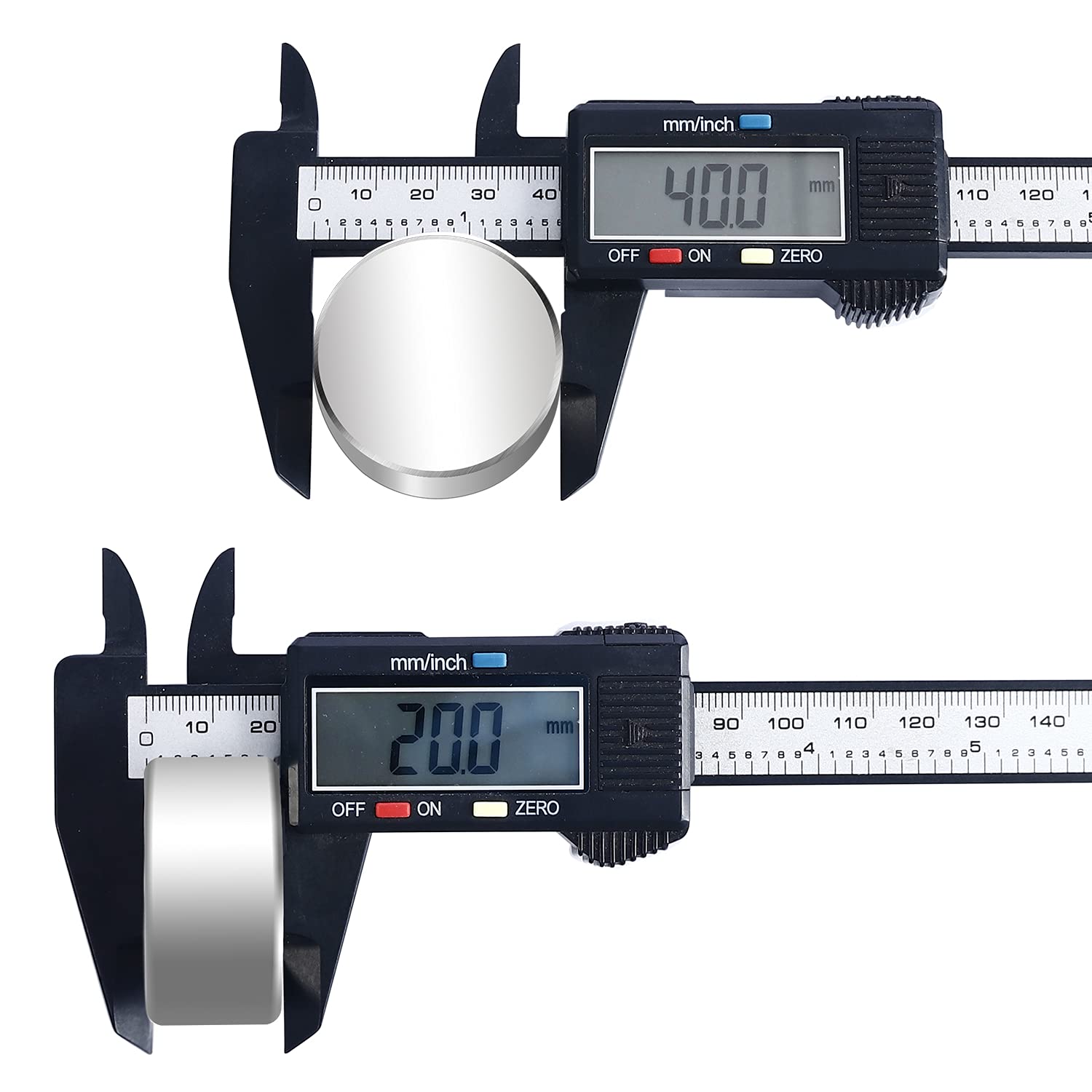

Diameter: 1.57inch (40mm)
Thickness: 0.79inch (20mm)
Material: NdFeB
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Tolerance: ±0.05mm
Multipurpose: School, Office or Home
Warning:
Keep away from pacemakers and children
If damaged please dispose of completely
Key Features
🧲 Super Strong Magnetic Force
Made of high-performance neodymium iron boron (NdFeB) material, this strong nickel coated magnet has excellent magnetic force, far exceeding that of ferrite magnets or other ordinary magnets of the same size. Suitable for heavy-duty holding, lifting and industrial applications.
One D40×20mm size neodymium magnet can generate up to 60 kg of pulling force, depending on the magnet grade(see table below) and the conditions of use.
Neodymium | Br | Hcb | Hcj | (Bh)max | Tw | ||||
Grade | mT | kGs | kA/m | kOe | kA/m | kOe | kJ/m3 | MGOe | ℃ |
N35 | 1170-1220 | 11.7-12.2 | >868 | >10.9 | >955 | >12 | 263-287 | 33-36 | <80 |
N38 | 1220-1250 | 12.2-12.5 | >899 | >11.3 | >955 | >12 | 287-310 | 38-39 | <80 |
N40 | 1250-1280 | 12.5-12.8 | >907 | >11.4 | >955 | >12 | 302-326 | 38-41 | <80 |
N42 | 1280-1320 | 12.8-13.2 | >915 | >11.5 | >955 | >12 | 318-342 | 40-43 | <80 |
N45 | 1330-1370 | 13.3-13.7 | >915 | >11.5 | >955 | >12 | 342-367 | 41-44 | <80 |
N48 | 1380-1420 | 13.8-14.2 | >923 | >11.6 | >955 | >12 | 366-390 | 46-49 | <80 |
N50 | 1400-1450 | 14.0-14.5 | >796 | >10 | >876 | >11 | 382-406 | 48-49 | <80 |
N52 | 1430-1480 | 14.3-14.8 | >796 | >10 | >876 | >11 | 398-422 | 50-53 | <80 |
🛡️ Durable Nickel Plating
Three-layer coating: nickel-copper-nickel(Ni-Cu-Ni)
The smooth and shiny surface has excellent corrosion resistance and is ideal for indoor and medium humidity environments.
Enhanced mechanical strength to prevent the high performance round magnet from chipping or cracking.

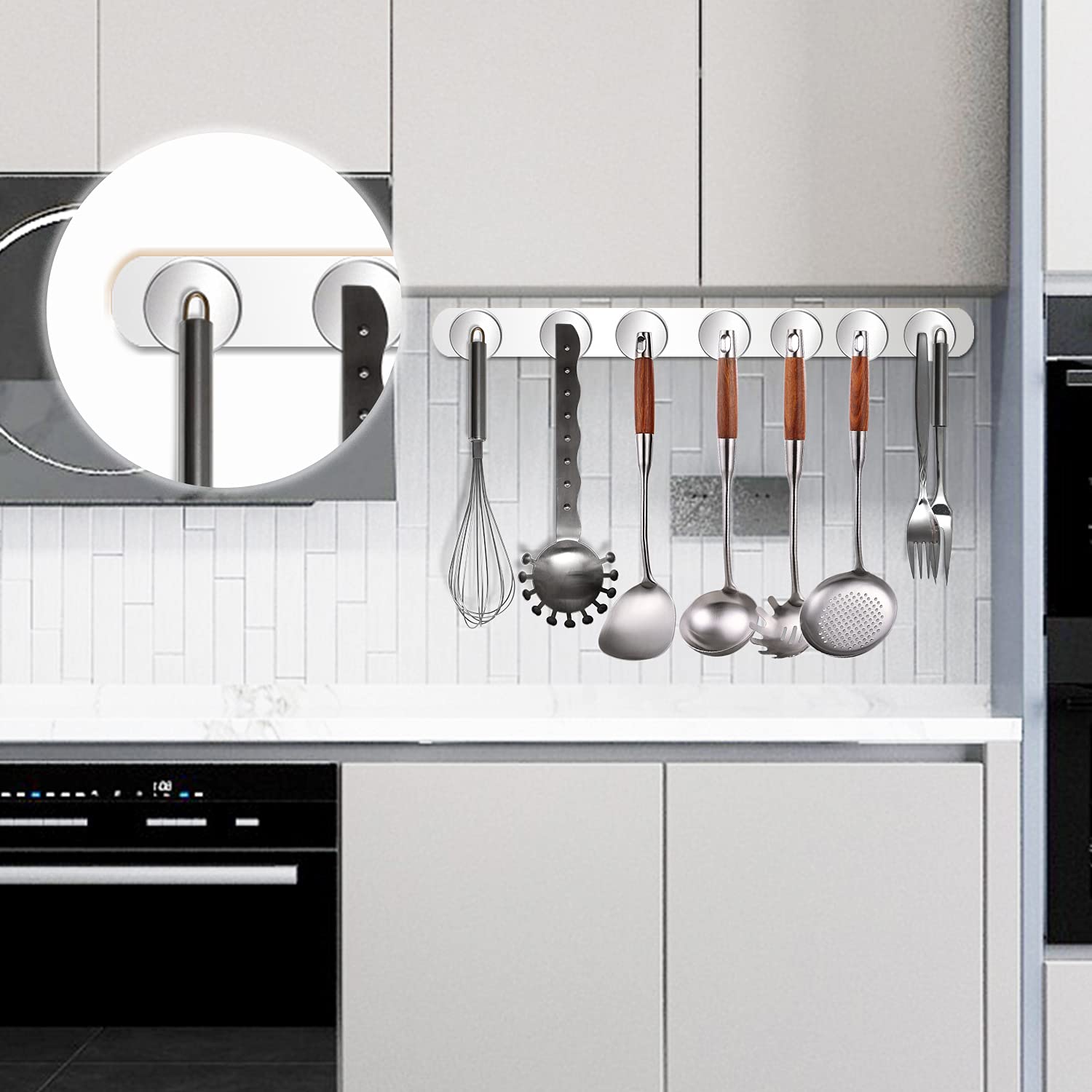

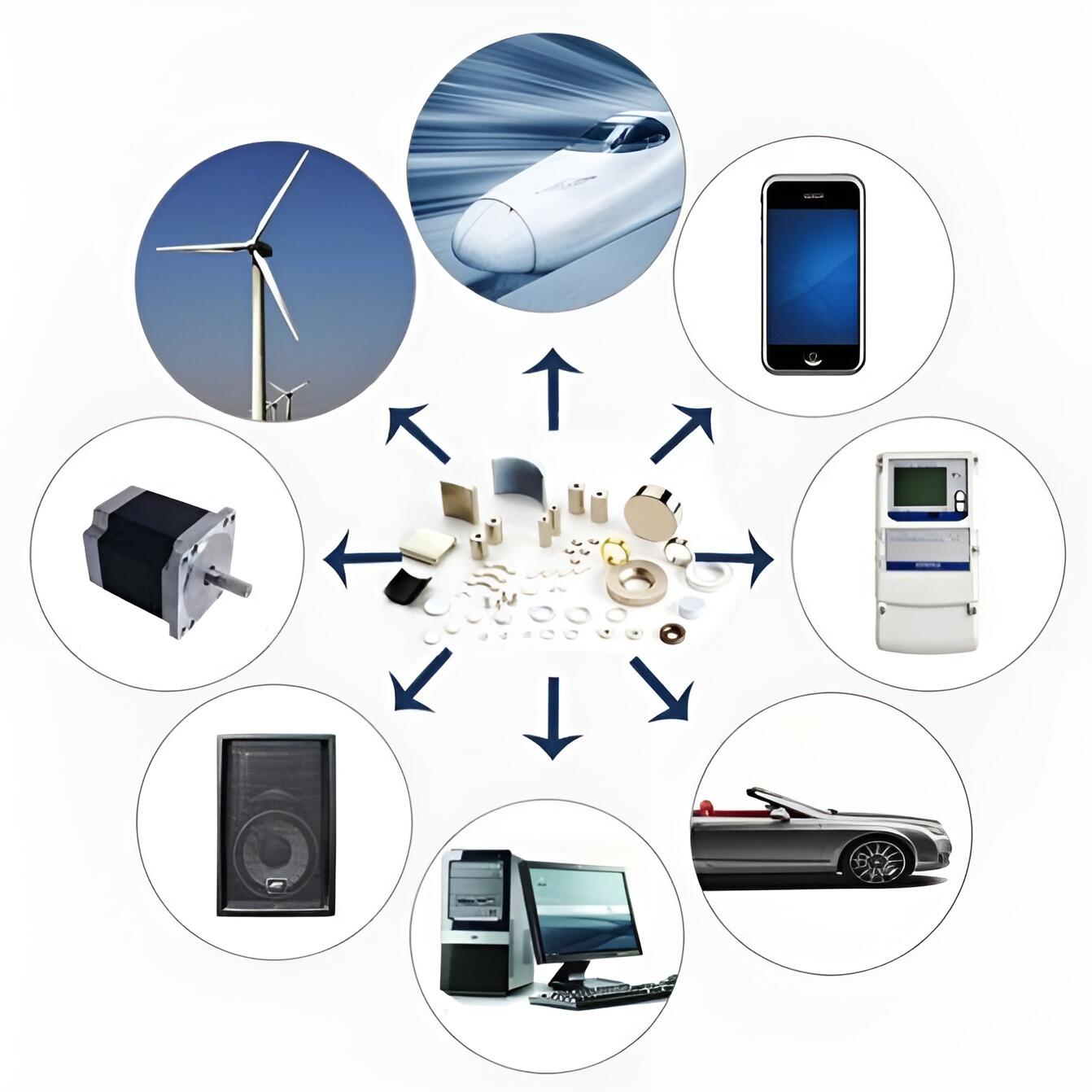

⚙️ Wide Range Of Uses
This powerful rare earth magnet is widely used in industrial and commercial fields, including:
Packing&Shipping
