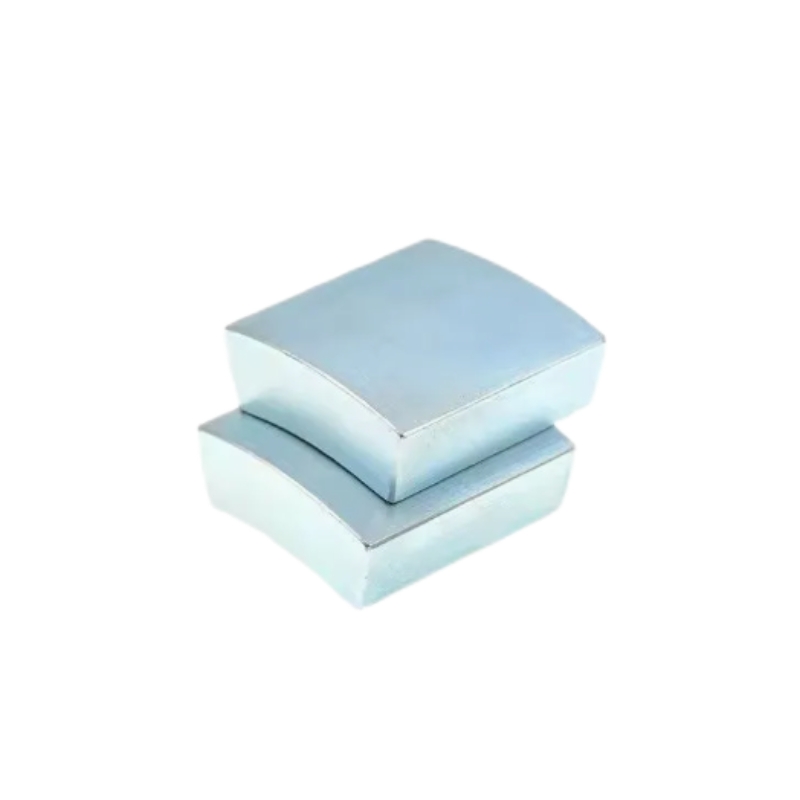

High Performance N50 Arc Curved Neodymium Magnet

High Performance N50 Arc Curved Neodymium Magnet

An arc-shaped magnet is a magnet shaped like a curved arc. They are typically more powerful and efficient than other types of magnets, and are commonly used in space limited applications.

  • Order(MOQ) :

    100PCS
  • Coating :

    Nickel
  • Grade :

    N50
  • Sample :

    Free
  • Density :

    7.5g/cm³
  • Lead Time :

    3-15days
  • Payment :

    Paypal/TT/Credit Card

High Performance N50 Arc Curved Neodymium Magnet

Product Description

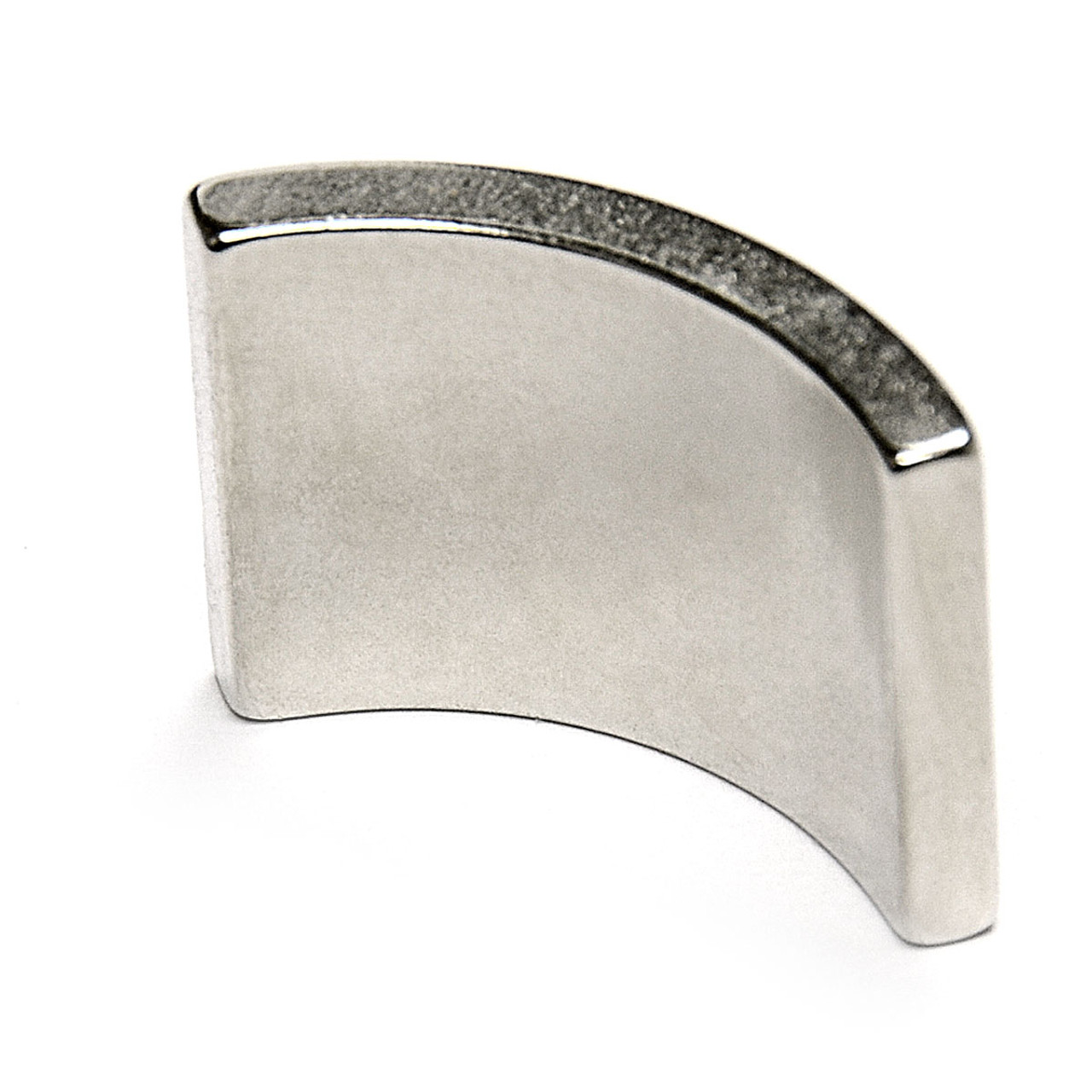

High Performance N50 Arc Curved Neodymium Magnet

Size: OD19mm(Outer Diameter) x ID16mm(Inner Diameter) x 19mm

Color: Silver

Material: NdFeB

Tolerance: ±0.05mm

Plating/Coating: Nickel

Magnetization direction: Radial magnetization

Warning:

Curved magnets are very fragile and should not collide with other metal objects (including another magnet), so be careful when attempting to separate them!



Characteristics

Rare earth neodymium arc neodymium magnets are mainly used in various motors and other applications. Strong neodymium arc magnet is a permanent magnet made of NdFeB. Their curved magnets are designed in a circular arc shape, specifically for circular or cylindrical components, and provide excellent power to weight ratio.



Excellent Strength:

The compact size of nickel plated segmented neodymium magnets and NdFeB material give the magnets impressive magnetic strength, ensuring reliable performance. You can choose the magnetic strength of N35-N52 level according to your needs.

Neodymium Br Hcb Hcj (Bh)max Tw
Grade mT kGs kA/m kOe kA/m kOe kJ/m3 MGOe
N35 1170-1220 11.7-12.2 >868 >10.9 >955 >12 263-287 33-36 <80
N38 1220-1250 12.2-12.5 >899 >11.3 >955 >12 287-310 38-39 <80
N40 1250-1280 12.5-12.8 >907 >11.4 >955 >12 302-326 38-41 <80
N42 1280-1320 12.8-13.2 >915 >11.5 >955 >12 318-342 40-43 <80
N45 1330-1370 13.3-13.7 >915 >11.5 >955 >12 342-367 41-44 <80
N48 1380-1420 13.8-14.2 >923 >11.6 >955 >12 366-390 46-49 <80
N50 1400-1450 14.0-14.5 >796 >10 >876 >11 382-406 48-49 <80
N52 1430-1480 14.3-14.8 >796 >10 >876 >11 398-422 50-53 <80

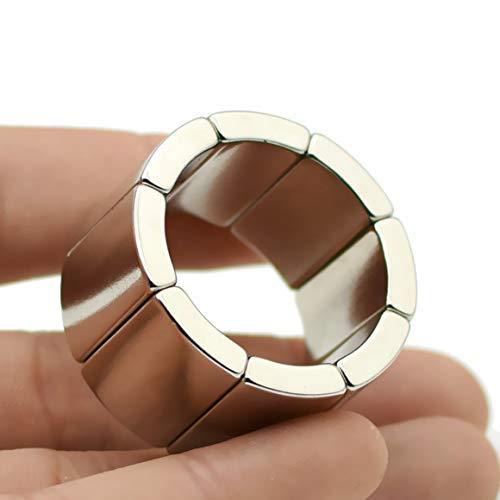

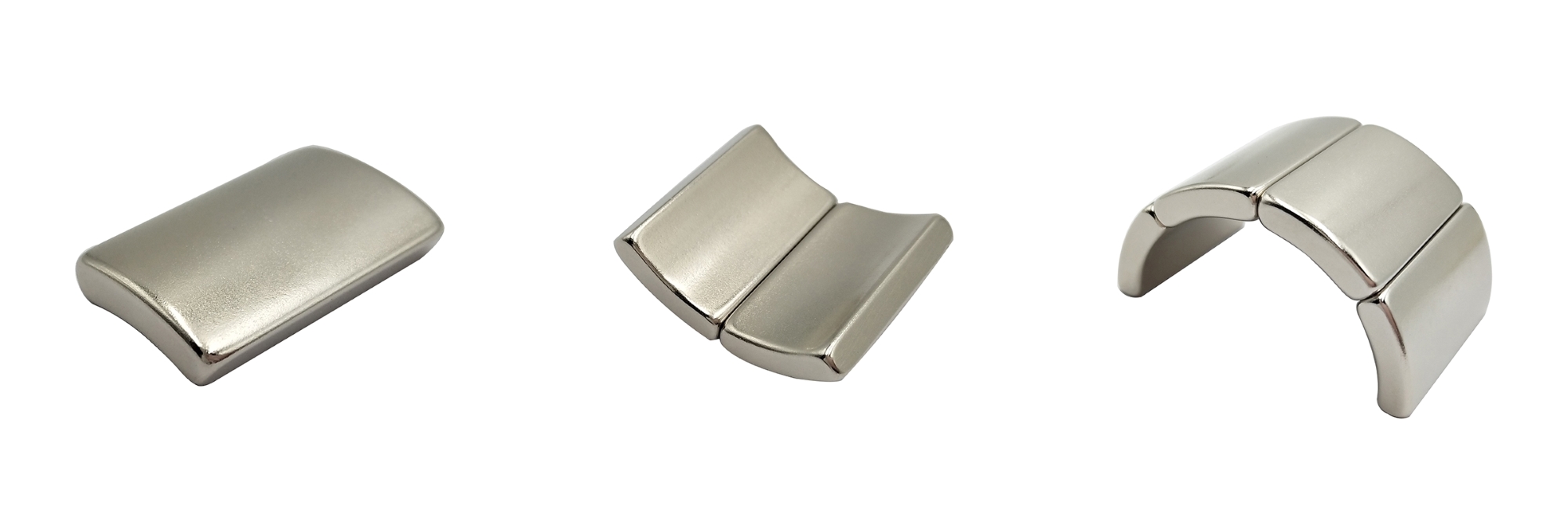

Curved Design:

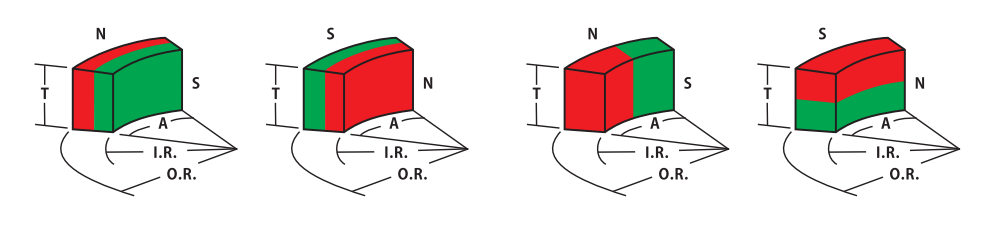

Very suitable for applications that require curved or circular magnetic fields, such as motors, sensors, and magnetic components. There are various sizes to choose from to meet your specific project requirements. Choose the size and magnetization direction that best suits your application.

Strong suction arc curved neodymium magnet

Irregular shape neodymium N52 magnet

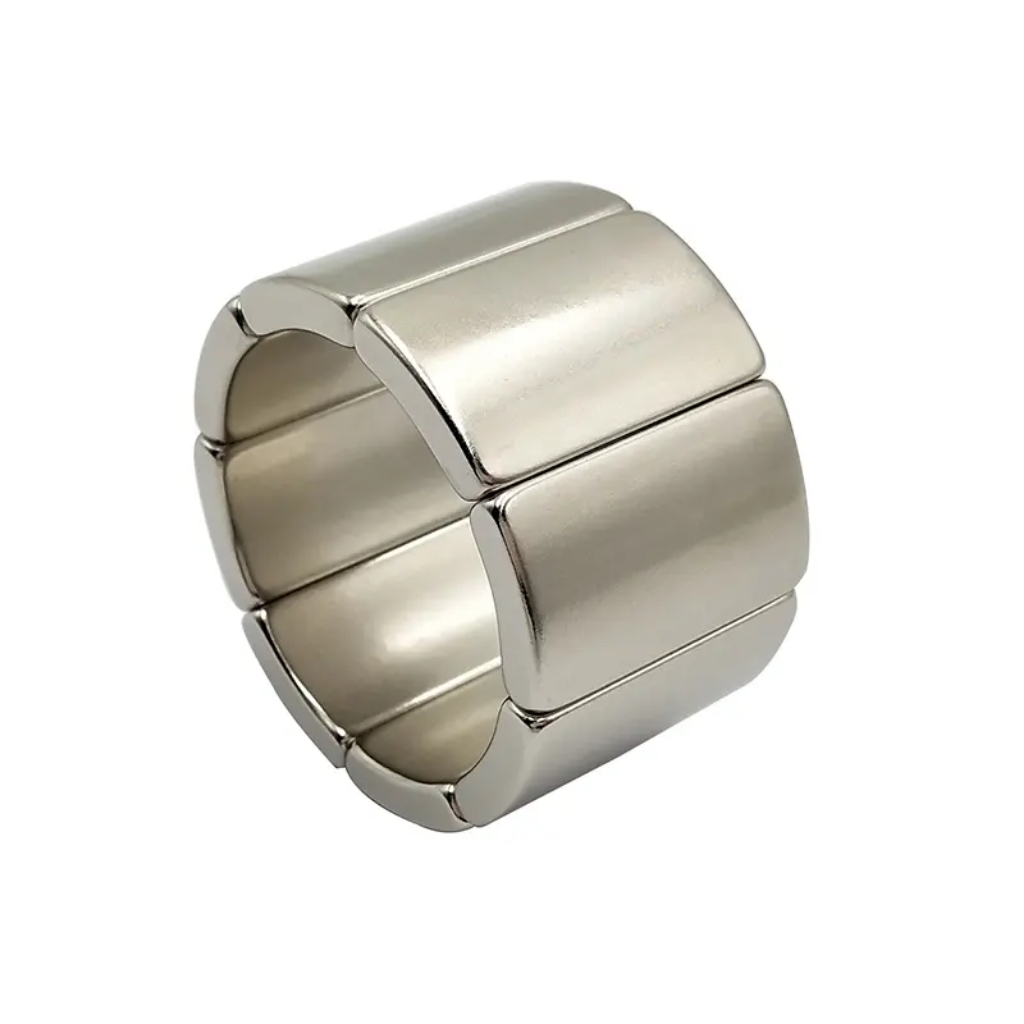

Durable Coating:

The strong magnetic arc shaped magnet is coated with three layers of Ni Cu Ni protective layer to improve durability and corrosion resistance, ensuring long-lasting performance. The nickel plating layer is the most common layer because it not only has good anti-corrosion performance, but also has a moderate price and high cost-effectiveness. The silver color layer also makes the magnet more beautiful. We also have other coatings, such as zinc coating, gold-plated coating, and epoxy coating, each with its own advantages.

  • Zinc coated arc neodymium magnet
    Zinc Coating
    Zinc plating is a standalone plating with only one layer but simple process and low price.

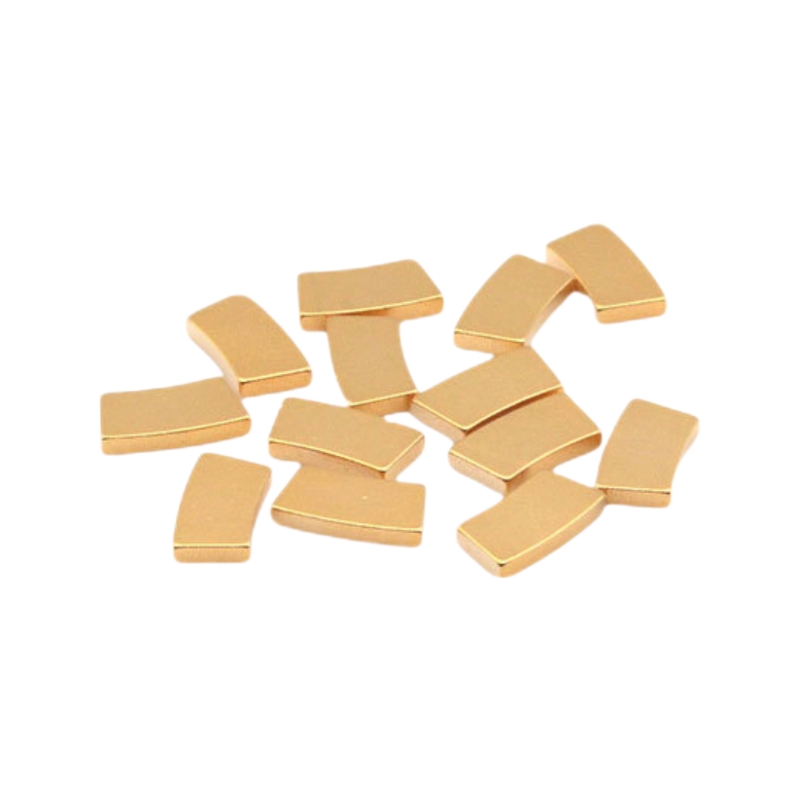

  • Golden coated arc NdFeB magnet
    Golden Coating
    Layered in Nickel Copper & Gold on top.The gold layer is very thin and adds only a few cents permagnet.

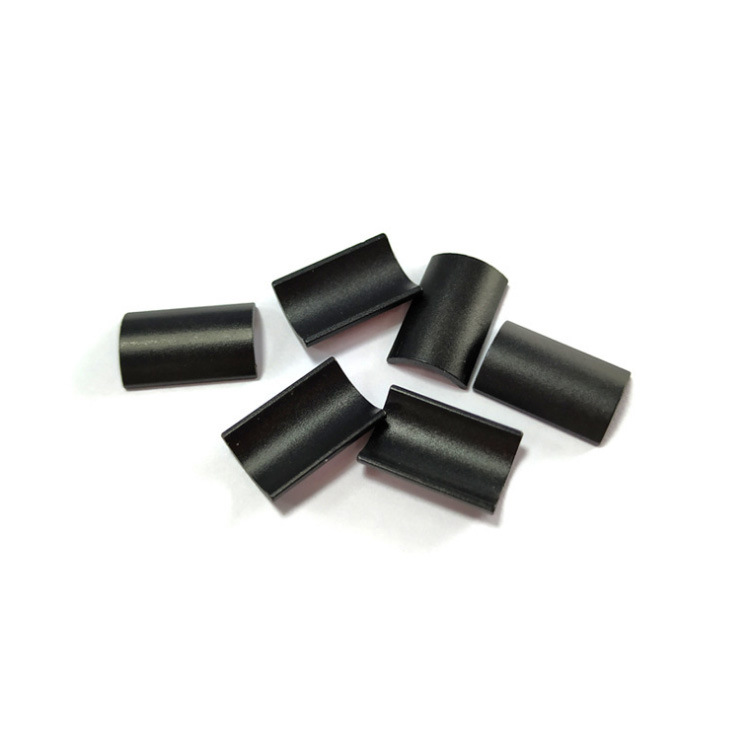

  • Waterproof epoxy coated curved magnet
    Epoxy Coating
    Very good protection against corrosion,water repellent,mechanically sensitive.



Versatile Applications:

Arc magnets are typically smaller and more compact than other types of magnets, making them highly suitable for applications with limited space. Can be used for a wide range of applications, including motors, generators, and other devices that require strong magnetic fields.

High quality neodymium arc magnet for sensor



Packaging&Transportation

Factory custom segment NdFeB magnet
