Epoxy Mounting Pot Magnets With Countersunk Holes

Epoxy Mounting Pot Magnets With Countersunk Holes

Rectangular pot magnets are made of strong neodymium magnets, which provide extra strong pulling force. This heavy duty magnet is suitable for various applications such as fixing, mounting, home improvement and DIY projects.

  • Color :

    Black
  • Order(MOQ) :

    50pcs
  • Coating :

    Epoxy
  • Sample :

    Available
  • Lead Time :

    7-15days
  • Payment :

    Paypal/TT/Credit Card

Epoxy Mounting Pot Magnets With Countersunk Holes

Product Description

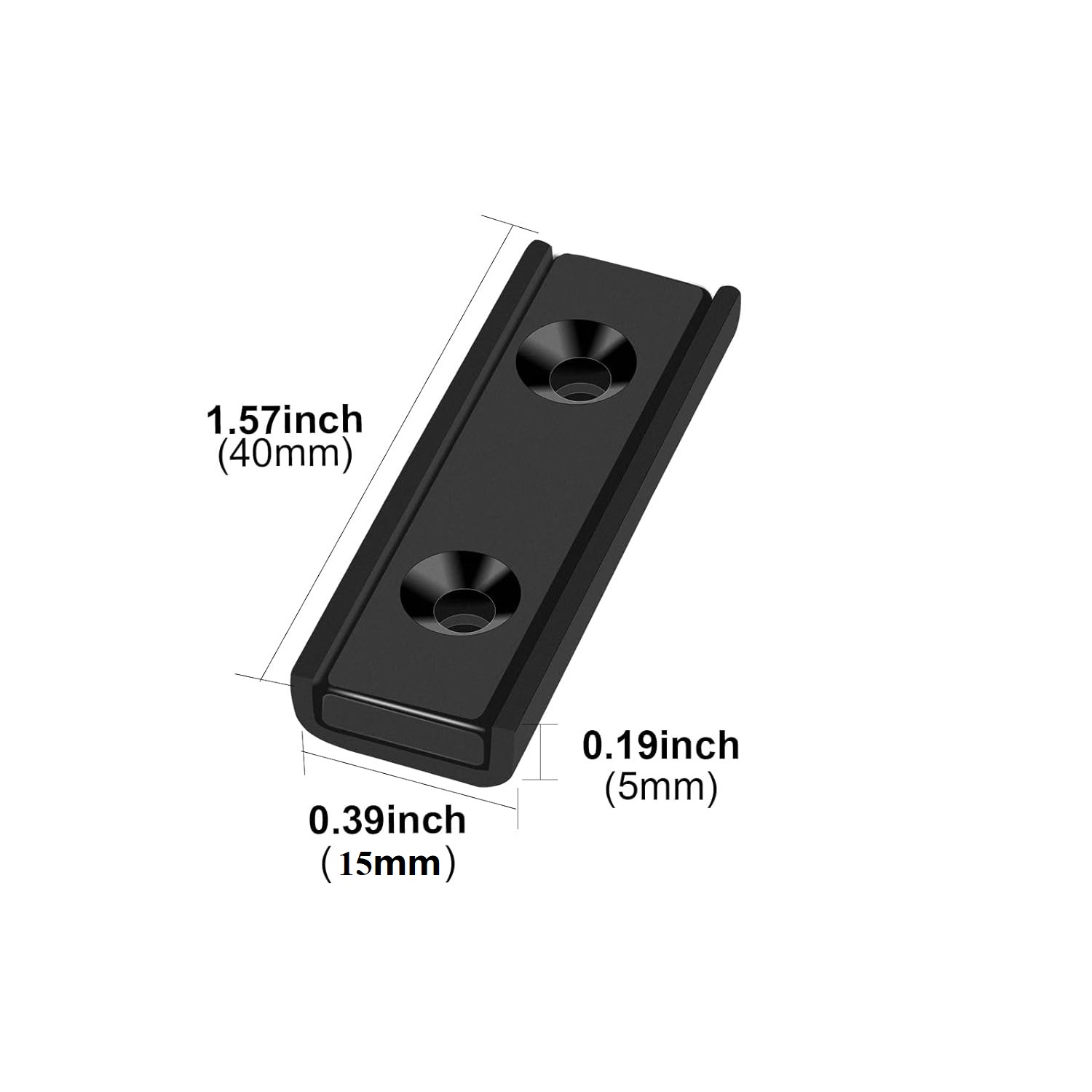

Size: 40mm(L) × 13.5mm(W) × 5mm(T)

Color: Black

Dimensional Tolerance: ±0.05mm

Shape: Rectangular

Material: NdFeB Magnet and 304 Stainless Steel



Notes: Manual measurement, please allow for slight dimensional errors.

The color may be slightly different.



Features

♦ Durability & Protection ♦

The epoxy coating not only protects the magnets from moisture and chemicals but also enhances durability and reduces the risk of rust and corrosion in harsh environments. The double countersunk design improves stability and prevents slipping or shifting over time.



♦ Strong Magnetic Performance ♦

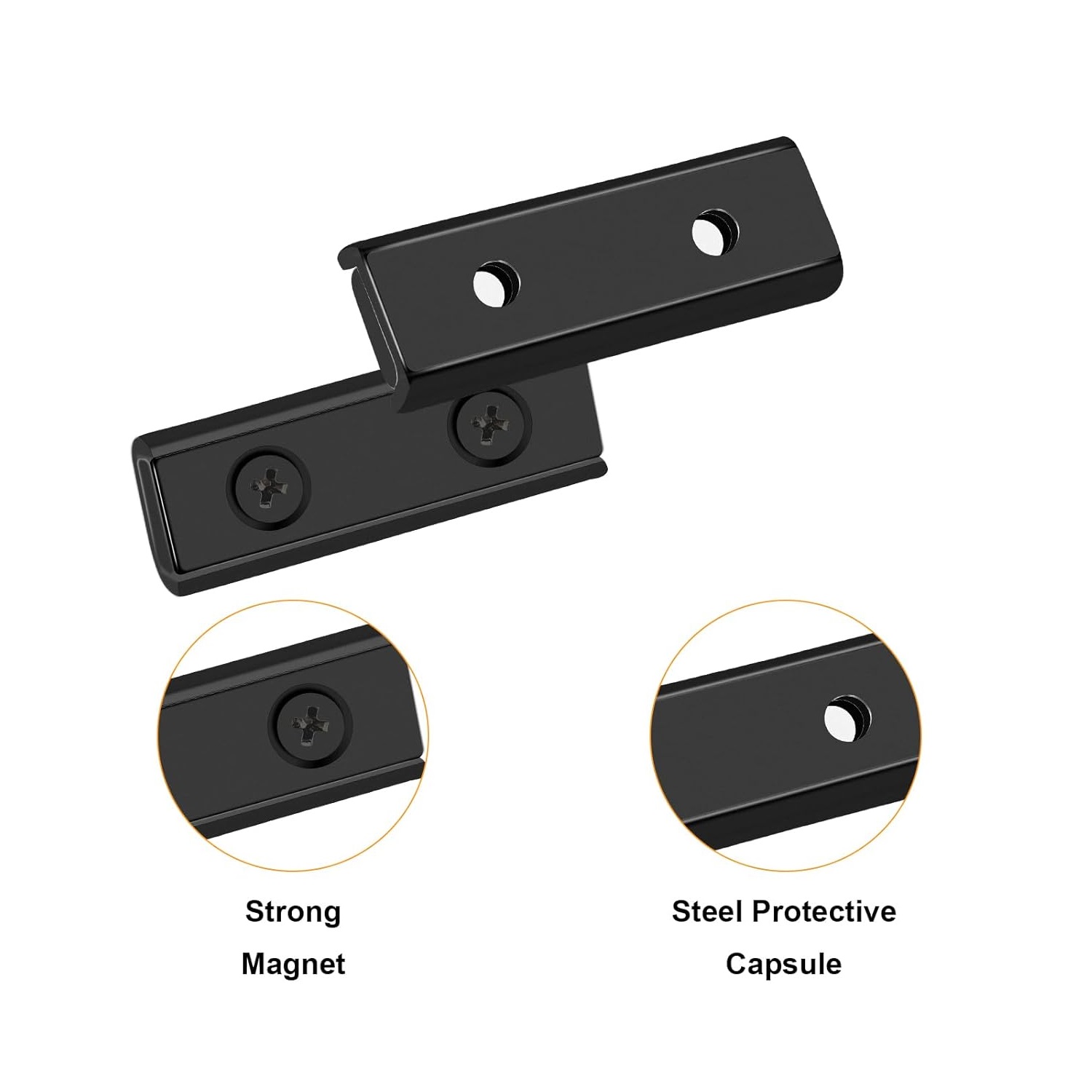

Made of high-quality neodymium iron boron (NdFeB) and stainless steel, these strong epoxy coated channel magnets deliver excellent magnetic force in a compact stainless steel rectangular housing. Despite their small size, they provide strong holding power for a variety of applications.



♦ Double Countersunk Holes For Easy Installation ♦

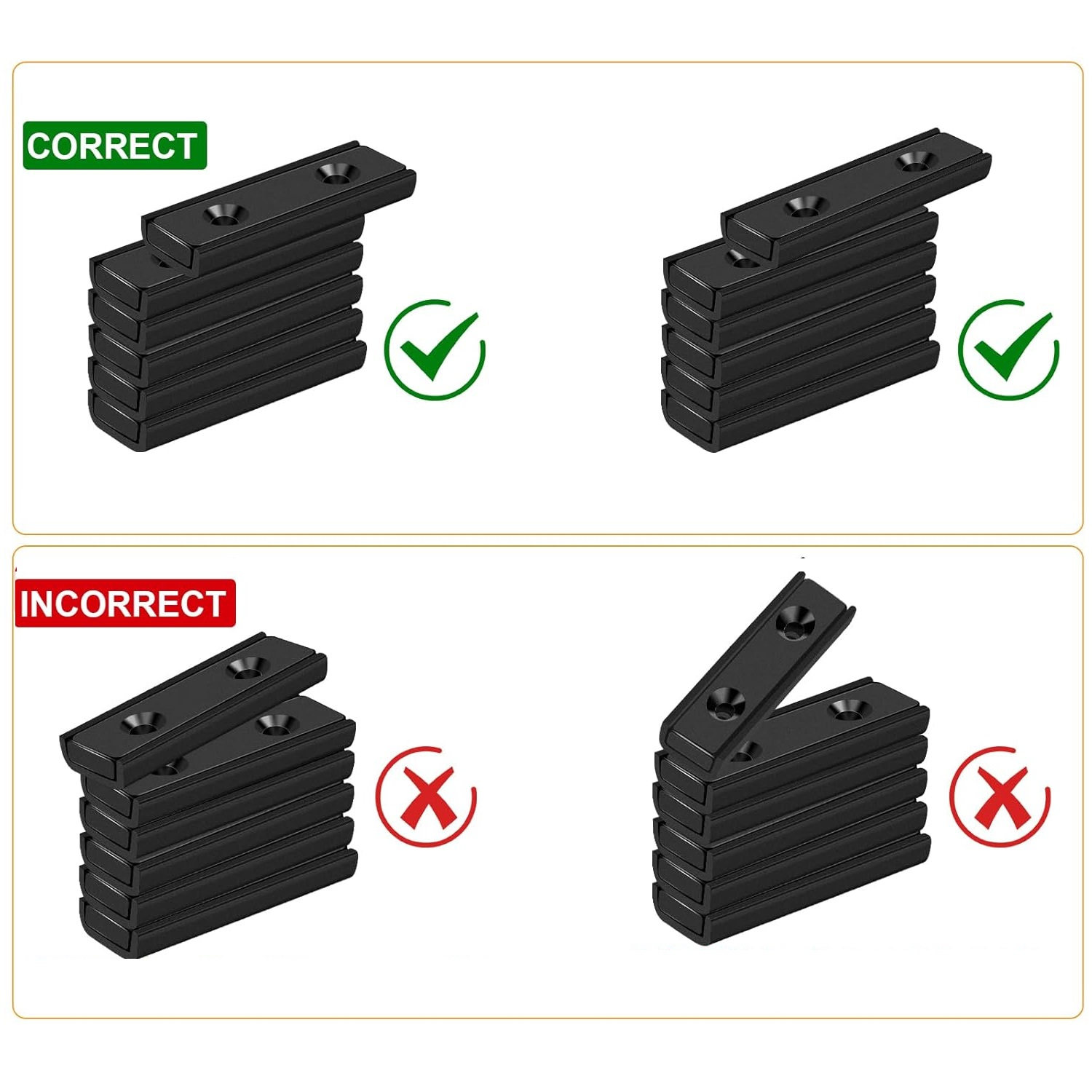

The magnets feature a double countersunk hole design, allowing secure and easy screw installation for stable holding power. The countersunk holes enable flush mounting, improving both aesthetics and functionality. Additionally, the magnets can be efficiently separated when needed using the proper method.Epoxy Mounting Pot Magnets With Countersunk Holes

♦ Customization To Meet Specific Needs ♦

We offer epoxy coated pot magnets in a variety of sizes and strengths, which can be selected according to the needs of your project.

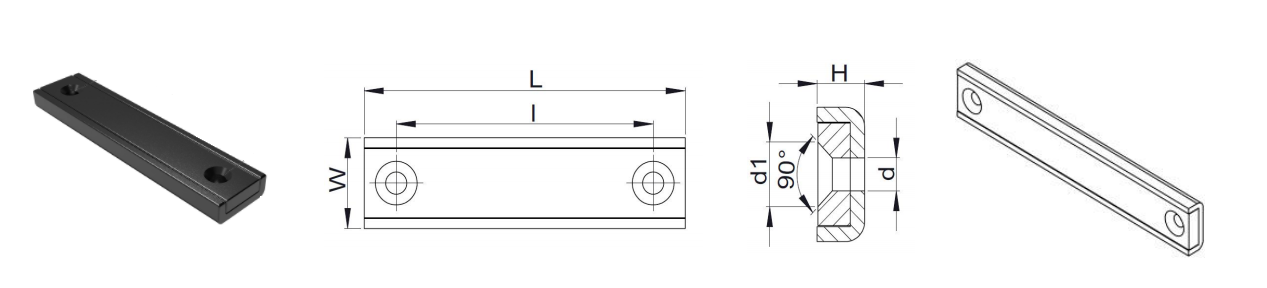

Black rectangular shape channel magnet

Model L
(mm)
l
(mm)
W
(mm)
H
(mm)
d
(mm)
d1
(mm)
Weight
(g)
SNI40 40 30 13.5 5 3.3 6.5 19
SNI50 50 40 13.5 5 3.3 6.5 24
SNI60 60 50 13.5 5 3.3 6.5 30
SNI80 80 70 13.5 5 3.3 6.5 38
SNI100 100 90 13.5 5 3.3 6.5 48
SNI120 120 110 13.5 5 3.3 6.5 58

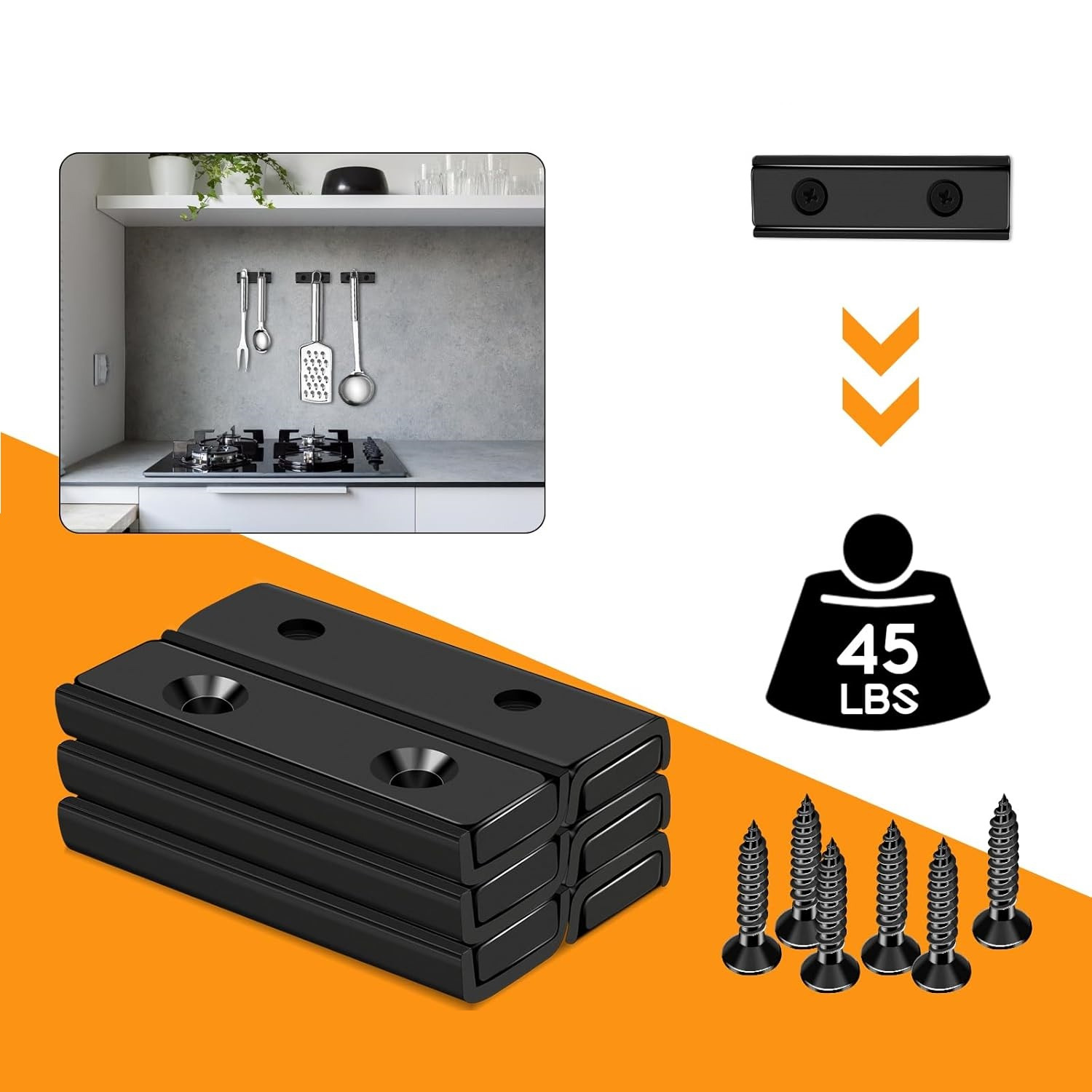

♦ Wide Range Of Applications ♦

These rectangular shape pot magnets are ideal for fixing, mounting and assembly applications. Common uses include fixtures, sensors or magnetic assemblies in manufacturing, automotive and other industrial applications.

Waterproof epoxy countersunk pot magnet for installation



Packing&Shipping

Double countersunk holes neodymium pot magnet
