Durable N52 Rectangular Magnetic Bar Shape Neodymium Magnets

Neodymium magnet blocks, with their strong adhesion and durable coating, are ideal for mounting, DIY projects, and general installation purposes.

  • Size :

    50x10x4mm

  • Order(MOQ) :

    100pcs

  • Grade :

    N52

  • Sample :

    Available

  • Lead Time :

    7-15days

  • Payment :

    Paypal/TT/Credit Card
Inquire Now

Heavy Duty Flat Square Neodymium Magnets Wholesale

Product Description

Heavy Duty Flat Square Neodymium Magnets Wholesale

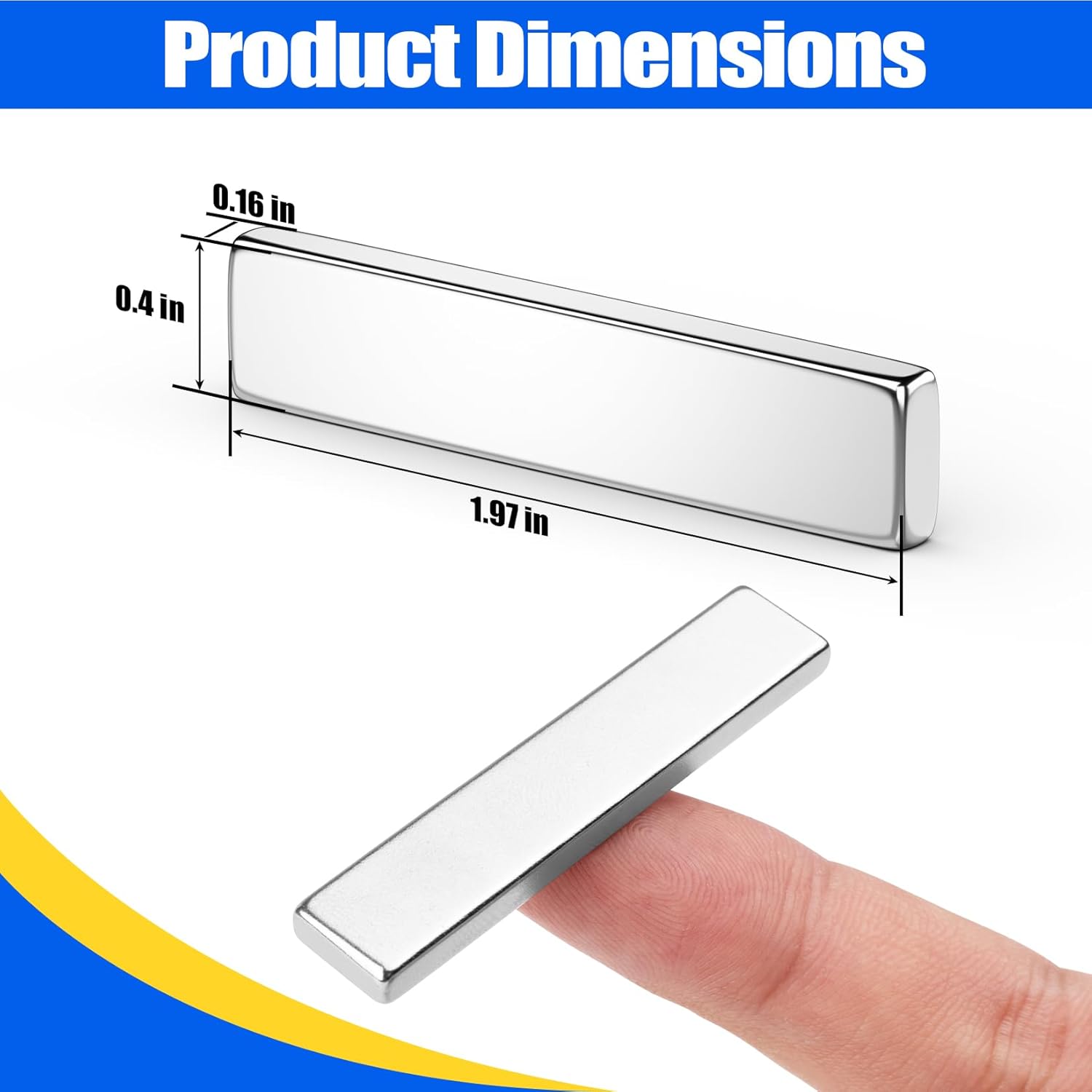

Length: 1.97inch (50mm)

Width: 0.4inch (10mm)

Thickness: 0.16inch (4mm)

Material: NdFeB

Magnetic Grade: N52

Tolerance: ±0.05mm

Density: 7.5g/cm³

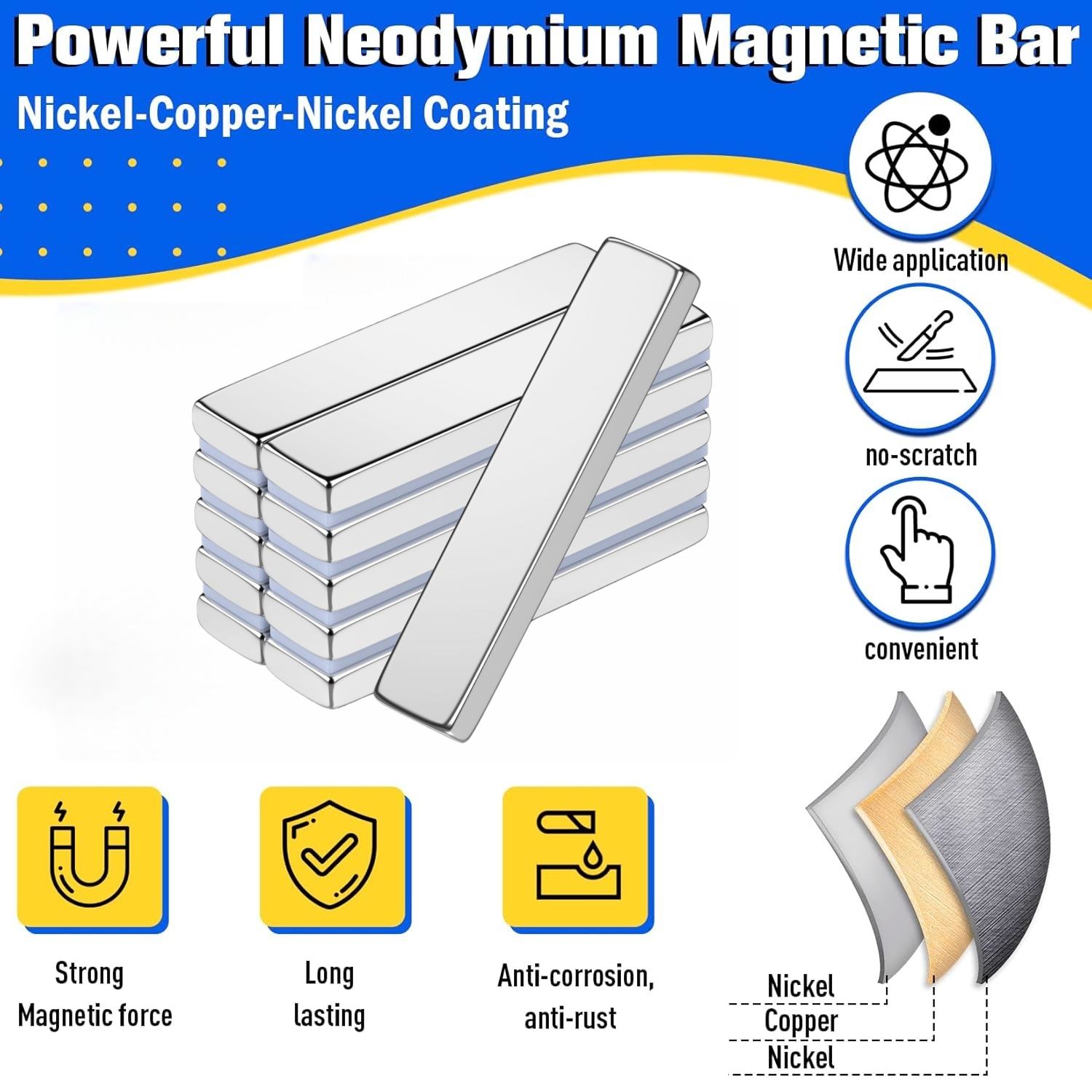

Plating/Coating: Ni-Cu-Ni

Magnetization Direction: Axial (Poles on Flat Ends)



Product Features

✔ Strong, Durable, and Highly Reliable

Made from premium neodymium material and triple-plated with nickel, this nickel coated block magnet boasts exceptional magnetic strength and excellent corrosion resistance. It exhibits outstanding magnetic stability, high-temperature resistance (standard operating temperature up to 80°C), and low demagnetization rate, ensuring stable and reliable performance even in harsh environments.



✔ Slim Rectangular Design

Measuring only 50×10×4mm, this slim rectangular strong neodymium magnet provides a concentrated and uniform magnetic field, making it ideal for precision assembly, applications with limited installation space, and those demanding high magnetic strength and compactness.

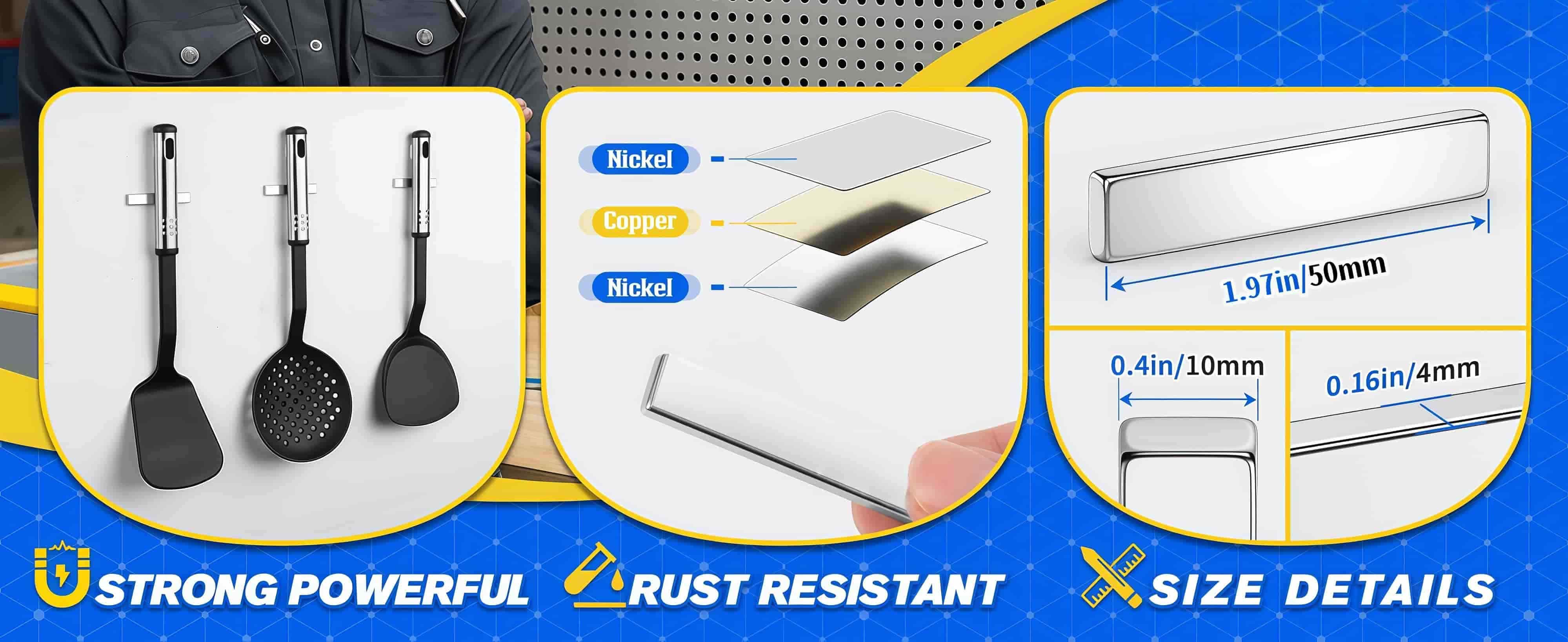

high performance block neodymium magnet available



✔ Customizable

The magnetic strength and high-temperature resistance of rare earth permanent magnets can be flexibly customized to meet your specific project needs. Whether you require high magnetic strength for high-intensity applications or superior high-temperature resistance for special environments, we can provide tailored solutions. Please refer to the table below for magnet grades and their corresponding standard high-temperature ranges to select the configuration best suited for your project.

Neodymium Br Hcb Hcj (Bh)max Tw
Grade mT kGs kA/m kOe kA/m kOe kJ/m3 MGOe ℃
N35 1170-1220 11.7-12.2 ＞868 ＞10.9 ＞955 ＞12 263-287 33-36 ＜80
N38 1220-1250 12.2-12.5 ＞899 ＞11.3 ＞955 ＞12 287-310 38-39 ＜80
N40 1250-1280 12.5-12.8 ＞907 ＞11.4 ＞955 ＞12 302-326 38-41 ＜80
N42 1280-1320 12.8-13.2 ＞915 ＞11.5 ＞955 ＞12 318-342 40-43 ＜80
N45 1330-1370 13.3-13.7 ＞915 ＞11.5 ＞955 ＞12 342-367 41-44 ＜80
N48 1380-1420 13.8-14.2 ＞923 ＞11.6 ＞955 ＞12 366-390 46-49 ＜80
N50 1400-1450 14.0-14.5 ＞796 ＞10 ＞876 ＞11 382-406 48-49 ＜80
N52 1430-1480 14.3-14.8 ＞796 ＞10 ＞876 ＞11 398-422 50-53 ＜80
35M 1170-1220 11.7-12.2 ＞868 ＞10.9 ＞1114 ＞14 263-297 33-36 ＜100
38M 1220-1250 12.2-12.5 ＞899 ＞11.3 ＞1114 ＞14 297-310 36-39 ＜100
40M 1250-1280 12.5-12.8 ＞923 ＞11.6 ＞1114 ＞14 302-326 38-41 ＜100
42M 1280-1320 12.8-13.2 ＞955 ＞12 ＞1114 ＞14 318-342 40-43 ＜100
48M 1360-1430 13.6-14.3 ＞1027 ＞12.9 ＞1114 ＞14 366-390 46-49 ＜100
50M 1400-1450 14.0-14.5 ＞1033 ＞13 ＞1114 ＞14 382-406 48-51 ＜100
33H 1130-1170 11.3-11.7 ＞836 ＞10.5 ＞1353 ＞17 247-271 31-34 ＜120
35H 1170-1220 11.7-12.2 ＞868 ＞10.9 ＞1353 ＞17 263-287 33-36 ＜120
38H 1220-1250 12.2-12.5 ＞899 ＞11.3 ＞1353 ＞17 287-310 36-39 ＜120
40H 1250-1280 12.5-12.8 ＞923 ＞11.6 ＞1353 ＞17 302-326 38-41 ＜120
42H 1280-1320 12.8-13.2 ＞955 ＞12 ＞1353 ＞17 318-342 40-43 ＜120
45H 1300-1360 13-13.6 ＞963 ＞12.1 ＞1353 ＞17 326-358 43-46 ＜120
48H 1370-1430 13.7-14.3 ＞995 ＞12 ＞1353 ＞17 366-390 46-49 ＜120
30SH 1080-1130 10.8-11.3 ＞804 ＞10.1 ＞1592 ＞20 223-247 28-31 ＜150
33SH 1130-1170 10.3-11.7 ＞844 ＞10.6 ＞1592 ＞20 247-271 31-34 ＜150
35SH 1170-1220 11.7-12.2 ＞876 ＞11 ＞1592 ＞20 263-287 33-36 ＜150
38SH 1220-1250 12.2-12.5 ＞907 ＞11.4 ＞1592 ＞20 287-310 36-39 ＜150
40SH 1240-1280 12.5-12.8 ＞939 ＞11.8 ＞1592 ＞20 302-326 36-41 ＜150
42SH 1280-1320 12.8-13.2 ＞987 ＞12.4 ＞1592 ＞20 318-342 40-43 ＜150
45SH 1320-1380 13.2-13.8 ＞1003 ＞12.6 ＞1592 ＞20 342-366 43-46 ＜150
28UH 1020-1080 10.2-10.8 ＞764 ＞9.6 ＞1990 ＞25 207-231 26-29 ＜180
30UH 1080-1130 10.8-11.3 ＞812 ＞10.2 ＞1990 ＞25 223-247 28-31 ＜180
33UH 1130-1170 11.3-11.7 ＞852 ＞10.7 ＞1990 ＞25 247-271 31-36 ＜180
35UH 1170-1220 11.8-12.2 ＞860 ＞10.8 ＞1990 ＞25 263-287 33-36 ＜180
38UH 1220-1250 12.2-12.5 ＞876 ＞11 ＞1990 ＞25 287-310 36-39 ＜180
40UH 1250-1280 12.5-12.8 ＞899 ＞11.3 ＞1990 ＞25 302-326 31-41 ＜180
28EH 1040-1090 10.4-10.9 ＞780 ＞9.8 ＞2388 ＞30 207-231 26-29 ＜200
30EH 1080-1130 10.8-11.3 ＞812 ＞10.2 ＞2388 ＞30 223-247 28-31 ＜200
33EH 1130-1170 11.3-11.7 ＞836 ＞10.5 ＞2388 ＞30 247-271 31-36 ＜200
35EH 1170-1220 11.7-12.2 ＞876 ＞11 ＞2388 ＞30 263-287 33-36 ＜200
38EH 1220-1250 12.2-12.5 ＞899 ＞11.3 ＞2388 ＞30 287-310 36-39 ＜200
28AH 1040-1090 10.4-10.9 ＞787 ＞9.9 ＞2642 ＞33 207-231 26-29 ＜230
30AH 1080-1130 10.8-11.3 ＞819 ＞10.3 ＞2642 ＞33 223-247 28-31 ＜230
38AH 1130-1170 11.3-11.7 ＞843 ＞10.6 ＞2642 ＞33 247-271 31-34 ＜230



Safety Tips

Bar Neodymium Magnet Manufacturer In China



Packing&Shipping

Block Permanent N52 Magnets Factory

long rectangular neodymium magnet
