Strong neodymium magnet with a durable nickel coating. Provides high magnetic force in a compact square shape. Ideal for industrial and DIY use.
Size :
1.16'' x 1.16'' x 0.12''Color :
SilverOrder(MOQ) :
100pcsGrade :
N35Sample :
FreeLead Time :
3-15daysPayment :
Paypal/ TT/Credit CardDIY Tools Nickel Coated Neodymium Square Magnet
Product Specification

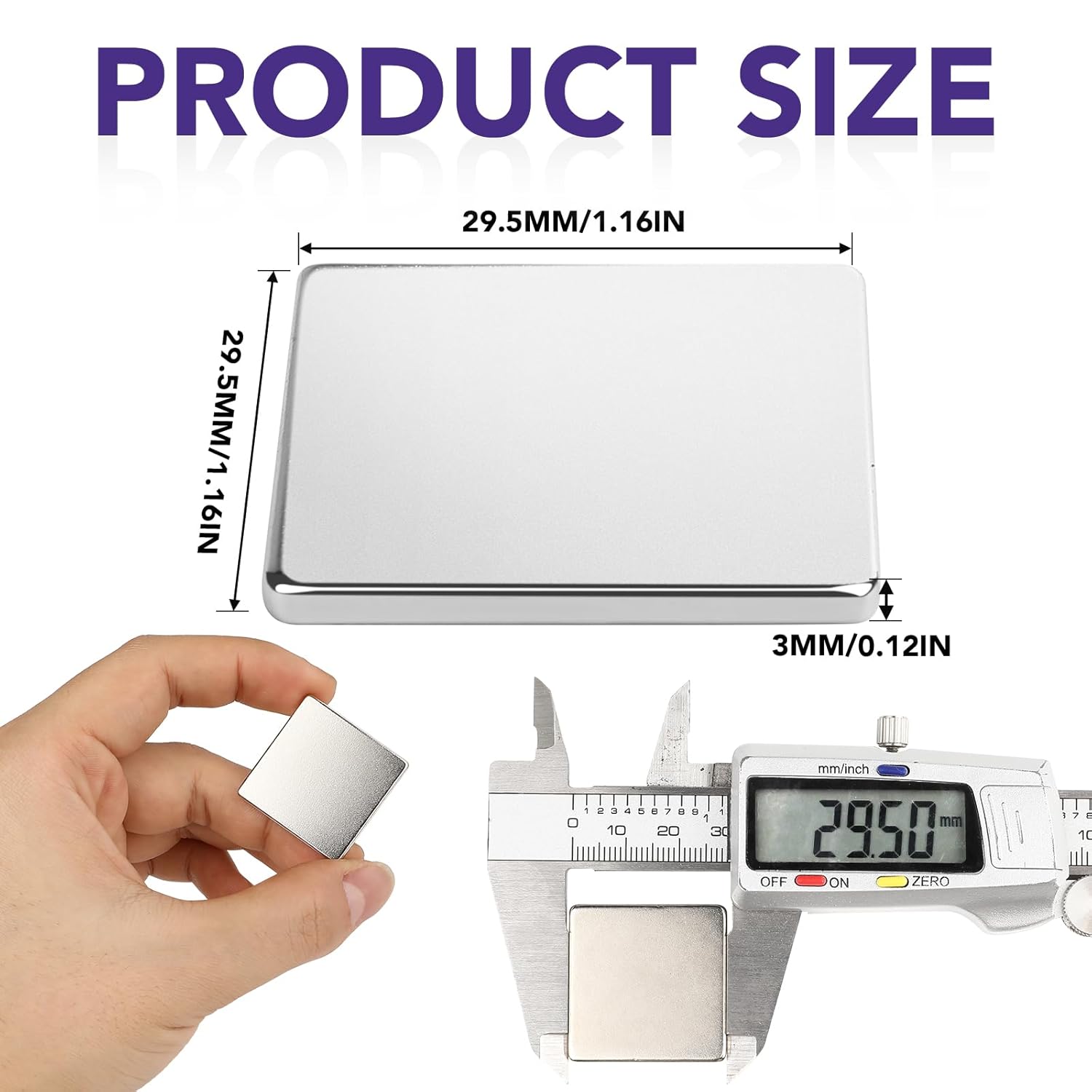

Dimensions: 1.16 in x 1.16 in x 0.12 in
Tolerance: ±0.001 in
Material: Neodymium Iron Boron (NdFeB)
Plating/Coating: Ni-Cu-Ni (Nickel)

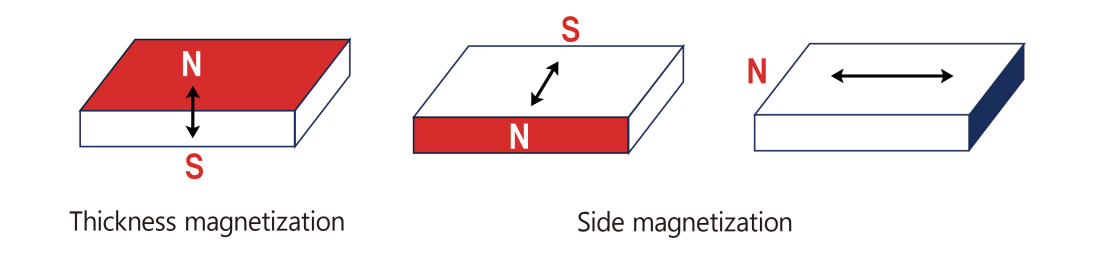

Magnetization Direction: Through Thickness
Maximum Operating Temperature: 176°F (80ºC)
Customization
| Neodymium | Br | Hcb | Hcj | (Bh)max | Tw | ||||
| Grade | mT | kGs | kA/m | kOe | kA/m | kOe | kJ/m3 | MGOe | ℃ |
| N35 | 1170-1220 | 11.7-12.2 | ＞868 | ＞10.9 | ＞955 | ＞12 | 263-287 | 33-36 | ＜80 |
| N38 | 1220-1250 | 12.2-12.5 | ＞899 | ＞11.3 | ＞955 | ＞12 | 287-310 | 38-39 | ＜80 |
| N40 | 1250-1280 | 12.5-12.8 | ＞907 | ＞11.4 | ＞955 | ＞12 | 302-326 | 38-41 | ＜80 |
| N42 | 1280-1320 | 12.8-13.2 | ＞915 | ＞11.5 | ＞955 | ＞12 | 318-342 | 40-43 | ＜80 |
| N48 | 1380-1420 | 13.8-14.2 | ＞923 | ＞11.6 | ＞955 | ＞12 | 366-390 | 46-49 | ＜80 |
| N50 | 1400-1450 | 14.0-14.5 | ＞796 | ＞10 | ＞876 | ＞11 | 382-406 | 48-49 | ＜80 |
| N52 | 1430-1480 | 14.3-14.8 | ＞796 | ＞10 | ＞876 | ＞11 | 398-422 | 50-53 | ＜80 |
Features
🔹 High Magnetic Strength
Made from premium Neodymium Iron Boron (NdFeB), this super strong square magnet has excellent pulling force, ensuring stable performance in applications requiring high magnetic force.
🔹 Triple Nickel Plating
This rare earth NdFeB magnet features a nickel-copper-nickel coating with a smooth surface for enhanced corrosion and oxidation resistance, making it ideal for indoor and medium humidity environments. The bright silver finish is also very aesthetically pleasing.
🔹 Precision Cut Square Design
The flat square design provides maximum surface contact area, which improves grip and stability when attached to flat or metal surfaces in fixtures or precision assemblies.
🔹 Compact and Efficient
This nickel plated block magnet is compact and powerful, making it an ideal choice for applications where space is limited and strong magnetic force is required.
🔹 Easy to Handle and Install
This square magnet has a precise geometric shape, which is easy to align and stack into various components. It can be easily embedded in the housing, groove, notch or custom fixture.

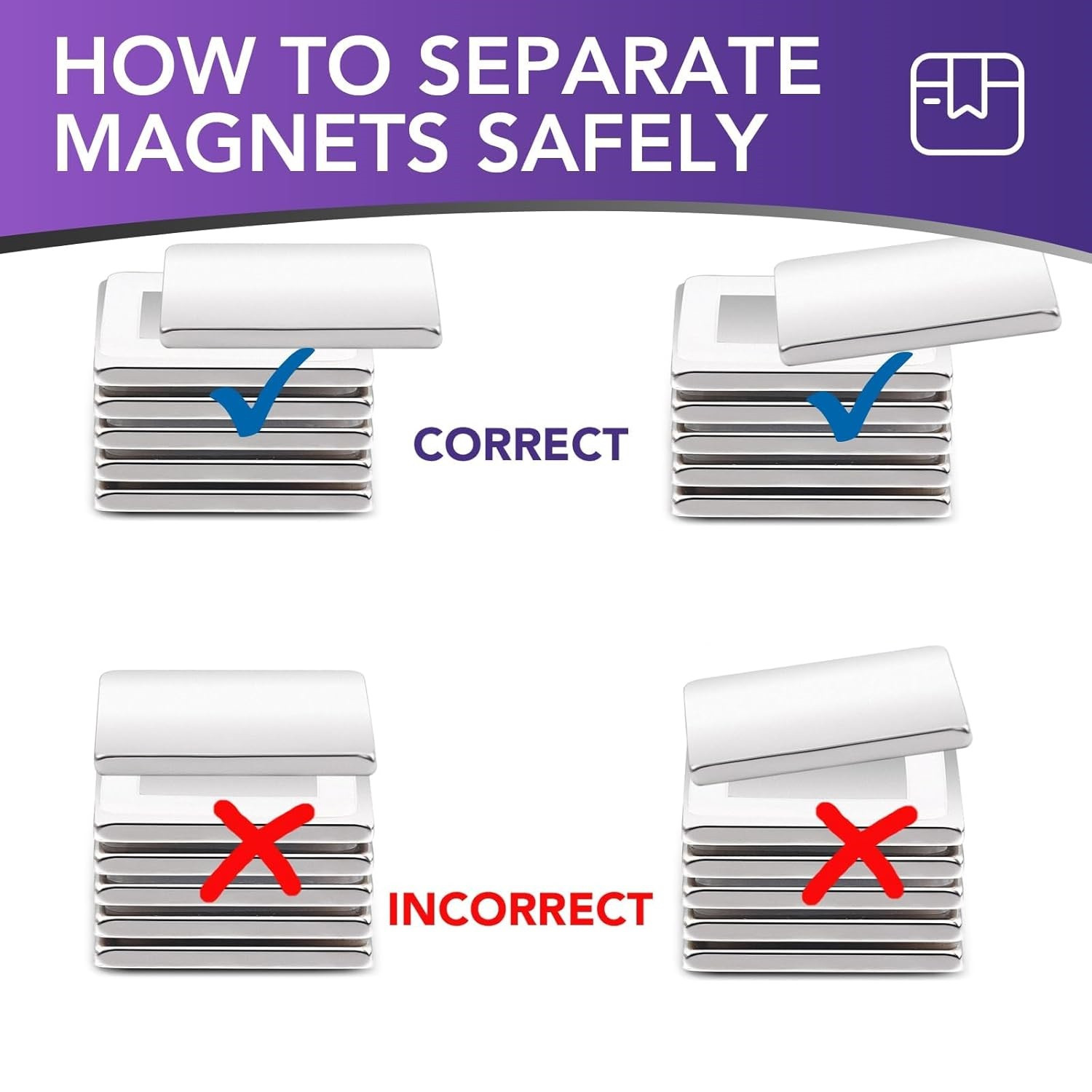

Using the correct method to separate the magnets saves time and effort.
🔹 For Use
--Industrial fixing equipment and equipment: Emergency production equipment and machinery system, equipment and equipment.
--Precise positioning of the sensor system: ensuring automatic movement system, precise positioning of the equipment and electronics system.
--DIY items, hand-crafted home organization: highly compatible magnetic enclosures, industrial models, decorations and other metal surfaces such as organizing frames or sills.
--Packaging and display Japanese zero music label: very suitable for the production style packaging, imitation display and easy to change the music location.
Packing&Shipping
These square cube magnets are small, measuring 10x10x10mm (Length* Width *Thickness) and are perfect for craft projects or magnetized models.
