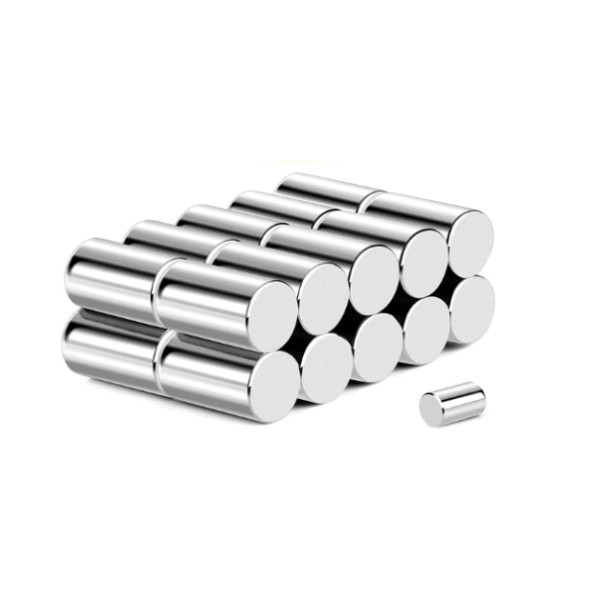

Custom cylindrical neodymium magnets are round neodymium magnets with a height greater than or equal to their diameter and are used in a variety of applications.
Color :
SliverSize :
D8x8mmOrder(MOQ) :
100PCSCoating :
Nickel CoatedSample :
FreeDensity :
7.5g/cm³Lead Time :

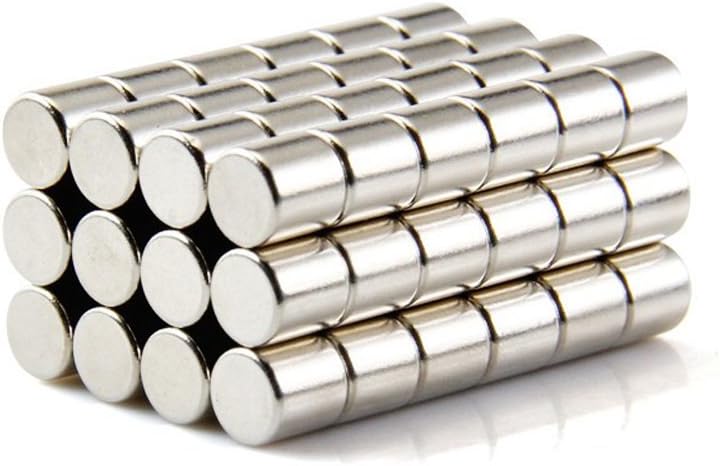

5-10daysCustomized Nickel Coated Cylinder Neodymium Magnets
Product Description

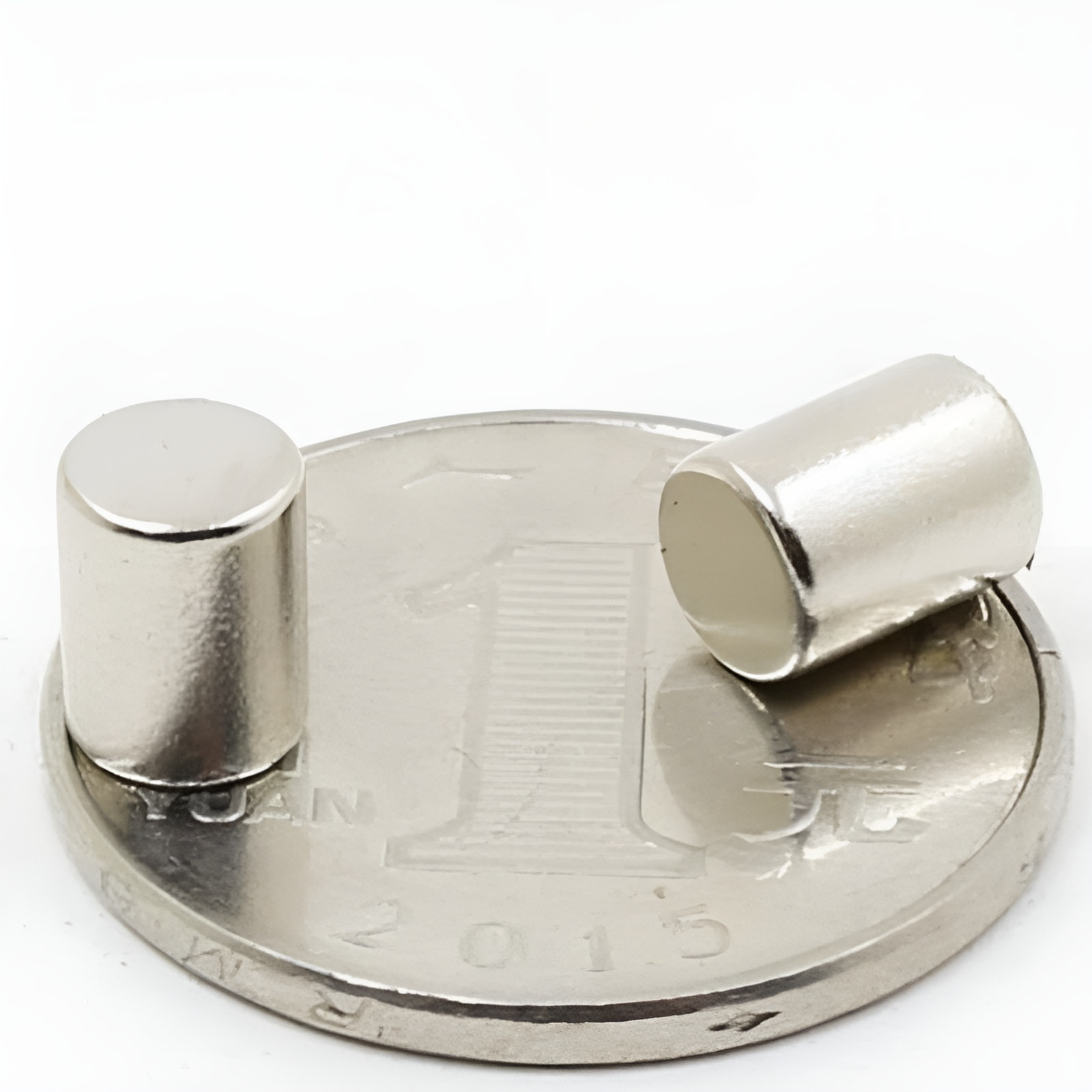

Dimensions: 8mm(diameter) x 8mm(thickness)
Tolerances: ±0.05 mm
Material: Neodymium Magnet
Plating/Coating: Ni-Cu-Ni

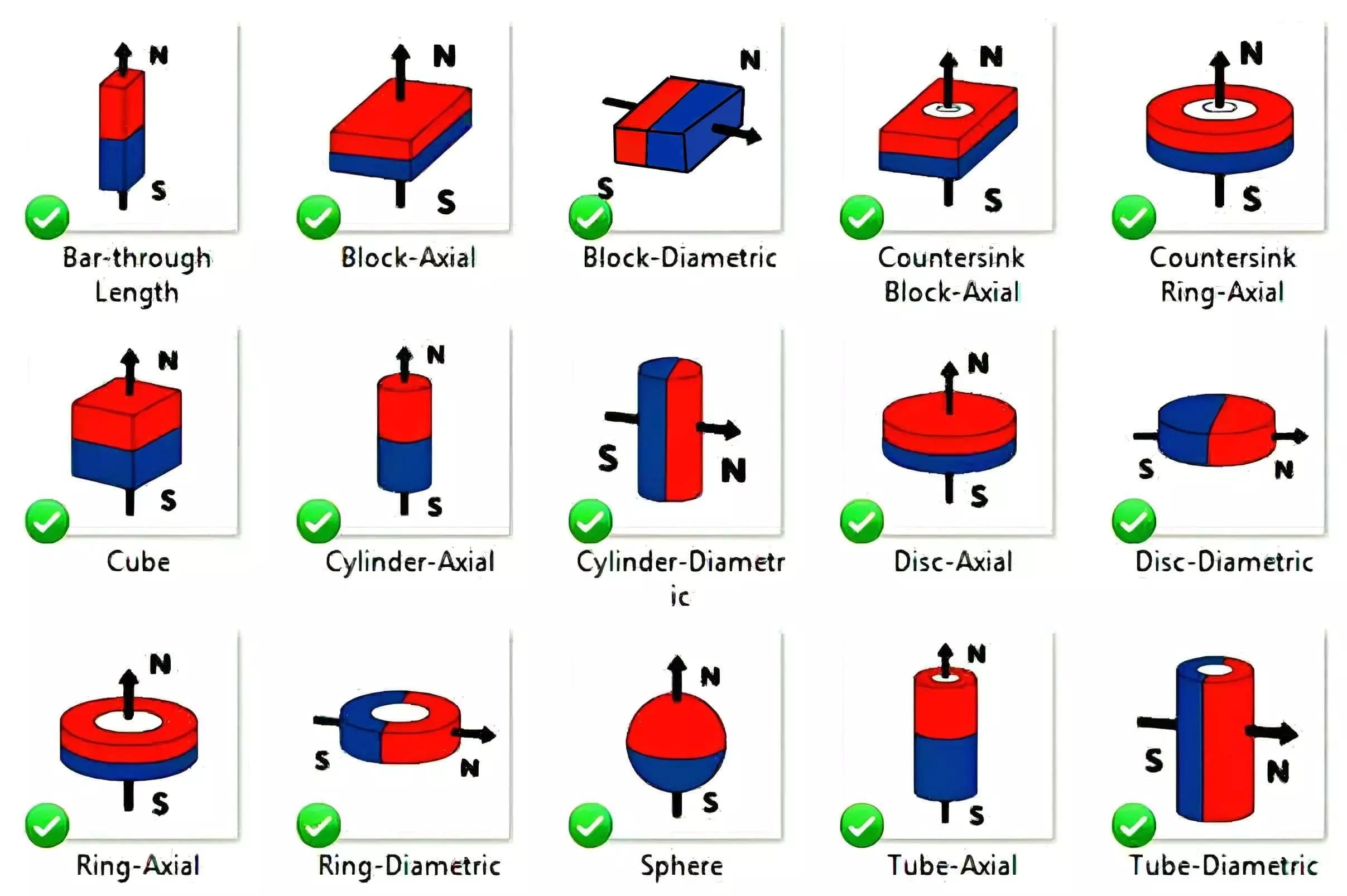

Magnetization Direction: Axial/Radial
Working Temperature:80 Degrees
Product Features
These 8x8mm cylindrical neodymium magnets are made from high-quality NdFeB material, offering exceptional magnetic strength for their compact size. With a diameter and height of 8mm, they are ideal for applications requiring strong holding force in a limited space. Key features include:
These customized neodymium magnets are an excellent choice for industries requiring reliability and precision in magnetic components.
Customization
Our magnets are fully customizable to meet your specific requirements. Available options include:
Neodymium | Br | Hcb | Hcj | (Bh)max | Tw | ||||
Grade | mT | kGs | kA/m | kOe | kA/m | kOe | kJ/m3 | MGOe | ℃ |
N35 | 1170-1220 | 11.7-12.2 | >868 | >10.9 | >955 | >12 | 263-287 | 33-36 | <80 |
N38 | 1220-1250 | 12.2-12.5 | >899 | >11.3 | >955 | >12 | 287-310 | 38-39 | <80 |
N40 | 1250-1280 | 12.5-12.8 | >907 | >11.4 | >955 | >12 | 302-326 | 38-41 | <80 |
N42 | 1280-1320 | 12.8-13.2 | >915 | >11.5 | >955 | >12 | 318-342 | 40-43 | <80 |
N45 | 1320-1370 | 13.2-13.7 | >915 | >11.5 | >955 | >12 | 342-367 | 41-44 | <80 |
N48 | 1380-1420 | 13.8-14.2 | >923 | >11.6 | >955 | >12 | 366-390 | 46-49 | <80 |
N50 | 1400-1450 | 14.0-14.5 | >796 | >10 | >876 | >11 | 382-406 | 48-49 | <80 |
N52 | 1430-1480 | 14.3-14.8 | >796 | >10 | >876 | >11 | 398-422 | 50-53 | <80 |
35M | 1170-1220 | 11.7-12.2 | >868 | >10.9 | >1114 | >14 | 263-297 | 33-36 | <100 |
38M | 1220-1250 | 12.2-12.5 | >899 | >11.3 | >1114 | >14 | 297-310 | 36-39 | <100 |
40M | 1250-1280 | 12.5-12.8 | >923 | >11.6 | >1114 | >14 | 302-326 | 38-41 | <100 |
42M | 1280-1320 | 12.8-13.2 | >955 | >12 | >1114 | >14 | 318-342 | 40-43 | <100 |
48M | 1360-1430 | 13.6-14.3 | >1027 | >12.9 | >1114 | >14 | 366-390 | 46-49 | <100 |
50M | 1400-1450 | 14.0-14.5 | >1033 | >13 | >1114 | >14 | 382-406 | 48-51 | <100 |
33H | 1130-1170 | 11.3-11.7 | >836 | >10.5 | >1353 | >17 | 247-271 | 31-34 | <120 |
35H | 1170-1220 | 11.7-12.2 | >868 | >10.9 | >1353 | >17 | 263-287 | 33-36 | <120 |
38H | 1220-1250 | 12.2-12.5 | >899 | >11.3 | >1353 | >17 | 287-310 | 36-39 | <120 |
40H | 1250-1280 | 12.5-12.8 | >923 | >11.6 | >1353 | >17 | 302-326 | 38-41 | <120 |
42H | 1280-1320 | 12.8-13.2 | >955 | >12 | >1353 | >17 | 318-342 | 40-43 | <120 |
45H | 1300-1360 | 13-13.6 | >963 | >12.1 | >1353 | >17 | 326-358 | 43-46 | <120 |
48H | 1370-1430 | 13.7-14.3 | >995 | >12 | >1353 | >17 | 366-390 | 46-49 | <120 |
30SH | 1080-1130 | 10.8-11.3 | >804 | >10.1 | >1592 | >20 | 223-247 | 28-31 | <150 |
33SH | 1130-1170 | 10.3-11.7 | >844 | >10.6 | >1592 | >20 | 247-271 | 31-34 | <150 |
35SH | 1170-1220 | 11.7-12.2 | >876 | >11 | >1592 | >20 | 263-287 | 33-36 | <150 |
38SH | 1220-1250 | 12.2-12.5 | >907 | >11.4 | >1592 | >20 | 287-310 | 36-39 | <150 |
40SH | 1240-1280 | 12.5-12.8 | >939 | >11.8 | >1592 | >20 | 302-326 | 36-41 | <150 |
42SH | 1280-1320 | 12.8-13.2 | >987 | >12.4 | >1592 | >20 | 318-342 | 40-43 | <150 |
45SH | 1320-1380 | 13.2-13.8 | >1003 | >12.6 | >1592 | >20 | 342-366 | 43-46 | <150 |
28UH | 1020-1080 | 10.2-10.8 | >764 | >9.6 | >1990 | >25 | 207-231 | 26-29 | <180 |
30UH | 1080-1130 | 10.8-11.3 | >812 | >10.2 | >1990 | >25 | 223-247 | 28-31 | <180 |
33UH | 1130-1170 | 11.3-11.7 | >852 | >10.7 | >1990 | >25 | 247-271 | 31-36 | <180 |
35UH | 1170-1220 | 11.8-12.2 | >860 | >10.8 | >1990 | >25 | 263-287 | 33-36 | <180 |
38UH | 1220-1250 | 12.2-12.5 | >876 | >11 | >1990 | >25 | 287-310 | 36-39 | <180 |
40UH | 1250-1280 | 12.5-12.8 | >899 | >11.3 | >1990 | >25 | 302-326 | 31-41 | <180 |
28EH | 1040-1090 | 10.4-10.9 | >780 | >9.8 | >2388 | >30 | 207-231 | 26-29 | <200 |
30EH | 1080-1130 | 10.8-11.3 | >812 | >10.2 | >2388 | >30 | 223-247 | 28-31 | <200 |
33EH | 1130-1170 | 11.3-11.7 | >836 | >10.5 | >2388 | >30 | 247-271 | 31-36 | <200 |
35EH | 1170-1220 | 11.7-12.2 | >876 | >11 | >2388 | >30 | 263-287 | 33-36 | <200 |
38EH | 1220-1250 | 12.2-12.5 | >899 | >11.3 | >2388 | >30 | 287-310 | 36-39 | <200 |
28AH | 1040-1090 | 10.4-10.9 | >787 | >9.9 | >2642 | >33 | 207-231 | 26-29 | <230 |
30AH | 1080-1130 | 10.8-11.3 | >819 | >10.3 | >2642 | >33 | 223-247 | 28-31 | <230 |
38AH | 1130-1170 | 11.3-11.7 | >843 | >10.6 | >2642 | >33 | 247-271 | 31-34 | <230 |
