With a 75 lb pull strength on iron surfaces, these neodymium round base magnets deliver serious holding power. They are ideal for mounting heavy items in homes, workshops, and industrial spaces.
Color :
SilverSize :
Diameter 1.26inchOrder(MOQ) :
100pcsSample :
AvailableLead Time :
3-15daysPayment :

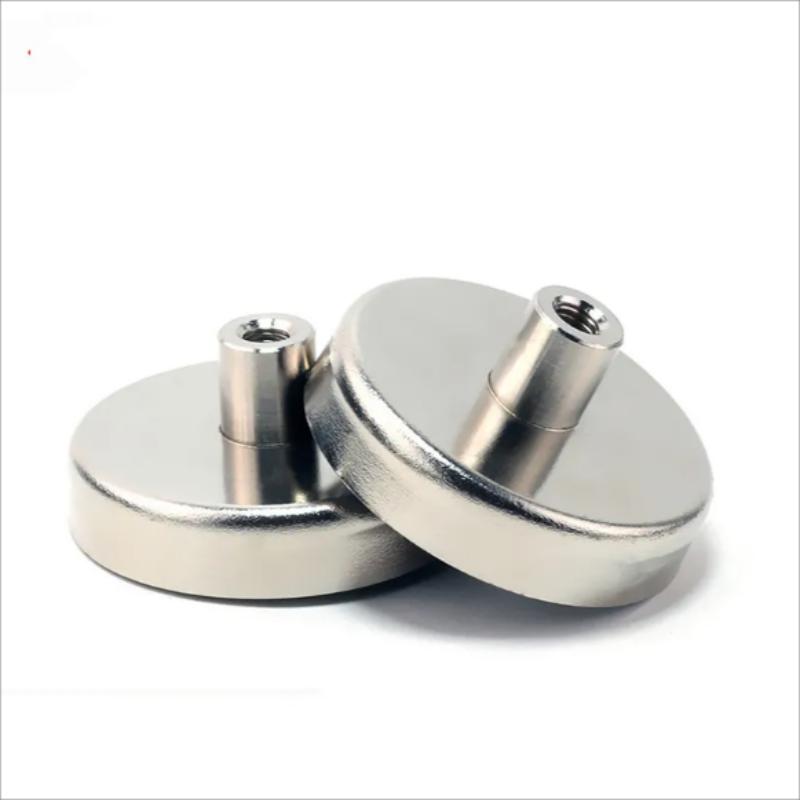

Paypal/TT/Credit Card1.26" Round Base Female Thread Neodymium Pot Magnets

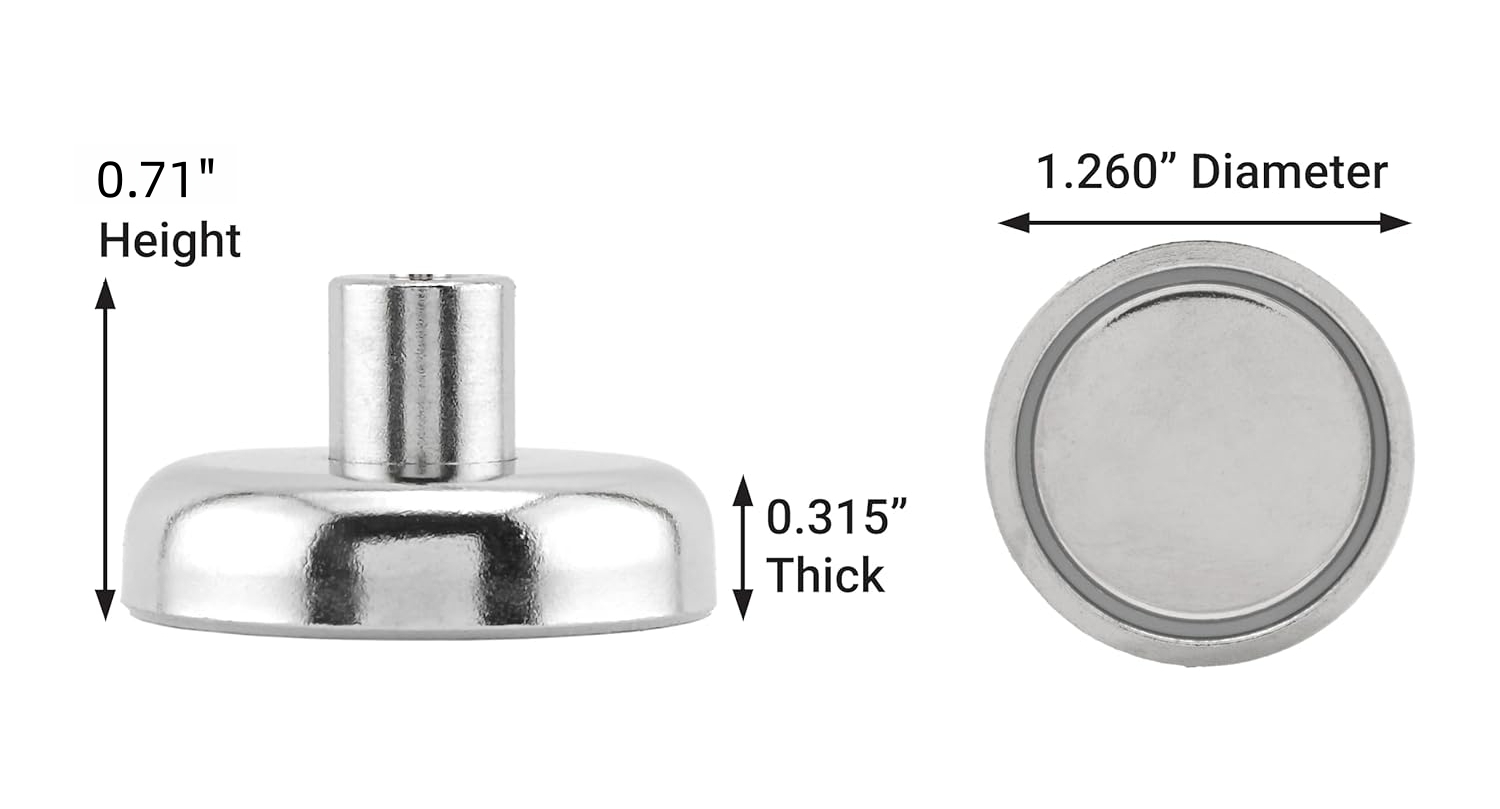

Product Specifications
| Product Name | Pot Magnet |
| Shape | Round |
| Diameter | 1.26inch (32mm) |
| Height | 0.71inch (18mm) |
| Screw Hole Diameter | M6 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Material | NdFeB Magnet and Stainless Steel |
| Tolerance | ±0.002inch (±0.05mm) |
| Notes: |
Manual measurement, please allow slight errors on size. |
| The color may exist a slight differ. |
Product Features
» Powerful Magnetic Force
This threaded mounting magnet is made of high performance neodymium magnets and a precisely designed steel housing, effectively concentrating the magnetic field on the bottom circular contact surface. This design provides strong, stable, and reliable holding force even in demanding industrial environments.
» Threaded Bushing Design
The built in threaded bushing allows for quick, secure, and repeatable installation using standard bolts or screws. It ensures a firm connection, simplifies assembly and disassembly, and improves overall installation efficiency.
» Protective Steel Housing
The robust steel housing protects the neodymium magnet from impact, chipping, and wear. It also helps reduce the risk of demagnetization, extending the product's lifespan.
» Wide Range of Applications
This pot magnet with screwed bush is widely used in industrial fixtures, automation equipment, signage and display systems, positioning devices, and temporary fastening solutions requiring reliable and removable magnetic fixation.

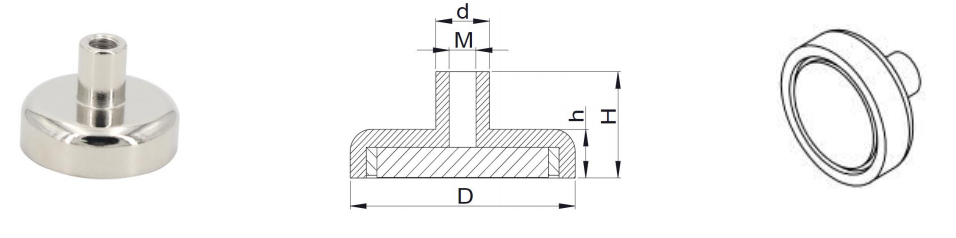

Model List
| Model |
D (mm) |
d (mm) |
H (mm) |
h (mm) |
M (mm) |
Weight (g) |
Breakaway (kg) |
| SND10 | 10 | 6 | 12.5 | 5 | M3 | 4 | 2 |
| SND12 | 12 | 6 | 12.5 | 5 | M3 | 5 | 4 |
| SND16 | 16 | 6.5 | 12.6 | 5 | M4 | 9 | 8 |
| SND20 | 20 | 6.5 | 14 | 7 | M4 | 17 | 12 |
| SND25 | 25 | 7.5 | 17 | 8 | M5 | 31 | 25 |
| SND32 | 32 | 10 | 18 | 8 | M6 | 52 | 34 |
| SND36 | 36 | 10 | 18 | 8 | M6 | 60 | 50 |
| SND42 | 42 | 10 | 18 | 8.6 | M6 | 95 | 72 |
| LND48 | 48 | 12 | 24 | 11 | M8 | 160 | 81 |
| LND55 | 55 | 12 | 28 | 12 | M8 | 230 | 95 |
| LND60 | 60 | 12 | 28 | 15 | M8 | 340 | 160 |
| LND70 | 70 | 17 | 34 | 17 | M10 | 520 | 200 |
| LND75 | 75 | 17 | 35 | 18 | M10 | 635 | 250 |
| LND80 | 80 | 17 | 35 | 18 | M10 | 715 | 300 |
| LND90 | 90 | 17 | 35 | 18 | M10 | 910 | 360 |
| LND120 | 120 | 22 | 40 | 18 | M12 | 1600 | 480 |
Types Of Pot Magnets
Neodymium Pot Magnets
Rare Earth Neodymium pot magnets are made of high strength neodymium magnets encapsulated in a steel casing, which concentrates magnetic force, enhances suction power, and provides mechanical protection. They are widely used in industrial and commercial applications for secure and removable mounting.
Types of Neodymium Pot Magnets
Features countersunk mounting holes, allowing screw heads to sit flush with the surface. Provides clean installation and stable fixing, commonly used in panels, fixtures, and display systems.

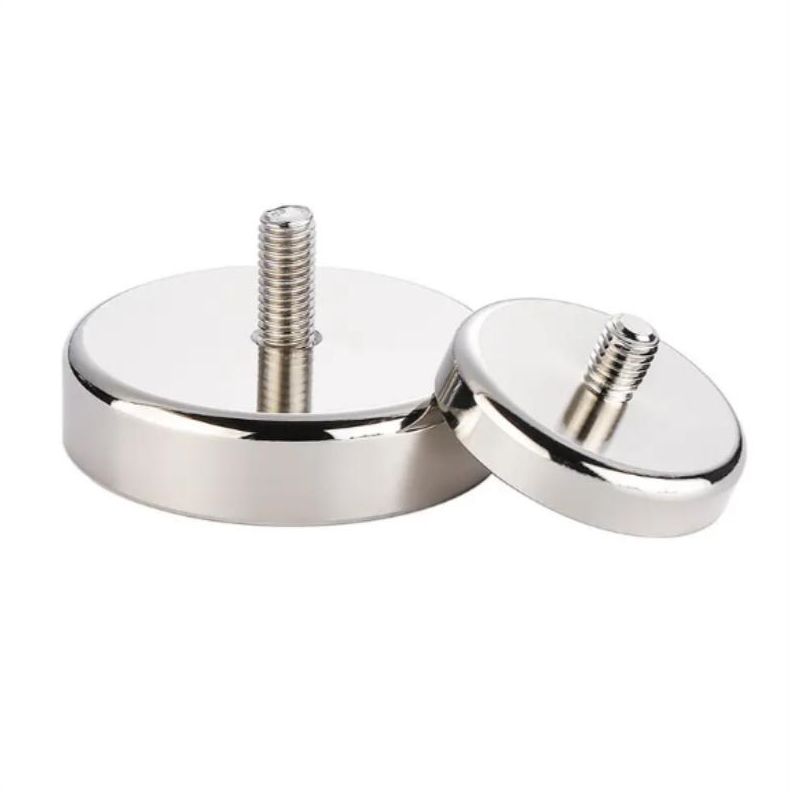

Equipped with an external threaded stud for direct mounting into threaded holes or brackets. Ideal for adjustable or quick-release applications such as clamps, jigs, and positioning systems.
Designed with an internal threaded bushing for secure bolt fastening. Offers strong holding power and convenient installation, suitable for machinery, automation equipment, and industrial mounting solutions.

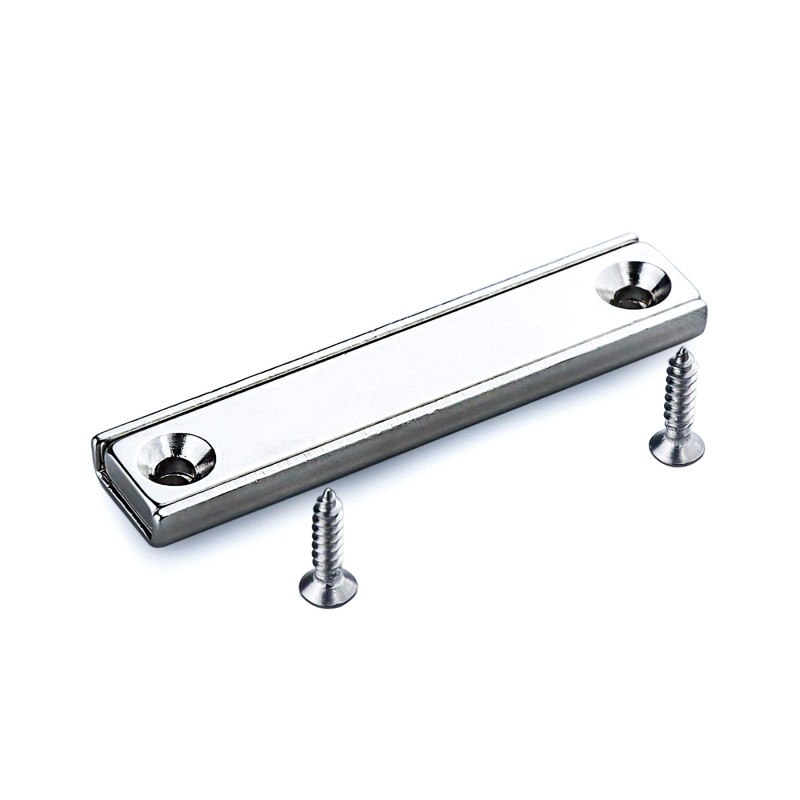

The rectangular steel casing provides a larger contact area and greater stability. The countersunk hole design allows for flush mounting, suitable for linear fixing, clamping systems, and heavy duty applications.
