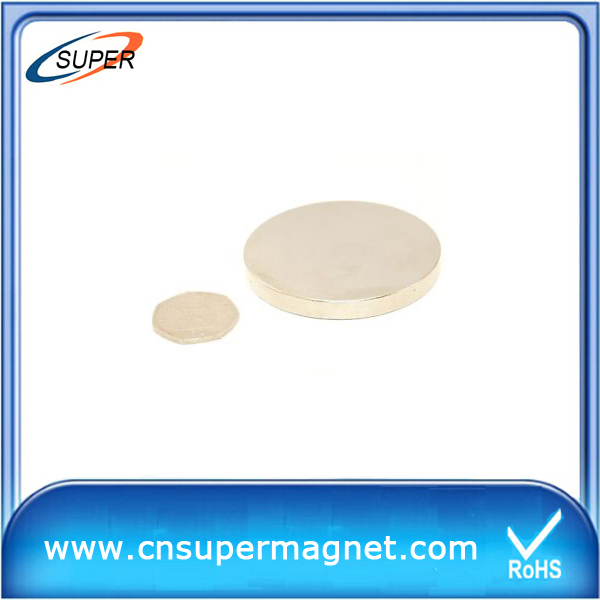

where can you find magnets/disc Ndfeb Magnet

Share to:
  • N33, N35, N38, N40, N42, N48, N50, N52 (M, H, SH, EH, UH,AH)
  • piece where can you find magnets
  • where can you find magnets
where can you find magnets/disc Ndfeb Magnet
Items Neodymium magnet raw material
Material neodymium-iron-boron

Shape

available

Disc,Cylinder,Block,Ring,Countersunk,Segment,Trapezoid,Irregular shapes and more;More shapes can be customized.
Coating Ni-Cu-Ni,Nickel,Zinc,Gold,Silver,Epoxy and more.

Working

Temperature

Grade Temp.Coefficient
N35-N52 80°C (176°F)
N35M-N45M 100°C (212°F)
N33H-N42H 120°C (248°F)
N30SH-N40SH 150°C (302°F)
N28UH-N35UH 180°C (356°F)
N28EH-N38EH 180°C (356°F)
N30AH-N33AH 220°C (428°F)
Technology We have advanced R&D center,quality control and professional machining technicians.
Application Neodymium magnet raw magnetrials are widely used in industrial field,such as speaker,louder speaker,sensor,motor,alternator ect;And also it is popular in ladies bags,purses,shoes,crafts and jewelry ect.

where can you find magnets/disc Ndfeb Magnet

where can you find magnets
Grade Residual
Fulx

Br
mT
(kGs)
Coercive
Force

Hcb
kA/m
(kOe)
Intrinsic Coercive
Force

Hcj
kA/m
(kOe)
 Max.Energy
 Product
( BH )max kJ/m
3
(MGOe)
Curie
 Temperature
N35 1170-1220
(11.7-12.2)
≥ 868
( ≥ 10.9)
≥ 955
( ≥ 12)
263-287
(33-36)
80 °C
N38 1220-1250
(12.2-12.5)
≥ 899
( ≥ 11.3)
≥ 955
( ≥ 12)
287-310
(36-39)
80 °C
N40 1250-1280
(12.5-12.8)
≥ 907
( ≥ 11.4)
≥ 955
( ≥ 12)
302-326
(38-41)
80 °C
N42 1280-1320
(12.8-13.2)
≥ 915
( ≥ 11.5)
≥ 955
( ≥ 12)
318-342
(40-43)
80 °C
N45 1320-1380
(13.2-13.8)
≥ 923
( ≥ 11.6)
≥ 955
( ≥ 12)
342-366
(43-46)
80 °C
N48 1380-1420
(13.8-14.2)
≥ 923
( ≥ 11.6)
≥ 876
( ≥ 12)
366-390
(46-49)
80 °C
N50 1400-1450
(14.0-14.5)
≥ 796
( ≥ 10.0)
≥ 876
( ≥ 11)
382-406
(48-51)
80 °C
N52 1430-1480
(14.3-14.8)
≥ 796
( ≥ 10.0)
≥ 876
( ≥ 11)
398-422
(50-53)
80 °C
30M 1080-1130
(10.8-11.3)
≥ 796
( ≥ 10.0)
≥ 1114
( ≥ 14)
223-247
(28-31)
100 °C
33M 1130-1170
(11.3-11.7)
≥ 836
( ≥ 10.5)
≥ 1114
( ≥ 14)
247-263
(31-33)
100 °C
35M 1170-1220
(11.7-12.2)
≥ 868
( ≥ 10.9)
≥ 1114
( ≥ 14)
263-287
(33-36)
100 °C
38M 1220-1250
(12.2-12.5)
≥ 899
( ≥ 11.3)
≥ 1114
( ≥ 14)
287-310
(36-39)
100 °C
40M 1250-1280
(12.5-12.8)
≥ 923
( ≥ 11.6)
≥ 1114
( ≥ 14)
302-326
(38-41)
100 °C
42M 1280-1320
(12.8-13.2)
≥ 955
( ≥ 12.0)
≥ 1114
( ≥ 14)
318-342
(40-43)
100 °C
45M 1320-1380
(13.2-13.8)
≥ 995
( ≥ 12.5)
≥ 1114
( ≥ 14)
342-366
(43-46)
100 °C
48M 1360-1430
(13.6-14.3)
≥ 1027
( ≥ 12.9)
≥ 1114
( ≥ 14)
366-390
(46-49)
100 °C
50M 1400-1450
(14.0-14.5)
≥ 1033
( ≥ 13.0)
≥ 1114
( ≥ 14)
382-406
(48-51)
100 °C
30H 1080-1130
(10.8-11.3)
≥ 796
( ≥ 10.0)
≥ 1353
( ≥ 17)
223-247
(28-31)
120 °C
33H 1130-1170
(11.3-11.7)
≥ 836
( ≥ 10.5)
≥ 1353
( ≥ 17)
247-271
(31-34)
120 °C
35H 1170-1220
(11.7-12.2)
≥ 868
( ≥ 10.9)
≥ 1353
( ≥ 17)
263-287
(33-36)
120 °C
38H 1220-1250
(12.2-12.5)
≥ 899
( ≥ 11.3)
≥ 1353
( ≥ 17)
287-310
(36-39)
120 °C
40H 1250-1280
(12.5-12.8)
≥ 923
( ≥ 11.6)
≥ 1353
( ≥ 17)
302-326
(38-41)
120 °C
42H 1280-1320
(12.8-13.2)
≥ 955
( ≥ 12.0)
≥ 1353
( ≥ 17)
318-342
(40-43)
120 °C
45H 1300-1360
(13-13.6)
≥ 963
( ≥ 12.1)
≥ 1353
( ≥ 17)
326-358
(43-46)
120 °C
48H 1370-1430
(13.7-14.3)
≥ 995
( ≥ 12.5)
≥ 1353
( ≥ 17)
366-390
(46-49)
120 °C
