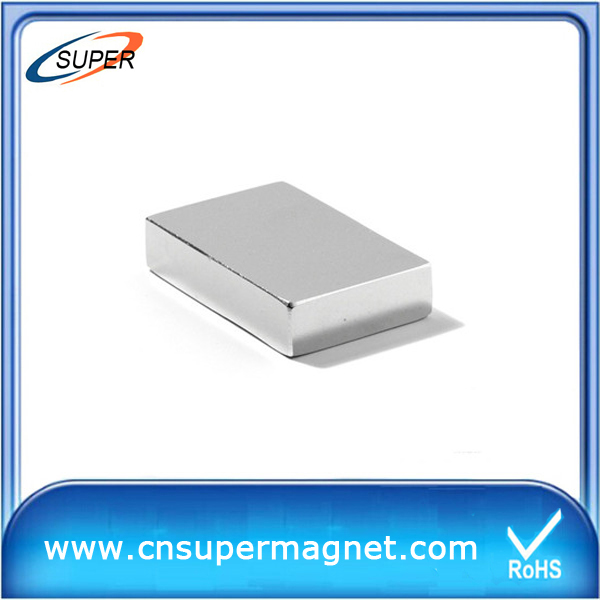

professional block sintered ndfeb magnets

Share to:
  • N33, N35, N38, N40, N42, N48, N50, N52 (M, H, SH, EH, UH,AH)
  • piece professional block ndfeb magnets
  • professional block ndfeb magnets
professional block ndfeb magnets

1.Technology: Utilizes new Sintered NdFeB magnet techniques and equipment such as strip casting,
HDDR technology;


2. Magnetic properties: High coercive force, the max operation temp is up to 200 degree centigrade
or 380 curie temperature;


3. Materials:Neodymium-Iron-Boron;

4. Applications: Widely used in different applications, such as sensors, motors, rotors,
wind turbines/wind generators, loudspeakers, magnetic hooks, magnetic holder,
filters automobiles and so on.





professional block ndfeb magnets
Material Type Residual Flux Density
(Br)
Coercive Force
(Hc)
Intrinsic Coercive Force (Hci) Max.Energy Product
(BH)max
N35 11.7-12.1 KGs >11.0 KOe >12 KOe 33-35 MGOe
N38 12.2-12.6 KGs >11.0 KOe >12 KOe 36-38 MGOe
N40 12.6-12.9 KGs >11.0 KOe >12 KOe 38-40 MGOe
N42 13.0-13.2 KGs >11.0 KOe >12 KOe 40-42 MGOe
N45 13.3-13.7 KGs >11.0 KOe >12 KOe 43-45 MGOe
N48 13.8-14.2 KGs >11.0 KOe >12 KOe 45-48 MGOe
N50 14.1-14.5 KGs >11.0 KOe >11 KOe 48-50 MGOe
N52 14.5-14.8 KGs >11.2 KOe >11 KOe 49.5-52 MGOe
N35M 11.7-12.1 KGs >11.4 KOe >14 KOe 33-35 MGOe
N38M 12.2-12.6 KGs >11.4 KOe >14 KOe 36-38 MGOe
N40M 12.6-12.9 KGs >11.4 KOe >14 KOe 38-40 MGOe
N42M 13.0-13.3 KGs >11.4 KOe >14 KOe 40-42 MGOe
N45M 13.3-13.7 KGs >11.4 KOe >14 KOe 42-45 MGOe
N48M 13.6-14.2 KGs >11.4 KOe >14 KOe 45-48 MGOe
N50M 14.1-14.5 KGs >11.4 KOe >14 KOe 48-50 MGOe
N33H 11.4-11.7 KGs >10.3 KOe >17 KOe 31-33 MGOe
N35H 11.7-12.1 KGs >10.8 KOe >17 KOe 33-35 MGOe
N38H 12.2-12.6 KGs >11.4 KOe >17 KOe 36-38 MGOe
N40H 12.6-12.9 KGs >11.4 KOe >17 KOe 38-40 MGOe
N42H 13.0-13.3 KGs >11.4 KOe >17 KOe 40-42 MGOe
N45H 13.3-13.7 KGs >11.4 KOe >17 KOe 42-45 MGOe
N48H 13.6-14.2 KGs >11.4 KOe >16 KOe 45-48 MGOe
N30SH 10.8-11.2 KGs >10.1 KOe >20 KOe 28-30 MGOe
N33SH 11.4-11.7 KGs >10.3 KOe >20 KOe 31-33 MGOe
N35SH 11.7-12.1 KGs >10.8 KOe >20 KOe 33-35 MGOe
N38SH 12.2-12.6 KGs >11.4 KOe >20 KOe 36-38 MGOe
N40SH 12.6-12.9 KGs >11.4 KOe >20 KOe 38-40 MGOe
N42SH 13.0-13.3 KGs >11.4 KOe >20 KOe 40-42 MGOe
N45SH 13.3-13.7 KGs >11.4 KOe >19 KOe 43-45 MGOe
N28UH 10.4-10.8 KGs >9.8 KOe >25 KOe 26-28 MGOe
N30UH 10.8-11.2 KGs >10.1 KOe >25 KOe 28-30 MGOe
N33UH 11.4-11.7 KGs >10.3 KOe >25 KOe 31-33 MGOe
N35UH 11.7-12.1 KGs >10.8 KOe >25 KOe 33-35 MGOe
N38UH 12.2-12.6 KGs >11.4 KOe >25 KOe 36-38 MGOe
N40UH 12.6-12.9 KGs >11.4 KOe >25 KOe 38-40 MGOe
N28EH 10.4-10.8 KGs >9.8 KOe >30 KOe 26-28 MGOe
N30EH 10.8-11.2 KGs >10.1 KOe >30 KOe 28-30 MGOe
N33EH 11.4-11.7 KGs >10.3 KOe >30 KOe 31-33 MGOe
N35EH 11.7-12.1 KGs >10.8 KOe >30 KOe 33-35 MGOe
N38EH 12.2-12.6 KGs >10.8 KOe >30 KOe 36-38 MGOe
