You are here: Home » Products » Block Neodymium Magnet » large block magnets/crazily hottest sales magnets

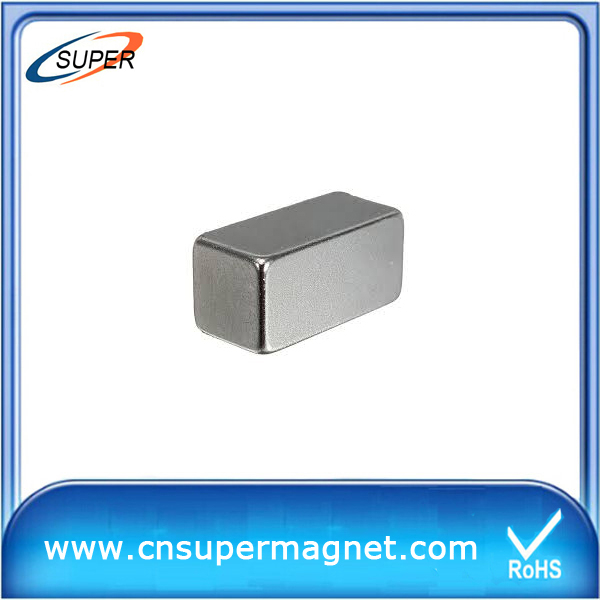

large block magnets/crazily hottest sales magnets

Share to:
  • N40-N52,30M-50M,30H-48H,28SH-45SH,28UH-42UH,28EH-38EH,28AH-33AH
  • N40-N52,30M-50M,30H-48H,28SH-45SH,28UH-42UH,28EH-38EH,28AH-33AH
  • Super
  • 150 longton/month
  • Anhui,China
  • Standard Export Carton
  • piece large block magnets
  • 150 longton/month
  • large block magnets
  • 5 days after deposit
  • 1
  • T/T
1) Material: Neodymium iron boron permanent magnetic material, Permanent Magnet;
2) Magnetization: Straight magnetization, Skewed magnetization;
3) Shape: Ring ,Arc ,Block ,Bar ,Ball etc
4) Size: customized size;

5) Color: bright silver, black dull silver, silver white ect. ;

6) Application: sensors, motors, rotors, wind turbines,wind generators, loudspeakers, magnetic hooks, magnetic holder, filters automobiles and so on;

7Our Advantages:
---Advanced and strict production management(ERP system) to ensure on-time delivery;

---Competitive price,especially for high grade and big shape magnet, and also for big quantity;


large block magnets
Magnetic Characteristics And Physical Properties of Sintered Nd-Fe-B
Grade Br mb(KG) hcb Koe(KA/m) iHC Koe(KA/m) (BH) max
KJ/m2(MGOe)
  temperature
N35 1170-1210 ≥10.8 (≥860) ≥12 (≥955) 263-287(33-36) 80
N38 1210-1250 ≥10.8 (≥860) ≥12 (≥955) 287-310(36-39) 80
N40 1250-1280 ≥11.6 (≥923) ≥12 (≥955) 302-326(38-41) 80
N42 1280-1320 ≥11.6 (≥923) ≥12 (≥955) 318-342(40-43) 80
N45 1320-1380 ≥11.0 (≥876) ≥12 (≥955) 342-366(43-46) 80
N48 1380-1420 ≥10.5 (≥835) ≥12 (≥955) 366-390(46-49) 80
N50 1380-1450 ≥10.5 (≥835) ≥11 (≥955) 374-406(47-51) 80
N52 1430-1480 ≥10.8 (≥860) ≥11 (≥876) 398-422(50-53) 80
35M 1170-1210 ≥10.8 (≥860) ≥14 (≥1114) 263-287(33-36) 100
38M 1210-1250 ≥11.0 (≥876) ≥14 (≥1114) 287-310(36-39) 100
40M 1250-1280 ≥11.4 (≥907) ≥14 (≥1114) 302-326(38-41) 100
42M 1280-1320 ≥11.6 (≥923) ≥14 (≥1114) 318-342(40-43) 100
45M 1320-1380 ≥11.8 (≥939) ≥14 (≥1114) 342-366(43-46) 100
48M 1360-1400 ≥11.8 (≥939) ≥14 (≥1114) 366-390(46-49) 100
50M 1400-1450 ≥13.0 (≥1033) ≥14 (≥1114) 382-406(48-51) 100
33H 1130-1170 ≥10.6 (≥844) ≥17 (≥1353) 247-263(31-33) 120
35H 1170-1210 ≥11.0 (≥876) ≥17 (≥1353) 263-287(33-36) 120
