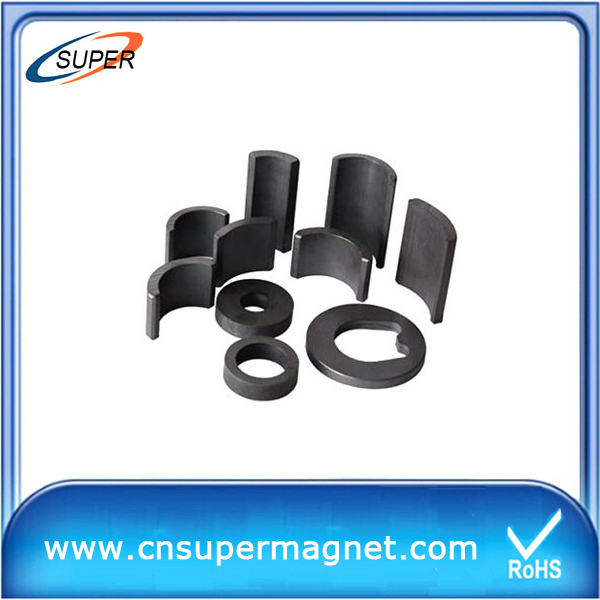

ferrite Y30BH arc products

Share to:
  • Y10T,Y25,Y30,Y33,Y35, Y30BH,Y33BH,etc
  • Y10T,Y25,Y30,Y33,Y35, Y30BH,Y33BH
  • Super
  • 150 longton/month
  • Anhui,China
  • Standard Export Carton
  • Piece/ferrite Y30BH products
  • 150 longton/month
  • ferrite Y30BH products
  • 5 days after deposit
  • 1
  • T/T
1.Material: ferrite powder, etc
2.Grade: Y25, Y30, Y30BH, Y35
3.Size:  L44 * W22 * T11mm, L47 * W22 * T9 , L50 * W19 * T4 , L65 * W15 * T4 , L83 * W55 * T22 ,etc.
4.Shape: Arc, Block, Bar, Ring, Cube, Disc, or others.
5.Application: Widely used in ammeter, speaker, audio, phone, TV, dynamo, DC permanent magnet motors (used in    cars), etc



ferrite Y30BH products
Specification Grade Remanence
Br mT
(kGs)
Coercive force
HcB KA/m
(KOe)
Magnetic energy product
Max KJ/m3
MGOe
  Y10T 200-218  125-145 6.5-8.0
    2.00-2.18 1.57-1.82 0.8-1.0
  Y25 360-370 135-150 22.5-25.3
    3.60-3.70 1.70-1.88 2.8-3.2
  Y30 380-390 191-210 27-30
    3.80-3.90 2.40-2.64 3.4-3.7
  Y33 400-410 175-195 30.0-31.5
    4.00-4.10 2.20-2.45 3.8-4.0
  Y35 410-420 220-235 31.5-33.0
    4.10-4.20 2.77-2.95 4.0-4.2
