You are here: Home » Products » curiously strong magnets/N35 ndfeb magnet in China

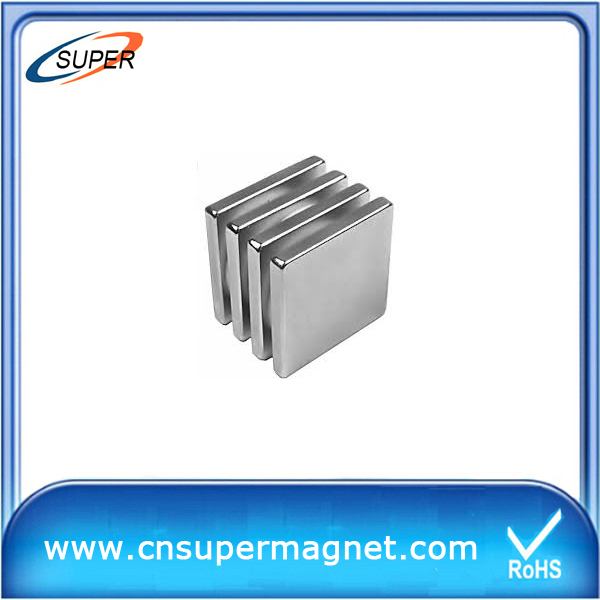

curiously strong magnets/N35 ndfeb magnet in China

Share to:
  • N33, N35, N38, N40, N42, N48, N50, N52 (M, H, SH, EH, UH,AH)
  • piece curiously strong magnets
  • super curiously strong magnets
curiously strong magnets/N35 ndfeb magnet in China

1. Materials:Neodymium-Iron-Boron;



2. Production Process: Raw Material--Stirp Casting--Hydrogen Decrepitation--Jet Milling--Pressing--Sintering--Inspection--Machining--Plating--Final Inspection--Magnetizing and Packing.



3.Applications: Widely used in different applications, such as sensors, motors, rotors, wind turbines/wind generators, loudspeakers, magnetic hooks, magnetic holder, filters automobiles and so on.

Prduct Details
Grade: N35-N52 Max. Working Temperature 80 °C
33M-48M Max. Working Temperature 100 °C
33H-48H Max. Working Temperature 120 °C
30SH-45SH Max. Working Temperature 150 °C
30UH-40UH Max. Working Temperature 180 °C
28EH-38EH Max. Working Temperature 200 °C
Shape: Disc,Cylinder,Arc,Ring,Block,Semi-circle,Trapezoid,Segment,Countersunk and Customized etc.
Size: Customized according to clients' request.
Coating: Zinc,Nickel,Ni-Cu-Ni,Gold,Sliver,Copper,NiCuNi+Black Epoxy,Parylene,etc.
MOQ: Samples could be offered.
Certificate: ISO9001:2008,ISO/TS16949:2009 and SGS
Application: Widely used in automotive industry, motive power engineering, sensor technology,measurement and control technology, apparatus and machine construction, powerful tools, household devices, textile industry and medical technology etc.
Delivery Time: Commonly about 15-25 days.
Price Advantage: The price is cheaper than average because we have an excellent management of factories and team.




Magnetic Performance

Grade

Remanence

Br mT

(kGs)

Coercive force

HcB KA/m

(KOe)

Magnetic energy product

Max KJ/m3

MGOe

Max.working temperature

N35-N52

1180-1440

836-923

263-406

80°C (176°F)

(11.8-14.4)

(10.8-11.6)

(33-51)

30M-50M

1080-1420

796-1050

223-390

100°C (212°F)

(10.8-14.2)

(10-13.2)

(28-49)

30H-48H

1080-1380

796-1027

223-366

120°C (248°F)

(10.8-13.8)

(10-12.6)

(28-46)

28SH-45SH

1050-1340

764-995

207-342

150°C (302°F)

(10.5-13.4)

(9.6-12)

(26-43)

28UH-42UH

1050-1310

764-923

207-326

180°C (356°F)

(10.5-13.1)

(9.6-11.6)

(26-41)

28EH-38EH

1050-1250

764-868

207-295

200°C (392°F)

(10.5-12.5)

(9.6-10.9)

(26-37)

28AH-33AH

1020-1170

780-836

199-271

220°C (428°F)



  Coating thickness (Microns) Color Resistance
Passivation   1 Silver Grey Temporay Protection
Nickel Ni+Ni 10—20 Bright Silver Excellent
 Against
Humidity
Ni+Cu+Ni
Zinc Zn 8—20 Bright Blue Good Aganist
Salt Spray
C-Zn Shinny Color Excellent Against
Salt Spray
Tin Ni+Cu+Su 15—20 Silver Superior Against
Humidity
Gold Ni+Cu+Au 10—20 Gold Superior Against
Humidity
Copper Ni+Cu 10—20 Gold Temporay Protection
Epoxy Epoxy 15—25 Black,Red,
Grey
Excellent Against
Humidity&Salt Spray
Ni+Cu+Epoxy
Zn+Epoxy
Chemical Ni 10—20 Silver Grey Excellent
 Against

Humidity
Paryiene Parytene 5—20 Grey   Excellent Against
Humidity,

Salt Spray,Superior
 Against
Humidity,Gases,
Fungi and Bacteria
