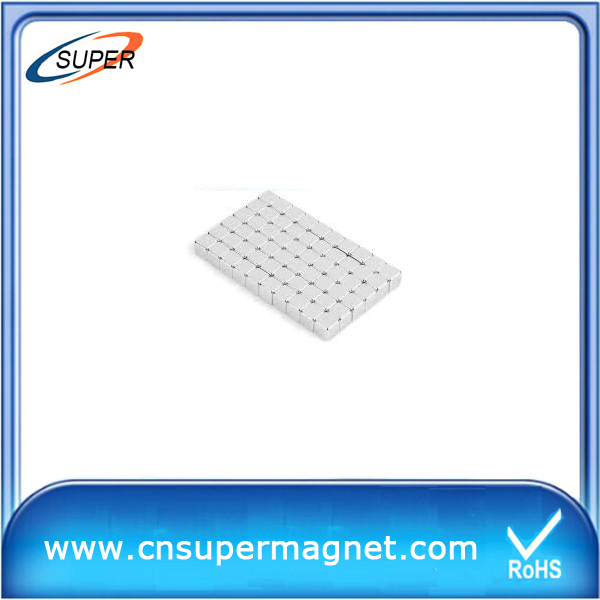

ceramic block magnets/N35 ndfeb magnet in China

Share to:
  • N33, N35, N38, N40, N42, N48, N50, N52 (M, H, SH, EH, UH,AH)
  • piece ceramic block magnets
  • ceramic block magnets

Ndfeb Magnets Specification:

Product name:    ceramic block magnets/N35 ndfeb magnet in China

1.Grade: N33, N35, N38, N40, N42, N48, N50, N52 (M, H, SH, EH, UH,AH)

2.Shape: Disc, Cylinder, Block, Ring, Countersunk, Segment, Trapezoid, Irregular shapes and more.
Customized Design (Design proper magnets for clients specific requirements)

3.Coating: Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper, Epoxy, Chemical, PTFE, Parylene, Everlube,
Passivation and more.

4.Maximum Working Temperature:

N35-N52,     80°C(176°F)

35M-50M,     100°C(212°F)

35H-48H,    120°C(248°F)

35SH-45SH,  150°C(302°F)

33UH-40UH,  180°C(356°F)

33EH-38EH,  200°C(392°F)

28AH-35AH,  220°C(428°F)

5.Tolerance:

+/-0.05mm for small dimensions,

+/-0.1mm for common specifications,

+/-0.15mm for big blocks

6. Directions of Magnetization:

a. Axially Magnetized

b. Diametrally Magnetized

c. Radial Magnetized

d. Multi-poles magnetized

e. Customzied specific requirements magnetized

Application:

Ndfeb magnet are widely used in many fields, such as motors, sensors, microphones, wind turbines,
wind generators, VCMs in hard disk drives, printer, switchboard, loudspeakers, magnetic separation,
magnetic hooks, magnetic holder, copper magnet therapy bangles,magnetic chuck, common daily use, etc.

ceramic block magnets/N35 ndfeb magnet in China

Magnetic Characteristics:

Material
 Type
Residual
 Flux
Density
(Br)
Coercive
 Force

(Hc)
Intrinsic
 Coercive

 Force
(Hci)
Max.Energy
Product
(BH)max
N35 11.7-12.1 KGs >11.0 KOe >12 KOe 33-35 MGOe
N38 12.2-12.6 KGs >11.0 KOe >12 KOe 36-38 MGOe
N40 12.6-12.9 KGs >11.0 KOe >12 KOe 38-40 MGOe
N42 13.0-13.2 KGs >11.0 KOe >12 KOe 40-42 MGOe
N45 13.3-13.7 KGs >11.0 KOe >12 KOe 43-45 MGOe
N48 13.8-14.2 KGs >11.0 KOe >12 KOe 45-48 MGOe
N50 14.1-14.5 KGs >11.0 KOe >11 KOe 48-50 MGOe
N52 14.5-14.8 KGs >11.2 KOe >11 KOe 49.5-52 MGOe
N35M 11.7-12.1 KGs >11.4 KOe >14 KOe 33-35 MGOe
N38M 12.2-12.6 KGs >11.4 KOe >14 KOe 36-38 MGOe
N40M 12.6-12.9 KGs >11.4 KOe >14 KOe 38-40 MGOe
N42M 13.0-13.3 KGs >11.4 KOe >14 KOe 40-42 MGOe
N45M 13.3-13.7 KGs >11.4 KOe >14 KOe 42-45 MGOe
N48M 13.6-14.2 KGs >11.4 KOe >14 KOe 45-48 MGOe
N50M 14.1-14.5 KGs >11.4 KOe >14 KOe 48-50 MGOe
N33H 11.4-11.7 KGs >10.3 KOe >17 KOe 31-33 MGOe
N35H 11.7-12.1 KGs >10.8 KOe >17 KOe 33-35 MGOe
N38H 12.2-12.6 KGs >11.4 KOe >17 KOe 36-38 MGOe
N40H 12.6-12.9 KGs >11.4 KOe >17 KOe 38-40 MGOe
N42H 13.0-13.3 KGs >11.4 KOe >17 KOe 40-42 MGOe
N45H 13.3-13.7 KGs >11.4 KOe >17 KOe 42-45 MGOe
N48H 13.6-14.2 KGs >11.4 KOe >16 KOe 45-48 MGOe
N30SH 10.8-11.2 KGs >10.1 KOe >20 KOe 28-30 MGOe
N33SH 11.4-11.7 KGs >10.3 KOe >20 KOe 31-33 MGOe
N35SH 11.7-12.1 KGs >10.8 KOe >20 KOe 33-35 MGOe
N38SH 12.2-12.6 KGs >11.4 KOe >20 KOe 36-38 MGOe
N40SH 12.6-12.9 KGs >11.4 KOe >20 KOe 38-40 MGOe
N42SH 13.0-13.3 KGs >11.4 KOe >20 KOe 40-42 MGOe
N45SH 13.3-13.7 KGs >11.4 KOe >19 KOe 43-45 MGOe
N28UH 10.4-10.8 KGs >9.8 KOe >25 KOe 26-28 MGOe
N30UH 10.8-11.2 KGs >10.1 KOe >25 KOe 28-30 MGOe
N33UH 11.4-11.7 KGs >10.3 KOe >25 KOe 31-33 MGOe
N35UH 11.7-12.1 KGs >10.8 KOe >25 KOe 33-35 MGOe
N38UH 12.2-12.6 KGs >11.4 KOe >25 KOe 36-38 MGOe
N40UH 12.6-12.9 KGs >11.4 KOe >25 KOe 38-40 MGOe
N28EH 10.4-10.8 KGs >9.8 KOe >30 KOe 26-28 MGOe
N30EH 10.8-11.2 KGs >10.1 KOe >30 KOe 28-30 MGOe
N33EH 11.4-11.7 KGs >10.3 KOe >30 KOe 31-33 MGOe
N35EH 11.7-12.1 KGs >10.8 KOe >30 KOe 33-35 MGOe
N38EH 12.2-12.6 KGs >10.8 KOe >30 KOe 36-38 MGOe
