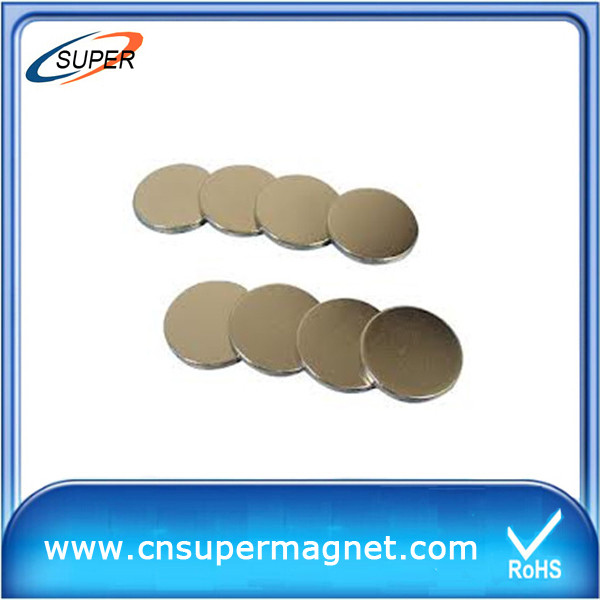

You are here: Home » Products » Disc Neodymium Magnet » about competive disc neodymium magnets

about competive disc neodymium magnets

Share to:

Quantity:


Inquire Add to Basket

Model: N33-N52,30M-50M,30H-48H,28SH-45SH,28UH-42UH,28EH-38EH,28AH-33AH
Standard: N33-N52,30M-50M,30H-48H,28SH-45SH,28UH-42UH,28EH-38EH,28AH-33AH
Trademark: Super
Productivity: 150 longton/month
Origin: Anhui,China
Packing: Standard Export Carton
Unit: piece about disc neodymium magnets
Max order: 150 longton/month
Min order: about disc neodymium magnets
TransTime: 5 days after deposit
Transportation: 1
Payment: T/T

who sells disc neodymium magnets
Neodymium iron boron ( NdFeB) is a type of rare earth magnetic material. NdFeB is the most advanced commercialized permanent magnet material available today.This material has similar properties as the samarium cobalt except that it is more easily oxidized and generally doesn't have the same temperature resistance.However, NdFeB magnets have the highest energy products approaching 52MGOe and are mechanically stronger than samarium cobalt magents. NdFeB material is more costly by weight than ceramic or alnico but produces the highest amount of flux per

unit of volume or mass amking it very economical for many applicantions. Their high energy products lend themselves to comnpact designs that result in innovative applications and lower manufacturing costs. Unprotected NdFeB magnets are subject to corronsion.
Surface treatments has ben developed that allow them to be used in most applications. These treatments include copper, silver,, gold, nickel, zinc and tin plating and epoxy resin coating.
Beneficial characteristics of NdFeB magnets include their very high energy product, very high coercive force, and moderate temperature stability.

about disc neodymium magnets

Magnetic Characteristics And Physical Properties of Sintered Nd-Fe-B<o:p>
Grade<o:p>	Br mb(KG)<o:p>	hcb Koe(KA/m)<o:p>	iHC Koe(KA/m)<o:p>	(BH) max<o:p> KJ/m2(MGOe)<o:p>	temperature<o:p>
N35<o:p>	1170-1210<o:p>	≥10.8 (≥860)<o:p>	≥12 (≥955)<o:p>	263-287(33-36)<o:p>	80<o:p>
N38<o:p>	1210-1250<o:p>	≥10.8 (≥860)<o:p>	≥12 (≥955)<o:p>	287-310(36-39)<o:p>	80<o:p>
N40<o:p>	1250-1280<o:p>	≥11.6 (≥923)<o:p>	≥12 (≥955)<o:p>	302-326(38-41)<o:p>	80<o:p>
N42<o:p>	1280-1320<o:p>	≥11.6 (≥923)<o:p>	≥12 (≥955)<o:p>	318-342(40-43)<o:p>	80<o:p>
N45<o:p>	1320-1380<o:p>	≥11.0 (≥876)<o:p>	≥12 (≥955)<o:p>	342-366(43-46)<o:p>	80<o:p>
N48<o:p>	1380-1420<o:p>	≥10.5 (≥835)<o:p>	≥12 (≥955)<o:p>	366-390(46-49)<o:p>	80<o:p>
N50<o:p>	1380-1450<o:p>	≥10.5 (≥835)<o:p>	≥11 (≥955)<o:p>	374-406(47-51)<o:p>	80<o:p>
N52<o:p>	1430-1480<o:p>	≥10.8 (≥860)<o:p>	≥11 (≥876)<o:p>	398-422(50-53)<o:p>	80<o:p>
35M<o:p>	1170-1210<o:p>	≥10.8 (≥860)<o:p>	≥14 (≥1114)<o:p>	263-287(33-36)<o:p>	100<o:p>
38M<o:p>	1210-1250<o:p>	≥11.0 (≥876)<o:p>	≥14 (≥1114)<o:p>	287-310(36-39)<o:p>	100<o:p>
40M<o:p>	1250-1280<o:p>	≥11.4 (≥907)<o:p>	≥14 (≥1114)<o:p>	302-326(38-41)<o:p>	100<o:p>
42M<o:p>	1280-1320<o:p>	≥11.6 (≥923)<o:p>	≥14 (≥1114)<o:p>	318-342(40-43)<o:p>	100<o:p>
45M<o:p>	1320-1380<o:p>	≥11.8 (≥939)<o:p>	≥14 (≥1114)<o:p>	342-366(43-46)<o:p>	100<o:p>
48M<o:p>	1360-1400<o:p>	≥11.8 (≥939)<o:p>	≥14 (≥1114)<o:p>	366-390(46-49)<o:p>	100<o:p>
50M<o:p>	1400-1450<o:p>	≥13.0 (≥1033)<o:p>	≥14 (≥1114)<o:p>	382-406(48-51)<o:p>	100<o:p>
33H<o:p>	1130-1170<o:p>	≥10.6 (≥844)<o:p>	≥17 (≥1353)<o:p>	247-263(31-33)<o:p>	120<o:p>
35H<o:p>	1170-1210<o:p>	≥11.0 (≥876)<o:p>	≥17 (≥1353)<o:p>	263-287(33-36)<o:p>	120<o:p>

Competive disc neodymium magnets about disc neodymium magnets competive neodymium magnets
