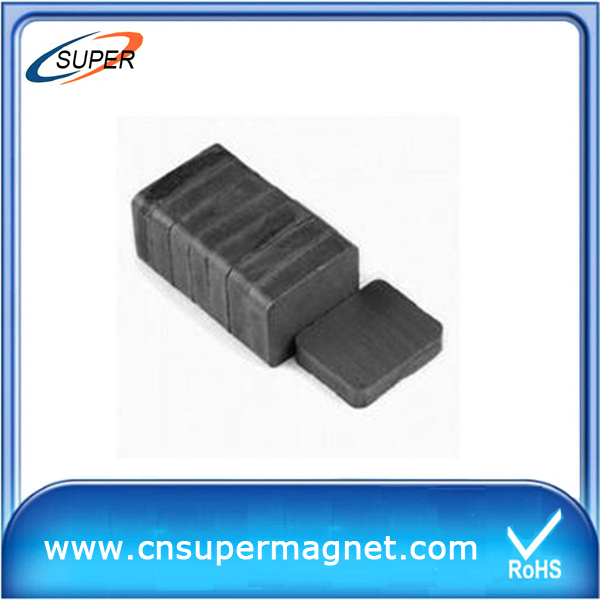

Y30 High Quality Block Ferrite Magnet

Share to:

Quantity:


Inquire Add to Basket

Model: Y10T,Y25,Y30,Y33,Y35, Y30BH,Y33BH,etc
Standard: Y10T,Y25,Y30,Y33,Y35, Y30BH,Y33BH
Trademark: Super
Productivity: 150 longton/month
Origin: Anhui,China
Packing: Standard Export Carton
Unit: Piece/ Y30 High Quality Ferrite Magnet
Max order: 150 longton/month
Min order: Y30 High Quality Ferrite Magnet
TransTime: 5 days after deposit
Transportation: 1
Payment: T/T

1.Material: ferrite powder, etc
2.Grade: Y25, Y30, Y30BH, Y35
3.Size: L44 * W22 * T11mm, L47 * W22 * T9 , L50 * W19 * T4 , L65 * W15 * T4 , L83 * W55 * T22 ,etc.
4.Shape: Arc, Block, Bar, Ring, Cube, Disc, or others.
5.Application: Widely used in ammeter, speaker, audio, phone, TV, dynamo, DC permanent magnet motors (used in cars), etc
Characteristics:
* Low cost, high-energy, good electric insulation and excellent resistance to demagnetization.
* High coercive force, high electric resistance, long-time stability, and economical price.
Type:
Isotropic ferrite magnets
Anisotropic ferrite magnets
Magnetization:
1. Isotropic ferrite magnets are not oriented and can be magnetized in any direction;

Block Ferrite magnet strong Ferrite Magnet Y30 High Quality Ferrite Magnet

CONTACT US

Magnetic Products of Customized Shapes and Sizes.

QUICK LINK

OUR PRODUCTS

CONTACT INFO

Tel: 86-551-63409690
E-mail:admin@cnsupermagnet.com
Phone: 86-13855156049
Add:No.7598 Ziyun Road,Economic-Technological Development Area,Hefei,Anhui,China 230601

Be the first to know about our lastest products.

Grade	Remanence Br mT (kGs)	Coercive force HcB KA/m (KOe)	Magnetic energy product Max KJ/m3 MGOe	Equivalents
Y10	200-235	125-160	6.5-9.5	C1
Y25	360-370	135-150	22.5-28.0
Y30	380-390	191-210	26-30
Y33	400-410	175-195	31.5-35.0	C5
Y35	410-420	220-235	30.0-33.5	C5
Y30BH	380-390	223-235	27.0-32.5	C8
Y33BH	400-410	288-300	30.4-31.5	C8

Grade	Remanence Br mT (kGs)	Coercive force HcB KA/m (KOe)	Magnetic energy product Max KJ/m3 MGOe	Equivalents
Y10	200-235	125-160	6.5-9.5	C1
Y25	360-370	135-150	22.5-28.0
Y30	380-390	191-210	26-30
Y33	400-410	175-195	31.5-35.0	C5
Y35	410-420	220-235	30.0-33.5	C5
Y30BH	380-390	223-235	27.0-32.5	C8
Y33BH	400-410	288-300	30.4-31.5	C8
