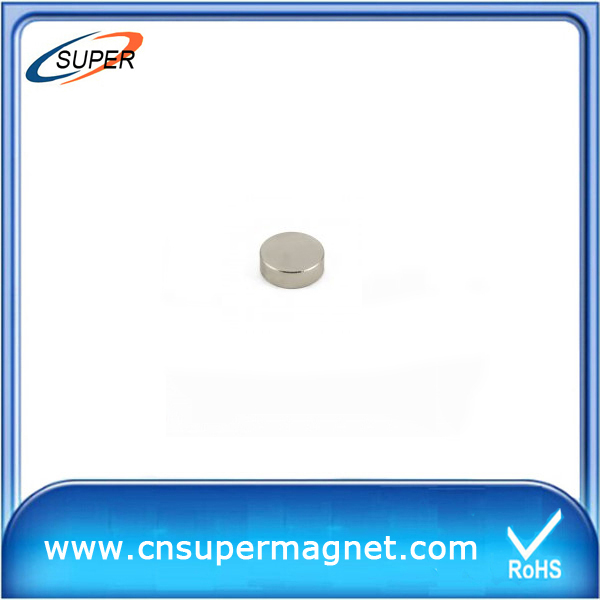

Wholesale D6*1mm Disc magnets SmCo

Share to:

Quantity:


Inquire Add to Basket

Model: D6*1mm Disc magnets SmCo
Unit: piece D6*1mm Disc magnets SmCo
Min order: 1 D6*1mm Disc magnets SmCo

Wholesale D6*1mm Disc magnets SmCo

Specifications

SmCo magnets
Sintering SmCo magnets are circularly made by strict powder metal technology and heat processing. This kind of magnet
conveys samariam for 35%, cobalt for 60%, element Fe and Cu. Through altering proportioning of compositions and
circulation of sintering and heating, we can make two materials_ 1: 5 and 2: 17. The difference lies in energy product,
temperature coefficient and coercivity. The most common material, 2: 17, has better property and lower temperature
coefficient, but it is more expensive and should be magnetized in high magnetic field.
Americans invented SmCo5 and SmCo17 in 1965 and 1972. This invention drives a high wave to study and explore
new permanent magnetism, and promote the development of the materical rapidly. This material is produced by powder
metallurgy, and its specialty is its magnetic stability, temperature resistance, and excellent resistance of corrosion. Its max
magnetic energy prduct is 15~30MGOe which is 3~5 times to AlNiCo magnets. Its intrinsic coercivity is over 25kOe, and
its highest working temperature is 350 C. SmCo magnet is very suitable for manufacture the products with high-performance like magnetic motors and other applied products requiring high working temperature.

Our adventures:
1. Our Hydrogenated powdering can assure the powder uniformity and reduce the oxidation of the powder.
Our raw materials are in accordance with the standards of International Environmental Protection Organization (IEPO)
and RoHS
2. Our unique molecules dividing equipment and technology to assure the small discrete of powder particles.
3. Our original technology of positively pressure sintering improve the performance of the products.
4. Our processing methods are vacuous melting, powdering of atmosphere protection, vacuum or atmosphere protection
sintering and so on.
5. Our original technology of material addition can make products which meet customers'requirements such as target
magnets with the uniformity of low temperature parameters and height.
6. The advanced machining processing such as laser beam drilling can do mass production of all kinds of magnets
with high precision, such as the magnet for clock mechanism in watch, magnet for optical communicational products and so on.
7. We can protect the customer rights, and make sure the mould are appointed.
P/N SCI-3 SCI-8
Br (mT) 300-400 550-680
BHc (kA/m) 199-279 334-462
IHc (kA/m) 716-1194 716-1194
(BH)max(kJ/m 3 ) 20-28 48-64
Recoil permeability µ R 1.05-1.1 1.05-1.1
Recoil temperature coefficient of Br. (%/° C) -0.04
(15-100° C) -0.04
(15-100° C)
Magnetizing field (Ka/m) ≥ 2786 ≥ 2786
Density(g/cm 3 ) 3-6 4-6
Ring crushing strength constant (N/mm 2 ) >76 >76

samarium cobalt SmCo Magne D6*1mm SmCo Magne D6*1mm Disc magnets SmCo
