Wholesale D6*10mm Disc magnets SmCo

Share to:

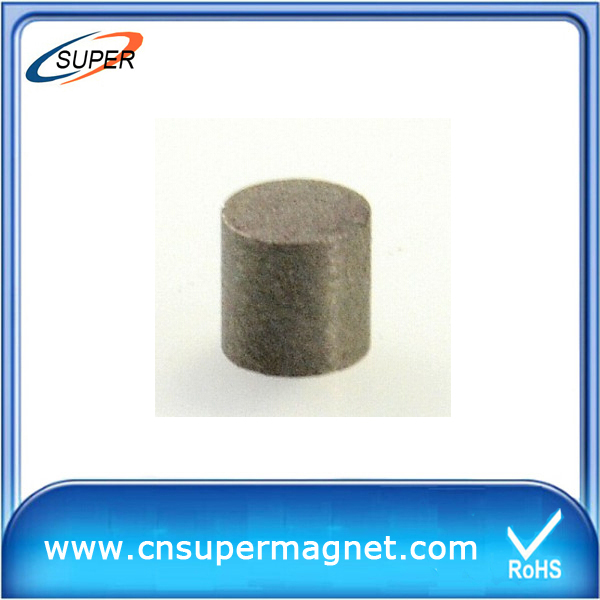

  • D6*10mm Disc magnets SmCo
  • piece D6*10mm Disc magnets SmCo
  • 1 D6*10mm Disc magnets SmCo

Wholesale D6*10mm Disc magnets SmCo


Specifications

About SmCo magnet:
 SmCo Magnet is permanent magnet composed of Sm, Co and other lanthanon. It has high GH,
lower temperature factor and high temperature resistance. The temperature can reach at 350°C in
 its appliance. Meanwhile there is strong corrosion-resistance and oxidative stability. So SmCo magnet don't need plating treatment generally and are
 widely applied in moter, meter, sensor, detector, engine, radar and other high-tech areas.

SmCo General Physical Property:
Pparameter Unit SmCo5 Sm2Co17
Density G/cm3 8.3 8.4
TC °C 1000 1100
HV Mpa 400-500 550-600
Compressive strength Mpa 1000 800
Resistivity Ω.cm  5~6   10~5  8~9   10~5
N/M2 Mpa  150-180 130-150
Tensile strength Mpa 400 350
Thermal expansion coefficient (10-6/°C) 10 10

Wholesale D6*10mm Disc magnets SmCo

SmCo Property List:

 Type Br Hcb Hcj (BH)max
mT KGS KA/M KOe KA/M KOe KJ/M3 MGOe
YX16 750-880 7.5-8.8 579    0.5 7.5   0.5 ≥1989 ≥25 127   16 16   2
YX18 800-930 8.0-9.3 637    40 8      0.5 ≥1432 ≥18 143   16 18   2
YX20 850-980 8.5-9.8 637    40  8      0.5 ≥1273 ≥16 159   16 20   2
YXT18 900-1030 9.0-10.3 637    40 8      0.5 ≥1194 ≥15 143   16 18   2
YX22A 900-1030 9.0-10.3 653    40 8.2   0.5 ≥1989 ≥25 175   16 22   2
YX22B 900-1030 9.0-10.3 635    40 8.2   0.5 ≥1432 ≥18 175   16 22   2
YX24 980-1080 9.8-10.8 676    40 8.5   0.5 ≥1432 ≥18 191   16 24   2
YX26A 1000-1130 10.0-11.3 716    40 9.0   0.5 ≥1194 ≥15 207   16 26   2
YX26B 1000-1130 10.0-11.3 716    40 9.0   0.5 ≥796 ≥10 207   16 26   2
YX28 1030-1130 10.3-11.3 756    40 9.5   0.5 ≥1432 ≥18 223   16 28   2
YX27 1000-1100 10.0-11.0 357-516 4.5-6.5 413-556 5.2-7.0 183-223 26   2
YX30 1100-1200 11.0-12.0 438-517 5.5-6.5 454-597 5.7-7.5 239   16  30   2
Grade (Br)
( KGs)
(Hcb)
( Koe)
(Hcj)(Koe) (BH)max
(MGoe)
Tw
SmCo5
YX-5 4.30-5.00 ≥3.80 ≥15 4.0-5.0 ≤250
YX-6 5.00-6.00 ≥4.50 ≥15 5.0-7.0 ≤300
YX-16 7.50-8.50 ≥7.00 ≥15 14-17 ≤250
YX-18 8.50-9.20 ≥8.00 ≥18 16-19 ≤250
YX-20 8.80-9.50 ≥8.30 ≥18 18-21 ≤250
YX-22 9.00-9.80 ≥8.50 ≥15 21-23 ≤250
YX-24 9.5-10.30 ≥9.00 ≥15 22-25 ≤250
Sm2Co17
YX-24A 9.5-10.30 5.0-6.0 6.00-8.50 22-25 ≤200
YX-24B 9.5-10.30 ≥9.00 ≥15 22-25 ≤250
YX-24C 9.5-10.30 ≥9.00 ≥25 22-25 ≤300
YX-24D 9.5-10.30 ≥9.00 ≥30 22-25 ≤350
YX-26A 10.0-10.7 5.0-6.0 6.00-8.50 24-27 ≤200
YX-26B 10.0-10.7 ≥9.00 ≥15 24-27 ≤250
YX-26C 10.0-10.7 ≥9.00 ≥25 24-27 ≤300
YX-26D 10.0-10.7 ≥9.00 ≥30 24-27 ≤350
YX-28A 10.3-11.0 5.0-6.0 6.00-8.50 26-29 ≤200
YX-28B 10.3-11.0 ≥9.00 ≥15 26-29 ≤250
YX-28C 10.3-11.0 ≥9.00 ≥25 26-29 ≤300
YX-28D 10.3-11.0 ≥9.00 ≥30 26-29 ≤350
YX-30A 10.8-11.3 5.0-6.0 6.00-8.50 28-31 ≤200
YX-30B 10.8-11.3 ≥9.00 ≥15 28-31 ≤250
YX-30C 10.8-11.3 ≥9.00 ≥25 28-31 ≤300
YX-30D 10.8-11.3 ≥9.00 ≥30 28-31 ≤350
ZYX-5 4.30-5.00 ≥3.80 8.0-12.0 4.0-5.0 ≤180
ZYX-8 5.00-6.50 ≥4.50 8.0-12.0 6.0-9.0 ≤180
ZSYX ≤6.50 ≤6.0 8.0-12.0 ≤9.0 ≤180
