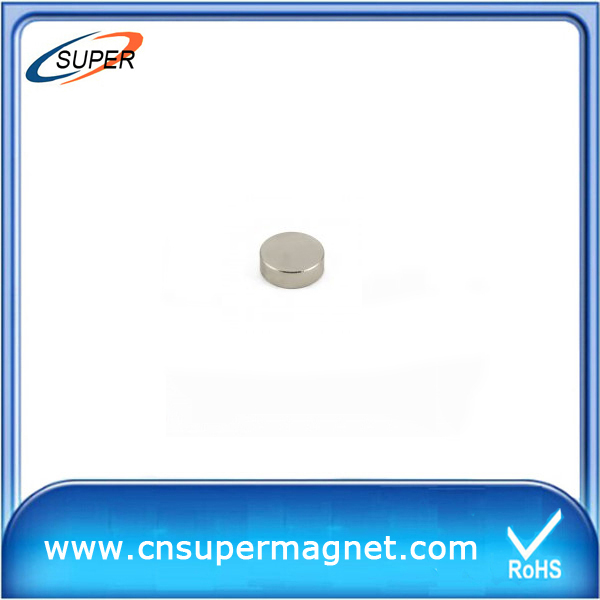

Wholesale D5*1mm Disc magnets SmCo

Share to:

Quantity:


Inquire Add to Basket

Model: D5*1mm Disc magnets SmCo
Unit: piece D5*1mm Disc magnets SmCo
Min order: 1 D5*1mm Disc magnets SmCo

Wholesale D5*1mm Disc magnets SmCo

Specifications

General Description:
SmCo magnet is a high performance low temperature coefficent permanent magnet, made of samarium and cobalt and other
rare-earth elements.Its biggest advantage is its high working temperature---500 degree centigrade.It need not to be coated because it is difficult to be eroded and oxidized.

Applications:Aeronautic, sensor, motors,national defense , military ,microwave appliance,communication,medical equipments
instruments,various magnetism spreading devices,magnetic processor,magnetic lifter,etc

SmCo5
Temperature Coefficent of Br(%/°C) -0.05
Temperature Coefficent of iHc(%/°C) -0.3
Curie Temperature(°C) 700-750
Density(g/cm 3 ) 8.2-8.4
Vickers Hardness(HV) 450-500
Working Temperature(°C) 250

Sm2Co17
Temperature Coefficent of Br(%/°C) -0.03
Temperature Coefficent of iHc(%/°C) --0.2
Curie Temperature(°C) 800-850
Density(g/cm 3 ) 8.3-8.5
Vickers Hardness(HV) 500-600
Working Temperature(°C) 350

We have accumulated abundant experience and established stable and credible business relationships with customers worldwide.
With rich experience in dealing with all types of large and small orders, we have developed extensive contacts with many local
and international freight organizations. Consequently, we are able to ship our goods safely and reliably to almost anywhere in the world.

For more detail info, please feel free to visit our website or inquire us at any of your convenience

Wholesale D5*1mm Disc magnets SmCo

SmCo General Physical Property:

Pparameter	Unit	SmCo5	Sm2Co17
Density	G/cm3	8.3	8.4
TC	°C	1000	1100
HV	Mpa	400-500	550-600
Compressive strength	Mpa	1000	800
Resistivity	Ω.cm	5~6 10~5	8~9 10~5
N/M2	Mpa	150-180	130-150
Tensile strength	Mpa	400	350
Thermal expansion coefficient	(10-6/°C)	10	10

Grade	(Br) ( KGs)	(Hcb) ( Koe)	(Hcj)(Koe)	(BH)max (MGoe)	Tw
SmCo5
YX-5	4.30-5.00	≥3.80	≥15	4.0-5.0	≤250
YX-6	5.00-6.00	≥4.50	≥15	5.0-7.0	≤300
YX-16	7.50-8.50	≥7.00	≥15	14-17	≤250
YX-18	8.50-9.20	≥8.00	≥18	16-19	≤250
YX-20	8.80-9.50	≥8.30	≥18	18-21	≤250
YX-22	9.00-9.80	≥8.50	≥15	21-23	≤250
YX-24	9.5-10.30	≥9.00	≥15	22-25	≤250
Sm2Co17
YX-24A	9.5-10.30	5.0-6.0	6.00-8.50	22-25	≤200
YX-24B	9.5-10.30	≥9.00	≥15	22-25	≤250
YX-24C	9.5-10.30	≥9.00	≥25	22-25	≤300
YX-24D	9.5-10.30	≥9.00	≥30	22-25	≤350
YX-26A	10.0-10.7	5.0-6.0	6.00-8.50	24-27	≤200
YX-26B	10.0-10.7	≥9.00	≥15	24-27	≤250
YX-26C	10.0-10.7	≥9.00	≥25	24-27	≤300
YX-26D	10.0-10.7	≥9.00	≥30	24-27	≤350
YX-28A	10.3-11.0	5.0-6.0	6.00-8.50	26-29	≤200
YX-28B	10.3-11.0	≥9.00	≥15	26-29	≤250
YX-28C	10.3-11.0	≥9.00	≥25	26-29	≤300
YX-28D	10.3-11.0	≥9.00	≥30	26-29	≤350
YX-30A	10.8-11.3	5.0-6.0	6.00-8.50	28-31	≤200
YX-30B	10.8-11.3	≥9.00	≥15	28-31	≤250
YX-30C	10.8-11.3	≥9.00	≥25	28-31	≤300
YX-30D	10.8-11.3	≥9.00	≥30	28-31	≤350
ZYX-5	4.30-5.00	≥3.80	8.0-12.0	4.0-5.0	≤180
ZYX-8	5.00-6.50	≥4.50	8.0-12.0	6.0-9.0	≤180
ZSYX	≤6.50	≤6.0	8.0-12.0	≤9.0	≤180

SmCo Other Physical Properties
	SmCo5	Sm2Co17
Temperature Coefficent of Br(%/°C)	-0.05	-0.03
Temperature Coefficent ofiHc(%/°C)	-0.3	-0.2
Curie Temperature(°C)	700-750	800-850
Density(g/cm3)	8.2-8.4	8.3-8.5
Vickers Hardness(HV)	450-500	500-600
Working Temperature(°C)	250	350
