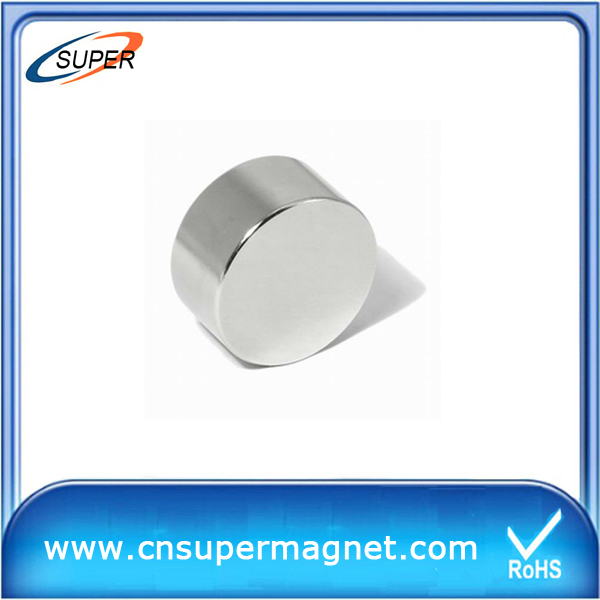

Promotional 50*20mm Neodymium Disc Magnet For Sale

Share to:
  • N33-N52,30M-50M,30H-48H,28SH-45SH,28UH-42UH,28EH-38EH,28AH-33AH
  • N33-N52,30M-50M,30H-48H,28SH-45SH,28UH-42UH,28EH-38EH,28AH-33AH
  • Super
  • 150 longton/month
  • Anhui,China
  • Standard Export Carton
  • piece/50*20mm Neodymium Disc Magnet
  • 150 longton/month
  • 50*20mm Neodymium Disc Magnet
  • 5 days after deposit
  • 1
  • T/T

50*20mm Neodymium Disc Magnet


1.Production description:

1) Material: Sintered Neodymium-Iron-Boron;


2) Temperature: The max operation temp is up to 200 degree centigrade or 380 curie temperature;


3) Grade: N33-N52, 33M-48M, 33H-48H, 30SH-45SH, 30UH-38UH and 30EH-35EH;


4) Shape: Ring, block, disc, bar and so on;


5) Size: According to customers' request;


6) Coating: Ni, Zn, gold, copper, epoxy and so on;


7) Application: Sensors, motors, rotors, wind turbines, wind generators, loudspeakers, magnetic hooks,
magnetic holder, filters automobiles and so on;


 Grade of Neodymium magnet:

Grade Work Temperture(°c)
N35-N52 ≤80
33M-48M ≤100
33H-48H ≤120
33SH-45SH ≤150
30UH-40UH ≤180




50*20mm Neodymium Disc Magnet

Grade<o:p>

Remanence Br mT(kGs)<o:p>

Coercive force<o:p>

HcBKA/m  (KOe)<o:p>

Magnetic energy productMax KJ/m3  MGOe<o:p>

N35-N52<o:p>

1180-1440<o:p>

836-923<o:p>

263-406<o:p>

(11.8-14.4)<o:p>

(10.8-11.6)<o:p>

(33-51)<o:p>

30M-50M<o:p>

1080-1420<o:p>

796-1050<o:p>

223-390<o:p>

(10.8-14.2)<o:p>

(10-13.2)<o:p>

(28-49)<o:p>

30H-48H<o:p>

1080-1380<o:p>

796-1027<o:p>

223-366<o:p>

(10.8-13.8)<o:p>

(10-12.6)<o:p>

(28-46)<o:p>

28SH-45SH<o:p>

1050-1340<o:p>

764-995<o:p>

207-342<o:p>

(10.5-13.4)<o:p>

(9.6-12)<o:p>

(26-43)<o:p>

28UH-42UH<o:p>

1050-1310<o:p>

764-923<o:p>

207-326<o:p>

(10.5-13.1)<o:p>

(9.6-11.6)<o:p>

(26-41)<o:p>

28EH-38EH<o:p>

1050-1250<o:p>

764-868<o:p>

207-295<o:p>

(10.5-12.5)<o:p>

(9.6-10.9)<o:p>

(26-37)<o:p>

28AH-33AH<o:p>

1020-1170<o:p>

780-836<o:p>

199-271<o:p>

(10.2-11.7)<o:p>

(9.8-10.5)<o:p>

(25-34)<o:p>
