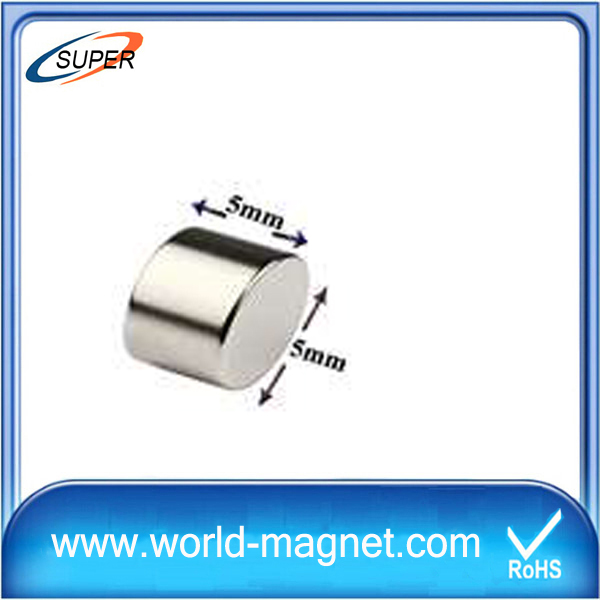

Industrial Neodymium Ultra Thin Cylinder Magnet
Neodymium magnets are actually composed of neodymium, iron and boron (they are also referred to as NIB or NdFeB magnets). The powdered mixture is pressed under great pressure into molds. The material is then sintered (heated under a vacuum), cooled, and then ground or sliced into the desired shape. Coatings are then applied if required. Finally, the blank magnets are magnetized by exposing them to a very powerful
magnetic field in excess of 30 KOe.
|Description||Sintered Neodymium Magnetic|
|Grade||Max. Operating Temperature|
|33M- 48M||100°C (212°F)|
|Magnet Shape||Disc, Cylinder, Block, Ring, Countersunk, Segment, Trapezoid, Irregular shapes and |
more. Customized shape are available.
|Magnet Coating||Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper, Epoxy, Chemical, PTFE, Parylene, |
Everlube, Passivation and more.
Widely used in Speakers, receivers, leather bag magnets, packing boxes, magnetic buttons, toys, magnetic tools, magnetic craft gift packaging, magnetic filters, magnetic hooks, magnetic chuck, magnetic valve, oil degreasing equipment, magnetic actuators, magnetic bearings, magnetic pump, magnetic brakes, magnetic couplers, magnetic salvage, magnetic transmission, magnetic rolls, synchrotrons, radiation sources, free electron lasers, nuclear industry, agriculture, detection earthquake, magnetic switches , magnetic latching relays, arithmometer, counters, reed switches, sensors, plating table, speedometer, flow meter, tachometer, medical equipment, magnetic health supplies, magnetization water / magnetic water Processor, magnetic therapy, magnetic jewelry.
|Physical Properties(NdFeB magnet)|
|Temp.Coeff.of Br: -0.11% / °C||Temp.Coeff.of iHc: -0.60% / °C|
|Density: 7.4-7.6g/ cm³||Electrical resistivity: 144μΩ.com|
|Vickers Hardness: 600/Hv||Flexural Strength: 25kg/mm|
|Tensile Strength: 8.0kgs/mm²||Coeff.of Thermal Expansion: 4 X 10/¯ª/°C|
|Specific Heat: 0.12kCal/(kg. °C)||Thermal Conductivity: 7.7Kcal/(m.h. °C)|
|Young’s Modulus: 1.6 X 10¹¹N/m²||Rigidity: 0.64N/m²|
|Poisson’s Ratio: 0.24||Compressibility: 9.8 X 10¯¹²m²/N|
|Curie Temperature: 310-340°C|
1.All inquiries, questions and emails will be replied within 24 hours.
2.Samples and small quantity are available.
3.Stock material for stable production.
4.Most favorable Price is available.
5.Excellent shipping forwarder to help to delivery magnet
6.Flexible Payment items include T/T in dvance and western union and L/C at sight or others
7.Quick deliery time & precise size tolerance
8.Good quality and assured service.
