Hottest sale D15*2 mm Sintered SmCo Magnet

Share to:

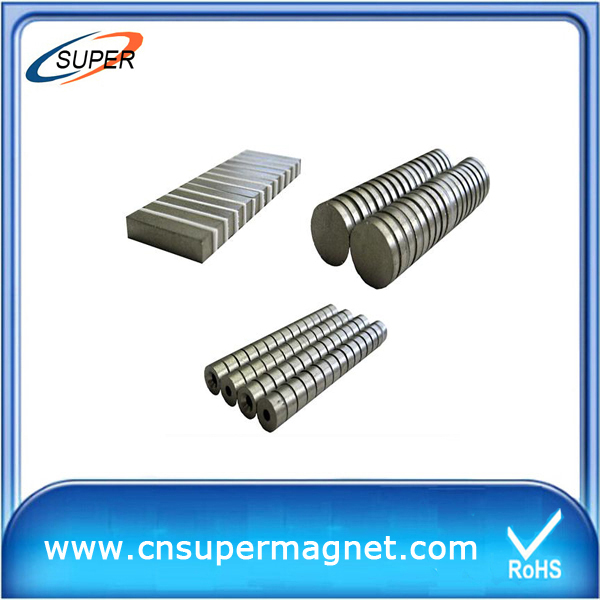

  • D15*2 mm Sintered SmCo Magnet
  • piece D15*2 mm Sintered SmCo Magnet
  • 1 D15*2 mm Sintered SmCo Magnet

 Hottest sale D15*2 mm Sintered SmCo Magnet


Specifications

General Description:
SmCo magnet is a high performance low temperature coefficent permanent magnet, made of samarium and cobalt and other
 rare-earth elements.Its biggest advantage is its high working temperature---500 degree centigrade.It need not to be coated because it is difficult to be eroded and oxidized.


Applications:Aeronautic, sensor, motors,national defense , military ,microwave appliance,communication,medical equipments
 instruments,various magnetism spreading devices,magnetic processor,magnetic lifter,etc


SmCo5
Temperature Coefficent of Br(%/°C) -0.05
Temperature Coefficent of iHc(%/°C) -0.3
Curie Temperature(°C) 700-750
Density(g/cm 3 ) 8.2-8.4
Vickers Hardness(HV) 450-500
Working Temperature(°C) 250

Sm2Co17
Temperature Coefficent of Br(%/°C) -0.03
Temperature Coefficent of iHc(%/°C) --0.2
Curie Temperature(°C) 800-850
Density(g/cm 3 ) 8.3-8.5
Vickers Hardness(HV) 500-600
Working Temperature(°C) 350

We have accumulated abundant experience and established stable and credible business relationships with customers worldwide.
With rich experience in dealing with all types of large and small orders, we have developed extensive contacts with many local
and international freight organizations. Consequently, we are able to ship our goods safely and reliably to almost anywhere
 in the world.


For more detail info, please feel free to visit our website or inquire us at any of your convenience

Hottest sale D15*2mm Sintered SmCo Magnet


Magnetic properties table of Sintered SmCo magnets:

Material   Shanghai Strong Magnets   magnetic Properties table of Sintered SmCo
Grade Br Hcb Hcj BHmax Density Tw Max Remark
kGs mT kA/m kOe kA/m kOe KJ/m3 MGOe g/cm3 °C
SmCo16 8.3 830 640 8 1430 18 128 16 8.3 250 1:05
SmCo18 8.8 880 680 8.5 1430 18 144 18 8.3 250
SmCo20 9.2 920 700 8.7 1430 18 160 20 8.3 250
SmCo22 9.4 940 730 9.1 1450 18 176 22 8.3 250
SmCo24 9.8 980 730 9.1 1450 18 192 24 8.4 300 2:17
SmCo26 10.3 1030 760 9.5 1450 18 208 26 8.4 300
SmCo28 10.5 1050 780 9.7 1450 18.5 224 28 8.4 300
SmCo30 11 1100 810 10.1 1450 18.5 240 30 8.4 300
SmCo26M 10.3 1030 760 9.5 1100 15 208 26 8.4 300
SmCo28M 10.5 1050 780 9.7 1100 15 224 28 8.4 300
SmCo30M 11 1100 810 10.1 1100 15 240 30 8.4 300
SmCo28L 10.5 1050 550 6.9 700 8 224 28 8.4 250
SmCo30L 11 1100 550 6.9 700 8 240 30 8.4 250
SmCo24H 10 1000 720 9 2000 25 192 24 8.4 350
SmCo26H 10.3 1030 760 9.5 2000 25 208 26 8.4 350
SmCo28H 10.5 1050 770 9.6 2000 25 224 28 8.4 350
SmCo30H 10.8 1080 810 10.1 2000 25 240 30 8.4 350
