Hottest sale 6*5 SmCo magnet

Share to:

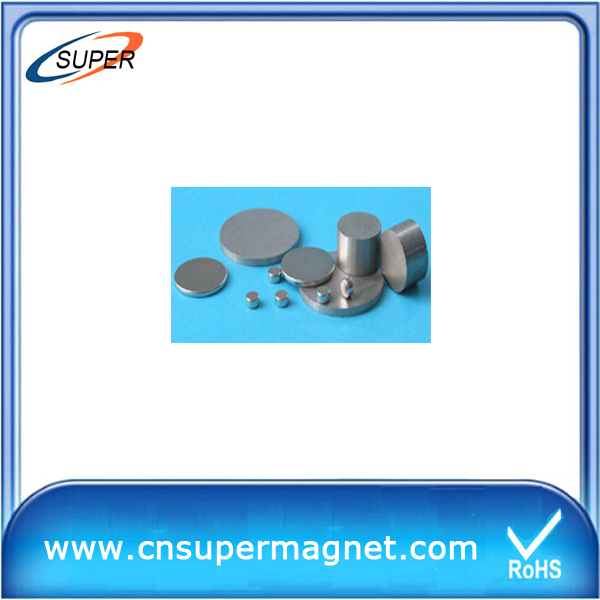

  • 6*5 SmCo magnet
  • piece 6*5 SmCo magnet
  • 1 6*5 SmCo magnet

Hottest sale 6*5 SmCo magnet



1.Grade: SmCo5 and Sm2Co17

2.Shape: Disc, Cylinder, Block, Ring, Countersunk, Segment, Trapezoid, Irregular shapes and more. Customized Design (Design proper magnets for clients specific requirements)

3.Sorts: We have Disc Smco Magnets, Segment Smco Magnets, Ring Smco Magnets, Block
Smco Magnets
Cylinder Smco Magnets, Irregular Smco Magnets, Sintered Smco Magnets, Bonded
SmCo Magnets
and many other series.

SmCo magnets have better temperature stability. SmCo magnets can be operated at higher
temperature up to 300°C, while Nd-Fe-B magnets can not stand temperature over 200°C.

Two types of SmCo magnets are SmCo5 and Sm2Co17.

The characteristics of Samarium Cobalt Magnet

*Very high magnetic properties with good stability.

*Superior resistance to high temperature, Curie temperature of majority is over 800°C

*Excellent corrosion resistance capability, no coating is needed for surface protection

Attributes of Samarium Cobalt

*High resistance to demagnetization

*High energy (magnetic strength is strong for its size)

*Good temperature stability

*Expensive material (cobalt is market price sensitive)


Hottest sale 6*5 SmCo magnet

Grade Table:





Type

Br

Residual
flux density

Hcj

Intrinsic
Coercive force

Hcb

Coercive Force

(BH)max

Max.Energy
product

MT

KGs



KA/M



KOe



KA/M



KOe



KJ/M3



MGOe

YX
18

800~930

8.0~9.3

≥1432

≥18

637±40

8±0.5

143±16

18±2

YX
20

850~980

8.5~9.8

≥1273

≥16

637±40

8±0.5

159±16

20±2

YX
22A

900~1030

9.0~10.3

≥1989

≥25

653±40

8.2±0.5

175±16

22±2

YX
22B

900~1030

9.0~10.3

≥1432

≥18

635±40

8.2±0.5

175±16

22±2

YX24

980~1080

9.8~10.8

≥1432

≥18

676±40

8.5±0.5

191±16

24±2

YX26A

1000~1130

10.0~11.3

≥1194

≥15

716±40

9.0±0.5

207±16

26±2

YX
26B

1000~1130

10.0~11.3

≥796

≥10

716±40

9.0±0.5

207±16

26±2

YX28

1030~1130

10.3~11.3

≥1432

≥18

756±40

9.5±0.5

223±16

28±2

YX
27

1000~1100

10.0~11.0

413~556

5.2~7.0

357~516

4.5~6.5

183~223

26±2

YX
30

1100~1200

11.0~12.0

454~597

5.7~7.5

438~517

5.5~6.5

239±16

30±2

Physical Characteristics of Sintered SmCo Magnets:

Hardness

                     HV 10

Compression Strength

300 - 900 N/mm2

Bending Strength

120 N/mm2

Modulus

1.2-2.0x104 N/mm3

Electrical Resistance at 20°C

>0.5 ohm-cm

Specific Heat Capacity

370 J/(kg.C)
