Hottest sale 6*3 SmCo magnet

Share to:

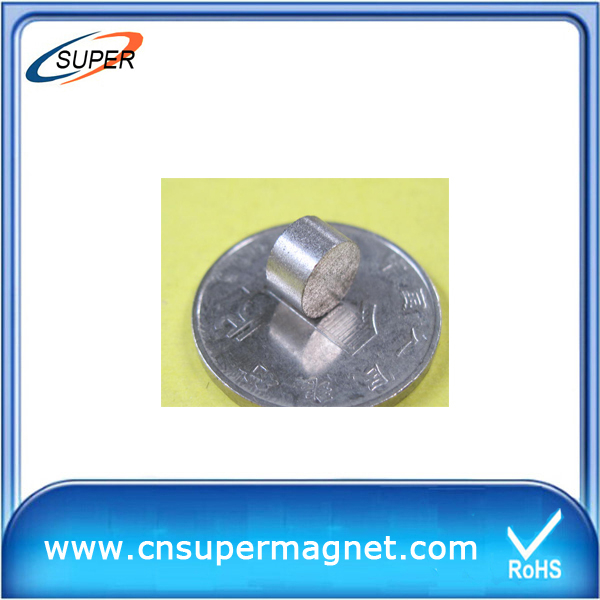

  • 6*3 SmCo magnet
  • piece 6*3 SmCo magnet
  • 1 6*3 SmCo magnet

Hottest sale 6*3 SmCo magnet

Specifications

sintered permanent smco magnet

1.Temperature up to 350deg C
2.Grade:SmCo5 YX18~24, SmCo17 YXG24~30

sintered permanent smco magnet

Product Name:

Sintered Samarium Cobalt Magnet, Sintered SmCo Magnet, Rare Earth Cobalt Permanent Magnet, Skew Arc SmCo
Magnet,Permanet Magnets

Features:

SmCo5 and Sm2Co17
Very expensive and brittle, the maximum energy product and stability of high operating temperatures up to 350°C,
remarkable resistance against corrosion



Applications:

Sensors, motors, loudspeaker, space probe, national defense, military affairs, microware appliance and etc.



Magnetic Properties of Samarium Cobalt Magnets:



Grade Br HcB Hcj (BH)max TK(Br)%/K TK(Hcj)%/K Max
Temp
KGs mT kOe Ka/m kOe Ka/m MGOe Kj/m³ ºC
Sintered
SMCO1:5
YX-18 8.5-9.0 8500-
9000
7.8-8.2 620-648 15-19 1194-1513 16-18 127-143 -0.05 -0.25 250
YX-20 9.2-9.6 9200-
9600
8.2-9.0 653-717 15-19 1194-1513 19-21 150-167 -0.05 -0.25 250
YX-24 9.6-10.2 9600-
10000
9.2-9.7 730-770 15-19 1194-1513 22-24 175-190 -0.05 -0.25 250
Sintered SMCO2:17
YXG-24 9.5-10.2 9500-
10200
8.0-9.2 637-732 18-25 1433-1990 22-24 175-190 -0.03 -0.23 350
YXG-26 10.2-10.5 10200-10500 9.4-10.0 748-796 18-25 1433-1990 24-26 195-215 -0.03 -0.2 350
YXG-28 10.5-10.8 10500-10800 9.5-10.0 756-796 18-25 1433-1831 26-28 205-220 -0.03 -0.2 350
YXG-28B 10.2-11.0 10200-11000 5.2-5.6 420 5.5-6.5 440-520 26-28 205-220 -0.03 -0.2 350
YXG-30 10.8-11.0 10800-11000 9.8-10.5 780 18-25 955-1195 28-30 220-240 -0.03 -0.2 350
YXG-30B 10.8-11.5 10800-11500 5.2-5.6 420 5.5-6.5 440-520 28-30 220-240 -0.03 -0.2

Hottest sale 6*3 SmCo magnet

Grade Table:





Type

Br

Residual
flux density

Hcj

Intrinsic
Coercive force

Hcb

Coercive Force

(BH)max

Max.Energy
product

MT

KGs



KA/M



KOe



KA/M



KOe



KJ/M3



MGOe

YX
18

800~930

8.0~9.3

≥1432

≥18

637±40

8±0.5

143±16

18±2

YX
20

850~980

8.5~9.8

≥1273

≥16

637±40

8±0.5

159±16

20±2

YX
22A

900~1030

9.0~10.3

≥1989

≥25

653±40

8.2±0.5

175±16

22±2

YX
22B

900~1030

9.0~10.3

≥1432

≥18

635±40

8.2±0.5

175±16

22±2

YX24

980~1080

9.8~10.8

≥1432

≥18

676±40

8.5±0.5

191±16

24±2

YX26A

1000~1130

10.0~11.3

≥1194

≥15

716±40

9.0±0.5

207±16

26±2

YX
26B

1000~1130

10.0~11.3

≥796

≥10

716±40

9.0±0.5

207±16

26±2

YX28

1030~1130

10.3~11.3

≥1432

≥18

756±40

9.5±0.5

223±16

28±2

YX
27

1000~1100

10.0~11.0

413~556

5.2~7.0

357~516

4.5~6.5

183~223

26±2

YX
30

1100~1200

11.0~12.0

454~597

5.7~7.5

438~517

5.5~6.5

239±16

30±2

Physical Characteristics of Sintered SmCo Magnets:

Hardness

                     HV 10

Compression Strength

300 - 900 N/mm2

Bending Strength

120 N/mm2

Modulus

1.2-2.0x104 N/mm3

Electrical Resistance at 20°C

>0.5 ohm-cm

Specific Heat Capacity

370 J/(kg.C)
