High Quality D30*10mm SmCo Permanent Magnet

Share to:

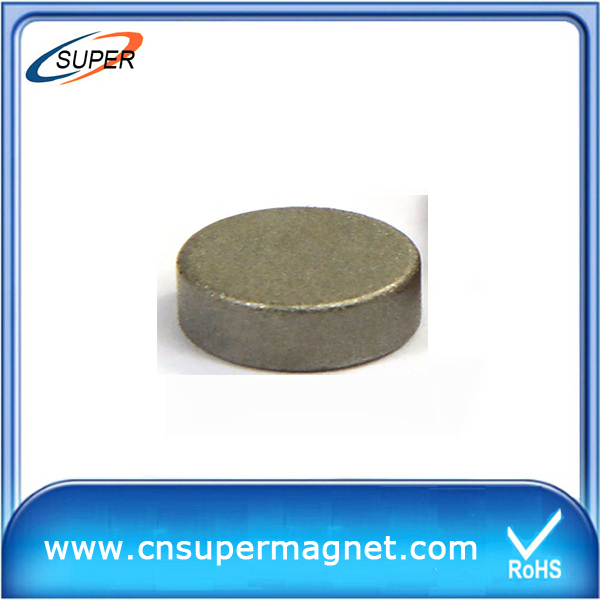

  • D30*10mm SmCo Permanent Magnet
  • piece D30*10mm SmCo Permanent Magnet
  • 1 D30*10mm SmCo Permanent Magnet

High Quality D30*10mm SmCo Permanent Magnet


Specifications

1) Material: Samarium and cobalt and other rare earth elements;
2) Temperature: the max operation temp is up to 350 degree centigrade or 800 curie temperature;
3) Grade:SmCo -16,SmCo-18,SmCo-20,SmCo-22,SmCo-24,SmCo-26 and so on.
4) Shape: ring,block,disc,bar and so on;
5) Size: according to customers' request;
6) According to customer's request .We can supply different size magnetic hook.
7) Good quality with competitive price and best delivery date.
8) Application: sensors,motors, rotors, wind turbines,wind generators, loudspeakers,magnetic holder, filters automobiles and so on.
9) Certificate: ISO9001:2000, SGS test report

We are specialized in producing NdFeB Magnet over many years,We guarantee the best price based on the same quality and service. Our finance conditiearon and industrial reputation are excellent.

High Quality D30*10mm SmCo Permanent Magnet

SmCo General Physical Property:

Pparameter Unit SmCo5 Sm2Co17
Density G/cm3 8.3 8.4
TC °C 1000 1100
HV Mpa 400-500 550-600
Compressive strength Mpa 1000 800
Resistivity Ω.cm  5~6   10~5  8~9   10~5
N/M2 Mpa  150-180 130-150
Tensile strength Mpa 400 350
Thermal expansion coefficient (10-6/°C) 10 10
Grade (Br)
( KGs)
(Hcb)
( Koe)
(Hcj)(Koe) (BH)max
(MGoe)
Tw
SmCo5
YX-5 4.30-5.00 ≥3.80 ≥15 4.0-5.0 ≤250
YX-6 5.00-6.00 ≥4.50 ≥15 5.0-7.0 ≤300
YX-16 7.50-8.50 ≥7.00 ≥15 14-17 ≤250
YX-18 8.50-9.20 ≥8.00 ≥18 16-19 ≤250
YX-20 8.80-9.50 ≥8.30 ≥18 18-21 ≤250
YX-22 9.00-9.80 ≥8.50 ≥15 21-23 ≤250
YX-24 9.5-10.30 ≥9.00 ≥15 22-25 ≤250
Sm2Co17
YX-24A 9.5-10.30 5.0-6.0 6.00-8.50 22-25 ≤200
YX-24B 9.5-10.30 ≥9.00 ≥15 22-25 ≤250
YX-24C 9.5-10.30 ≥9.00 ≥25 22-25 ≤300
YX-24D 9.5-10.30 ≥9.00 ≥30 22-25 ≤350
YX-26A 10.0-10.7 5.0-6.0 6.00-8.50 24-27 ≤200
YX-26B 10.0-10.7 ≥9.00 ≥15 24-27 ≤250
YX-26C 10.0-10.7 ≥9.00 ≥25 24-27 ≤300
YX-26D 10.0-10.7 ≥9.00 ≥30 24-27 ≤350
YX-28A 10.3-11.0 5.0-6.0 6.00-8.50 26-29 ≤200
YX-28B 10.3-11.0 ≥9.00 ≥15 26-29 ≤250
YX-28C 10.3-11.0 ≥9.00 ≥25 26-29 ≤300
YX-28D 10.3-11.0 ≥9.00 ≥30 26-29 ≤350
YX-30A 10.8-11.3 5.0-6.0 6.00-8.50 28-31 ≤200
YX-30B 10.8-11.3 ≥9.00 ≥15 28-31 ≤250
YX-30C 10.8-11.3 ≥9.00 ≥25 28-31 ≤300
YX-30D 10.8-11.3 ≥9.00 ≥30 28-31 ≤350
ZYX-5 4.30-5.00 ≥3.80 8.0-12.0 4.0-5.0 ≤180
ZYX-8 5.00-6.50 ≥4.50 8.0-12.0 6.0-9.0 ≤180
ZSYX ≤6.50 ≤6.0 8.0-12.0 ≤9.0 ≤180



SmCo Other Physical Properties
  SmCo5 Sm2Co17
Temperature Coefficent of Br(%/°C) -0.05 -0.03
Temperature Coefficent ofiHc(%/°C) -0.3 -0.2
Curie Temperature(°C) 700-750 800-850
Density(g/cm3) 8.2-8.4 8.3-8.5
Vickers Hardness(HV) 450-500 500-600
Working Temperature(°C) 250 350
