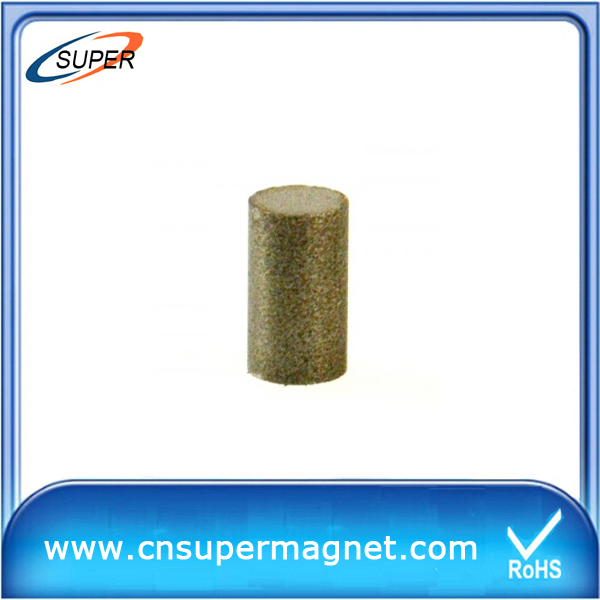

High Quality D10*20mm SmCo Permanent Magnet

Share to:

Quantity:


Inquire Add to Basket

Model: D10*20mm SmCo Permanent Magnet
Unit: piece D10*20mm SmCo Permanent Magnet
Min order: 1 D10*20mm SmCo Permanent Magnet

High Quality D10*20mm SmCo Permanent Magnet

Specifications

1)Constitution: 35% Sm, 60% Co and 5% Fe & Cu
2)SmCo Magnet(Samarium Cobalt magnet) has superior resistance to high temperature(max temp
reaches 350 degree centigrade).When working at above 180 degree centigrade, its maximum energy
product BH and temperature stability are superior than NdFeB magnet.
2)Excellent resistance to corrosion, no coating is needed for the surface protecting.
3)SmCo is suitable for machines with high magnetic requirements and good for strict working environment
requirements
4)All sorts of SmCo are used in the electronic magnetron, magnetic transmission, magnetic treatment,
magnistor, etc
5)Certification: ISO 9001 :2008 quality system.
6) High energy ranging from 14MGOe to 30MGOe
7) Reliable coercive force
8) With the best temperature characteristics in rare earth material family.
SmCo magnets
Sintering SmCo magnets are circularly made by strict powder metal technology and heat processing. This kind of magnet conveys
samariam for 35%, cobalt for 60%, element Fe and Cu. Through altering proportioning of compositions and circulation of sintering
and heating, we can make two materials_ 1: 5 and 2: 17. The difference lies in energy product, temperature coefficient and coercivity.
The most common material, 2: 17, has better property and lower temperature coefficient, but it is more expensive and should be
magnetized in high magnetic field.
Americans invented SmCo5 and SmCo17 in 1965 and 1972. This invention drives a high wave to study and explore new permanent
magnetism, and promote the development of the materical rapidly. This material is produced by powder metallurgy, and its specialty
is its magnetic stability, temperature resistance, and excellent resistance of corrosion. Its max magnetic energy prduct is 15~30MGOe
which is 3~5 times to AlNiCo magnets. Its intrinsic coercivity is over 25kOe, and its highest working temperature is 350 C.
SmCo magnet is very suitable for manufacture the products with high-performance like magnetic motors and other applied products requiring high working temperature.

High Quality D10*20mm SmCo Permanent Magnet

Grade	(Br) ( KGs)	(Hcb) ( Koe)	(Hcj)(Koe)	(BH)max (MGoe)	Tw
SmCo5
YX-5	4.30-5.00	≥3.80	≥15	4.0-5.0	≤250
YX-6	5.00-6.00	≥4.50	≥15	5.0-7.0	≤300
YX-16	7.50-8.50	≥7.00	≥15	14-17	≤250
YX-18	8.50-9.20	≥8.00	≥18	16-19	≤250
YX-20	8.80-9.50	≥8.30	≥18	18-21	≤250
YX-22	9.00-9.80	≥8.50	≥15	21-23	≤250
YX-24	9.5-10.30	≥9.00	≥15	22-25	≤250
Sm2Co17
YX-24A	9.5-10.30	5.0-6.0	6.00-8.50	22-25	≤200
YX-24B	9.5-10.30	≥9.00	≥15	22-25	≤250
YX-24C	9.5-10.30	≥9.00	≥25	22-25	≤300
YX-24D	9.5-10.30	≥9.00	≥30	22-25	≤350
YX-26A	10.0-10.7	5.0-6.0	6.00-8.50	24-27	≤200
YX-26B	10.0-10.7	≥9.00	≥15	24-27	≤250
YX-26C	10.0-10.7	≥9.00	≥25	24-27	≤300
YX-26D	10.0-10.7	≥9.00	≥30	24-27	≤350
YX-28A	10.3-11.0	5.0-6.0	6.00-8.50	26-29	≤200
YX-28B	10.3-11.0	≥9.00	≥15	26-29	≤250
YX-28C	10.3-11.0	≥9.00	≥25	26-29	≤300
YX-28D	10.3-11.0	≥9.00	≥30	26-29	≤350
YX-30A	10.8-11.3	5.0-6.0	6.00-8.50	28-31	≤200
YX-30B	10.8-11.3	≥9.00	≥15	28-31	≤250
YX-30C	10.8-11.3	≥9.00	≥25	28-31	≤300
YX-30D	10.8-11.3	≥9.00	≥30	28-31	≤350
ZYX-5	4.30-5.00	≥3.80	8.0-12.0	4.0-5.0	≤180
ZYX-8	5.00-6.50	≥4.50	8.0-12.0	6.0-9.0	≤180
ZSYX	≤6.50	≤6.0	8.0-12.0	≤9.0	≤180

SmCo Other Physical Properties
	SmCo5	Sm2Co17
Temperature Coefficent of Br(%/°C)	-0.05	-0.03
Temperature Coefficent ofiHc(%/°C)	-0.3	-0.2
Curie Temperature(°C)	700-750	800-850
Density(g/cm3)	8.2-8.4	8.3-8.5
Vickers Hardness(HV)	450-500	500-600
Working Temperature(°C)	250	350
