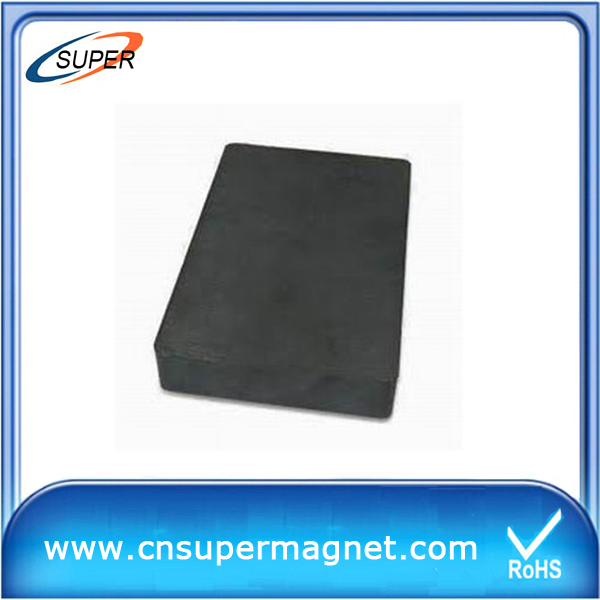

Block Ferrite Magnet/Promotional Ferrite Magnet/sales Ferrite Magnet

loading

Share to:
Quantity:
Inquire Add to Basket

  • Y10T,Y25,Y30,Y33,Y35, Y30BH,Y33BH,etc
  • Y10T,Y25,Y30,Y33,Y35, Y30BH,Y33BH
  • Super
  • 150 longton/month
  • Anhui,China
  • Standard Export Carton
  • Piece/Block Ferrite Magnet
  • 150 longton/month
  • Block Ferrite Magnet
  • 5 days after deposit
  • 1
  • T/T
1.Material: ferrite powder, etc
2.Grade: Y25, Y30, Y30BH, Y35
3.Size:  L44 * W22 * T11mm, L47 * W22 * T9 , L50 * W19 * T4 , L65 * W15 * T4 , L83 * W55 * T22 ,etc.
4.Shape: Arc, Block, Bar, Ring, Cube, Disc, or others.
5.Application: Widely used in ammeter, speaker, audio, phone, TV, dynamo, DC permanent magnet motors (used in    cars), etc
Characteristics:
* Low cost, high-energy, good electric insulation and excellent resistance to demagnetization.
* High coercive force, high electric resistance, long-time stability, and economical price.
Type:
Isotropic ferrite magnets



Block Ferrite Magnet
Grade Br(mT) Hcb(KA/m) Hcj(KA/m) BHmax(Kj/m3)
 Y10T  200-235 125-160 210-280  6.5-9.5
 Y25  360-400 135-170  140-200  22.5-28.0
 Y30  395-415 275-300  310-335  27.0-32.5
 Y33  410-430 220-250  225-255  31.5-35.0
 Y33BH  410-430 250-270  250-275  31.5-35.0
 Y35  430-450 215-239  217-241  33.1-38.2
