Alnico is an acronym referring to a family of iron alloys which in addition to iron are composed primarily of aluminium (Al), nickel (Ni) and cobalt (Co), hence al-ni-co. They also include copper, and sometimes titanium. Alnico alloys are ferromagnetic, with a high coercivity (resistance to loss of magnetism) and are used to make permanent magnets. Before the development of rare earth magnets in the 1970s, they were the strongest type of magnet. Other trade names for alloys in this family are: Alni, Alcomax, Hycomax, Columax, and Ticonal.


       The composition of alnico alloys is typically 8–12% Al, 15–26% Ni, 5–24% Co, up to 6% Cu, up to 1% Ti, and the balance is Fe. The development of alnico began in 1931, when T. Mishima in Japan discovered that an alloy of iron, nickel, and aluminum had a coercivity of 400 oersted (Oe; 32 kA/m), double that of the best magnet steels of the time.

       Alnico alloys have some of the highest Curie temperatures of any magnetic material, around 800 °C (1,470 °F), although the maximum working temperature is normally limited to around 538 °C (1,000 °F).They are the only magnets that have useful magnetism even when heated red-hot.This property, as well as its brittleness and high melting point, is the result of the strong tendency toward order due to intermetallic bonding between aluminium and its other constituents. They are also one of the most stable magnets if they are handled properly. Alnico magnets are electrically conductive, unlike ceramic magnets.

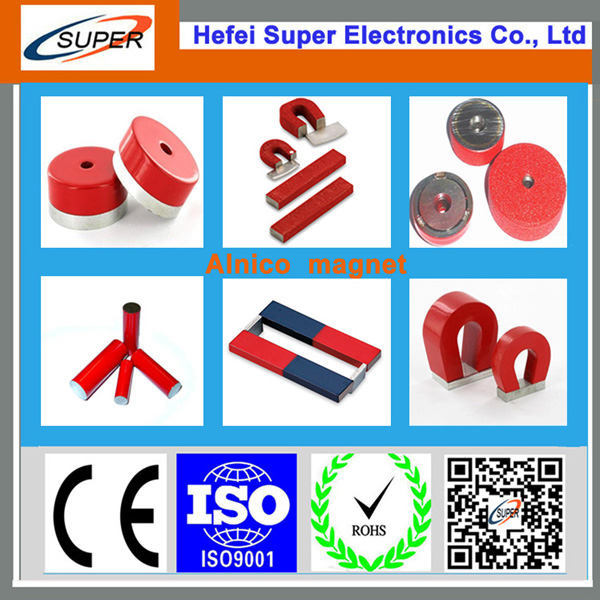

              Alnico magnet
 production flow


Sintered Alnico Cast Alnico
                                               ↓ ↓
                                      Raw materials
                                               ↓ ↓
                                Ingredients Ingredients
                                               ↓ ↓
                                 Crack powder melting
                                               ↓ ↓
                                      Pour repression
                                               ↓ ↓
                               Sintering heat treatment
                                               ↓ ↓
                    Magnetic seizure heat treatment NdFeB
                                               ↓ ↓
                            Magnetic seizure finishing
                                               ↓ ↓
                                          Finishing
                                                ↓
                                     Finished finished


Applications
 Alnico magnet products are widely used in various instruments  and other high-temperature applications.



  • [Magnet Industry News] What is Magnetic tile

    First, the definition of magnetic tile: magnetic tile talking about here is a permanent magnet in a permanent magnet motor is mainly used in the tile-shaped magnets.Second, the magnetic tile classification: magnetic tile depending on their raw materials are mainly three categories:1, ferrite magneti

  • [Magnet Industry News] Plastalloy Chip Collector Flexible Ferrite Magnet

    Plastalloy Chip Collector Flexible Ferrite MagnetPlastalloy™ Flexible Ferrite Magnetic Chip Collector Painted Plastalloy Flexible Ferrite MagnetPainted Plastalloy™ Flexible Ferrite Magnet Special Cutting TechniquesSpecial Cutting Tec

  • [Magnet Industry News] Introduction of Ferrite Magnet

    The ferrite is made of iron oxide and other ingredients. Generally can be divided into permanent ferrite, soft ferrite and rotating ferrite three.Permanent magnet ferrite, also known as ferrite magnet, is what we usually see the black small magnet. Its composition of raw materials are mainly iron ox

  • [Magnet Industry News] What is rubber magnet

    Rubber Magnet is a kind of ferrite insulator series, which is made of flexible, elastic and distorted by the process of combining ferrite magnetic powder with synthetic rubber, extruded, calendered and injection molding.
